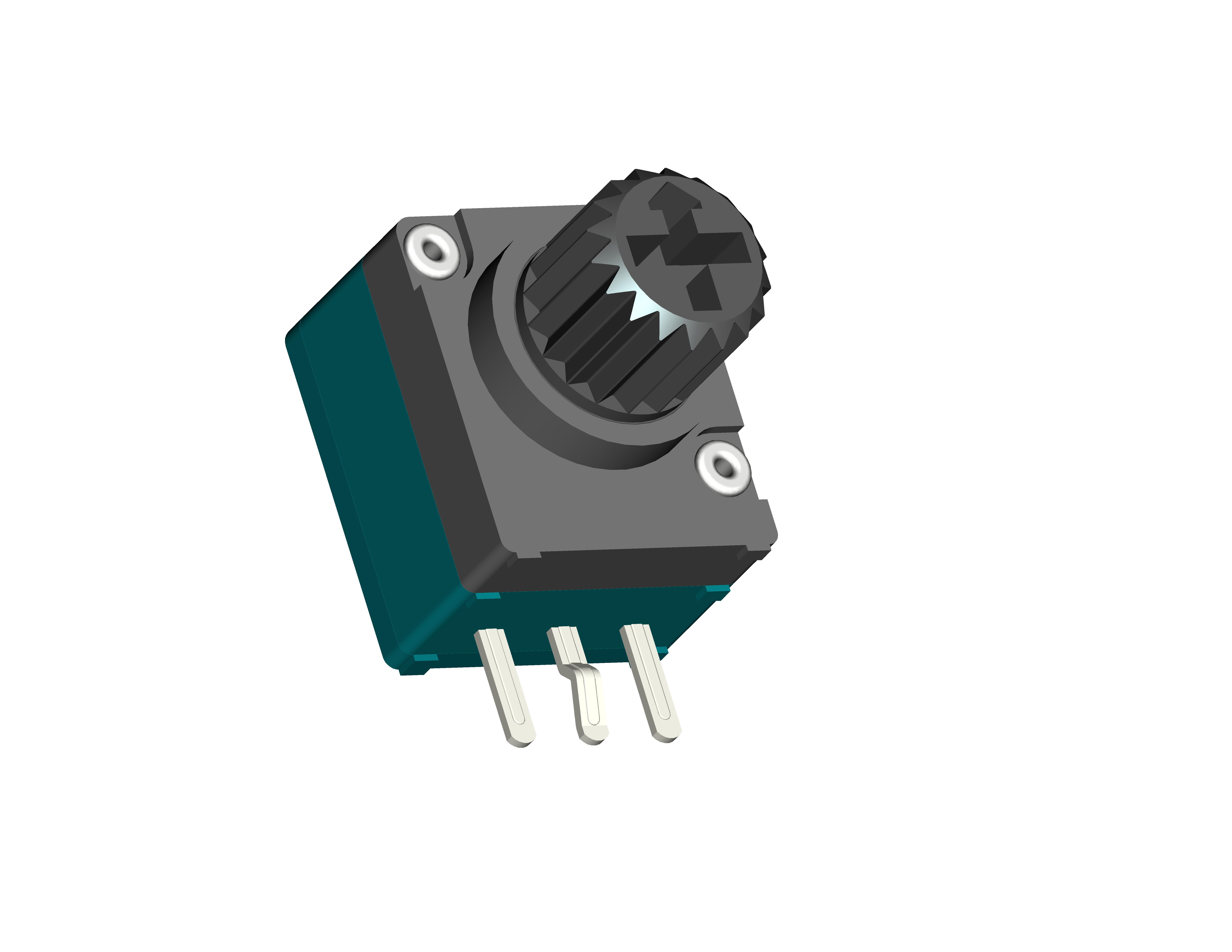

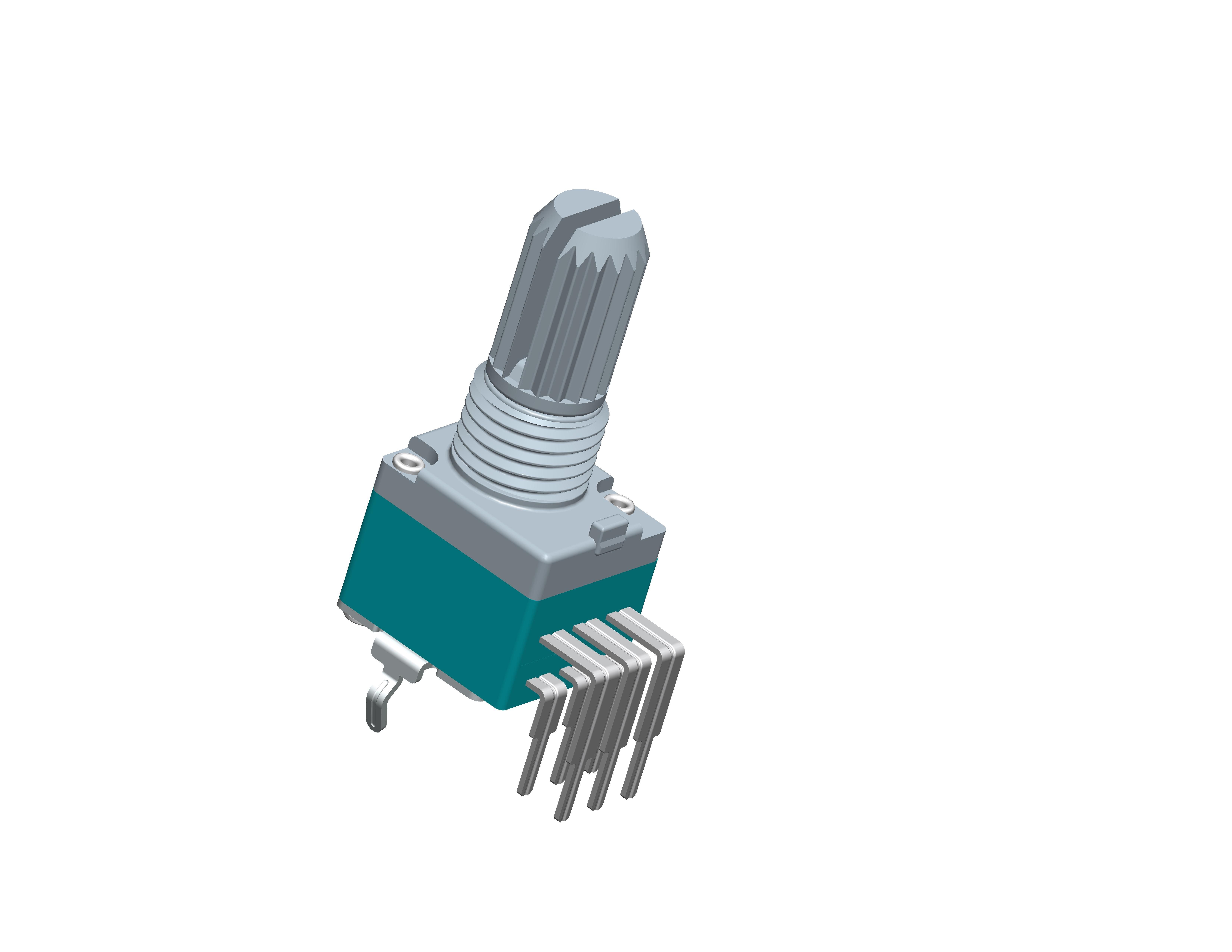

Through Hole DIP Mount Rotary Potentiometer Plastic and Metal Design Offering 100MΩ Min Insulation Resistance for Performance

Product Description:

The Rotary Potentiometer is a versatile and reliable component widely used in various electronic applications for adjusting voltage levels and sensing rotational position. Constructed with a combination of durable plastic and high-quality metal materials, this potentiometer ensures long-lasting performance and robust operation under diverse environmental conditions. The use of plastic in the body provides insulation and lightweight design, while the metal parts, including the shaft and terminals, offer excellent conductivity and mechanical strength, making it an ideal choice for both hobbyists and professional engineers.

This product is available with different shaft types to suit a range of installation and user interface requirements. You can choose from round, flat, or knurled shafts depending on the application. The round shaft provides smooth rotation and is commonly used for general purposes. The flat shaft allows for secure attachment of knobs and prevents slipping, making it suitable for precise adjustments. The knurled shaft, with its textured surface, offers enhanced grip and better control, especially in settings where manual tuning is frequently required. This flexibility in shaft options makes the Rotary Potentiometer adaptable to many devices and control panels.

The resistance range of this Rotary Potentiometer spans from 300 ohms to 3 megaohms (3MΩ), covering a wide spectrum of applications. Whether you need a low-resistance component for fine control or a high-resistance option for specific circuit requirements, this potentiometer can meet those demands. Additionally, it features a resistance tolerance of ±20%, ensuring that the resistance value stays within acceptable limits for reliable circuit operation. This tolerance level is suitable for most general-purpose applications, balancing precision with cost-effectiveness.

One of the key functionalities of this product is its role as a Rotary Electrical Position Sensor. It accurately translates the mechanical rotation of the shaft into an electrical signal, which can be used for position feedback in various devices such as volume controls, tuning circuits, and industrial machinery. The smooth and stable operation of the sensor makes it a preferred component in systems where precise position sensing is critical.

Moreover, this potentiometer functions effectively as a Rotary Voltage Divider Potentiometer. By adjusting the position of the wiper along the resistive track, it divides the input voltage into a variable output voltage. This characteristic is essential in applications like signal conditioning, calibration, and user interface controls in audio equipment, lighting systems, and other electronic devices. The multi-turn capability of the potentiometer allows for fine adjustments over multiple rotations, providing greater accuracy and control compared to single-turn alternatives.

The product also qualifies as a Rotary Multi-Turn Potentiometer, which is particularly beneficial in scenarios requiring precise tuning and calibration. The multi-turn design extends the rotation range, enabling users to make incremental adjustments with high resolution. This feature is especially useful in laboratory instruments, measurement devices, and other precision electronics where fine control over resistance and voltage is necessary.

For connectivity, the Rotary Potentiometer is equipped with PCB lug terminals. These terminals are designed for easy and secure mounting onto printed circuit boards, facilitating straightforward integration into electronic assemblies. The PCB lug type ensures reliable electrical connections and simplifies the soldering process, making the potentiometer suitable for automated manufacturing as well as manual assembly.

In summary, this Rotary Potentiometer combines durable plastic and metal construction with versatile shaft options, a broad resistance range, and reliable tolerance to deliver a high-performance Rotary Electrical Position Sensor, Rotary Voltage Divider Potentiometer, and Rotary Multi-Turn Potentiometer all in one package. Its PCB lug terminal design further enhances its usability in modern electronic devices, making it a highly adaptable and dependable component for a wide array of applications.

Features:

• Product Name: Rotary Voltage Divider Potentiometer
• Type: Rotary Analog Adjustment Device
• Mounting Type: Through Hole/DIP Mount
• Shaft Type Options: Round, Flat, Knurled
• Dielectric Strength: 500VAC
• Operating Temperature Range: -25℃ to 85℃
• Dimension: 9mm
• Reliable and precise Rotary Voltage Divider Potentiometer

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, originating from Dongguan, China, is a versatile and reliable component widely used as a rotary manual adjustment tool in various electronic devices. This rotary variable resistor is designed to provide precise control over electrical resistance, making it ideal for fine-tuning circuits and adjusting signal levels. With a rotational life of 10,000 cycles, it ensures long-lasting performance and durability, suitable for both industrial and consumer applications.

Available with shaft types including round, flat, and knurled, the SANNI Rotary Potentiometer offers flexibility to meet diverse design requirements. The shaft diameter of 6mm, or customized sizes upon request, allows for easy integration into different mechanical assemblies. The PCB lug terminal type ensures secure and straightforward mounting on printed circuit boards, enhancing the overall stability and reliability of the device.

This rotary variable resistor is commonly employed in audio equipment such as amplifiers and mixers, where precise volume and tone control are essential. It is also used in lighting systems to adjust brightness levels smoothly, making it an indispensable rotary manual adjustment tool for lighting designers and technicians. Additionally, the potentiometer finds applications in instrumentation and measurement devices, where accurate calibration and signal adjustment are critical for optimal performance.

In automotive electronics, the SANNI Rotary Potentiometer serves as a control interface for dashboards and infotainment systems, enabling users to adjust various settings effortlessly. Its robust construction and high rotational endurance make it suitable for the demanding conditions of automotive environments. Furthermore, it is utilized in industrial machinery for speed and position control, benefiting from its precise resistance variation and reliable operation over extended use.

Overall, the SANNI Rotary Potentiometer is an essential component for engineers and designers seeking a dependable rotary variable resistor that combines quality, versatility, and longevity. Whether used as a rotary manual adjustment tool in consumer electronics, industrial controls, or automotive systems, it delivers consistent performance and ease of use, backed by the trusted manufacturing standards of SANNI in Dongguan, China.

Customization:

SANNI offers customized Rotary Potentiometer solutions designed to meet your specific needs. Our Rotary Linear Variable Resistor products are manufactured in Dongguan, China, ensuring high quality and reliability. These rotary variable resistors operate efficiently within a temperature range of -25℃ to 85℃, making them suitable for various environmental conditions.

With a resistance range from 300Ω to 3MΩ and a power rating of 0.05W, our Rotary Linear Variable Resistor units provide precise control and durability. The terminal type is PCB lug, facilitating easy integration into your electronic assemblies. Additionally, the potentiometers are single gang, ideal for straightforward applications requiring a single adjustable resistance.

Choose SANNI's Rotary Variable Resistor customization services for tailored solutions that combine performance and flexibility, perfect for your electronic projects and devices.

Support and Services:

Our Rotary Potentiometers are designed to provide precise and reliable control in a variety of applications. For optimal performance and longevity, please follow the installation and usage guidelines provided in the product manual.

If you encounter any issues with your Rotary Potentiometer, first verify the wiring and connections according to the schematic. Ensure that the device is operated within the specified voltage and power ratings to prevent damage.

For maintenance, keep the potentiometer free from dust and debris. Avoid exposure to excessive moisture or corrosive environments, which can affect the device’s accuracy and lifespan.

In case of malfunction or failure, please consult the troubleshooting section of the user guide. Replace the component if necessary, using only genuine parts to ensure compatibility and performance.

We offer comprehensive technical support to assist with installation, configuration, and troubleshooting. Our team is committed to providing prompt and knowledgeable assistance to help you maximize the benefits of your Rotary Potentiometer.

For additional resources, including datasheets, application notes, and software tools, please visit our official website.

Packing and Shipping:

Product Packaging:

The Rotary Potentiometer is securely packaged in anti-static bags to prevent any damage from electrostatic discharge during handling and transportation. Each unit is then placed into a sturdy, cushioned box to ensure protection against physical impacts. For bulk orders, multiple units are packed in a reinforced carton with adequate padding to avoid movement and potential damage.

Shipping:

We offer worldwide shipping with reliable courier services to ensure timely delivery. Each package is labeled clearly with handling instructions and tracking information. Shipping options include standard, expedited, and express delivery to accommodate various customer needs. All shipments are carefully inspected before dispatch to guarantee product quality upon arrival.
