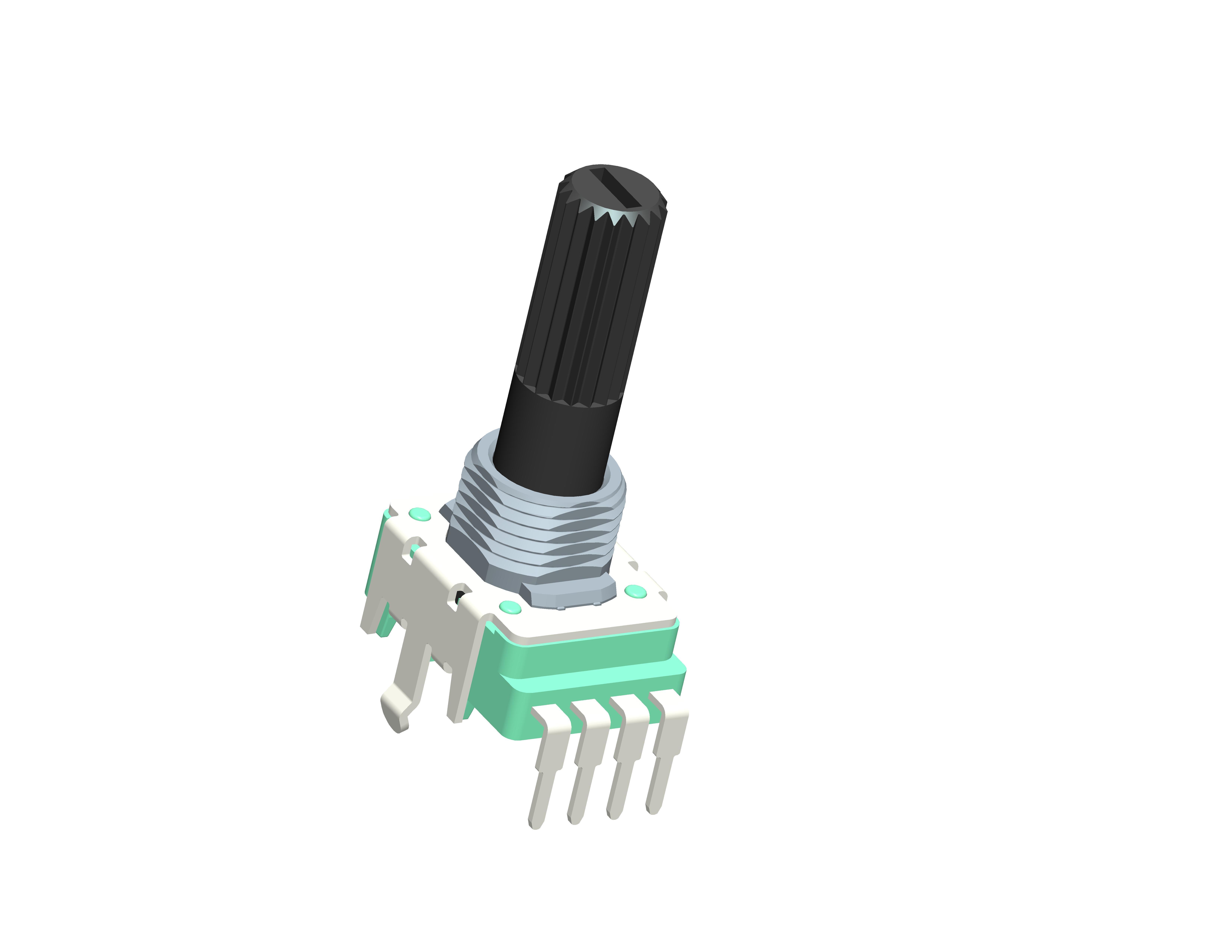

Round Shaft Type Rotary Potentiometer with 500VAC Dielectric Strength and Through Hole Mounting Type Providing Resistance Adjustment

Product Description:

The Rotary Potentiometer is a highly reliable and versatile component designed for precision control in a wide range of electronic applications. As a Rotary Manual Adjustment Tool, it offers users the ability to finely tune resistance values with ease and accuracy. This product stands out due to its impressive technical specifications, making it an ideal choice for engineers, technicians, and hobbyists alike who require consistent performance and durability in their manual adjustment tools.

One of the key attributes of this Rotary Potentiometer is its exceptional insulation resistance, rated at a minimum of 100MΩ. This high insulation resistance ensures minimal leakage current and excellent electrical isolation between the terminals, which is crucial for maintaining signal integrity and preventing unwanted interference in sensitive circuits. Whether used in audio equipment, instrumentation, or control systems, this feature guarantees reliable operation over extended periods.

Durability is another significant advantage of this Rotary Manual Adjustment Tool. The potentiometer boasts a rotational life of up to 10,000 cycles, demonstrating its robustness and long-lasting performance. This means users can confidently depend on the device for repeated adjustments without worrying about wear and tear compromising its functionality. The smooth rotational action also contributes to precise control, allowing for incremental changes in resistance that are essential for fine-tuning electronic parameters.

The resistance range of this potentiometer is notably broad, spanning from 300Ω to 3MΩ. This extensive range caters to a variety of applications, from low-resistance settings for power regulation to high-resistance adjustments in signal processing circuits. Such flexibility makes this Rotary Manual Adjustment Tool adaptable to different design requirements, enabling it to fit seamlessly into numerous electronic devices and systems.

Safety and reliability are further enhanced by the potentiometer's dielectric strength of 500VAC. This specification indicates the component’s ability to withstand high voltage stress without breaking down, ensuring safe operation even in demanding electrical environments. It provides peace of mind to users who need a manual adjustment tool that can handle rigorous conditions without compromising performance or safety.

The shaft material of the Rotary Potentiometer is crafted from high-quality plastic, which offers several benefits. Plastic shafts are lightweight, corrosion-resistant, and contribute to smooth rotational movement. They also provide electrical insulation, preventing any unintended conduction through the shaft, which can be critical in certain circuit designs. The ergonomic design of the plastic shaft enhances user comfort during manual adjustments, making it easier to achieve precise resistance settings.

In summary, this Rotary Potentiometer is an outstanding Rotary Manual Adjustment Tool that combines high insulation resistance, extensive rotational life, wide resistance range, strong dielectric strength, and a durable plastic shaft to deliver superior performance. Its well-rounded features make it suitable for a broad spectrum of applications, from consumer electronics and industrial controls to scientific instruments and audio devices. Whether you are fine-tuning a circuit or calibrating equipment, this Rotary Manual Adjustment Tool provides the reliability, precision, and ease of use necessary to meet your adjustment needs effectively.

Choosing this Rotary Potentiometer means investing in a product designed to offer consistent manual control and long-term reliability. Its robust construction and comprehensive specifications make it an essential component for anyone seeking a dependable Rotary Manual Adjustment Tool for their electronic projects or professional designs.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Electrical Position Sensor
• Function: Rotary Adjustable Resistor / Rotary Variable Resistor
• Insulation Resistance: 100MΩ Min
• Dielectric Strength: 500VAC
• Material: Plastic & Metal
• Power Rating: 0.05W
• Gang: Single

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer Device, originating from Dongguan, China, is an essential component widely used in various electronic applications. Its compact 9mm dimension and through hole/DIP mount design make it ideal for integration into both professional and DIY electronic projects. This rotary potentiometer is crafted from durable plastic and metal materials, ensuring longevity and reliable performance even in demanding environments.

One of the primary application occasions for the SANNI Rotary Potentiometer is in precision manual adjustment tasks. As a Rotary Manual Adjustment Tool, it allows users to finely tune electrical resistance with ease, making it perfect for calibrating circuits and adjusting signal levels. Its single gang configuration simplifies installation and makes it suitable for applications where space is limited but precise control is required.

In scenarios where multi-turn adjustments are necessary, the Rotary Multi-Turn Potentiometer variant from SANNI provides enhanced control over resistance settings. This feature is particularly beneficial in audio equipment, instrumentation, and control devices where incremental adjustments are critical. The low power rating of 0.05W ensures energy efficiency while maintaining accurate performance.

The versatility of the SANNI Rotary Potentiometer Device extends to various industries including consumer electronics, automotive systems, and industrial machinery. For instance, it can be used in volume control knobs on audio devices, as tuning controls in radio equipment, or as part of feedback systems in automation processes. Its robust construction and reliable mounting options encourage its use in both prototype development and final product manufacturing.

Moreover, the Rotary Manual Adjustment Tool is favored in educational settings and laboratories where students and technicians require a hands-on component to experiment with circuit behavior. Its user-friendly design combined with precise adjustment capability makes it a practical choice for both beginners and experienced engineers.

In summary, the SANNI Rotary Potentiometer, with its solid build, compact size, and precise adjustment capabilities, is a versatile tool suitable for a wide range of application occasions and scenarios. Whether it is used as a Rotary Potentiometer Device in electronic circuits or as a Rotary Multi-Turn Potentiometer for more intricate control, it provides dependable performance that meets the demands of modern electronic design and development.

Customization:

At SANNI, we offer comprehensive product customization services for our Rotary Potentiometer, a high-quality Rotary Analog Adjustment Device. Manufactured in Dongguan, China, our potentiometers are made from durable plastic and metal materials, ensuring long-lasting performance and reliability.

Our Rotary Multi-Turn Potentiometer can be customized to meet your specific resistance tolerance needs, with a standard tolerance of ±20%. The compact 9mm dimension allows for versatile application in various electronic devices.

Designed as a Rotary Linear Variable Resistor, our potentiometers feature a Through Hole/DIP Mount type for easy installation and secure mounting. Whether you require modifications in resistance values, mounting options, or dimensions, SANNI is committed to providing tailored solutions to suit your project requirements.

Trust SANNI for premium Rotary Potentiometer customization services that combine precision engineering with flexible design options.

FAQ:

Q1: What brand manufactures this rotary potentiometer?

A1: This rotary potentiometer is manufactured by the brand SANNI.

Q2: Where is the SANNI rotary potentiometer made?

A2: The SANNI rotary potentiometer is made in Dongguan, China.

Q3: What type of applications is the SANNI rotary potentiometer suitable for?

A3: The SANNI rotary potentiometer is suitable for various applications including volume control, tuning circuits, and adjusting signal levels in electronic devices.

Q4: How do I connect the SANNI rotary potentiometer in a circuit?

A4: The rotary potentiometer typically has three terminals; two for the resistor ends and one for the wiper. Connecting the two ends to the voltage source and ground, and the wiper to the input of your circuit allows you to adjust voltage output.

Q5: What resistance values are available for the SANNI rotary potentiometer?

A5: The SANNI rotary potentiometer is available in various resistance values to suit different circuit requirements. Please refer to the product specifications or contact the supplier for specific resistance options.
