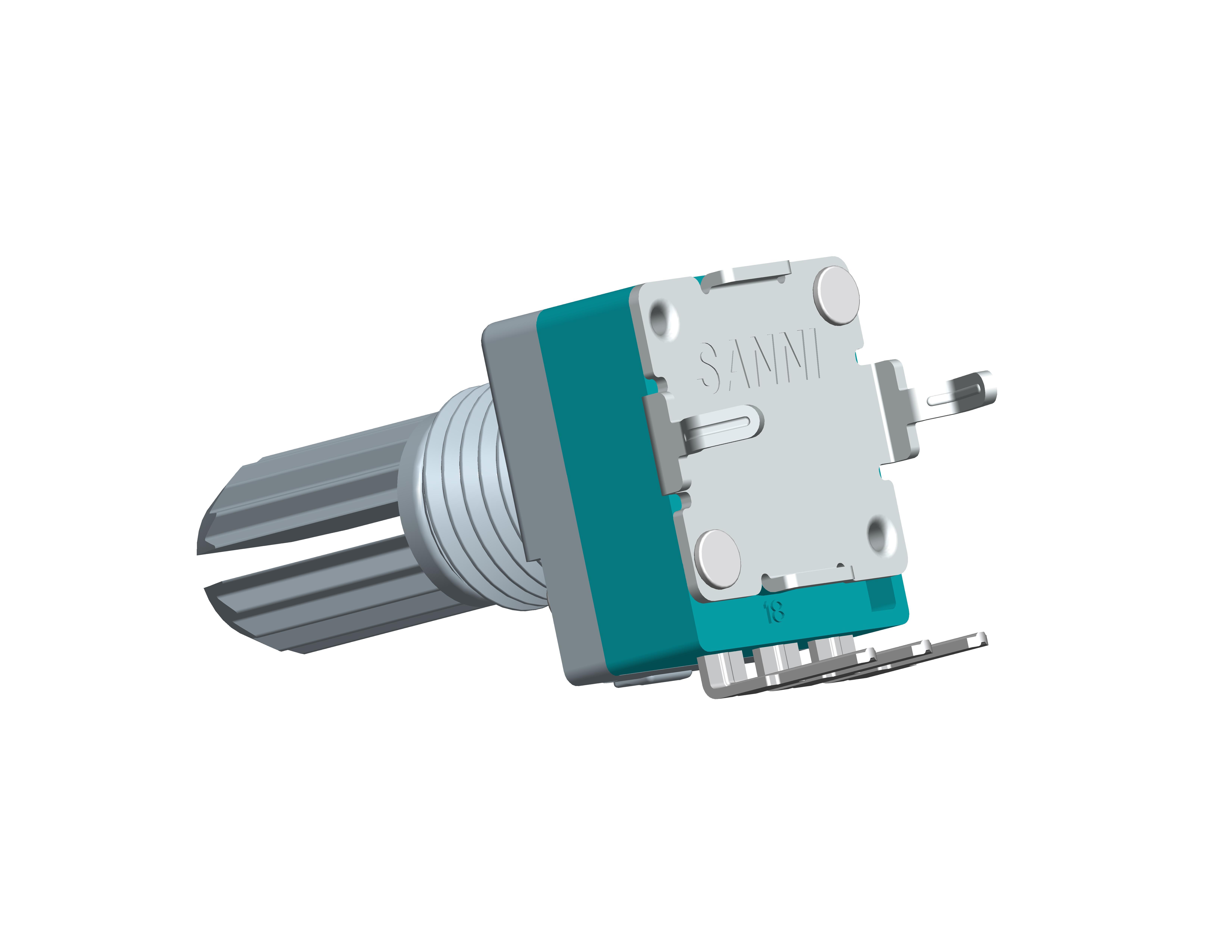

PCB Lug Terminal Type Rotary Potentiometer 6mm Shaft Diameter Round Flat Knurled Shaft Type Suitable for Precision Control

Product Description:

The Rotary Potentiometer is a versatile and reliable component widely used in various electronic circuits and devices to control voltage and adjust signal levels with precision. This Rotary Electrical Potentiometer offers a broad resistance range from 300Ω to 3MΩ, making it suitable for numerous applications requiring fine-tuned resistance control. Whether you are designing audio equipment, instrumentation, or control systems, this rotary potentiometer device provides excellent performance and durability.

One of the key features of this Rotary Potentiometer is its availability with different shaft types, including round, flat, and knurled options. This variety ensures compatibility with diverse mechanical setups, allowing users to select the shaft style that best fits their design requirements. The round shaft is ideal for general-purpose use and easy mounting, while the flat and knurled shafts offer enhanced grip and precise control, especially in situations where fine adjustments are necessary.

In terms of electrical performance, the Rotary Multi-Turn Potentiometer is designed to meet high standards of insulation and dielectric strength. It boasts a dielectric strength of 500VAC, which ensures that the component can withstand high voltage conditions without breakdown or failure. This robust dielectric capability makes it suitable for both low- and high-voltage applications, providing safety and reliability in operation.

Additionally, the insulation resistance of this rotary potentiometer device is rated at a minimum of 100MΩ. This high insulation resistance minimizes leakage currents and guarantees stable performance over time. It is particularly important in sensitive electronic circuits where signal integrity and component longevity are critical factors.

The Rotary Electrical Potentiometer also excels in its mechanical design, offering smooth rotational movement and consistent contact throughout its range. The multi-turn functionality allows for precise adjustments by enabling multiple rotations of the shaft, making it ideal for applications where fine tuning is necessary. This feature distinguishes it from single-turn potentiometers and provides enhanced control and accuracy.

Manufactured with high-quality materials and stringent quality control, this rotary potentiometer device ensures durability and long service life. It is engineered to withstand repetitive use without degradation in performance, making it a dependable choice for both industrial and consumer electronics.

Whether used in audio volume controls, light dimmers, sensor adjustments, or calibration circuits, the Rotary Multi-Turn Potentiometer provides the flexibility and reliability needed for professional-grade electronic designs. Its wide resistance range, multiple shaft options, high dielectric strength, and excellent insulation resistance make it a comprehensive solution for variable resistance requirements.

In summary, the Rotary Potentiometer is an essential component for anyone seeking precise, reliable, and durable resistance control in their electronic projects. With its extensive resistance range from 300Ω to 3MΩ, shaft versatility, and superior electrical properties, this rotary electrical potentiometer stands out as an excellent choice. Whether you need a round, flat, or knurled shaft, this rotary potentiometer device will meet your needs with exceptional performance and longevity.

Features:

• Product Name: Rotary Potentiometer
• Power Rating: 0.05W
• Operating Temperature Range: -25℃ to 85℃
• Material: Plastic & Metal
• Shaft Type Options: Round, Flat, Knurled
• Mounting Type: Through Hole and DIP Mount
• Functions as a Rotary Electrical Potentiometer for precise control
• Can be used as a Rotary Voltage Divider Potentiometer in various circuits
• Serves as a Rotary Variable Resistor for adjustable resistance applications

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, originating from Dongguan, China, is a versatile Rotary Manual Adjustment Tool designed for precision control in various electronic applications. With its durable plastic and metal construction, this device ensures long-lasting performance and reliability. The potentiometer features a shaft diameter of 6mm, which can be customized to meet specific requirements, making it adaptable for a wide range of devices and systems.

Available with round, flat, or knurled shaft types, the SANNI Rotary Potentiometer Device offers flexibility to suit different user preferences and application needs. The knurled shaft provides enhanced grip for more tactile feedback, while the flat shaft allows for easier integration with control knobs. This adaptability makes it ideal for use in audio equipment, instrumentation, and control panels where precise manual adjustments are critical.

The PCB lug terminal type on this Rotary Analog Adjustment Device simplifies the installation process on printed circuit boards, ensuring secure and stable connections. With a power rating of 0.05W, the potentiometer is suited for low-power applications, providing accurate resistance adjustments without overheating or damage, which is essential for sensitive electronic circuits.

In practical scenarios, the SANNI Rotary Potentiometer is commonly employed in consumer electronics such as radios, televisions, and other audio devices where volume or tone control is necessary. It is also widely used in industrial control systems to regulate parameters like speed, temperature, or light intensity. Additionally, hobbyists and engineers rely on this Rotary Manual Adjustment Tool for prototyping and fine-tuning electronic circuits due to its ease of use and dependable performance.

Furthermore, the compact size and customizable shaft options make the SANNI Rotary Potentiometer Device an excellent choice for automotive dashboards, medical instruments, and communication devices where space is limited but precise control is paramount. Its robust design ensures consistent functionality even in demanding environments.

Overall, the SANNI Rotary Potentiometer from Dongguan, China, stands out as a reliable Rotary Analog Adjustment Device that combines quality materials, customizable features, and ease of integration. Whether used in professional equipment or DIY projects, it provides smooth and accurate manual adjustments, making it an indispensable component in numerous electronic applications.

Customization:

At SANNI, we offer comprehensive product customization services for our Rotary Potentiometer devices, proudly made in Dongguan, China. Our Rotary Voltage Divider Potentiometer can be tailored to meet your specific requirements, with resistance values ranging from 300Ω to 3MΩ. We provide options for shaft diameter customization, including the standard 6mm or any other size you need. Designed to operate reliably within a temperature range of -25℃ to 85℃, our Rotary Electrical Potentiometer is constructed from high-quality plastic and metal materials to ensure durability and precision. Whether you need a specialized Rotary Potentiometer Device for industrial applications or custom specifications, SANNI is dedicated to delivering solutions that perfectly fit your needs.

FAQ:

Q1: What brand manufactures this rotary potentiometer?

A1: This rotary potentiometer is manufactured by the brand SANNI.

Q2: Where is the SANNI rotary potentiometer made?

A2: The SANNI rotary potentiometer is made in Dongguan, China.

Q3: What applications are suitable for the SANNI rotary potentiometer?

A3: The SANNI rotary potentiometer is suitable for various applications including audio equipment, control panels, and electronic devices requiring adjustable resistance.

Q4: What is the operating voltage range for the SANNI rotary potentiometer?

A4: The operating voltage range varies depending on the specific model, but typically it supports low voltage applications up to 24V DC.

Q5: How do I install the SANNI rotary potentiometer?

A5: The rotary potentiometer can be installed by mounting it onto a panel or PCB using the provided shaft and terminals. Detailed installation instructions are available in the product manual.
