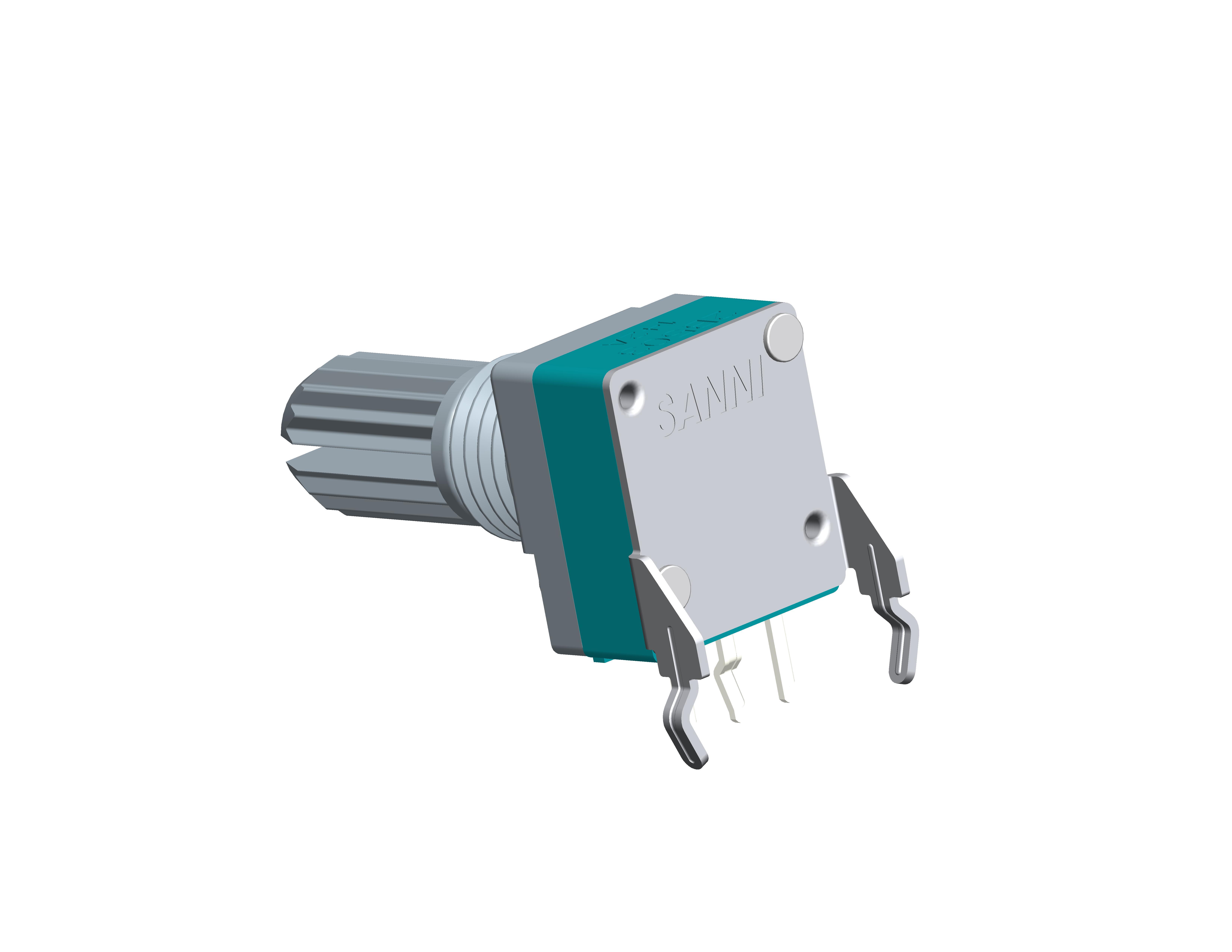

Plastic Metal Rotary Potentiometer Knurled Shaft Type Resistance Tolerance ±20 Percent Designed for Electronic Variable Resistance Control

Product Description:

The Rotary Potentiometer is a versatile and reliable electronic component widely used in various applications to measure and control electrical position. As a type of Rotary Electrical Position Sensor, this device offers precise adjustment capabilities, making it an essential element in both industrial and consumer electronics. Constructed from high-quality plastic and metal materials, the Rotary Potentiometer ensures durability, stability, and long-lasting performance even in demanding environments.

This Rotary Adjustable Resistor features a robust shaft available in multiple styles, including round, flat, and knurled options. These shaft types provide flexibility for different installation requirements and user preferences, allowing for smooth and accurate adjustment. The shaft length can be customized to range between 6mm and 20mm, accommodating a wide variety of design specifications and ensuring compatibility with different mechanical setups.

Designed with a dielectric strength of 500VAC, this Rotary Electrical Potentiometer is capable of withstanding high voltage stress without compromising its insulation properties or operational integrity. This attribute is particularly important for applications where electrical isolation and safety are critical, such as in control panels, instrumentation, and audio equipment.

The mounting options for this Rotary Potentiometer are equally versatile, with through-hole and DIP mount configurations available to suit diverse circuit board designs. The through-hole mounting type provides secure mechanical stability and superior electrical connection, making it ideal for applications that require robust assembly. Meanwhile, the DIP mount option offers ease of installation and compactness, perfect for space-constrained electronic devices.

Functionally, the Rotary Electrical Position Sensor operates by varying resistance as the shaft is rotated, enabling it to serve as a precise control element in circuits. It is widely utilized for adjusting signal levels, tuning devices, and calibrating instruments. The ability to finely tune resistance values makes the Rotary Adjustable Resistor indispensable in applications such as volume controls in audio systems, light dimmers, and motor speed controllers.

Moreover, the combination of plastic and metal in the construction of this Rotary Electrical Potentiometer ensures both lightweight design and mechanical strength. The plastic components contribute to reduced weight and corrosion resistance, while the metal parts provide structural integrity and reliable electrical contact. This balance enhances the overall efficiency and lifespan of the potentiometer.

Customization options further enhance the appeal of this product. Customers can specify shaft length according to their unique requirements, ensuring optimal fit and function within their devices. Such flexibility makes the Rotary Potentiometer an excellent choice for OEMs and engineers seeking tailored solutions for complex electronic applications.

In summary, the Rotary Potentiometer combines durable plastic and metal materials, multiple shaft types, high dielectric strength, and versatile mounting methods to deliver a high-performance Rotary Electrical Position Sensor. Its functionality as a Rotary Adjustable Resistor and Rotary Electrical Potentiometer makes it indispensable for precise electrical adjustments and control. Whether for industrial machinery, consumer electronics, or specialized instrumentation, this potentiometer meets the demands of modern electronic design with reliability and accuracy.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Electrical Position Sensor
• Also Known As: Rotary Electrical Potentiometer
• Dielectric Strength: 500VAC for reliable electrical insulation
• Shaft Diameter: 6mm standard or customized options available
• Shaft Length: 6mm to 20mm normal range, customizable upon request
• Operating Temperature Range: -25℃ to 85℃ suitable for various environments
• Durable and precise Rotary Electrical Position Sensor for accurate control

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, originating from Dongguan, China, is a highly reliable rotary analog adjustment device designed for precision and durability. With a compact dimension of just 9mm, this rotary adjustable resistor is ideal for applications where space is limited but accurate control is essential. Its robust construction, combining high-quality plastic and metal materials, ensures longevity and consistent performance across various environments.

This rotary linear variable resistor boasts a rotational life of up to 10,000 cycles, making it suitable for continuous use in both consumer electronics and industrial equipment. The resistance tolerance of ±20% allows for precise adjustments, which is critical in tuning circuits, controlling volume, or modifying signal levels. Its operating temperature range from -25℃ to 85℃ ensures reliable functionality in diverse climatic conditions, from cold storage facilities to warm industrial settings.

The SANNI rotary potentiometer is commonly used in audio equipment such as amplifiers and mixers, where it serves as a rotary analog adjustment device to fine-tune sound levels and tone controls. In automotive electronics, this rotary adjustable resistor helps regulate dashboard lighting, HVAC systems, and other controls requiring smooth, variable resistance adjustments. It is also widely employed in instrumentation panels, medical devices, and home appliances where precise manual control of electrical parameters is necessary.

In industrial automation, the rotary linear variable resistor is used for position sensing and control, providing operators with tactile feedback and accurate adjustment capabilities. Its small size and sturdy build make it perfect for integration into compact control panels and handheld devices. Additionally, hobbyists and electronic developers value the SANNI rotary potentiometer for prototyping and custom projects due to its ease of use and dependable performance.

Overall, the SANNI rotary potentiometer combines excellent mechanical endurance, precise resistance control, and versatile application potential, making it an indispensable component in a wide range of electronic and electrical systems. Whether for professional industrial equipment or everyday consumer gadgets, this rotary analog adjustment device delivers consistent, smooth operation and reliable results.

Customization:

SANNI, a trusted brand from Dongguan China, offers high-quality Rotary Voltage Divider Potentiometers that can be customized to meet your specific requirements. Our Rotary Adjustable Resistors feature a compact 9mm dimension and a power rating of 0.05W, ensuring reliable performance in various applications.

We provide customization options for the shaft type, including round, flat, and knurled designs, with a standard shaft diameter of 6mm or tailored sizes according to your needs. Each Rotary Voltage Divider Potentiometer is designed for durability, boasting a rotational life of 10,000 cycles to guarantee long-lasting operation.

Whether you need a specialized Rotary Voltage Divider Potentiometer or a precision Rotary Adjustable Resistor, SANNI is committed to delivering customized solutions that enhance your product's functionality and performance.

FAQ:

Q1: What is the brand name of this rotary potentiometer?

A1: The brand name of this rotary potentiometer is SANNI.

Q2: Where is the SANNI rotary potentiometer manufactured?

A2: It is manufactured in Dongguan, China.

Q3: What applications are suitable for the SANNI rotary potentiometer?

A3: The SANNI rotary potentiometer is suitable for use in audio equipment, control panels, and various electronic devices requiring variable resistance control.

Q4: What is the typical resistance range available for this rotary potentiometer?

A4: The SANNI rotary potentiometer is available in various resistance values, typically ranging from 1kΩ to 1MΩ, depending on the model.

Q5: How do I connect the SANNI rotary potentiometer in a circuit?

A5: The rotary potentiometer has three terminals: two end terminals connected to a fixed resistance and a middle wiper terminal that varies resistance. Connect the end terminals to the power and ground, and the wiper terminal to your input signal to adjust voltage or resistance.
