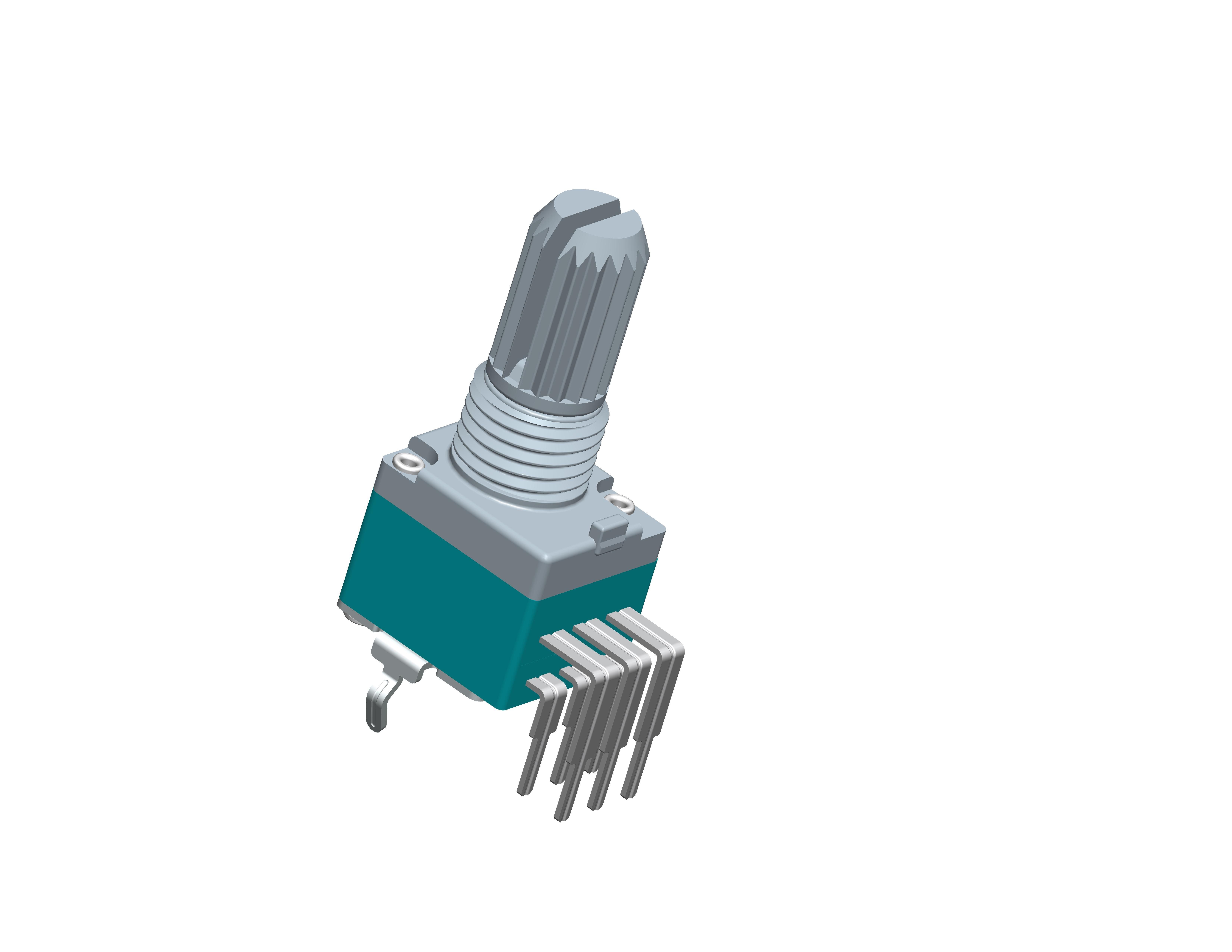

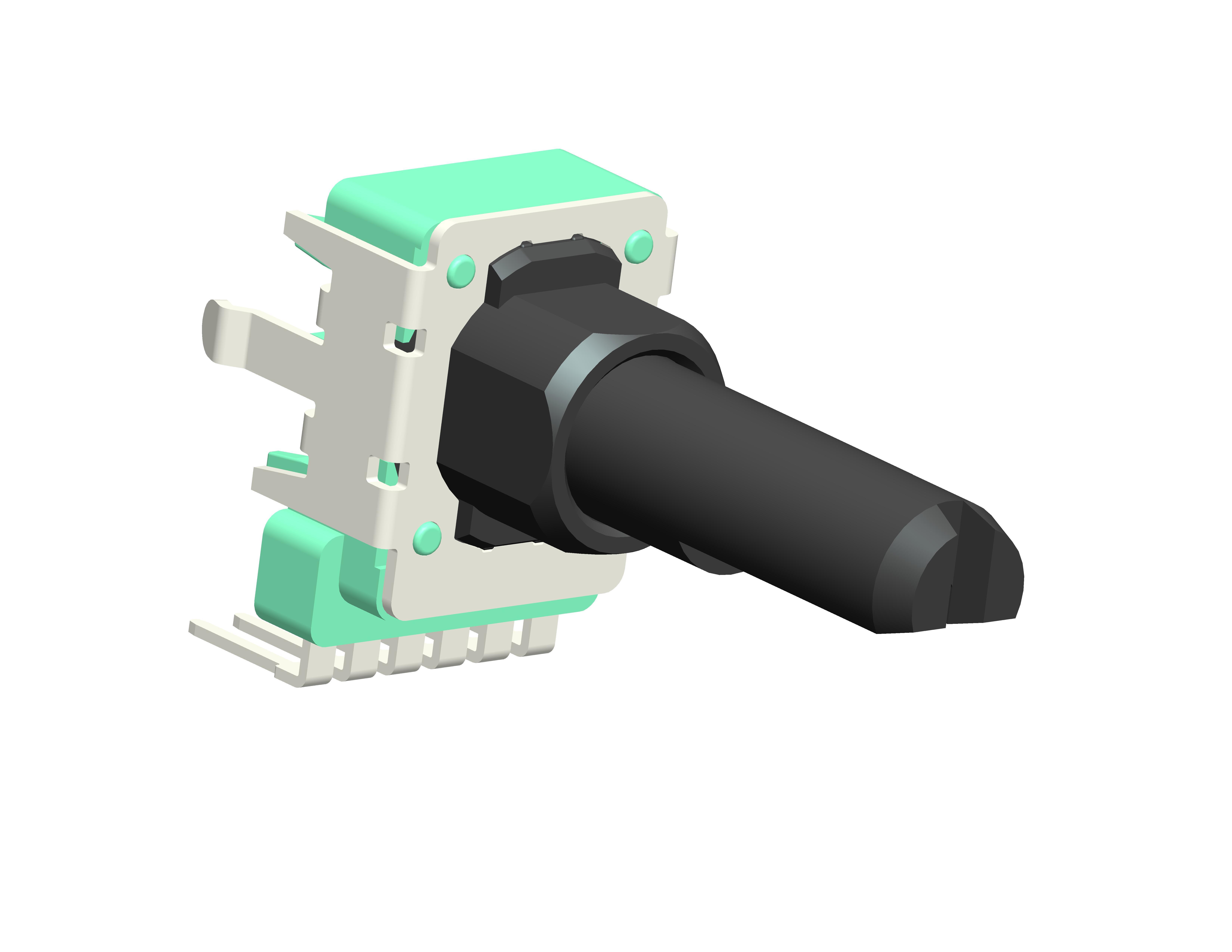

RV11 Dual Gang Rotational Life 10000Cycles Rotary Variable Resistor Featuring PCB Lug Terminal Type Providing Performance in Industrial Electronic Controls

Product Description:

The Rotary Potentiometer is a versatile and reliable Rotary Potentiometer Device designed to provide precise control over electrical resistance in a wide range of applications. Constructed from high-quality plastic and metal materials, this device ensures durability, stability, and long-lasting performance even in demanding environments. Its robust build quality makes it an excellent choice for both industrial and consumer electronics where accurate position sensing and adjustable resistance are crucial.

This Rotary Potentiometer functions as a Rotary Electrical Position Sensor, capable of converting angular displacement into a variable electrical signal. It operates by varying the resistance in a circuit as the shaft is rotated, enabling smooth and precise adjustment of voltage levels. This feature makes it indispensable in applications such as volume controls, tuning circuits, light dimmers, and various instrumentation devices where fine-tuning of electrical parameters is needed.

Featuring a single gang configuration, this Rotary Variable Resistor offers straightforward and reliable resistance adjustment through one resistive track. The single gang design simplifies installation and integration into circuits, making it suitable for a broad spectrum of electronic devices. Whether you need to control audio signals, regulate power, or adjust sensor outputs, this single gang potentiometer provides the necessary functionality with high accuracy.

The shaft diameter of this Rotary Potentiometer is 6mm, a standard size that fits comfortably in most designs and allows for easy handling and adjustment. Additionally, customization options are available to cater to specific requirements, ensuring compatibility with various mechanical setups and user preferences. This flexibility makes the product adaptable to numerous applications, enhancing its utility and customer satisfaction.

One of the critical safety and performance features of this device is its dielectric strength of 500VAC. This high dielectric strength ensures the potentiometer can withstand significant voltage stress without breakdown or failure, providing reliable insulation between conductive parts. This characteristic is particularly important in applications where electrical isolation and safety are paramount, preventing short circuits and ensuring long-term operational integrity.

In summary, the Rotary Potentiometer Device combines durable plastic and metal materials, a single gang resistive element, a standard or customizable 6mm shaft diameter, and impressive dielectric strength to deliver precise and reliable performance. As a Rotary Electrical Position Sensor and Rotary Variable Resistor, it excels in delivering adjustable resistance and accurate position sensing for countless electronic applications. Whether used in consumer electronics, industrial controls, or instrumentation, this potentiometer is engineered to meet high standards of quality, safety, and functionality.

Choosing this Rotary Potentiometer means investing in a product that offers excellent mechanical stability, electrical reliability, and adaptability. Its construction materials provide a balance of strength and lightweight design, while the single gang configuration ensures ease of use and consistent performance. The option to customize the shaft diameter further enhances its versatility, making it suitable for innovative designs and specialized requirements.

Overall, this Rotary Potentiometer Device stands out as a dependable component that enhances the control and precision of electronic systems. Its role as a Rotary Electrical Position Sensor and Rotary Variable Resistor ensures it can meet diverse application needs, delivering smooth, accurate, and repeatable adjustments. With its robust dielectric strength and quality construction, it promises safety and longevity, making it a preferred choice for engineers, designers, and manufacturers seeking top-tier potentiometer solutions.

Features:

• Product Name: Rotary Potentiometer
• Shaft Diameter: 6mm or customized to fit specific requirements
• Operating Temperature Range: -25℃ to 85℃ for reliable performance in various environments
• Shaft Type Options: Round, Flat, or Knurled to suit different applications
• Dielectric Strength: 500VAC ensuring safety and durability
• Power Rating: 0.05W suitable for low power applications
• Functions as a Rotary Variable Resistor for precise resistance adjustment
• Acts as a Rotary Manual Adjustment Tool for easy control
• Serves as a Rotary Linear Variable Resistor for linear resistance changes

Technical Parameters:

Applications:

The SANNI RV Rotary Potentiometer, manufactured in Dongguan, China, is a highly versatile Rotary Manual Adjustment Tool designed to meet a wide range of application occasions and scenarios. With its robust construction from quality plastic and metal materials, the RV model ensures durability and reliable performance even in demanding environments. Its resistance tolerance of ±20% and power rating of 0.05W make it an excellent choice for precision control tasks where fine adjustments are essential.

One of the primary application occasions for the SANNI RV Rotary Multi-Turn Potentiometer is in electronic devices that require accurate manual tuning of electrical signals. This includes audio equipment where volume, tone, or balance controls need precise adjustment. The multi-turn capability allows for smooth and gradual changes, enhancing user experience and ensuring stable operation. Its operating temperature range from -25℃ to 85℃ makes it suitable for use in both indoor and outdoor environments, including industrial machinery and consumer electronics.

In addition to manual adjustment roles, the SANNI RV model functions effectively as a Rotary Electrical Position Sensor. It can be implemented in automation systems, robotics, and control panels to detect the angular position of rotating components. The dielectric strength of 500VAC ensures safe operation under high voltage conditions, adding a layer of protection and reliability in electrically noisy or high-power applications.

The compact design and ease of integration make this rotary potentiometer ideal for use in automotive dashboards, medical instruments, and measurement devices where precise control and feedback are crucial. Furthermore, its versatility allows it to be employed in educational projects and prototyping scenarios, providing engineers and hobbyists with a dependable component for experimentation and development.

Overall, the SANNI RV Rotary Potentiometer stands out as a multifunctional Rotary Manual Adjustment Tool, Rotary Multi-Turn Potentiometer, and Rotary Electrical Position Sensor. Its combination of precision, durability, and safety features makes it suitable for a broad spectrum of applications, from consumer electronics to industrial control systems, ensuring consistent performance across various operating conditions.

Customization:

SANNI offers customized Rotary Potentiometer products under model number RV, originating from Dongguan, China. Our Rotary Analog Adjustment Device features a shaft diameter of 6mm, which can also be customized to meet specific requirements. With a high insulation resistance of 100MΩ minimum, this Rotary Multi-Turn Potentiometer ensures reliable performance in various applications.

The Rotary Potentiometer Device is available with resistance values ranging from 300Ω to 3MΩ, and it is designed with a single gang configuration. Mounting options include Through Hole and DIP Mount types, providing versatility for different circuit designs. Trust SANNI to deliver quality and customizable rotary potentiometer solutions tailored to your needs.

Support and Services:

Our Rotary Potentiometer product is designed to provide precise and reliable control for a wide range of electronic applications. To ensure optimal performance and longevity of your potentiometer, please follow the installation and usage guidelines provided in the product manual.

If you encounter any issues or require assistance with your Rotary Potentiometer, our technical support team is available to help you troubleshoot and resolve problems efficiently. We recommend verifying the wiring connections, checking for mechanical obstructions, and ensuring that the device operates within the specified voltage and current ratings.

For maintenance, avoid exposing the potentiometer to excessive dust, moisture, or corrosive environments. Periodic cleaning with a dry, soft brush can help maintain smooth operation. Do not apply lubricants unless specified, as this may affect the device's performance.

We also offer customization and calibration services to tailor the potentiometer to your specific application requirements. Please refer to the product datasheet for detailed specifications and operating conditions.

Your satisfaction is important to us, and we are committed to providing high-quality products and support to meet your needs.

Packing and Shipping:

Each Rotary Potentiometer is carefully packaged to ensure it arrives in perfect working condition. The product is secured in an anti-static bag to protect against electrostatic discharge, then cushioned with foam padding inside a sturdy cardboard box. This packaging method prevents any physical damage during transit.

For shipping, we use reliable courier services that provide tracking and insurance options. Orders are processed promptly, and estimated delivery times are communicated at the time of purchase. We also offer bulk packaging solutions for large orders, ensuring all units are safely packed and shipped efficiently.

FAQ:

Q1: What is the brand name of the Rotary Potentiometer?

A1: The brand name of the Rotary Potentiometer is SANNI.

Q2: What is the model number of this Rotary Potentiometer?

A2: The model number of this Rotary Potentiometer is RV.

Q3: Where is the Rotary Potentiometer manufactured?

A3: The Rotary Potentiometer is manufactured in Dongguan, China.

Q4: What type of applications can the SANNI RV Rotary Potentiometer be used for?

A4: The SANNI RV Rotary Potentiometer is commonly used in electronic devices for adjusting voltage, tuning circuits, and controlling audio levels.

Q5: What is the typical resistance range available for the SANNI RV Rotary Potentiometer?

A5: The resistance range for the SANNI RV Rotary Potentiometer varies, but it typically includes values from 1kΩ to 1MΩ depending on the specific product variant.
