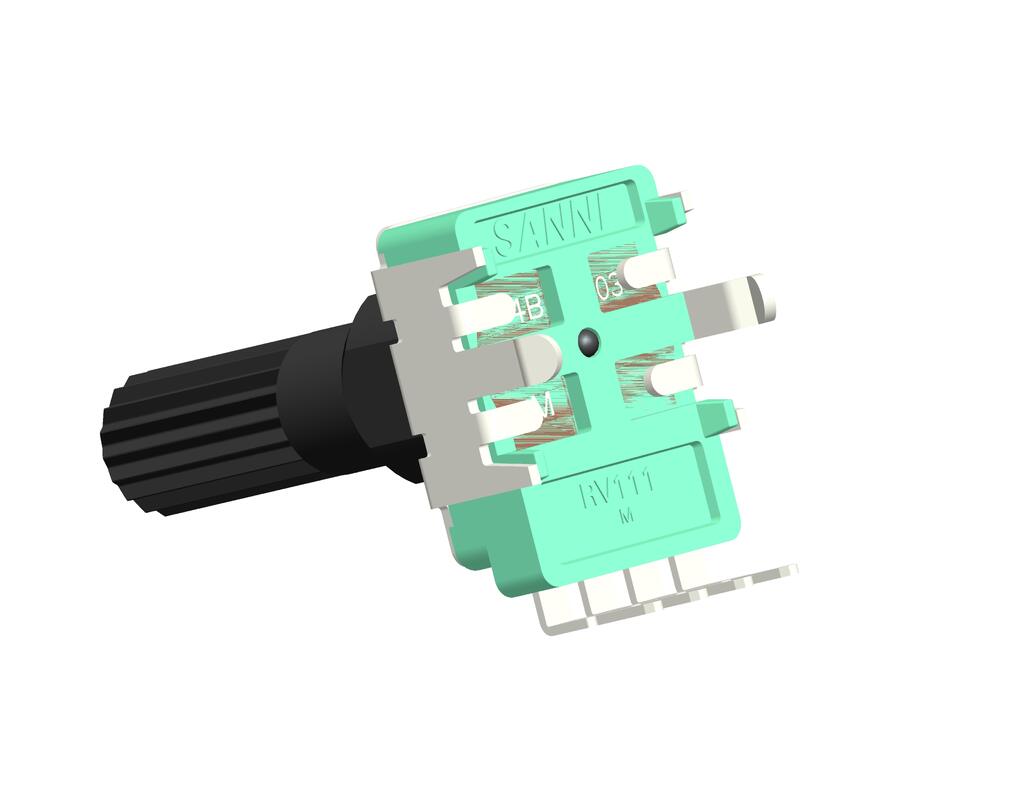

Through Hole DIP Mount Rotary Potentiometer Featuring Plastic Shaft Material and Operating Temperature Range 25C 85C for Performance

Product Description:

The Rotary Potentiometer is a highly reliable and versatile component widely used in various electronic applications for precise voltage control and signal adjustment. This device serves as a Rotary Voltage Divider Potentiometer, enabling users to manually vary resistance within an electrical circuit. With its robust design and dependable performance, it is an essential tool for engineers, hobbyists, and professionals seeking accurate and smooth voltage regulation.

Constructed with a durable plastic shaft, the Rotary Potentiometer ensures lightweight handling and long-lasting operation. The shaft material plays a crucial role in providing excellent mechanical stability while maintaining ease of rotation. The shaft diameter measures 6mm, a standard size that fits most applications, but customization options are also available to accommodate specific project requirements. This flexibility makes the potentiometer suitable for a wide range of devices and systems.

This particular potentiometer features a single gang configuration, meaning it contains one resistive element controlled by the rotating shaft. This design simplifies the adjustment process, allowing for straightforward and precise tuning of electrical signals. As a Rotary Variable Resistor, it functions by varying resistance as the shaft is turned, which in turn adjusts the output voltage proportionally. This mechanism is invaluable in applications such as audio equipment, instrumentation, and control panels where fine adjustment is necessary.

One of the standout attributes of this Rotary Potentiometer is its impressive dielectric strength rated at 500VAC. This high dielectric strength ensures that the potentiometer can withstand significant voltage stress without breaking down, making it ideal for use in circuits where electrical isolation and safety are paramount. The ability to endure such voltage levels enhances the reliability and longevity of the component, even under demanding conditions.

The terminal type employed in this potentiometer is the PCB lug, designed for easy and secure mounting onto printed circuit boards. PCB lug terminals facilitate stable electrical connections while simplifying the assembly process, which is particularly beneficial in mass production environments. This terminal style also promotes efficient soldering and maintenance, contributing to the overall durability and performance of the device.

As a Rotary Manual Adjustment Tool, this potentiometer provides users with tactile feedback and smooth rotational control. The ergonomic design of the shaft and the consistent resistance curve allow for fine-tuned adjustments without abrupt jumps or inconsistencies. This makes it an excellent choice for applications that demand precise manual control over voltage or signal strength.

In summary, the Rotary Potentiometer stands out as a dependable and adaptable component tailored for a wide spectrum of electronic applications. Its plastic shaft, available in a 6mm diameter or customized sizes, ensures compatibility and ease of use. The single gang design offers straightforward functionality as a Rotary Voltage Divider Potentiometer and Rotary Variable Resistor. With a dielectric strength of 500VAC and PCB lug terminals, it delivers robust electrical performance and convenient integration. Whether used as a Rotary Manual Adjustment Tool in audio devices, industrial controls, or experimental setups, this potentiometer guarantees accurate and reliable operation, making it an indispensable element in modern electronic design.

Features:

• Product Name: Rotary Potentiometer
• Material: Plastic & Metal
• Resistance Range: 300Ω to 3MΩ
• Terminal Type: PCB Lug
• Shaft Material: Plastic
• Shaft Diameter: 6mm or Customized
• Type: Rotary Variable Resistor
• Also known as Rotary Potentiometer Device
• Function: Rotary Electrical Potentiometer for precise resistance adjustment

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, model number RV, originating from Dongguan, China, is a highly reliable and versatile Rotary Manual Adjustment Tool designed to meet various application needs. With a power rating of 0.05W and resistance ranging from 300Ω to 3MKΩ, this Rotary Electrical Potentiometer offers precise and stable control over electrical signals in numerous electronic devices.

Thanks to its durable plastic shaft and a robust rotational life of up to 10,000 cycles, the SANNI RV Rotary Manual Adjustment Tool is ideal for applications requiring frequent adjustments without compromising performance. Its through hole/DIP mount design ensures easy installation on printed circuit boards, making it suitable for both prototype development and mass production scenarios.

This Rotary Potentiometer is widely utilized in various industries including consumer electronics, automotive, audio equipment, and industrial control systems. In consumer electronics, it serves as a volume or tone control knob, allowing users to manually adjust settings smoothly and accurately. In automotive applications, it helps regulate dashboard instrumentation and other control systems, providing reliable manual input options.

Furthermore, the SANNI Rotary Electrical Potentiometer is essential in audio equipment such as mixers and amplifiers where precise manual tuning is critical for optimal sound quality. Industrial automation systems benefit from its durable construction and consistent performance, making it suitable for controlling machine parameters or adjusting sensor calibration manually.

Overall, the SANNI RV Rotary Manual Adjustment Tool combines high-quality materials, excellent electrical characteristics, and user-friendly mounting options, making it an indispensable component for engineers and designers seeking dependable rotary manual adjustment solutions. Whether in research and development labs or in large-scale manufacturing environments, this potentiometer provides a dependable interface for manual electrical adjustments across a wide range of applications.

Customization:

SANNI offers customizable Rotary Electrical Potentiometer solutions, model number RV, designed and manufactured in Dongguan, China. Our Rotary Multi-Turn Potentiometer features a compact 9mm dimension and is available with through hole or DIP mount options to suit various application needs. With a rotational life of 10,000 cycles, this Rotary Variable Resistor ensures long-lasting performance and reliability.

Customers can choose from different shaft types including round, flat, or knurled to match their specific design requirements. The resistance tolerance is maintained at ±20%, providing consistent and precise resistance control. Trust SANNI to deliver high-quality, customizable rotary potentiometers tailored to your project specifications.

Support and Services:

If you require technical support or services for your Rotary Potentiometer, please ensure that you have the product model number and specifications ready. Our technical support team is equipped to assist you with installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of your potentiometer.

We offer calibration services to maintain accuracy and extend the life of your Rotary Potentiometer. Regular calibration helps in achieving precise control and consistent results in your applications.

Replacement parts and accessories for the Rotary Potentiometer are available to help you maintain your equipment without downtime. Please refer to the product documentation for compatible components.

For detailed technical documentation, including datasheets, wiring diagrams, and application notes, please visit our official website or consult the product manual provided with your purchase.

Our support services also include assistance with custom configurations and adaptations to fit specific application requirements. Contact our technical team for consultation and support on customized solutions.

We are committed to providing prompt and effective technical support to ensure your complete satisfaction with our Rotary Potentiometer products.

Packing and Shipping:

Each Rotary Potentiometer is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge during handling and transportation.

The anti-static bag is then placed inside a sturdy cardboard box with adequate cushioning materials such as foam or bubble wrap to protect the product from shocks and vibrations.

For bulk orders, multiple units are securely packed in larger boxes with dividers to avoid any movement and potential damage.

All packages are clearly labeled with product details, handling instructions, and shipping information to ensure safe and accurate delivery.

We use reliable shipping carriers and provide tracking information to keep you updated on the status of your shipment.

In case of any damage during transit, please contact our customer service immediately for assistance.
