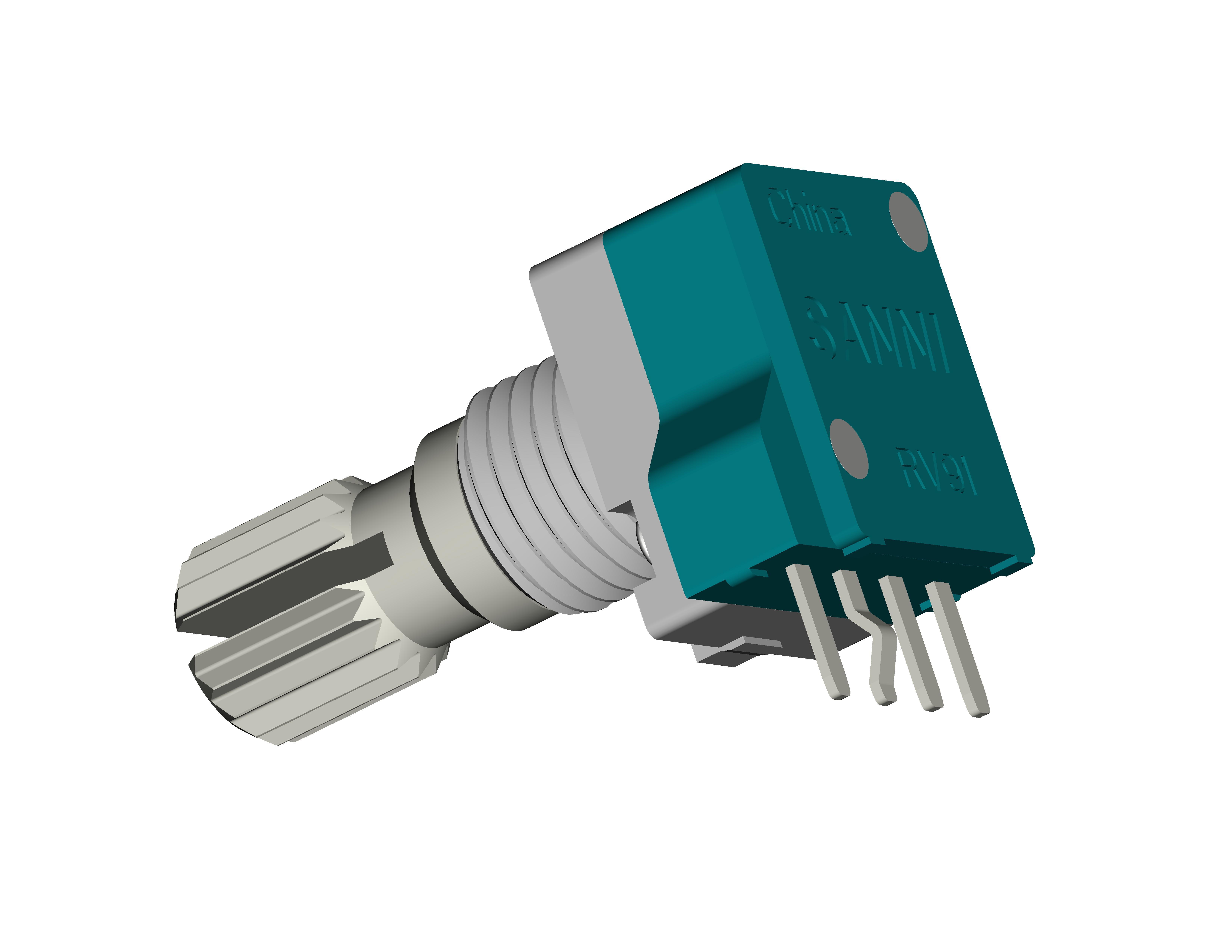

Shaft Length 6mm 20mm Normal Or Customized Rotary Electrical Potentiometer Featuring Rotational Life 10 Suitable for Audio Control Systems

Product Description:

The Rotary Potentiometer is a versatile and reliable component widely used in electronic circuits for manual adjustment and control of electrical resistance. This product serves as an essential Rotary Manual Adjustment Tool, offering precise and smooth control over voltage and current flow within a circuit. Designed with durability and efficiency in mind, it is an ideal choice for applications requiring accurate resistance tuning and adjustment.

One of the key features of this Rotary Potentiometer is its power rating of 0.05W, making it suitable for low-power applications where compactness and reliability are critical. Despite its modest power rating, the potentiometer delivers consistent performance and stability, ensuring long-term usability in various electronic devices.

The shaft diameter of this potentiometer is 6mm, which can also be customized according to specific project requirements. This flexibility in shaft size allows for seamless integration into different mechanical designs, making it a highly adaptable Rotary Variable Resistor. The shaft length is equally customizable, with a normal range between 6mm and 20mm, giving users the ability to tailor the device to their precise needs. Whether your application demands a shorter or longer shaft, this potentiometer can be configured to provide optimal ergonomics and ease of operation.

The mounting type is designed as Through Hole or DIP Mount, ensuring secure and stable installation on printed circuit boards (PCBs). Through Hole mounting provides robust mechanical support, which is essential for environments subject to vibration or mechanical stress. Meanwhile, the DIP Mount option facilitates easy insertion and soldering, making the potentiometer ideal for both manual assembly and automated production lines.

Durability is a critical aspect of this Rotary Linear Variable Resistor, and it boasts an impressive rotational life of 10,000 cycles. This means the potentiometer can be adjusted repeatedly without loss of performance or accuracy, making it perfect for applications that require frequent manual tuning. Whether used in audio equipment, instrumentation, or control panels, this potentiometer maintains consistent performance throughout its operational life.

This Rotary Potentiometer is engineered to provide smooth, linear resistance changes, making it suitable for precise control applications. Its linear characteristic allows for predictable adjustments, which is vital in settings where accuracy is paramount. The device is widely used in various fields such as audio volume control, light dimmers, sensor calibration, and other analog signal processing tasks.

In summary, the Rotary Potentiometer combines functionality, customization, and durability to offer a superior Rotary Manual Adjustment Tool. Its power rating of 0.05W, customizable shaft diameter and length, through hole/DIP mounting options, and a long rotational life of 10,000 cycles make it an excellent Rotary Variable Resistor and Rotary Linear Variable Resistor for diverse electronic applications. Whether you are designing a new piece of equipment or upgrading an existing system, this potentiometer provides reliable and precise resistance control that meets the demands of modern electronics.

Features:

• Product Name: Rotary Potentiometer
• Shaft Material: Plastic
• Material: Plastic & Metal
• Resistance Range: 300Ω - 3MΩ
• Terminal Type: PCB Lug
• Rotational Life: 10,000 Cycles
• Type: Rotary Variable Resistor
• Design: Rotary Multi-Turn Potentiometer
• Function: Rotary Electrical Potentiometer

Technical Parameters:

Applications:

The SANNI RV Rotary Potentiometer is a highly versatile Rotary Electrical Position Sensor designed to meet the demands of various industrial and consumer applications. Manufactured in Dongguan, China, this precision component boasts a compact 9mm dimension, making it an ideal choice for devices requiring space-efficient solutions. Its single gang configuration and PCB lug terminal type facilitate easy integration into printed circuit boards, ensuring reliable electrical connections and streamlined assembly processes.

As a Rotary Electrical Position Sensor, the SANNI RV model excels in applications where accurate rotational position feedback is essential. It is commonly used in audio equipment such as amplifiers and mixers, allowing users to adjust volume and tone with smooth, precise control. The plastic shaft material not only reduces manufacturing costs but also provides sufficient durability for everyday usage. With a rotational life of up to 10,000 cycles, this potentiometer guarantees long-lasting performance in environments where frequent adjustments are necessary.

Beyond audio devices, the SANNI RV Rotary Potentiometer serves as a reliable Rotary Linear Variable Resistor in various control systems. It is frequently employed in industrial machinery to monitor and adjust parameters like speed, angle, and position. Its robust design and consistent resistance changes make it suitable for automation equipment, robotics, and motor controls, where accurate position sensing is crucial for optimal operation.

In automotive applications, the SANNI RV potentiometer can be used to detect steering angle or throttle position, offering precise input for electronic control units. Furthermore, it finds use in consumer electronics, including gaming controllers and home appliances, where user input needs to be translated into electrical signals with high fidelity.

Overall, the SANNI RV Rotary Potentiometer is a dependable Rotary Electrical Position Sensor that combines compact size, ease of installation, and durability. Its versatility makes it an excellent choice for engineers and designers looking for a single gang, plastic shaft potentiometer with PCB lug terminals to enhance their products’ performance and user experience across a wide range of occasions and scenarios.

Customization:

At SANNI, we offer customized Rotary Potentiometer solutions tailored to your specific needs. Our Rotary Voltage Divider Potentiometer, model number RV, is manufactured in Dongguan, China, ensuring high-quality standards and reliable performance. You can choose from various shaft types including round, flat, or knurled to best fit your application requirements.

Our Rotary Electrical Position Sensor features excellent insulation resistance of 100MΩ minimum, providing stable and accurate readings. We support multiple mounting types such as through hole and DIP mount, allowing for flexible integration into your designs. Additionally, the terminal type is available with PCB lug options for secure and easy connections.

Whether you need a Rotary Variable Resistor for industrial, automotive, or consumer electronics, SANNI’s Rotary Potentiometer can be customized to meet your specifications. Trust our expertise to deliver precision and durability in every product.

Support and Services:

Our Rotary Potentiometer product is designed for reliable performance and durability in various applications. For technical support, please refer to the detailed datasheet and user manual provided with the product. These documents include installation instructions, wiring diagrams, and specifications to ensure proper usage.

If you encounter any issues or require assistance with the Rotary Potentiometer, our technical support team is available to help troubleshoot and provide guidance on product selection, installation, and maintenance. We recommend verifying the compatibility of the potentiometer with your system requirements before installation.

For service and repair inquiries, please ensure the product is handled according to the recommended procedures to avoid damage. If a replacement or repair is necessary, please follow the warranty terms outlined in the product documentation.

Additional resources such as FAQs, application notes, and software tools are available on our website to assist you in maximizing the performance of your Rotary Potentiometer.

Packing and Shipping:

Product Packaging:

The rotary potentiometer is carefully packaged to ensure protection during transit. It is placed in an anti-static bag to prevent any electrostatic damage. The component is then secured in a small, sturdy box with foam padding to avoid any physical impact or movement inside the package. The outer packaging is labeled with product details, handling instructions, and shipping information to ensure safe and correct delivery.

Shipping:

We offer reliable shipping options to deliver the rotary potentiometer promptly and safely to your location. The product is shipped via standard or expedited courier services, depending on customer preference. Tracking information is provided upon dispatch. We ensure all shipments comply with local and international shipping regulations to facilitate smooth customs clearance and timely arrival.

FAQ:

Q1: What is the brand name of the Rotary Potentiometer?

A1: The brand name of the Rotary Potentiometer is SANNI.

Q2: What model number is associated with this Rotary Potentiometer?

A2: The model number for this Rotary Potentiometer is RV.

Q3: Where is the Rotary Potentiometer manufactured?

A3: This Rotary Potentiometer is made in Dongguan, China.

Q4: What type of applications is the SANNI RV Rotary Potentiometer suitable for?

A4: The SANNI RV Rotary Potentiometer is suitable for various applications including volume control, adjusting signal levels, and as a position sensor in electronic circuits.

Q5: How do I connect the SANNI RV Rotary Potentiometer in a circuit?

A5: The Rotary Potentiometer typically has three terminals: two end terminals connected to a resistive element and a middle terminal connected to the wiper. By rotating the shaft, the resistance between the wiper and each end terminal changes, allowing you to control voltage or signal level in the circuit.
