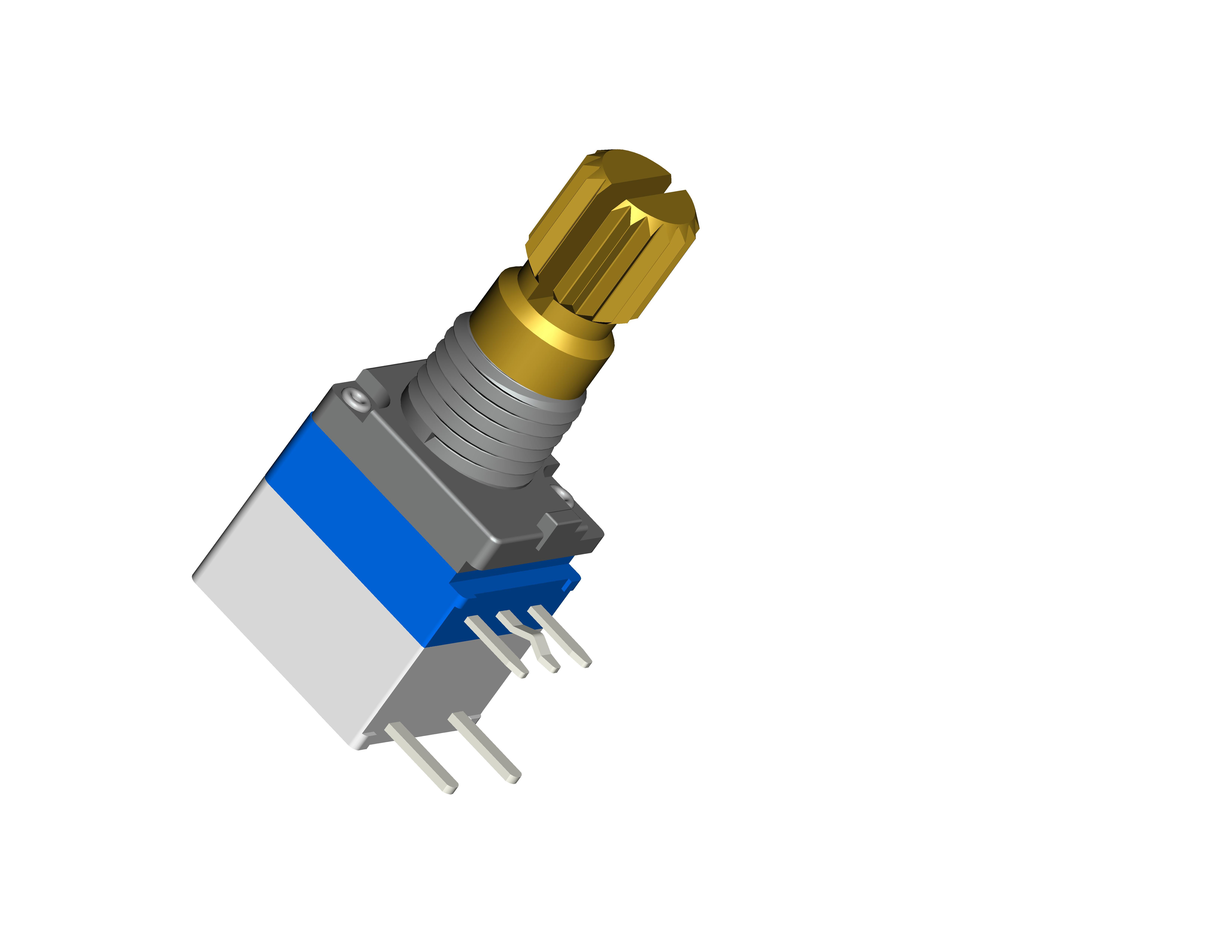

PCB Lug Terminal Type Rotary Potentiometer Offering Shaft Length 6mm to 20mm Normal or Customized and Rotational Life 10

Product Description:

The Rotary Potentiometer is a versatile and essential component widely used in electronic circuits for precise manual adjustment of electrical signals. As a Rotary Manual Adjustment Tool, this potentiometer offers reliable and smooth control over voltage and resistance, making it an indispensable device in various applications, from audio equipment to industrial machinery. Designed to meet diverse requirements, the Rotary Potentiometer is available with a shaft diameter of 6mm or can be customized to fit specific needs, ensuring compatibility with a wide range of devices and control panels.

One of the standout features of this Rotary Potentiometer is its mounting flexibility. It supports both Through Hole and DIP Mounting types, allowing for easy integration into printed circuit boards (PCBs) and other electronic assemblies. This adaptability makes it convenient for designers and engineers to incorporate the potentiometer into their projects without extensive modifications. The Through Hole/DIP mount design also contributes to the potentiometer’s durability and secure installation, providing stable performance even in demanding environments.

The terminal type of this Rotary Potentiometer is PCB Lug, which enhances the ease of soldering and connection to circuit boards. PCB Lug terminals are designed to provide a robust mechanical and electrical connection, ensuring that the potentiometer remains firmly attached and functions reliably over time. This feature is particularly beneficial in applications where vibration or mechanical stress might otherwise compromise connections, such as automotive or industrial control systems.

With a single gang configuration, this Rotary Potentiometer is designed for simple yet effective control of one electrical circuit at a time. The single gang design focuses on providing precise resistance adjustment for individual channels, making it ideal for applications requiring fine-tuning or calibration. Whether used as a volume control in audio equipment or as a variable resistor in sensor circuits, the single gang Rotary Potentiometer delivers consistent and accurate performance.

In addition to its basic functionality, this product can also be classified as a Rotary Multi-Turn Potentiometer, depending on the specific model chosen. The multi-turn capability allows for more granular adjustments by enabling the shaft to be turned multiple times across its resistance range. This feature is especially useful in applications where precision and fine control are critical, such as in instrumentation and measurement devices. The ability to make small incremental changes without abrupt jumps in resistance makes the Rotary Multi-Turn Potentiometer a preferred choice for engineers seeking enhanced control.

As a Rotary Electrical Potentiometer, this device converts rotary mechanical motion into a variable electrical signal, which can then be used to adjust voltage levels, control current, or fine-tune signal parameters within an electronic circuit. Its reliable electrical characteristics and sturdy construction contribute to long-lasting performance, even under continuous use. The potentiometer’s design ensures low noise and smooth operation, which are crucial for maintaining signal integrity in sensitive electronic systems.

Overall, the Rotary Potentiometer is a high-quality, adaptable, and user-friendly component that serves a broad range of applications. Its customizable shaft diameter, versatile mounting options, secure PCB lug terminals, and single gang configuration make it an excellent choice for engineers and hobbyists alike. Whether you need a basic rotary manual adjustment tool or a precision rotary multi-turn potentiometer, this product delivers consistent, reliable, and precise control, making it a fundamental component in the world of electronic adjustments and signal regulation.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Electrical Position Sensor
• Dielectric Strength: 500VAC for reliable insulation
• Power Rating: 0.05W ensuring low power consumption
• Material: Durable Plastic & Metal construction
• Resistance Range: 300Ω to 3MΩ suitable for various applications
• Shaft Length: 6mm to 20mm, available in normal or customized sizes
• High precision Rotary Potentiometer Device for accurate position sensing
• Ideal as a Rotary Electrical Position Sensor for multiple electronic devices

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, model number RV, is a highly reliable and versatile component originating from Dongguan, China. Designed to operate efficiently within a temperature range of -25℃ to 85℃, this rotary multi-turn potentiometer is ideal for a wide variety of industrial and consumer applications. Its robust construction, combining plastic and metal materials, ensures durability and consistent performance over an impressive rotational life of up to 10,000 cycles.

This rotary electrical potentiometer is particularly well-suited for use in electronic devices that require precise adjustment of electrical resistance. With a resistance range spanning from 300Ω to 3MΩ, the RV model offers excellent flexibility for tuning and calibration purposes. The PCB lug terminal type facilitates easy and secure mounting on printed circuit boards, making it an excellent choice for circuit designers and manufacturers looking to integrate reliable variable resistors into their products.

The SANNI Rotary Linear Variable Resistor is commonly employed in scenarios where accurate control of voltage or current is necessary. Typical application occasions include audio equipment for volume control, instrumentation for calibration and signal adjustment, and industrial machinery requiring fine-tuning of operational parameters. Additionally, it is widely used in consumer electronics, automotive controls, and robotics, where precise and repeatable resistance adjustments are critical.

Thanks to its multi-turn design, this potentiometer allows for finer resolution adjustments compared to single-turn variants, making it indispensable in settings where sensitivity and accuracy are paramount. Whether used in laboratory instruments, communication devices, or automated control systems, the SANNI RV rotary potentiometer consistently delivers reliable performance and longevity.

In summary, the SANNI Rotary Potentiometer model RV is an essential component for engineers and technicians seeking a durable, high-performance rotary multi-turn potentiometer, rotary electrical potentiometer, or rotary linear variable resistor. Its wide resistance range, sturdy material composition, and user-friendly PCB lug terminal type make it a preferred choice across numerous application occasions and scenarios.

Customization:

SANNI offers customized Rotary Potentiometer products under the model number RV, proudly made in Dongguan, China. Our Rotary Voltage Divider Potentiometer can be tailored to meet your specific requirements, including shaft length options ranging from 6mm to 20mm, either standard or customized to fit your design.

This Rotary Potentiometer Device is designed to operate reliably within a temperature range of -25℃ to 85℃, ensuring stable performance in various environments. It features a PCB lug terminal type for easy and secure mounting on your circuit boards.

With a dielectric strength of 500VAC and a power rating of 0.05W, our Rotary Manual Adjustment Tool provides durable and precise voltage control for your applications. Trust SANNI’s expertise for high-quality rotary potentiometers customized to your needs.

Support and Services:

Our Rotary Potentiometer product is designed to provide precise and reliable variable resistance for a wide range of electronic applications. For technical support, please refer to the product datasheet and user manual, which include detailed specifications, wiring diagrams, and installation guidelines.

If you encounter any issues during installation or operation, ensure that the potentiometer is connected correctly according to the provided schematics, and verify that the operating voltage and current do not exceed the specified limits.

For maintenance, avoid exposure to excessive dust, moisture, or mechanical shock to prolong the lifespan of the potentiometer. Regularly check for smooth rotation and consistent resistance values using a multimeter.

Should you require further assistance, our technical support team is available to help troubleshoot problems, provide application advice, and offer replacement parts if necessary. We are committed to ensuring your satisfaction and the optimal performance of our Rotary Potentiometer products.

Packing and Shipping:

Product Packaging: Each Rotary Potentiometer is individually packed in an anti-static bag to prevent any damage from electrostatic discharge. The potentiometers are then placed in a sturdy cardboard box with adequate cushioning material to protect against shocks and vibrations during transit. The packaging is labeled with product specifications, quantity, and handling instructions to ensure proper identification and care.

Shipping: We offer reliable shipping options to deliver your Rotary Potentiometer safely and on time. Products are shipped via trusted carriers with tracking available for all orders. We ensure that all packages are securely sealed and compliant with shipping regulations. International shipping is also available, with customs documentation prepared to facilitate smooth delivery.

FAQ:

Q1: What is the brand name of this Rotary Potentiometer?

A1: The brand name of this Rotary Potentiometer is SANNI.

Q2: What model number does this Rotary Potentiometer have?

A2: The model number of this Rotary Potentiometer is RV.

Q3: Where is the Rotary Potentiometer manufactured?

A3: This Rotary Potentiometer is manufactured in Dongguan, China.

Q4: What type of applications can the SANNI RV Rotary Potentiometer be used for?

A4: The SANNI RV Rotary Potentiometer is commonly used in electronic devices for volume control, tuning, and adjusting signal levels.

Q5: How do I connect the SANNI RV Rotary Potentiometer in a circuit?

A5: The SANNI RV Rotary Potentiometer typically has three terminals: two end terminals connected to a resistive element and a middle terminal (wiper). Connect the two ends to the voltage supply and ground, and the wiper provides the variable voltage output.
