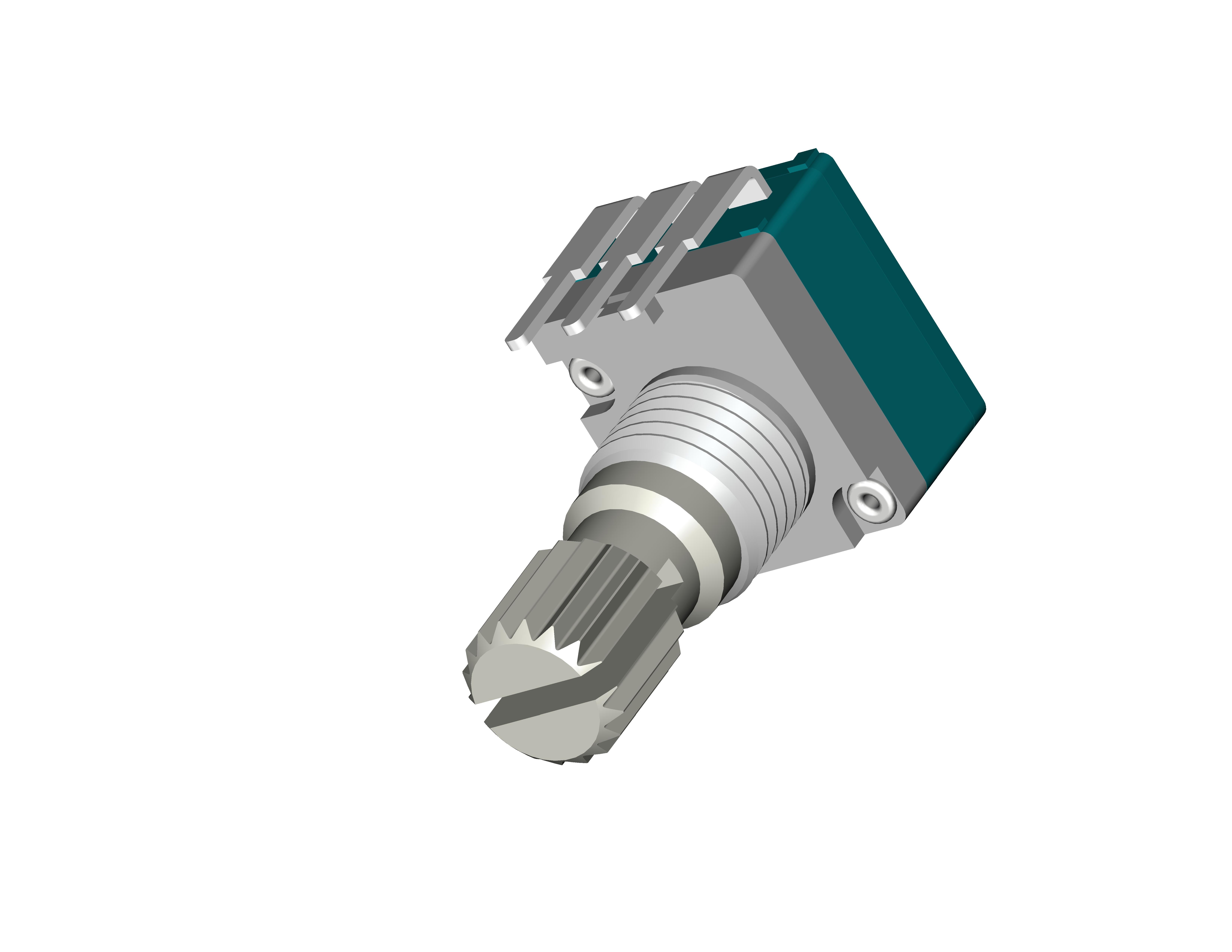

Power Rating 0.05W Rotary Voltage Divider Potentiometer Designed with Rotational Life 10 Ensuring Voltage Division Performance

Product Description:

The Rotary Potentiometer is a highly versatile and reliable component widely used in electronic circuits for adjustable resistance. Designed with precision and durability in mind, this device serves as an essential Rotary Electrical Potentiometer, providing smooth and accurate control over electrical signals. Its robust construction, combining both plastic and metal materials, ensures long-lasting performance and excellent mechanical stability under various operating conditions.

This Rotary Potentiometer features a shaft diameter of 6mm, which is a common size for many applications, but it can also be customized to meet specific requirements. The shaft is designed for easy manual operation, making it an ideal Rotary Manual Adjustment Tool for fine-tuning resistance settings in electronic devices. Whether you are adjusting audio equipment volumes, calibrating sensors, or controlling light intensity, this potentiometer offers precise manual control with minimal effort.

One of the notable characteristics of this Rotary Potentiometer is its wide resistance range, spanning from 300Ω to 3MΩ. This extensive range makes it suitable for a variety of applications, from low-resistance circuits to those requiring high resistance values. The linear resistance variation ensures consistent and predictable changes in electrical resistance as the shaft rotates, identifying it as a true Rotary Linear Variable Resistor. This feature is particularly beneficial in circuits where linear response is critical for performance accuracy.

The component also boasts an impressive insulation resistance of at least 100MΩ, which guarantees minimal leakage current and enhances the safety and reliability of the circuit. High insulation resistance is crucial in preventing unwanted electrical interference and ensuring that the potentiometer operates efficiently without degrading the overall circuit performance. This makes the Rotary Potentiometer especially suitable for sensitive electronic applications where signal integrity is paramount.

Equipped with PCB lug terminals, this potentiometer simplifies the mounting process, allowing for secure and stable connections to printed circuit boards. The PCB lug terminal type facilitates easy soldering and integration into electronic assemblies, reducing installation time and improving the overall reliability of the connections. This terminal design also supports various circuit layouts, providing flexibility for engineers and designers during the development of electronic products.

The combination of plastic and metal materials used in the construction of the potentiometer provides an optimal balance between durability and lightweight design. The plastic components offer insulation and resistance to environmental factors, while the metal parts ensure structural strength and longevity. This material synergy enhances the potentiometer’s ability to withstand repetitive manual adjustments without compromising its performance or lifespan.

In summary, the Rotary Potentiometer is an indispensable Rotary Electrical Potentiometer that delivers precision, reliability, and adaptability. Its customizable shaft diameter, wide resistance range, high insulation resistance, and convenient PCB lug terminals make it a versatile choice for a broad spectrum of electronic applications. As a Rotary Manual Adjustment Tool and Rotary Linear Variable Resistor, it empowers users to achieve precise control over electrical parameters, ensuring optimal functionality and performance in their electronic systems.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Multi-Turn Potentiometer
• Function: Rotary Adjustable Resistor
• Category: Rotary Electrical Potentiometer
• Gang: Single
• Dielectric Strength: 500VAC
• Insulation Resistance: 100MΩ Minimum
• Shaft Material: Plastic
• Shaft Type: Round, Flat, or Knurled

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer Device, model number RV, originating from Dongguan, China, is a versatile and reliable component widely used in various applications and scenarios. Designed with a single gang and a power rating of 0.05W, this Rotary Potentiometer Device offers precise resistance adjustment ranging from 300Ω to 3MΩ, making it ideal for fine-tuning electrical circuits. Its operating temperature range of -25℃ to 85℃ ensures stable performance even in demanding environments, while the PCB lug terminal type facilitates easy and secure mounting on printed circuit boards.

In industrial automation and control systems, the SANNI Rotary Potentiometer Device is commonly employed to adjust signal levels, calibrate sensors, and control motor speeds. Its compact size and robust construction make it suitable for integration into machinery where precise resistance control is critical for optimal operation. Additionally, it is frequently used in audio equipment to regulate volume and tone, providing smooth and reliable adjustments for enhanced user experience.

In consumer electronics, this Rotary Potentiometer Device serves as a key component in devices such as radios, televisions, and other multimedia gadgets, allowing users to easily modify settings and customize functions. The wide resistance range supports diverse circuit requirements, while the durable PCB lug terminals ensure longevity and consistent connectivity. Furthermore, its ability to operate within a broad temperature range makes it suitable for outdoor and automotive applications, where environmental conditions can vary significantly.

The SANNI RV model also finds extensive use in educational and prototyping environments. Engineers, students, and hobbyists rely on this Rotary Potentiometer Device to experiment with circuit designs, learn about resistance control, and develop new electronic solutions. Its user-friendly design and dependable performance contribute to its popularity across different levels of expertise and project scales.

Overall, the SANNI Rotary Potentiometer Device is an essential component for any application requiring adjustable resistance with precision and durability. Whether in industrial controls, consumer electronics, automotive systems, or educational settings, this device provides reliable performance and ease of use, backed by quality manufacturing from Dongguan, China.

Customization:

Our Rotary Potentiometer product from SANNI, model number RV, offers customizable solutions to meet your specific requirements. Manufactured in Dongguan, China, this Rotary Multi-Turn Potentiometer features a compact 9mm dimension and a reliable single gang design. The device includes a PCB lug terminal type, ensuring easy integration into your electronic circuits.

With an insulation resistance of 100MΩ minimum, this Rotary Potentiometer Device guarantees excellent performance and durability. It serves as an efficient Rotary Manual Adjustment Tool, perfect for precise manual control in various applications. Customize the specifications of this product to best suit your project's needs with SANNI's dedicated service.

Support and Services:

Our Rotary Potentiometer product is designed to provide precise and reliable variable resistance for a wide range of electronic applications. For technical support, please ensure that you have the model number and specifications of your potentiometer ready to facilitate efficient assistance.

If you encounter any issues with your Rotary Potentiometer, such as inconsistent resistance values, physical damage, or installation difficulties, our technical support team is available to guide you through troubleshooting steps. Common troubleshooting includes checking the wiring connections, verifying the resistance range with a multimeter, and ensuring the potentiometer is mounted properly without mechanical stress.

We offer comprehensive services including product replacement for defective units within the warranty period, calibration services to maintain accuracy, and custom modifications for specialized applications. Our engineers can also provide advice on integrating the Rotary Potentiometer into your specific circuits and systems.

For detailed product datasheets, installation guides, and application notes, please refer to the technical resources section on our website. These documents provide valuable information on specifications, mechanical dimensions, wiring diagrams, and best practices for optimal performance.

Regular maintenance is recommended to prolong the lifespan of your Rotary Potentiometer. Avoid exposure to excessive dust, moisture, and mechanical shocks. If the potentiometer is used in a harsh environment, consider protective enclosures or seals.

We are committed to supporting your projects and ensuring the highest level of satisfaction with our Rotary Potentiometer products. Should you require further assistance, please consult our online FAQs or reach out to our technical support team through the appropriate channels.

Packing and Shipping:

Product Packaging: Each rotary potentiometer is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge. The individual units are then placed in a sturdy cardboard box with adequate padding to protect against shocks and vibrations during transit. For bulk orders, the boxed units are securely packed in larger cartons with additional cushioning materials to ensure safe delivery.

Shipping: We offer multiple shipping options including standard ground shipping, expedited air shipping, and international delivery. All orders are processed within 1-2 business days. Tracking information will be provided once the order has been dispatched. We work with reliable carriers to ensure timely and safe delivery of your rotary potentiometer products. For special shipping requests or bulk shipments, please contact our customer service team.

FAQ:

Q1: What is the brand name of the Rotary Potentiometer?

A1: The brand name of the Rotary Potentiometer is SANNI.

Q2: What model number does this Rotary Potentiometer have?

A2: The model number of this Rotary Potentiometer is RV.

Q3: Where is the Rotary Potentiometer manufactured?

A3: The Rotary Potentiometer is manufactured in Dongguan, China.

Q4: What type of applications is the SANNI RV Rotary Potentiometer suitable for?

A4: The SANNI RV Rotary Potentiometer is suitable for various applications including volume control, tuning circuits, and as position sensors in electronic devices.

Q5: What is the operating voltage range of the SANNI RV Rotary Potentiometer?

A5: The operating voltage range typically depends on the specific model variant, but the SANNI RV Rotary Potentiometer is generally designed to handle low voltage applications commonly found in consumer electronics.
