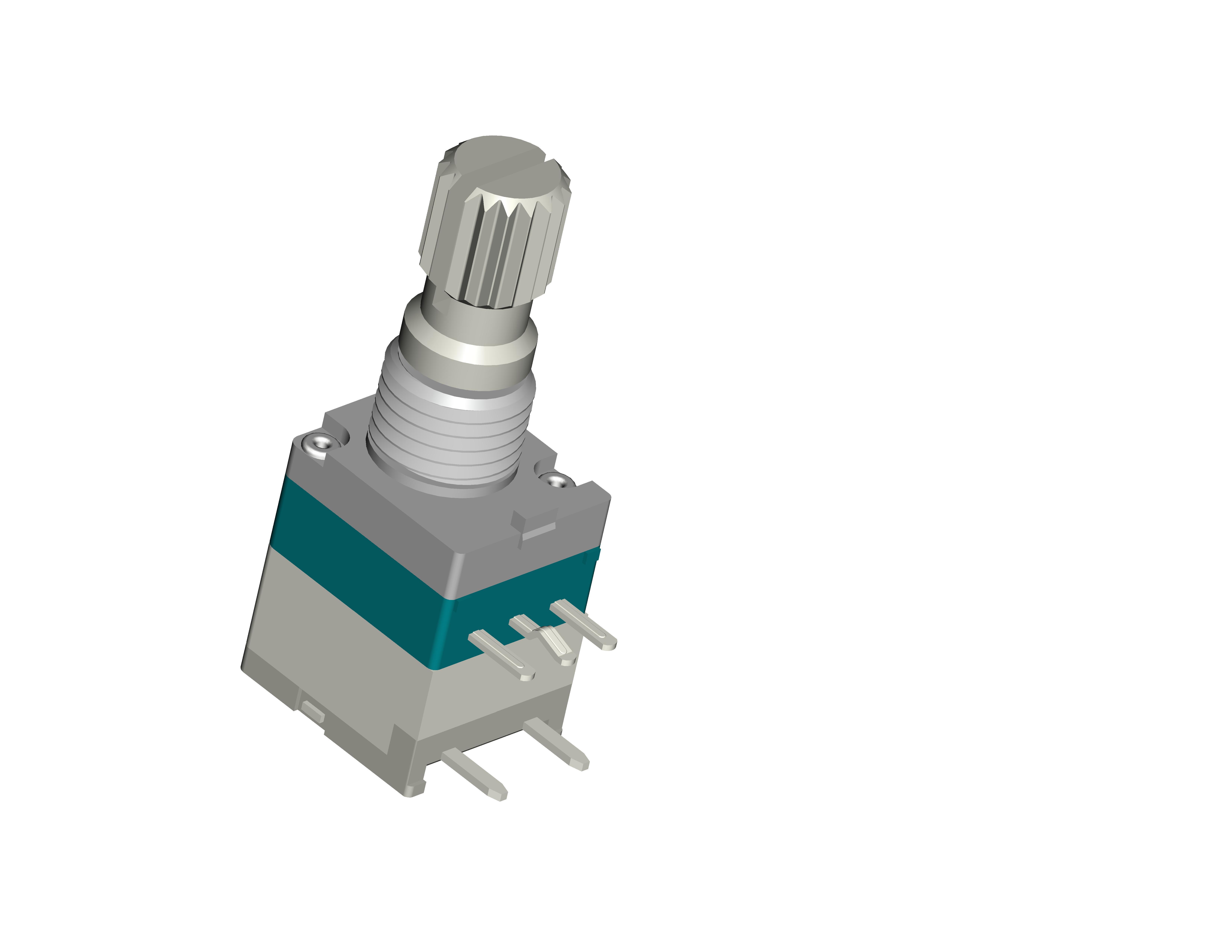

Through Hole DIP Mount Rotary Potentiometer With 0.5mm Travel Push Switch Offering 9mm Shaft Diameter Perfect For Accurate Voltage Control In Electronic Equipment

Product Description:

The Rotary Potentiometer is a highly versatile and essential component widely used in electronic circuits for precise control of electrical resistance. This particular model features a compact dimension of just 9mm, making it an ideal choice for applications where space is limited but reliable performance is crucial. Designed as a Rotary Electrical Potentiometer, it offers smooth and accurate adjustments, allowing users to fine-tune voltage and current levels in various electronic devices.

One of the standout features of this rotary potentiometer is its shaft length, which ranges from 6mm to 20mm. This range provides flexibility to suit different design requirements, whether you need a shorter shaft for compact enclosures or a longer one for easier manual operation. Additionally, the shaft length can be customized, enabling users to tailor the component precisely to their specific application needs. This adaptability makes it a preferred choice for engineers and designers looking for a reliable Rotary Manual Adjustment Tool.

The terminal type of this potentiometer is PCB lug, which facilitates easy and secure mounting onto printed circuit boards. This ensures stable electrical connections and simplifies the assembly process, especially in automated manufacturing environments. The mounting type is through-hole/DIP mount, providing a robust mechanical connection to the PCB, enhancing durability and reliability in various operating conditions. This makes the potentiometer well-suited for use in both prototype development and mass production.

Durability is a key consideration for any rotary variable resistor, and this product excels in this regard with a rotational life rated at 10,000 cycles. This means it can withstand extensive usage and repeated adjustments without degradation in performance, ensuring long-term reliability in demanding applications. Whether used in consumer electronics, industrial machinery, or automotive controls, this potentiometer maintains consistent performance throughout its lifespan.

As a Rotary Variable Resistor, this component is designed to offer precise control over resistance values, enabling users to adjust signal levels, calibrate instruments, or set reference voltages with ease. Its smooth rotational action and stable electrical characteristics make it an excellent choice for fine-tuning circuits. The potentiometer’s compact size, combined with its robust construction and customizable features, ensures it can meet the requirements of a wide range of electronic applications.

In summary, this Rotary Potentiometer combines compact dimensions, customizable shaft lengths, reliable PCB lug terminals, and durable through-hole mounting to deliver outstanding performance as a Rotary Electrical Potentiometer. It serves as an efficient Rotary Manual Adjustment Tool and a dependable Rotary Variable Resistor, offering precise control and longevity in various electronic systems. Whether you are designing consumer gadgets, industrial controls, or specialized instrumentation, this potentiometer provides the flexibility and reliability necessary to achieve optimal results.

Features:

• Product Name: Rotary Potentiometer
• Material: Durable Plastic & Metal construction
• Resistance Range: 300Ω to 3MΩ
• Mounting Type: Through Hole/DIP Mount for easy installation
• Terminal Type: PCB Lug terminals for secure connections
• Power Rating: 0.05W for low power applications
• Functions as a reliable Rotary Analog Adjustment Device
• Ideal Rotary Analog Adjustment Device for precise control
• High-quality Rotary Potentiometer Device suitable for various electronic circuits

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer Device, model RV, originating from Dongguan, China, is an essential component widely used in various electronic applications due to its precise control capabilities. Designed with a power rating of 0.05W and resistance range from 300Ω to 3MΩ, this rotary analog adjustment device offers exceptional performance in tuning and calibration tasks. Its robust dielectric strength of 500VAC ensures reliable operation even in demanding electrical environments, while the operating temperature range of -25℃ to 85℃ allows it to function effectively across diverse climatic conditions.

This Rotary Voltage Divider Potentiometer is ideal for use in audio equipment, where fine volume adjustments are critical. It is commonly employed in amplifiers, equalizers, and mixing consoles to provide smooth and accurate control over sound levels. The through hole/DIP mount type facilitates easy installation on printed circuit boards (PCBs), making it a preferred choice for manufacturers seeking both durability and precision.

In addition to audio applications, the SANNI RV model rotary potentiometer is extensively used in industrial control systems. Its ability to serve as a variable resistor or a voltage divider makes it suitable for adjusting parameters such as speed, light intensity, and temperature in machinery and automated processes. The device’s stable performance under varying environmental conditions ensures consistent functionality, which is crucial for industrial automation and instrumentation.

Moreover, this rotary analog adjustment device finds applications in consumer electronics, including televisions, radios, and gaming consoles, where user-friendly interface controls are necessary. The device’s compact size and reliable mechanical design offer smooth rotation and long service life, enhancing the overall user experience.

Educational and experimental setups also benefit from the SANNI Rotary Potentiometer Device, as it allows students and engineers to explore the principles of resistance and voltage division practically. Its versatile resistance range and ease of mounting make it an excellent tool for prototyping and circuit testing.

Overall, the SANNI RV series rotary voltage divider potentiometer stands out for its precision, durability, and adaptability, making it an indispensable component across multiple fields such as audio engineering, industrial control, consumer electronics, and educational laboratories.

Customization:

At SANNI, we offer comprehensive product customization services for our Rotary Potentiometer model RV, designed and manufactured in Dongguan, China. Our rotary manual adjustment tool can be tailored to meet your specific requirements, ensuring optimal performance and durability with a rotational life of 10,000 cycles.

We provide customization options for the shaft diameter, typically 6mm, but also available in other sizes upon request. The shaft length ranges from 6mm to 20mm, with flexible customization to suit your application. Constructed from high-quality plastic and metal materials, our rotary linear variable resistor guarantees reliable operation and longevity.

In addition, the resistance tolerance of ±20% can be adjusted based on your design needs. Whether you require a rotary analog adjustment device for precise control or a robust manual adjustment tool, SANNI’s RV model can be customized to fit your specific technical specifications and operational demands.

Support and Services:

Our Rotary Potentiometer product is designed for high precision and durability in various applications. For technical support, please refer to the product datasheet and user manual available on our website.

If you encounter any issues during installation or operation, ensure that the potentiometer is connected correctly according to the wiring diagram provided. Verify that the operating voltage and current are within the specified limits.

For calibration and adjustment, rotate the shaft gently to avoid mechanical damage. Use appropriate tools recommended in the manual to set the desired resistance value accurately.

To maintain optimal performance, avoid exposure to excessive dust, moisture, and mechanical shocks. Regularly inspect the potentiometer for signs of wear or damage, and replace it if necessary.

Our technical support team is available to assist with troubleshooting, application advice, and customization options to meet your specific requirements.

For service and repair, please follow the guidelines outlined in the warranty and service section of the product documentation to ensure compliance with our service policies.

Packing and Shipping:

Product Packaging: Each rotary potentiometer is carefully packaged in an anti-static bag to prevent any damage from static electricity during handling and transportation. The anti-static bag is then placed inside a sturdy cardboard box with foam padding to ensure the product remains secure and protected from impact. For bulk orders, multiple units are packed into larger boxes with additional cushioning materials to avoid movement and potential damage.

Shipping: We offer reliable shipping options worldwide, including standard, expedited, and express delivery services. All orders are processed within 1-2 business days after payment confirmation. Tracking information will be provided once the package is dispatched. We ensure that all shipments are securely sealed and labeled properly to facilitate smooth customs clearance and timely delivery to your location.

FAQ:

Q1: What is the brand name of this rotary potentiometer?

A1: The brand name of this rotary potentiometer is SANNI.

Q2: What model number does this rotary potentiometer have?

A2: The model number for this rotary potentiometer is RV.

Q3: Where is the rotary potentiometer manufactured?

A3: This rotary potentiometer is manufactured in Dongguan, China.

Q4: What type of applications is the SANNI RV rotary potentiometer suitable for?

A4: The SANNI RV rotary potentiometer is suitable for various applications including volume control, tuning circuits, and other electronic adjustment tasks.

Q5: What is the typical resistance range available for the SANNI RV rotary potentiometer?

A5: The SANNI RV rotary potentiometer typically comes in multiple resistance values, commonly ranging from 1kΩ to 1MΩ, depending on the specific variant.
