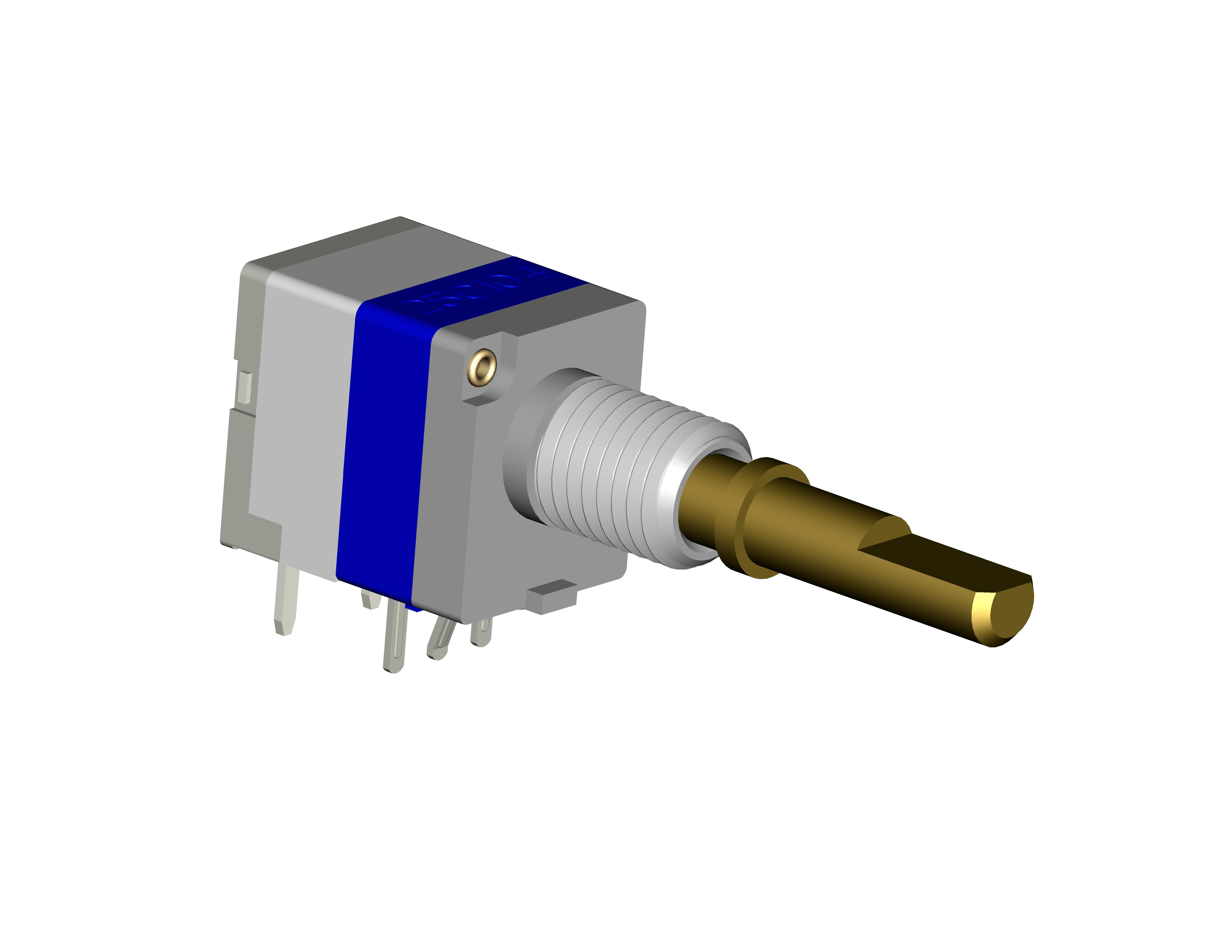

9mm Rotary Adjustable Resistor With 1mm Push Travel Switch Featuring Flat Shaft Type Suitable For Industrial Electronic Devices And Accurate Resistance Adjustment

Product Description:

The Rotary Potentiometer is a highly reliable and versatile Rotary Analog Adjustment Device designed for precise control in various electronic applications. With a compact dimension of just 9mm, this potentiometer is ideal for use in devices where space is limited but accuracy and durability are essential. Its small size does not compromise its performance, making it a preferred choice among engineers and technicians who require dependable manual adjustment solutions.

One of the standout features of this Rotary Analog Adjustment Device is its robust operating temperature range, which spans from -25℃ to 85℃. This wide range ensures that the potentiometer can perform consistently in diverse environmental conditions, whether in cold climates or areas with elevated temperatures. Such resilience makes it suitable for industrial, automotive, and consumer electronics applications where temperature fluctuations are common.

This Rotary Manual Adjustment Tool is designed as a single gang potentiometer, providing straightforward and effective control over electrical resistance. The single gang configuration simplifies the design and integration process, allowing for easy implementation in circuits requiring variable resistance adjustment. This makes it an excellent choice for volume controls, tuning circuits, and other applications where precise analog adjustment is needed.

Safety and durability are critical considerations in the design of this potentiometer. It boasts a dielectric strength of 500VAC, which ensures excellent insulation properties and protects the device from electrical breakdown under high voltage conditions. This high dielectric strength enhances the reliability and lifespan of the potentiometer, especially in demanding environments where electrical surges or spikes may occur.

Durability is further emphasized by the potentiometer’s impressive rotational life of 10,000 cycles. This means the device can withstand extensive usage without degradation in performance, providing long-term stability and consistent operation. Whether used for frequent adjustments or occasional tuning, this Rotary Manual Adjustment Tool maintains its precision and smooth operation throughout its lifecycle.

The compact 9mm dimension combined with its robust features makes this Rotary Analog Adjustment Device an excellent component for various precision control applications. It is well-suited for use in audio equipment, instrumentation, and control panels where fine-tuning is necessary. The potentiometer’s small form factor also allows it to be incorporated into modern electronic devices where space-saving designs are paramount.

In summary, the Rotary Potentiometer is a dependable and efficient Rotary Manual Adjustment Tool that offers precise control, wide operating temperature tolerance, and long-lasting durability. Its single gang configuration, combined with a high dielectric strength of 500VAC and a rotational life of 10,000 cycles, makes it a standout choice for electronics professionals seeking reliable analog adjustment components. Whether you are designing consumer electronics, industrial machinery, or automotive systems, this potentiometer delivers consistent performance and excellent value.

Choose this Rotary Analog Adjustment Device to ensure your projects benefit from precise manual control, robust construction, and enduring reliability. Its compact size, wide operating temperature range, and strong electrical insulation properties make it a versatile and essential component for a wide array of applications.

Features:

• Product Name: Rotary Potentiometer Device
• Dimension: 9mm
• Power Rating: 0.05W
• Shaft Material: Plastic
• Mounting Type: Through Hole/DIP Mount
• Resistance Tolerance: ±20%
• Type: Rotary Analog Adjustment Device
• High precision Rotary Analog Adjustment Device suitable for various electronic applications

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, model number RV, originating from Dongguan, China, is a highly reliable and versatile component designed for various application occasions and scenarios. As a Rotary Variable Resistor and Rotary Electrical Position Sensor, it plays a crucial role in controlling electrical devices by providing precise resistance adjustments through rotational movement. The combination of plastic and metal materials ensures durability and a lightweight design, making it suitable for a wide range of uses.

One of the primary application occasions for the SANNI RV Rotary Potentiometer is in consumer electronics. It can be seamlessly integrated into audio equipment, such as amplifiers and mixers, where it functions as a volume control or tone adjustment device. Its single gang configuration and a power rating of 0.05W make it ideal for low-power electronic circuits requiring precise and smooth resistance changes. Additionally, its dielectric strength of 500VAC guarantees it can withstand higher voltage environments without failure, enhancing safety and longevity.

In industrial settings, the SANNI Rotary Electrical Position Sensor is widely used for monitoring and controlling mechanical systems. It helps in detecting the position of rotating shafts and other moving parts, providing accurate feedback for automated machinery and robotics. With a rotational life of 10,000 cycles, this potentiometer ensures consistent performance even in demanding operational conditions. Its robust design and reliable electrical characteristics make it suitable for integration into control panels, instrumentation devices, and other industrial control systems where precise positioning is critical.

Moreover, the SANNI Rotary Variable Resistor finds applications in automotive electronics, where it is employed to adjust settings such as dashboard lighting brightness, climate control, and other user interface controls. The compact size and dependable performance of this potentiometer allow easy installation in confined spaces while maintaining excellent control accuracy. In addition, its resilience to electrical stress and mechanical wear ensures long-term functionality in the challenging automotive environment.

Overall, the SANNI RV Rotary Potentiometer is an indispensable component across multiple scenarios, offering precise resistance adjustment and position sensing capabilities. Whether in consumer electronics, industrial automation, or automotive systems, this product delivers reliable performance, durability, and safety, making it a trusted choice for engineers and designers worldwide.

Customization:

SANNI offers comprehensive product customization services for the Rotary Potentiometer Device, model number RV, originating from Dongguan, China. Our Rotary Electrical Potentiometer can be tailored to meet your specific needs, including shaft diameter options of 6mm or customized sizes to fit your application perfectly. The device features a durable plastic shaft material and supports mounting types such as Through Hole and DIP Mount for versatile installation.

With a rotational life of 10,000 cycles and a dielectric strength of 500VAC, our Rotary Potentiometer Device ensures reliable performance and longevity. Trust SANNI to provide high-quality, customizable rotary electrical potentiometers designed to enhance your electronic projects and products.

Support and Services:

For technical support and service inquiries regarding our Rotary Potentiometer products, please refer to the product datasheet and user manual provided with your purchase. Our technical support team is available to assist with installation guidance, troubleshooting, calibration procedures, and maintenance tips to ensure optimal performance of your rotary potentiometer.

If you encounter any issues or require further assistance, please have your product model number, serial number, and a detailed description of the problem ready. This information will help us provide you with accurate and efficient support.

We also offer repair and replacement services for rotary potentiometers that are found to be defective under warranty terms. Please review the warranty policy included with your product for eligibility criteria and service procedures.

Additional resources, including FAQs, application notes, and software tools related to rotary potentiometers, can be accessed on our official website to help you maximize the use and longevity of your product.

Packing and Shipping:

Product Packaging: Each Rotary Potentiometer is carefully packaged in an anti-static bag to protect it from moisture and static damage. The potentiometers are then placed in a sturdy cardboard box with cushioning materials to prevent any movement or impact during transit. The packaging is clearly labeled with product specifications, quantity, and handling instructions to ensure safe and accurate delivery.

Shipping: We offer reliable shipping options to ensure your Rotary Potentiometer arrives promptly and in perfect condition. Orders are processed within 1-2 business days. Shipping methods include standard ground, expedited, and international delivery, with tracking information provided for all shipments. We work with trusted carriers to guarantee timely delivery and careful handling throughout the shipping process.

FAQ:

Q1: What brand manufactures the RV model rotary potentiometer?

A1: The RV model rotary potentiometer is manufactured by the brand SANNI.

Q2: Where is the SANNI RV rotary potentiometer made?

A2: The SANNI RV rotary potentiometer is made in Dongguan, China.

Q3: What type of component is the SANNI RV model?

A3: The SANNI RV model is a rotary potentiometer used for adjusting electrical resistance in circuits.

Q4: Can the SANNI RV rotary potentiometer be used for volume control?

A4: Yes, the SANNI RV rotary potentiometer is commonly used in applications such as volume control and other variable resistance needs.

Q5: What are the typical applications for the SANNI RV rotary potentiometer?

A5: The SANNI RV rotary potentiometer is typically used in electronic devices, audio equipment, and instrumentation for adjusting signal levels.
