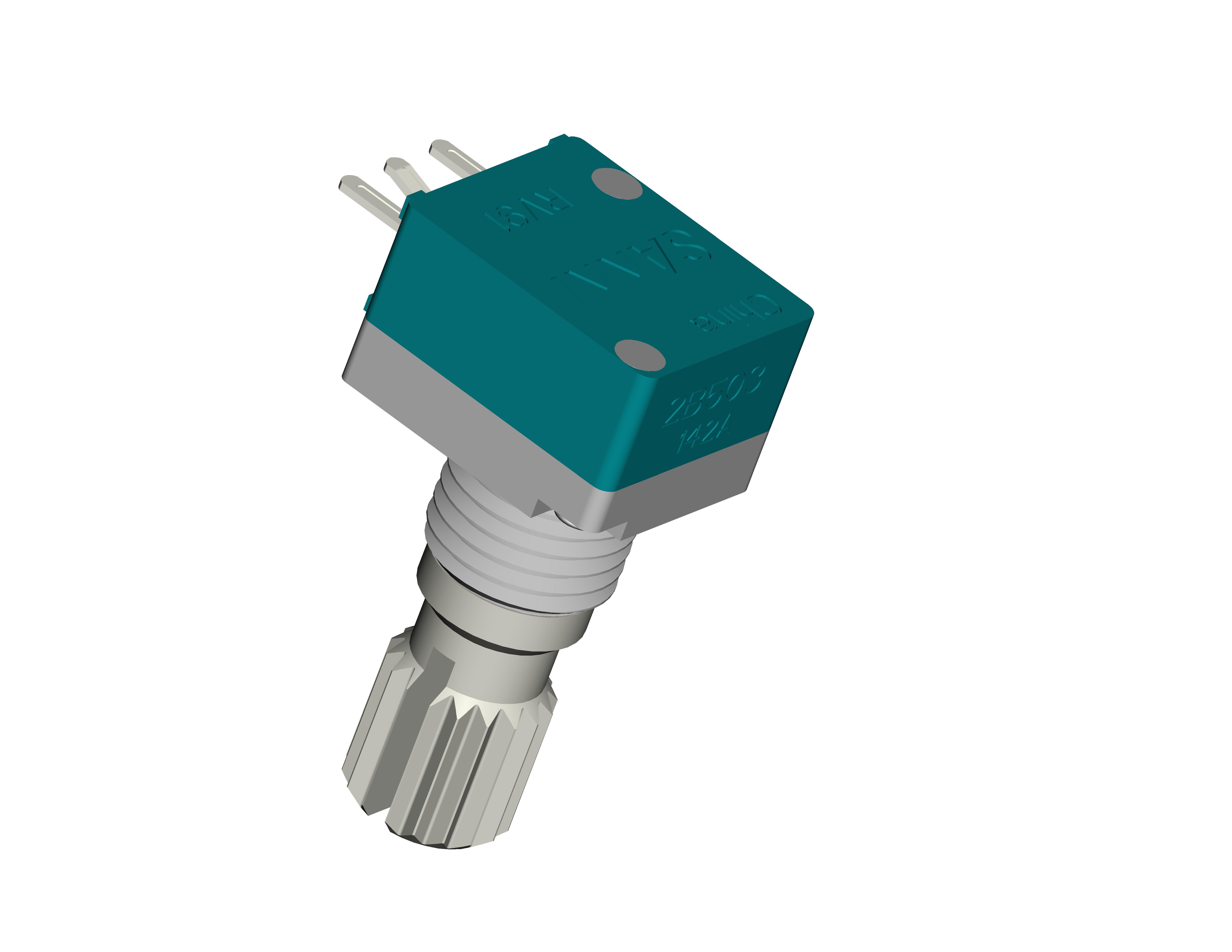

Through Hole DIP Mount Rotary Potentiometer Featuring Resistance 300 Ohm to 3 Mega Ohm and Insulation Resistance 100 Mega Ohm Minimum for Electronic Adjustments

Product Description:

The Rotary Potentiometer is a highly reliable and versatile component designed to meet various electrical and electronic applications. Specifically engineered as a Rotary Multi-Turn Potentiometer, this device offers precise resistance adjustment through multiple rotations of its shaft, enabling fine-tuning in circuits where exact voltage or current control is essential. Its robust design and dependable performance make it an ideal choice for both industrial and consumer electronics.

One of the standout features of this Rotary Multi-Turn Potentiometer is its wide range of resistance values, spanning from 300Ω to 3MΩ. This broad spectrum allows for extensive flexibility in circuit design, accommodating low to high resistance requirements with ease. Whether the application demands subtle voltage changes or substantial resistance shifts, this potentiometer can deliver consistent and accurate results.

Constructed with a durable plastic shaft, the Rotary Potentiometer ensures smooth and reliable mechanical operation. The plastic shaft material not only reduces the overall weight of the component but also provides excellent resistance to wear and environmental factors. This contributes to the longevity of the device, maintaining its performance over prolonged usage and multiple adjustment cycles.

From an electrical standpoint, this Rotary Voltage Divider Potentiometer is built to operate safely and efficiently under demanding conditions. It boasts a dielectric strength of 500VAC, which means it can withstand high voltage levels without the risk of electrical breakdown or insulation failure. This high dielectric strength is crucial for maintaining the integrity of the potentiometer in circuits exposed to fluctuating or elevated voltages.

Furthermore, the power rating of this potentiometer is 0.05W, making it suitable for low-power applications where minimal energy consumption is required. While it handles relatively low power, its design ensures stable operation without overheating or degradation. This power rating aligns well with typical uses in signal processing, control circuits, and measurement devices where energy efficiency is a priority.

Operating temperature range is another critical attribute of this Rotary Multi-Turn Potentiometer. It is capable of functioning reliably within temperatures ranging from -25℃ to 85℃. This wide temperature tolerance makes it suitable for use in various environments, including those with cold or moderately high temperatures. Whether installed in indoor electronic devices or outdoor equipment exposed to seasonal temperature variations, this potentiometer maintains consistent performance.

The versatility of this Rotary Voltage Divider Potentiometer extends to its applications. It is widely used in audio equipment, instrumentation, control panels, and other electronics requiring adjustable voltage division. Its precision adjustment capability is invaluable in tuning circuits, calibrating sensors, and managing signal levels. Additionally, the multi-turn design provides enhanced control compared to single-turn potentiometers, allowing users to make incremental changes with greater accuracy.

In summary, this Rotary Potentiometer combines a durable plastic shaft, a broad resistance range from 300Ω to 3MΩ, a power rating of 0.05W, and a dielectric strength of 500VAC, all while operating efficiently in temperatures between -25℃ and 85℃. Its design as a Rotary Multi-Turn Potentiometer ensures precise, repeatable adjustments, making it an indispensable component in many electronic circuits. Whether utilized as a Rotary Voltage Divider Potentiometer or for other resistance adjustment needs, it delivers consistent, reliable, and high-quality performance suitable for a wide array of applications.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Electrical Position Sensor
• Operating Temperature Range: -25℃ to 85℃
• Dimension: 9mm
• Gang: Single
• Shaft Diameter: 6mm (Or Customized)
• Shaft Material: Plastic
• Function: Rotary Analog Adjustment Device
• Also known as: Rotary Potentiometer Device

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, model number RV, is a highly versatile and reliable component originating from Dongguan, China. This product is designed as a Rotary Voltage Divider Potentiometer, making it an essential element in various electronic circuits where precise voltage adjustment is required. With its shaft length options ranging from 6mm to 20mm, either in standard sizes or customized to specific needs, it offers great flexibility to suit different design requirements.

One of the primary application occasions for the SANNI RV Rotary Potentiometer is in the development of rotary electrical position sensors. These sensors are crucial in detecting angular positions in automation systems, robotics, and industrial machinery. Thanks to its round, flat, or knurled shaft types, the potentiometer can be easily integrated into different mechanical setups, providing smooth and accurate rotational input.

This Rotary Adjustable Resistor is also widely used in audio equipment, such as volume controls and tone adjustments, where fine tuning of electrical resistance is necessary to enhance sound quality. Its power rating of 0.05W and resistance tolerance of ±20% ensure stable performance even in sensitive electronic devices. The potentiometer’s through-hole and DIP mount options further facilitate easy installation on printed circuit boards, making it suitable for both prototyping and mass production environments.

In consumer electronics, the SANNI RV model serves as a critical component in devices like radios, televisions, and various handheld gadgets, where it controls parameters such as brightness, contrast, and tuning frequencies. Additionally, it finds extensive use in automotive applications for adjusting dashboard controls, climate systems, and other interactive interfaces that depend on precise rotational input.

Furthermore, this potentiometer is ideal for laboratory equipment and measurement instruments, where accurate and repeatable resistance adjustments are vital. Its robust design and customizable shaft length allow engineers to tailor the potentiometer to specialized applications, enhancing the functionality and reliability of the end product.

Overall, the SANNI Rotary Voltage Divider Potentiometer RV model is a dependable choice for anyone seeking a high-quality Rotary Electrical Position Sensor and Rotary Adjustable Resistor. Its adaptability, combined with precise manufacturing standards from Dongguan, China, makes it suitable for a wide range of industrial, consumer, and scientific applications.

Customization:

At SANNI, we offer comprehensive product customization services for our Rotary Potentiometer model RV, designed and manufactured in Dongguan, China. Our Rotary Adjustable Resistor can be tailored to meet your specific requirements, including shaft type options such as round, flat, or knurled to ensure optimal compatibility with your application.

With a power rating of 0.05W and a robust rotational life of 10,000 cycles, our Rotary Electrical Position Sensor provides reliable performance and durability. We support various mounting types, including through hole and DIP mount, to accommodate diverse installation needs.

The shaft length of our Rotary Multi-Turn Potentiometer can be customized from 6mm to 20mm, allowing you to choose the ideal size for your device. Trust SANNI to deliver high-quality, customizable rotary potentiometers that perfectly fit your electronic projects.

Support and Services:

Our Rotary Potentiometer product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed user manuals, installation guides, and datasheets to assist with proper setup and usage.

For troubleshooting, we offer step-by-step diagnostic procedures and frequently asked questions to help resolve common issues quickly. Our technical support team is available to provide expert advice on product selection, application design, and customization options.

We also offer calibration services to maintain the accuracy and reliability of your Rotary Potentiometer over time. Replacement parts and repair services are available to extend the lifespan of your device.

Additionally, we provide software tools and resources for integration and configuration, ensuring seamless compatibility with your systems. Our commitment is to deliver prompt and effective support to maximize the value and functionality of your Rotary Potentiometer.

Packing and Shipping:

Product Packaging and Shipping

The Rotary Potentiometer is carefully packaged to ensure it reaches you in perfect condition. Each unit is individually packed in anti-static bags to protect against moisture and electrostatic discharge. The potentiometers are then securely placed in sturdy cardboard boxes with adequate cushioning materials to prevent damage during transit.

For bulk orders, the products are organized in larger cartons with clear labeling indicating the contents and handling instructions. All packages are sealed properly to avoid any tampering or accidental openings.

Shipping options include standard, expedited, and express delivery services. We work with reliable carriers to ensure timely and safe delivery to your specified address. Tracking information will be provided once the order has been dispatched, allowing you to monitor the shipment status until it arrives.

If you have any special packaging or shipping requirements, please contact our customer service team, and we will do our best to accommodate your needs.

FAQ:

Q1: What is the brand name of this rotary potentiometer?

A1: The brand name of this rotary potentiometer is SANNI.

Q2: What is the model number of the SANNI rotary potentiometer?

A2: The model number of the SANNI rotary potentiometer is RV.

Q3: Where is the SANNI RV rotary potentiometer manufactured?

A3: The SANNI RV rotary potentiometer is made in Dongguan, China.

Q4: What type of applications is the SANNI RV rotary potentiometer suitable for?

A4: The SANNI RV rotary potentiometer is suitable for various applications including volume control, tuning circuits, and as adjustable voltage dividers in electronic devices.

Q5: How do I connect the SANNI RV rotary potentiometer in a circuit?

A5: The SANNI RV rotary potentiometer typically has three terminals: two connected to a resistive track and one wiper terminal. Connect the two outer terminals to the voltage source and ground, and the wiper terminal will provide the adjustable output voltage.
