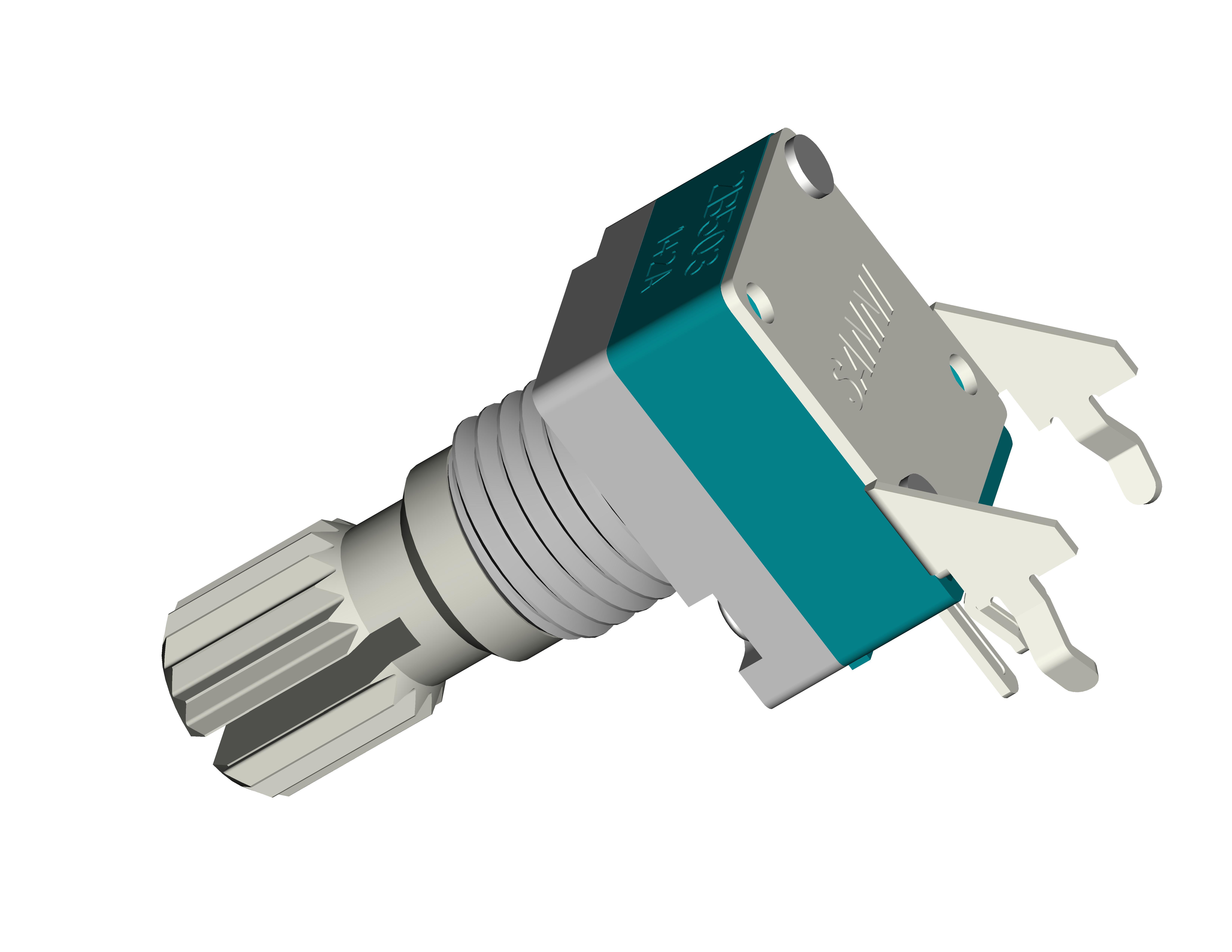

Dielectric Strength 500VAC Rotary Variable Resistor Single Gang Component for Precise Electrical Resistance Adjustment

Product Description:

The Rotary Potentiometer is a highly versatile and reliable rotary variable resistor designed to provide precise control over electrical resistance in a wide range of applications. This device is engineered to meet the demands of both industrial and consumer electronics, making it an essential component for adjusting voltage, tuning circuits, and calibrating equipment with ease and accuracy.

One of the key features of this rotary potentiometer device is its shaft type options. It is available with round, flat, and knurled shafts, allowing users to select the most suitable configuration based on their specific mounting and operational requirements. The round shaft offers smooth and consistent rotation, while the flat shaft provides enhanced grip for secure adjustments. The knurled shaft, with its textured surface, ensures superior tactile feedback and control, especially in environments where precision is critical.

Designed to operate reliably in various environmental conditions, this rotary adjustable resistor boasts an impressive operating temperature range from -25℃ to 85℃. This wide temperature tolerance ensures that the potentiometer performs consistently whether it is used in cold storage equipment, automotive controls, or heated industrial settings. Such durability makes it an ideal choice for applications that demand long-term stability and resilience under fluctuating thermal conditions.

The terminal type of this rotary potentiometer device is PCB lug, which facilitates easy and secure mounting onto printed circuit boards. PCB lug terminals offer excellent electrical connectivity and mechanical stability, reducing the risk of loose connections and electrical failures. This feature is particularly beneficial for compact electronic assemblies where space is limited and reliable soldering is crucial.

Insulation resistance is a critical parameter for any variable resistor, and this rotary potentiometer excels with a minimum insulation resistance of 100MΩ. High insulation resistance ensures minimal leakage current and prevents unintended electrical paths, thereby enhancing the overall performance and safety of the circuit in which the potentiometer is integrated. This attribute is especially important in sensitive electronic devices where signal integrity must be maintained.

Furthermore, this rotary adjustable resistor is a single gang potentiometer, meaning it contains one resistive element controlled by a single shaft. This configuration is ideal for straightforward applications where a single control point is needed to adjust resistance. The single gang design simplifies circuit integration and reduces complexity, making it a cost-effective and efficient solution for various electronic tuning and calibration tasks.

In summary, the rotary potentiometer device combines robust construction, flexible shaft options, broad operating temperature capability, reliable PCB lug terminals, and excellent insulation resistance to deliver outstanding performance in a compact and easy-to-use package. Whether you require a rotary variable resistor for audio equipment, industrial machinery, automotive systems, or consumer electronics, this rotary adjustable resistor provides the precision, durability, and versatility necessary to meet your needs.

Investing in this rotary potentiometer ensures that you have a dependable component designed to enhance the functionality and reliability of your electronic devices. Its thoughtful design and high-quality materials make it a trusted choice for engineers, technicians, and hobbyists seeking a reliable rotary variable resistor for a wide range of applications.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Linear Variable Resistor
• Function: Rotary Analog Adjustment Device
• Terminal Type: PCB Lug
• Shaft Type: Round, Flat, or Knurled
• Gang: Single
• Rotational Life: 10,000 Cycles
• Shaft Diameter: 6mm or Customized
• Also known as Rotary Electrical Potentiometer

Technical Parameters:

Applications:

The SANNI RV91 Rotary Potentiometer, originating from Dongguan, China, is a highly versatile component designed for a wide range of application occasions and scenarios. With its compact 9mm dimension and durable construction using plastic and metal, this rotary manual adjustment tool is ideal for both industrial and consumer electronics where precise control of electrical parameters is required.

One of the primary application occasions for the SANNI RV91 is in electronic devices that require fine-tuning of voltage or signal levels. As a rotary adjustable resistor, it enables users to manually adjust resistance values smoothly, making it perfect for audio equipment such as amplifiers, radios, and equalizers where volume and tone controls are essential. Its power rating of 0.05W ensures it can handle low-power circuits effectively without overheating.

In addition to audio equipment, the RV91 serves as a reliable rotary electrical position sensor in automation and control systems. Its through-hole/DIP mount and PCB lug terminal type facilitate easy integration into printed circuit boards, making it suitable for prototype development and small-scale production. It can be used to monitor and control the position of mechanical parts by converting rotational movement into variable resistance, which is then translated into electrical signals for further processing.

Moreover, this potentiometer is frequently employed in measurement instruments, gaming devices, and home appliances where precise manual adjustment is necessary. Its robust build quality from SANNI ensures longevity and consistent performance even in environments with frequent adjustments. The rotary manual adjustment tool characteristic means users can easily and accurately set desired parameters, enhancing the usability and functionality of the end product.

Overall, the SANNI RV91 rotary potentiometer is an essential component in scenarios requiring reliable and precise manual control over electrical signals. Whether used as a rotary adjustable resistor in consumer electronics, a rotary electrical position sensor in control systems, or a general-purpose rotary manual adjustment tool, it offers exceptional performance and ease of installation, making it a preferred choice for designers and engineers worldwide.

Customization:

SANNI offers professional product customization services for the RV91 Rotary Potentiometer, a high-quality Rotary Adjustable Resistor designed for precise electrical adjustments. Originating from Dongguan, China, this model features a robust construction using durable plastic and metal materials, ensuring reliability and longevity.

The RV91 operates as a Rotary Electrical Position Sensor with a single gang design and compact 9mm dimension, making it suitable for various electronic applications. It boasts a dielectric strength of 500VAC, providing excellent insulation and safety during operation.

Customization options include shaft length adjustments ranging from 6mm to 20mm, either in standard sizes or tailored to your specific requirements. This flexibility allows the RV91 to serve effectively as a Rotary Linear Variable Resistor in diverse industrial and consumer electronics projects.

Choose SANNI's RV91 Rotary Potentiometer for your next project when you need a reliable, customizable Rotary Adjustable Resistor, Rotary Electrical Position Sensor, or Rotary Linear Variable Resistor that meets your exact specifications.

Support and Services:

Product Technical Support and Services for Rotary Potentiometer

Our Rotary Potentiometers are designed to provide precise and reliable performance in a variety of applications. To ensure optimal functionality and longevity, please follow the guidelines and support information outlined below.

Installation Support: Proper installation is critical. Ensure the potentiometer shaft is aligned correctly with the control mechanism to avoid undue stress. Use recommended mounting hardware and avoid over-tightening to prevent damage.

Operating Conditions: Operate the potentiometer within the specified voltage, current, and environmental conditions as indicated in the product datasheet. Exposure to extreme temperatures, moisture, or dust can affect performance and durability.

Maintenance: Regular inspection and cleaning are advised to maintain smooth operation. Use a dry, lint-free cloth to clean the exterior. Avoid using solvents or abrasive materials that might damage the component.

Troubleshooting: If you experience issues such as erratic readings or mechanical resistance, verify wiring connections and ensure there is no physical obstruction. Consult the product manual for detailed troubleshooting steps.

Replacement and Repairs: Rotary Potentiometers are precision components and generally not intended for user repair. In case of failure, replacement is recommended. Contact your supplier for authorized replacement parts.

Technical Assistance: For further technical support, refer to the product datasheet and application notes available on our website. Our technical team is available to assist with application-specific inquiries and product customization options.

Thank you for choosing our Rotary Potentiometer. We are committed to providing high-quality products and comprehensive support to ensure your satisfaction and success.

Packing and Shipping:

Product Packaging: Each rotary potentiometer is carefully packaged in an anti-static bag to protect it from moisture and electrostatic discharge. The individual units are then placed in a sturdy cardboard box with foam inserts to prevent movement and damage during transit. The packaging is clearly labeled with product specifications, quantity, and handling instructions to ensure safe and accurate delivery.

Shipping: We offer multiple shipping options to accommodate your needs, including standard, expedited, and express delivery services. All orders are processed within 1-2 business days and shipped with a reliable courier service. Tracking information will be provided once the package has been dispatched. We ensure that all shipments are securely packaged to withstand handling and transportation, minimizing the risk of damage.

FAQ:

Q1: What is the brand name of the Rotary Potentiometer model RV91?

A1: The brand name of the Rotary Potentiometer model RV91 is SANNI.

Q2: Where is the SANNI RV91 Rotary Potentiometer manufactured?

A2: The SANNI RV91 Rotary Potentiometer is manufactured in Dongguan, China.

Q3: What type of product is the SANNI RV91?

A3: The SANNI RV91 is a Rotary Potentiometer used for adjusting electrical resistance in various electronic devices.

Q4: Can the SANNI RV91 Rotary Potentiometer be used in industrial applications?

A4: Yes, the SANNI RV91 Rotary Potentiometer is suitable for a wide range of industrial and electronic applications requiring precise resistance adjustment.

Q5: How do I identify the model number on the Rotary Potentiometer?

A5: The model number RV91 is typically printed or engraved on the body of the Rotary Potentiometer along with the SANNI brand name.
