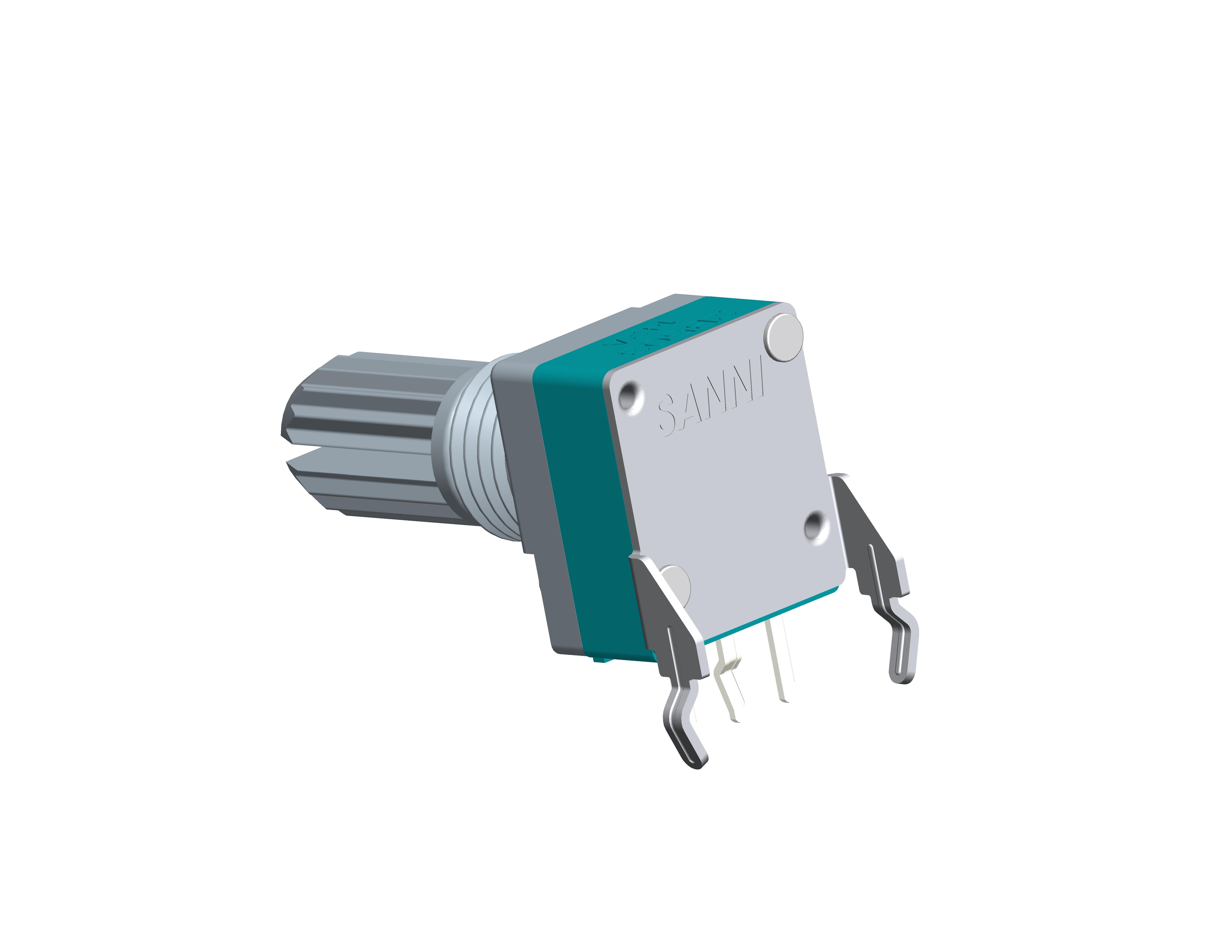

Rotational Life 10 Rotary Potentiometer Device Shaft Length 6mm to 20mm Normal or Customized Designed for Long Term Industrial

Product Description:

The Rotary Potentiometer is a highly reliable and precise component designed for various electronic applications. This device is commonly known as a Rotary Multi-Turn Potentiometer, which allows for accurate adjustment of resistance through multiple rotations, providing fine control over electrical circuits. Its robust design and superior performance make it an essential component for both professional and hobbyist electronic projects.

This Rotary Electrical Potentiometer features an impressive insulation resistance of 100MΩ minimum, ensuring excellent electrical isolation and minimizing leakage currents. Such a high insulation resistance is crucial in sensitive electronic circuits where maintaining signal integrity is paramount. It guarantees the potentiometer’s stable performance even under demanding conditions, enhancing the overall reliability of the system it is integrated into.

Measuring just 9mm in dimension, this compact potentiometer is perfectly suited for applications where space is limited. Despite its small size, it does not compromise on functionality or durability. The compact form factor makes it an ideal choice for modern electronic devices, where miniaturization and efficient use of PCB space are key considerations. Its size enables easy integration into various circuit boards without adding unnecessary bulk or weight.

The terminal type of this potentiometer is PCB Lug, which facilitates secure and straightforward soldering onto printed circuit boards (PCBs). This terminal configuration is favored for through-hole mounting techniques, providing excellent mechanical stability and electrical connectivity. The PCB Lug terminals also support ease of assembly and maintenance, making it a practical choice for both prototype development and mass production.

Mounting this Rotary Linear Variable Resistor is versatile and user-friendly, thanks to its Through Hole/DIP Mount design. Through-hole mounting ensures a strong physical connection to the PCB, making it suitable for applications subjected to mechanical stress or vibrations. The DIP (Dual In-line Package) style further simplifies installation and replacement processes, contributing to efficient manufacturing workflows and repair operations.

Constructed from high-quality plastic and metal materials, this potentiometer boasts durability and long service life. The plastic components provide excellent insulation and resistance to environmental factors such as moisture and dust, while the metal parts ensure reliable electrical conductivity and mechanical strength. This combination of materials ensures the potentiometer maintains consistent performance over extended periods, even in challenging operating environments.

As a Rotary Multi-Turn Potentiometer, it offers precise control over resistance values, making it indispensable in tuning circuits, adjusting signal levels, and calibrating instruments. Its design allows for multiple rotations, enabling fine-tuning beyond what single-turn potentiometers can achieve. This feature is especially valuable in applications requiring exact resistance settings, such as audio equipment, measurement instruments, and control systems.

In essence, this Rotary Electrical Potentiometer serves as a dependable Rotary Linear Variable Resistor that caters to a wide range of electronic applications. Its high insulation resistance, compact 9mm size, PCB Lug terminal type, and through-hole mounting capability provide a perfect balance of functionality, durability, and ease of use. Whether you are designing a new circuit or upgrading an existing system, this potentiometer offers the precision and reliability needed to achieve optimal performance.

Overall, the Rotary Potentiometer combines advanced design features with practical specifications to deliver a component that meets the demanding requirements of modern electronics. Its multi-turn capability, robust construction, and user-friendly mounting options make it a versatile and valuable addition to any electronic project or product development.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Multi-Turn Potentiometer
• Function: Rotary Voltage Divider Potentiometer
• Insulation Resistance: 100MΩ Min
• Terminal Type: PCB Lug
• Shaft Length: 6mm-20mm Normal Or Customized
• Mounting Type: Through Hole/DIP Mount
• Material: Plastic & Metal
• Durable Rotary Potentiometer Device suitable for various applications

Technical Parameters:

Applications:

The SANNI RV91 Rotary Potentiometer is a highly versatile and reliable Rotary Linear Variable Resistor designed for a wide range of application occasions and scenarios. Manufactured in Dongguan, China, this product combines durable plastic and metal materials to ensure long-lasting performance even under demanding conditions. Its operating temperature range of -25℃ to 85℃ makes it suitable for use in environments with varying thermal conditions, ensuring consistent functionality and stability.

This Rotary Linear Variable Resistor is ideal for precision control in electronic devices where adjustable resistance is required. Common application scenarios include audio equipment such as amplifiers and mixers, where the RV91 model allows for smooth volume control and tone adjustments. Its 6mm shaft diameter, which can also be customized, provides compatibility with various knobs and control interfaces, making it adaptable to different design requirements.

In industrial automation, the SANNI RV91 Rotary Potentiometer plays a crucial role as a feedback device for position sensing and control systems. The sturdy PCB lug terminal type ensures secure and reliable connections on printed circuit boards, enhancing the overall durability of the electronic assembly. Moreover, the dielectric strength of 500VAC guarantees excellent electrical insulation, which is vital in preventing short circuits and ensuring safe operation in high-voltage environments.

The Rotary Linear Variable Resistor is also extensively used in consumer electronics, medical instruments, and automotive controls where precise adjustment is necessary. Its robust construction from plastic and metal materials allows it to withstand mechanical stress and frequent use without degradation. Whether it is adjusting lighting levels, calibrating sensors, or controlling motor speeds, the RV91 model proves to be an indispensable component.

Overall, the SANNI RV91 Rotary Potentiometer, as a premium Rotary Linear Variable Resistor, offers remarkable reliability and adaptability. Its combination of high dielectric strength, customizable shaft diameter, and wide operating temperature range makes it suitable for diverse applications ranging from everyday consumer products to specialized industrial equipment. Choosing this product ensures superior performance and longevity in all your rotary resistance requirements.

Customization:

At SANNI, we offer customization services for our Rotary Potentiometer model RV91, designed and manufactured in Dongguan, China. Our Rotary Electrical Position Sensor can be tailored to meet your specific requirements, including variations in gang configuration, shaft material, and mounting type. The RV91 model features a single gang design with a durable metal shaft, ensuring reliable performance within an operating temperature range of -25℃ to 85℃.

Whether you need a Through Hole or DIP Mount option, our Rotary Voltage Divider Potentiometer can be customized to fit your application's demands. As a trusted Rotary Electrical Position Sensor provider, SANNI is committed to delivering high-quality, precise, and durable potentiometers that enhance your electronic systems.

Contact us today to discuss your customization needs for the Rotary Potentiometer RV91 and experience the quality and flexibility that SANNI offers.

Support and Services:

Our Rotary Potentiometers are designed to provide precise and reliable resistance adjustment for a wide range of electronic applications. To ensure optimal performance, please follow the installation and handling guidelines provided in the product datasheet.

If you encounter any issues with your Rotary Potentiometer, first verify that the device is being used within its specified electrical and mechanical limits. Avoid applying excessive force to the shaft and ensure proper soldering techniques to prevent damage.

For maintenance, keep the potentiometer free from dust and debris. In environments with high contamination, consider using protective covers or enclosures to extend the product's lifespan.

In case of product failure or unexpected behavior, consult the troubleshooting section of the user manual. Common issues may include erratic resistance readings or mechanical wear, which can often be resolved by cleaning or replacing the unit.

We offer comprehensive technical support to assist with product selection, application design, and problem diagnosis. Please refer to our online resources for datasheets, application notes, and FAQs to maximize your experience with our Rotary Potentiometers.

Packing and Shipping:

Product Packaging: Each Rotary Potentiometer is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge during transportation. The potentiometers are then placed in a sturdy, cushioned box to ensure protection against shocks and vibrations. The packaging includes clear labeling with product specifications, quantity, and batch number for easy identification and inventory management.

Shipping: We offer multiple shipping options to meet your delivery needs, including standard ground shipping, expedited air freight, and international courier services. All orders are processed and dispatched within 1-2 business days. Tracking information will be provided once your order is shipped. We ensure that all packages are securely sealed and handled with care to guarantee that your Rotary Potentiometers arrive in perfect condition.

FAQ:

Q1: What is the brand and model number of this rotary potentiometer?

A1: The rotary potentiometer is branded SANNI, and its model number is RV91.

Q2: Where is the SANNI RV91 rotary potentiometer manufactured?

A2: The SANNI RV91 rotary potentiometer is made in Dongguan, China.

Q3: What type of applications is the SANNI RV91 rotary potentiometer suitable for?

A3: The SANNI RV91 is suitable for various electronic applications including volume control, tuning circuits, and adjustable voltage dividers.

Q4: What is the rotation angle of the SANNI RV91 potentiometer?

A4: The SANNI RV91 rotary potentiometer typically features a rotation angle of 270 degrees, allowing precise adjustment.

Q5: What are the electrical specifications of the SANNI RV91 potentiometer?

A5: The SANNI RV91 rotary potentiometer offers various resistance values and power ratings; please refer to the product datasheet for detailed specifications.
