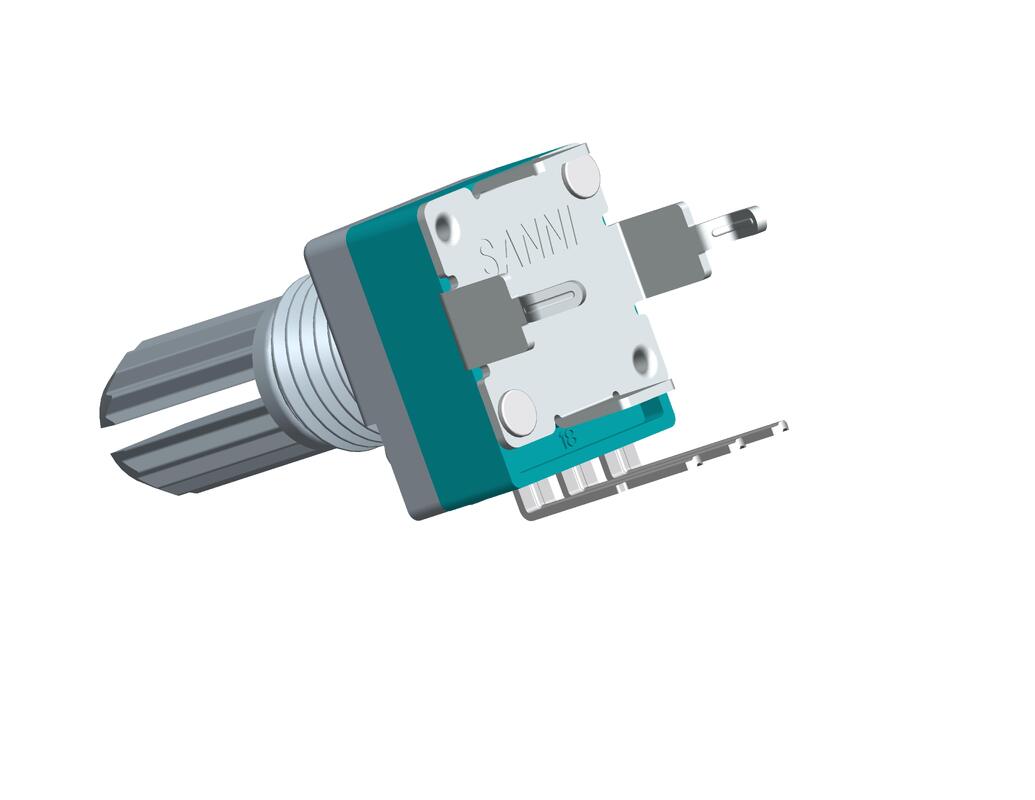

Power Rating 0.05W Rotary Electrical Potentiometer Featuring Round Flat Knurled Shaft Type Ideal for Precision Adjustment Tasks

Product Description:

The Rotary Potentiometer is a versatile and essential component widely used in electronic circuits to provide precise control over voltage and current. This device functions as a Rotary Adjustable Resistor, allowing users to adjust resistance values smoothly by rotating its shaft. With a shaft diameter of 6mm, which can also be customized to meet specific requirements, this potentiometer offers flexibility and ease of integration into various designs and applications.

One of the standout features of this Rotary Voltage Divider Potentiometer is its robust construction. The shaft is made of high-quality metal, ensuring durability, longevity, and reliable performance even under frequent adjustments. The metal shaft also provides a sturdy grip and smooth rotational movement, which is critical for applications where fine-tuning is necessary.

This Rotary Adjustable Resistor boasts a wide resistance range from 300Ω to 3MΩ. Such a broad range makes it suitable for a multitude of applications, from simple volume controls in audio devices to complex voltage regulation in industrial equipment. The ability to cover this extensive resistance spectrum allows engineers and hobbyists alike to use this potentiometer in both low and high resistance circuit designs, providing remarkable versatility.

In terms of electrical specifications, the potentiometer has a power rating of 0.05W, making it ideal for low-power applications where precision and reliability are paramount. Despite its modest power rating, the device’s dielectric strength is rated at an impressive 500VAC. This high dielectric strength ensures that the potentiometer can withstand significant voltage stress without failure, enhancing its safety and durability in various environments.

Moreover, the Rotary Voltage Divider Potentiometer is designed to function as a reliable voltage divider. By adjusting the position of the rotary shaft, users can vary the output voltage between the wiper terminal and the end terminals, making it an essential component in tuning circuits, calibration devices, and signal processing systems. This voltage division capability is particularly useful in applications requiring variable voltage output, such as sensor calibration, audio control, and light dimming.

The customizable shaft diameter option further increases the adaptability of this Rotary Adjustable Resistor. Whether you need a specific shaft size for ergonomic reasons or to fit into an existing mechanical setup, customization options ensure that the potentiometer can be tailored to your precise needs. This feature is especially beneficial in specialized industrial or consumer electronics products where space constraints or design aesthetics are critical.

In summary, the Rotary Potentiometer combines durability, precision, and flexibility in one compact device. Its metal shaft, wide resistance range, high dielectric strength, and customizable shaft diameter make it a highly reliable and versatile component. Whether used as a Rotary Adjustable Resistor for fine-tuning resistance or as a Rotary Voltage Divider Potentiometer for controlling output voltage, this product meets the demands of a wide array of electronic applications. Its power rating of 0.05W makes it especially suitable for low-power circuits, ensuring efficient performance and long-lasting operation.

For engineers, designers, and electronics enthusiasts seeking a dependable and adaptable potentiometer, this Rotary Potentiometer offers an excellent solution. Its combination of robust construction, customizable features, and wide electrical specifications enables seamless integration into diverse projects, making it an indispensable tool for precision control in modern electronic systems.

Features:

• Product Name: Rotary Potentiometer
• Shaft Material: Metal
• Resistance Range: 300Ω to 3MΩ
• Rotational Life: 10,000 Cycles
• Power Rating: 0.05W
• Shaft Diameter: 6mm or Customized
• Type: Rotary Linear Variable Resistor
• Function: Rotary Manual Adjustment Tool

Technical Parameters:

Applications:

The SANNI RV91 Rotary Potentiometer is a highly reliable rotary electrical position sensor designed and manufactured in Dongguan, China. This versatile rotary potentiometer device is ideal for a wide range of applications due to its robust construction and precise performance. With an operating temperature range of -25℃ to 85℃, the RV91 model can function effectively in various environmental conditions, making it suitable for both indoor and outdoor use.

The RV91 rotary adjustable resistor features a shaft length that can be customized between 6mm and 20mm, allowing it to be tailored to specific design requirements. Its power rating of 0.05W ensures low power consumption while maintaining accurate resistance adjustments. The mounting type options include through hole and DIP mount, providing flexibility in circuit board integration and assembly processes.

This rotary potentiometer device is commonly used in applications where precise control of voltage or signal adjustment is essential. It is widely applied in consumer electronics, automotive controls, industrial machinery, and instrumentation panels. For instance, the RV91 can serve as a volume control knob in audio equipment, a tuning adjustment in radios, or a calibration tool in measurement devices.

In industrial scenarios, the rotary electrical position sensor aids in monitoring and adjusting mechanical positions, such as in motor speed controls or robotic arm positioning systems. Its dielectric strength of 500VAC ensures safety and stability in circuits where voltage isolation is critical, enhancing the reliability of connected electronic systems.

Moreover, the SANNI RV91 rotary adjustable resistor is perfect for prototyping and custom electronics projects due to its customizable shaft length and mounting options. Engineers and designers benefit from its consistent performance and durability in various temperature ranges and electrical conditions.

Overall, the SANNI RV91 rotary potentiometer device is an excellent choice for anyone seeking a dependable, flexible, and precise rotary electrical position sensor. Its combination of customizable features, robust specifications, and proven quality makes it suitable for diverse application occasions and scenarios across multiple industries.

Customization:

At SANNI, we offer customized Rotary Potentiometer solutions tailored to your specific needs. Our RV91 model, originating from Dongguan China, is a versatile Rotary Electrical Position Sensor designed for precision and durability. With a resistance range of 300Ω to 3MΩ and a single gang configuration, this Rotary Voltage Divider Potentiometer provides reliable performance in various applications.

Featuring a PCB lug terminal type and an insulation resistance of 100MΩ minimum, the RV91 ensures excellent electrical stability. It operates efficiently within a temperature range of -25℃ to 85℃, making it suitable for diverse environmental conditions. As a trusted Rotary Variable Resistor, SANNI's RV91 can be customized to meet your exact specifications for resistance, terminal type, and operating conditions to enhance your product's functionality.

Choose SANNI’s RV91 Rotary Potentiometer for high-quality, customizable rotary position sensing and voltage division solutions that deliver consistent and accurate results.

Support and Services:

Our Rotary Potentiometer product is designed for precision and durability in a wide range of applications. For technical support, please refer to the user manual included with your product, which provides detailed installation instructions, wiring diagrams, and troubleshooting tips.

If you encounter any issues with your Rotary Potentiometer, first verify the wiring connections and ensure the device is operating within the specified voltage and current ratings. Check for any physical damage or environmental factors that may affect performance.

For calibration and maintenance, use appropriate tools to adjust the potentiometer shaft gently. Avoid applying excessive force to prevent damage to the internal components. Regularly inspect the device for dust or debris, and clean it with a dry, soft brush if necessary.

We offer repair and replacement services for products found to be defective under normal operating conditions within the warranty period. Please retain your purchase receipt and product serial number for warranty claims.

For additional resources, including datasheets, application notes, and software tools, visit our product support website. Our technical support team is available to assist with advanced troubleshooting and custom application requirements.

Packing and Shipping:

Product Packaging: Each Rotary Potentiometer is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge during handling and shipping. The potentiometer is then placed in a sturdy cardboard box with foam padding to ensure it remains secure and protected from physical impacts. The packaging is clearly labeled with the product specifications, quantity, and handling instructions to facilitate easy identification and safe transportation.

Shipping: We offer reliable shipping options to deliver your Rotary Potentiometer promptly and safely. All orders are processed within 1-2 business days. The product is shipped via trusted courier services with tracking information provided for each shipment. For international orders, appropriate customs documentation is included to ensure smooth clearance. We recommend selecting expedited shipping for urgent deliveries to guarantee timely arrival.

FAQ:

Q1: What is the brand name and model number of this rotary potentiometer?

A1: The brand name is SANNI, and the model number is RV91.

Q2: Where is the SANNI RV91 rotary potentiometer manufactured?

A2: It is manufactured in Dongguan, China.

Q3: What type of rotary potentiometer is the SANNI RV91?

A3: The SANNI RV91 is a rotary potentiometer designed for precise resistance adjustment in electronic circuits.

Q4: What are the common applications for the SANNI RV91 rotary potentiometer?

A4: It is commonly used in audio equipment, control panels, and various electronic devices requiring adjustable resistance.

Q5: How do I connect the SANNI RV91 rotary potentiometer in a circuit?

A5: Typically, the potentiometer has three terminals: two connected to the ends of a resistive element and one to the wiper. By adjusting the shaft, you change the resistance between the wiper and the terminals.
