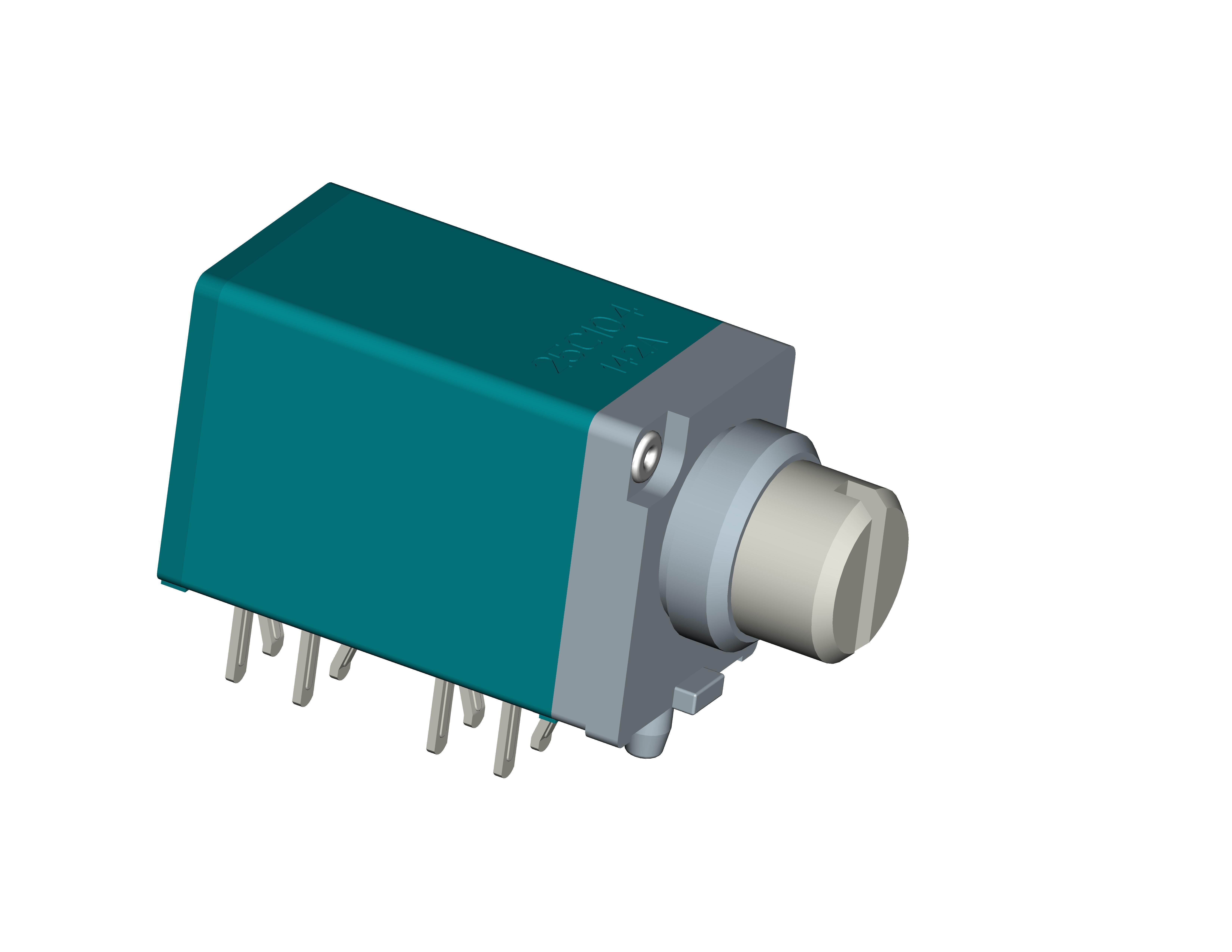

Four Gang Rotary Potentiometer Featuring Metal Shaft Engineered for Durable Voltage Control Components

Product Description:

The Rotary Potentiometer is a highly versatile electronic component widely used in various applications for precise control of electrical resistance. This particular model is designed as a Rotary Adjustable Resistor, offering an effective solution for adjusting voltage levels, tuning circuits, and managing signal levels in electronic devices. With its robust construction and reliable performance, it is an essential component for both hobbyists and professionals working on analog circuits.

One of the key features of this Rotary Potentiometer is its power rating of 0.05W, making it suitable for low-power applications where fine adjustments are required without the risk of overheating or damage. This power rating ensures that the device operates efficiently within its limits, maintaining stability and accuracy over time. Whether it is used in audio equipment, measurement instruments, or control panels, this potentiometer delivers consistent performance.

The mounting type for this Rotary Adjustable Resistor is Through Hole/DIP Mount, which provides a secure and stable installation on printed circuit boards (PCBs). This mounting style is favored for its ease of assembly and strong mechanical support, making it ideal for applications where durability and reliability are critical. The through-hole design also facilitates easy replacement or upgrading of components during maintenance or prototyping phases.

Equipped with PCB lug terminals, this Rotary Multi-Turn Potentiometer ensures straightforward and reliable electrical connections. PCB lug terminals are designed to provide a solid connection point on the circuit board, reducing the chances of loose contacts or signal interruptions. This terminal type is particularly useful in environments where vibrations or mechanical stresses could affect component stability.

The compact dimension of this Rotary Analog Adjustment Device measures just 9mm, making it an excellent choice for projects where space is limited. Despite its small size, it offers precise resistance adjustment capabilities, enabling fine-tuning of circuits without compromising on performance. Its miniature size allows it to be integrated into compact electronic gadgets, handheld devices, and other space-constrained applications with ease.

Another important specification of this Rotary Potentiometer is its resistance tolerance of ±20%. This tolerance level indicates the acceptable range of variation from the nominal resistance value, ensuring that the potentiometer performs within predictable limits. While ±20% tolerance is typical for many general-purpose potentiometers, it provides sufficient accuracy for numerous applications including volume control, sensor calibration, and signal attenuation where ultra-precise resistance is not mandatory.

As a Rotary Multi-Turn Potentiometer, this device allows for multiple rotations to achieve the desired resistance setting. This feature is particularly beneficial when precise and incremental adjustments are needed, as it provides finer control compared to single-turn potentiometers. The ability to make multiple turns reduces the risk of overshooting the desired resistance value, thereby enhancing the accuracy and reliability of the adjustment process.

In summary, this Rotary Potentiometer combines compact size, reliable through-hole mounting, and practical electrical characteristics to serve as an effective Rotary Analog Adjustment Device. Its 0.05W power rating, PCB lug terminals, and ±20% resistance tolerance make it a dependable choice for a wide range of electronic projects and devices. Whether used as a Rotary Adjustable Resistor or a Rotary Multi-Turn Potentiometer, it offers precise control and long-lasting performance, making it an indispensable component in the realm of analog electronics.

Features:

• Product Name: Rotary Potentiometer
• Dimension: 9mm
• Gang: Single
• Resistance Range: 300Ω to 3MΩ
• Shaft Material: Metal
• Shaft Length: 6mm to 20mm, Normal or Customized
• Function: Rotary Analog Adjustment Device
• Type: Rotary Variable Resistor

Technical Parameters:

Applications:

The SANNI RV91 Rotary Potentiometer Device, originating from Dongguan, China, is a versatile and reliable Rotary Analog Adjustment Device designed to meet diverse application needs. Its robust construction, featuring a metal shaft available in lengths ranging from 6mm to 20mm (normal or customized), ensures durability and precision in various operational environments. The shaft type can be customized as round, flat, or knurled, providing flexibility to suit specific mechanical requirements. With a wide operating temperature range of -25℃ to 85℃, this Rotary Analog Adjustment Device performs consistently in both low and high-temperature conditions, making it ideal for use in industrial, automotive, and consumer electronics applications.

The RV91 model’s PCB lug terminal type facilitates easy and secure integration into printed circuit boards, enhancing assembly efficiency and electrical connectivity. This Rotary Potentiometer Device is commonly applied in scenarios where precise analog signal control is essential. For example, it is widely used in audio equipment for volume control, allowing smooth and accurate adjustment of sound levels. Additionally, it finds applications in measurement instruments, where fine tuning of electrical signals is critical for accurate readings.

In the realm of industrial machinery, the SANNI RV91 Rotary Analog Adjustment Device serves as a key component for adjusting parameters such as speed, torque, or position. Its metal shaft and customizable design enable it to withstand mechanical stress and adapt to specific machine interfaces. Furthermore, this Rotary Potentiometer Device is favored in automotive control systems for functions like dashboard dimming and climate control adjustments, where reliable and consistent performance is paramount.

Beyond industrial and automotive fields, the SANNI RV91 also excels in consumer electronics and home appliances, offering users intuitive and precise control over device settings. Whether used in kitchen appliances, lighting controls, or gaming devices, this Rotary Analog Adjustment Device provides smooth rotational feedback and long-lasting performance. Its combination of high-quality materials, customizable shaft options, and broad operating temperature range makes the SANNI RV91 an excellent choice for engineers and designers seeking a dependable rotary potentiometer solution for a wide range of occasions and scenarios.

Customization:

At SANNI, we offer comprehensive product customization services for our Rotary Potentiometer, model number RV91, manufactured in Dongguan, China. Our Rotary Electrical Potentiometer can be tailored to meet your specific requirements, including shaft length options ranging from 6mm to 20mm, either standard or customized to fit your application perfectly.

The shaft type is available in round, flat, or knurled designs to ensure optimal performance and compatibility with your device. Our Rotary Electrical Position Sensor is designed as a single gang unit, providing precise and reliable resistance values from 300Ω up to 3MΩ.

Whether you need a rotary manual adjustment tool for industrial control systems, audio equipment, or other electronic devices, SANNI’s Rotary Potentiometer customization services guarantee high quality and adaptability. Contact us to customize your Rotary Electrical Potentiometer to achieve the perfect fit and functionality for your project.

Support and Services:

Our Rotary Potentiometer product is designed for precision and durability in various applications. For technical support, please refer to the product datasheet and user manual provided with your purchase. These documents include detailed specifications, installation instructions, and troubleshooting tips to help you achieve optimal performance.

If you encounter any issues during installation or operation, ensure that the potentiometer is connected correctly according to the wiring diagram. Verify that the rotation range and resistance values match your application requirements. Avoid applying excessive force to the shaft to prevent mechanical damage.

For maintenance, keep the potentiometer free from dust and moisture, and avoid exposure to extreme temperatures or corrosive environments. Regularly check for smooth rotation and consistent resistance output. If abnormal behavior is observed, such as erratic resistance changes or physical wear, replacement may be necessary.

We offer calibration and repair services for our Rotary Potentiometers to extend their service life. Please consult our service guidelines for information on sending products for evaluation. Our technical team is committed to providing timely assistance to ensure your applications continue to operate reliably.

Packing and Shipping:

Product Packaging: Each rotary potentiometer is carefully packaged in an anti-static bag to protect against moisture and electrostatic discharge. The product is then securely placed in a sturdy cardboard box with appropriate padding to prevent damage during transit. The packaging includes clear labeling with product specifications, quantity, and handling instructions to ensure proper identification and care.

Shipping: We offer reliable shipping options to deliver your rotary potentiometers promptly and safely. Orders are processed within 1-2 business days and shipped via trusted carriers with tracking available. For bulk orders, we provide palletized shipping with additional protective measures. International shipping is also available, subject to customs regulations and delivery times. Customers will receive a confirmation email with tracking details once the order has been dispatched.
