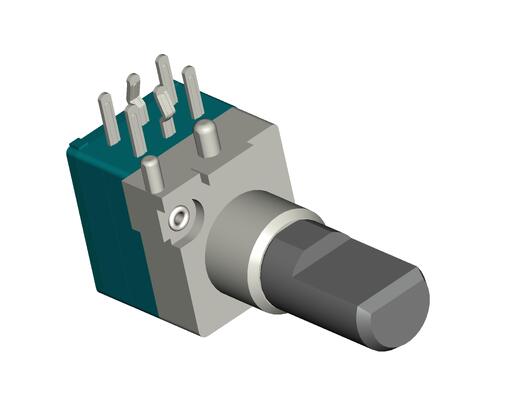

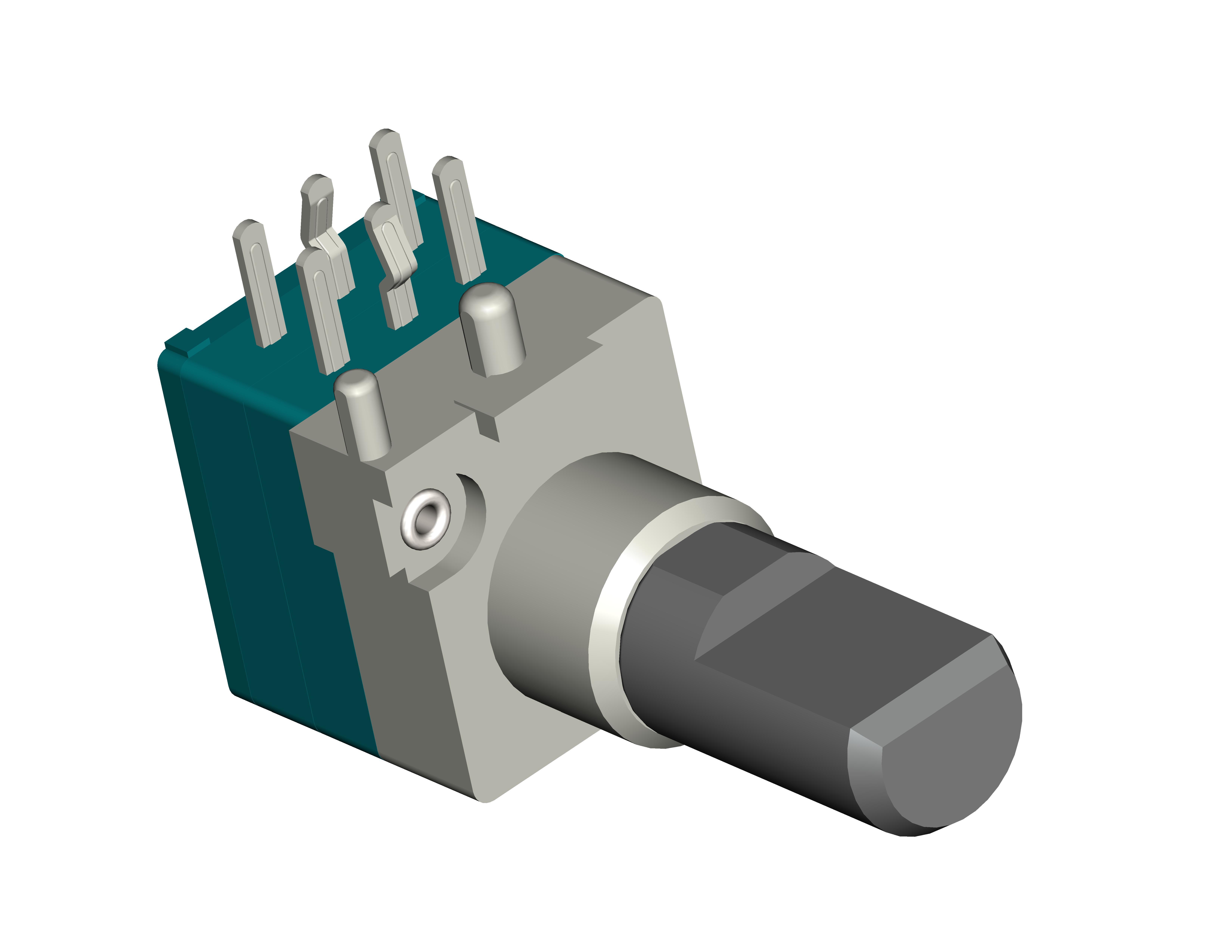

Dual Gang 25C-85C Rotary Potentiometer Metal Shaft Diameter 6mm or Customized Engineered for Accurate Signal Adjustment Solutions

Product Description:

The Rotary Potentiometer is a versatile and reliable component widely used in electronic circuits for adjusting voltage levels and controlling electrical devices. Known as a Rotary Electrical Potentiometer, this device serves as a variable resistor that allows users to precisely control electrical signals by rotating its shaft. Its robust design and high-quality materials ensure consistent performance over an extended period, making it an essential element in numerous electronic applications.

One of the standout features of this Rotary Potentiometer is its mounting type. It is designed for Through Hole or DIP Mount installation, providing secure and stable attachment to printed circuit boards (PCBs). This mounting style not only simplifies the integration process but also enhances durability, making it ideal for both prototype development and mass production. The Through Hole/DIP Mount approach ensures that the potentiometer remains firmly in place during operation, reducing the risk of mechanical failure and maintaining reliable electrical connections.

The construction of this Rotary Variable Resistor combines plastic and metal materials, optimizing both durability and functionality. The plastic components offer lightweight insulation and ease of manufacturing, while the metal parts provide strength and excellent conductivity. This combination results in a product that can withstand regular use without compromising its electrical performance. Moreover, the materials are carefully selected to resist wear and tear, ensuring the potentiometer maintains its precision over time.

An important specification of this Rotary Adjustable Resistor is its impressive rotational life. Rated for up to 10,000 cycles, the potentiometer can endure frequent adjustments without degradation in performance. This longevity is particularly valuable in applications where continuous tuning or calibration is necessary, such as in audio equipment, instrumentation, and control systems. Users can rely on the potentiometer to deliver smooth and consistent resistance changes throughout its lifespan.

The terminal type of this Rotary Potentiometer is a PCB Lug, which facilitates straightforward soldering and secure electrical connections to the circuit board. PCB Lug terminals are designed to provide strong mechanical support and excellent conductivity, ensuring that the potentiometer maintains stable contact during operation. This feature is especially beneficial in environments subject to vibration or mechanical stress, as it helps prevent connection failures and signal interruptions.

As a Rotary Electrical Potentiometer, this device is essentially a three-terminal resistor with a rotating contact that forms an adjustable voltage divider. By turning the shaft, users can vary the resistance between the terminals, allowing for precise control over electrical current and voltage within a circuit. This makes the Rotary Variable Resistor an indispensable tool for fine-tuning performance parameters in a wide range of electronic devices.

In summary, the Rotary Potentiometer is a high-quality, durable, and easy-to-install component that excels in providing adjustable resistance in electronic circuits. Its Through Hole/DIP Mount design, combined with plastic and metal construction, ensures both reliability and ease of use. With a rotational life of 10,000 cycles and PCB Lug terminals for secure connections, this Rotary Adjustable Resistor is perfectly suited for applications demanding precision, longevity, and robust performance. Whether you are designing audio controls, instrumentation, or other electronic systems, this Rotary Electrical Potentiometer offers the versatility and durability needed to achieve optimal results.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Multi-Turn Potentiometer
• Function: Rotary Linear Variable Resistor / Rotary Variable Resistor
• Dielectric Strength: 500VAC
• Gang: Single
• Rotational Life: 10,000 Cycles
• Shaft Type: Round, Flat, or Knurled
• Shaft Length: 6mm to 20mm, Normal or Customized

Technical Parameters:

Applications:

The SANNI RV91 Rotary Potentiometer is a highly reliable rotary electrical position sensor designed for precise control and measurement applications. Originating from Dongguan, China, this single gang rotary potentiometer device boasts a compact dimension of 9mm, making it ideal for integration into various electronic systems where space is a premium. Its shaft length ranges from 6mm to 20mm, available in standard sizes or customized lengths to suit specific installation requirements. This versatility ensures that the RV91 model can be adapted to a wide array of application scenarios.

One of the primary application occasions for the SANNI RV91 rotary linear variable resistor is in consumer electronics. It is commonly used in volume controls, tuning dials, and other adjustable settings on devices such as radios, amplifiers, and televisions. The smooth rotational action and the durable rotational life of 10,000 cycles guarantee long-term performance and consistent user experience. This makes it an excellent choice for manufacturers looking for dependable rotary potentiometer devices for their products.

In industrial environments, the RV91 rotary potentiometer device serves as a precise rotary electrical position sensor for machinery and control panels. It is used to monitor and adjust parameters such as speed, position, and torque in equipment like conveyor belts, robotic arms, and automated assembly lines. The robustness and accuracy of this rotary linear variable resistor contribute to improved operational efficiency and safety in these demanding settings.

Additionally, the SANNI RV91 model is well-suited for automotive applications, where it functions as a rotary electrical position sensor to detect and control various mechanical positions. Its compact size and customizable shaft length allow it to fit into tight spaces within dashboards and control modules, providing reliable feedback for throttle control, climate systems, and other adjustable components.

In summary, the SANNI RV91 rotary potentiometer is a versatile rotary linear variable resistor device ideal for a broad range of applications including consumer electronics, industrial machinery, and automotive systems. Its high durability, customizable dimensions, and precise sensing capabilities make it a trusted choice for engineers and designers seeking a high-quality rotary electrical position sensor from Dongguan, China.

Customization:

SANNI offers customized solutions for the Rotary Potentiometer Device, model RV91, originating from Dongguan China. Our Rotary Potentiometer Device features a single gang configuration with a durable metal shaft, available in a standard 6mm diameter or customized to meet your specific requirements. With a compact dimension of 9mm and a dielectric strength of 500VAC, this Rotary Potentiometer Device ensures reliable performance and versatility for various applications. Trust SANNI to deliver high-quality, tailored Rotary Potentiometer Devices to suit your unique needs.

Support and Services:

Our Rotary Potentiometer product is designed to provide precise and reliable control in a wide range of applications. For technical support, please refer to the product datasheet and user manual, which offer detailed information on installation, operation, and maintenance.

If you encounter any issues, ensure that the potentiometer is installed correctly, with proper alignment and secure connections. Avoid exposing the device to excessive moisture, dust, or mechanical stress to maintain optimal performance.

For calibration and adjustment, use the recommended tools and follow the guidelines provided in the technical documentation. Regular inspection and cleaning can help prolong the lifespan of the potentiometer and prevent signal inaccuracies.

Our support team is committed to assisting you with troubleshooting, replacement parts, and warranty services to ensure your satisfaction and operational efficiency.

Packing and Shipping:

Product Packaging and Shipping for Rotary Potentiometer

Each rotary potentiometer is carefully packaged to ensure protection during transit. The product is first placed in an anti-static bag to prevent any electrostatic damage. It is then secured within a custom-fitted foam or plastic tray to avoid movement and minimize impact.

The individual trays are packed into sturdy cardboard boxes, with additional cushioning materials such as bubble wrap or packing peanuts as necessary. The outer carton is clearly labeled with product information, handling instructions, and shipping details.

For bulk orders, multiple units are organized in larger boxes or cartons, with separators to prevent contact between items. All packages undergo quality checks before shipment to guarantee product integrity.

Shipping is carried out via reliable courier services, with tracking provided for customer convenience. Depending on the destination and customer preference, options for express or standard delivery are available.

We ensure that all rotary potentiometers arrive safely and promptly, ready for immediate use in your applications.

FAQ:

Q1: What is the brand name of this rotary potentiometer?

A1: The brand name of this rotary potentiometer is SANNI.

Q2: What model number does this rotary potentiometer have?

A2: The model number of this rotary potentiometer is RV91.

Q3: Where is this SANNI rotary potentiometer manufactured?

A3: This rotary potentiometer is made in Dongguan, China.

Q4: What type of applications is the SANNI RV91 rotary potentiometer suitable for?

A4: The SANNI RV91 rotary potentiometer is commonly used in electronic devices for adjusting voltage, volume controls, and as position sensors.

Q5: What is the operating voltage range for the SANNI RV91 rotary potentiometer?

A5: The operating voltage range typically depends on the specific configuration, but the SANNI RV91 is designed to handle standard low-voltage electronic circuits. Please refer to the datasheet for precise details.
