Rotational Life 10 Rotary Potentiometer Plastic Metal Resistance Tolerance ±20 Percent Precision Control Electronic Part

Product Description:

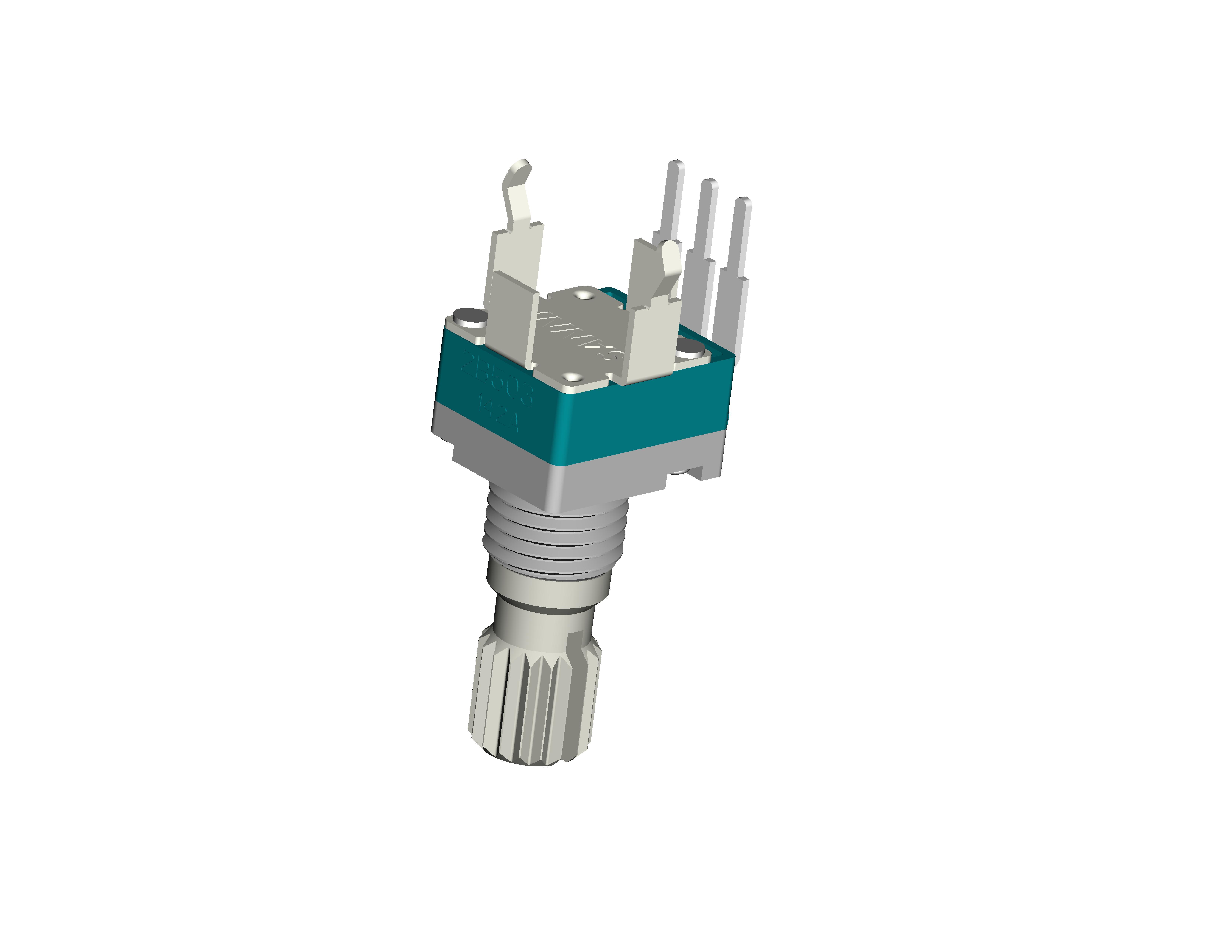

The Rotary Potentiometer is a versatile and reliable component widely used in various electronic applications for precise control of voltage and resistance. This device, commonly referred to as a Rotary Linear Variable Resistor or Rotary Voltage Divider Potentiometer, offers excellent performance and durability, making it an essential element in circuits that require adjustable resistance settings.

One of the key features of this Rotary Potentiometer Device is its wide resistance range, spanning from 300Ω to 3MΩ. This extensive range allows for great flexibility in design and application, enabling engineers and hobbyists alike to fine-tune the resistance values to meet specific requirements. Whether it is for audio control, signal adjustment, or other electronic functions, the ability to select from such a broad spectrum of resistance values ensures optimal performance and adaptability.

The terminal type for this Rotary Potentiometer is the PCB Lug, which facilitates easy and secure mounting onto printed circuit boards. This terminal style provides strong mechanical stability and reliable electrical contact, which is crucial for maintaining consistent performance over time. The PCB Lug terminals also simplify the assembly process, making the potentiometer an attractive choice for both prototype development and mass production.

Durability and safety are critical considerations in any electronic component, and this Rotary Potentiometer excels in these areas. It boasts a dielectric strength of 500VAC, which means it can withstand high voltage levels without breaking down or suffering damage. This high dielectric strength ensures that the potentiometer can operate safely in environments with elevated voltage stresses, offering peace of mind to users and protecting sensitive circuit elements.

The mechanical robustness of the Rotary Potentiometer Device is also noteworthy. It features a rotational life of 10,000 cycles, indicating that it can endure repeated adjustments without degradation in performance. This long lifespan makes it suitable for applications where frequent tuning or calibration is necessary, such as in laboratory instruments, audio equipment, and industrial controls. Users can rely on the potentiometer to maintain stable operation and precise control throughout its service life.

In terms of design, the shaft of this Rotary Linear Variable Resistor comes in three distinct types: round, flat, and knurled. This variety allows users to select the most appropriate shaft style based on the specific application and ergonomic requirements. The round shaft is generally preferred for smooth and continuous rotation, while the flat shaft offers better grip and alignment for panel mounting. The knurled shaft provides enhanced tactile feedback and improved handling, especially in environments where precise manual adjustments are necessary.

Overall, the Rotary Potentiometer is an indispensable component for anyone seeking a reliable and adjustable resistor solution. Its combination of a broad resistance range, robust PCB Lug terminals, high dielectric strength, extended rotational life, and versatile shaft options make it a practical choice for a wide array of electronic projects. Whether used as a Rotary Voltage Divider Potentiometer in complex circuits or as a simple Rotary Linear Variable Resistor to control signal levels, this device delivers consistent, high-quality performance.

In summary, the Rotary Potentiometer Device stands out as a high-quality, durable, and flexible solution for adjusting resistance and voltage in electronic systems. Its specifications, including resistance values from 300Ω to 3MΩ, PCB Lug terminals, 500VAC dielectric strength, 10,000-cycle rotational life, and multiple shaft types, ensure that it meets the demands of modern electronic design and application. By incorporating this potentiometer into your projects, you gain a dependable component that enhances control, precision, and longevity.

Features:

• Product Name: Rotary Potentiometer
• Shaft Length: 6mm-20mm, Normal or Customized
• Shaft Type: Round, Flat, or Knurled
• Gang: Single
• Shaft Material: Metal
• Shaft Diameter: 6mm or Customized
• Functions as a Rotary Electrical Position Sensor
• Available as a Rotary Multi-Turn Potentiometer
• Operates as a Rotary Variable Resistor

Technical Parameters:

Applications:

The SANNI RV91 Rotary Potentiometer is a highly versatile Rotary Linear Variable Resistor designed to meet a wide range of application occasions and scenarios. Originating from Dongguan, China, this precision component offers resistance values ranging from 300Ω to 3MΩ, making it suitable for various electronic devices and control systems. Its robust dielectric strength of 500VAC ensures reliable performance even under demanding electrical conditions.

One of the most common application occasions for the SANNI RV91 Rotary Variable Resistor is in audio equipment, where it is used to adjust volume, tone, and balance with smooth, precise control. The adjustable resistance provided by this Rotary Linear Variable Resistor enables fine-tuning of sound levels, ensuring optimal audio quality. Additionally, it is widely employed in industrial machinery for controlling motor speeds, calibrating instruments, and adjusting sensor outputs, thanks to its durable construction and resistance tolerance of ±20% which ensures consistent operation.

The rotary potentiometer’s shaft type options—round, flat, or knurled—along with a standard shaft diameter of 6mm or customized dimensions, make it adaptable to various mechanical setups. This flexibility allows it to be seamlessly integrated into consumer electronics, automotive dashboards, lighting control panels, and instrumentation where manual adjustment of electrical parameters is essential. Whether used in a laboratory setting for experimental control or embedded in everyday appliances, the SANNI RV91 excels in providing reliable resistance variation.

In scenarios where precise control of electrical signals is required, such as in measurement devices, radio tuning, or electronic prototyping, the SANNI Rotary Variable Resistor proves indispensable. Its sturdy build quality and consistent resistance range make it ideal for repeated use and long-term stability. Furthermore, the product’s origin from Dongguan, China, reflects SANNI’s commitment to quality manufacturing and innovative design.

In summary, the SANNI RV91 Rotary Linear Variable Resistor is suitable for a multitude of application occasions including audio equipment, industrial motor control, instrumentation, automotive systems, and consumer electronics. Its customizable shaft options, broad resistance range, and reliable dielectric strength ensure it meets diverse operational requirements, solidifying its role as a key component in modern electronic design.

Customization:

At SANNI, we offer customized solutions for our Rotary Potentiometer model RV91, a high-quality Rotary Voltage Divider Potentiometer designed and manufactured in Dongguan, China. Crafted from durable plastic and metal materials, this rotary electrical position sensor features a compact 9mm dimension and is available with a through hole/DIP mount type for versatile installation options.

The RV91 model is a single gang rotary adjustable resistor, providing resistance options ranging from 300Ω to 3MΩ to meet your specific application requirements. Whether you need precise voltage division or accurate position sensing, SANNI’s customization services ensure that the Rotary Voltage Divider Potentiometer is tailored to your exact specifications for optimal performance.

Trust SANNI for reliable and adaptable rotary electrical position sensor solutions that enhance your electronic designs with superior quality and flexibility.

Support and Services:

For technical support and service inquiries related to Rotary Potentiometers, please refer to the product manual and datasheets available on our website. Our support team is dedicated to assisting you with installation guidance, troubleshooting, calibration, and maintenance procedures to ensure optimal performance of your rotary potentiometer.

We recommend verifying the specifications and compatibility with your application before installation. In case of any operational issues, please check wiring connections, environmental conditions, and mechanical alignment as outlined in the technical documentation.

Replacement parts and repair services are available to extend the life of your rotary potentiometer. Regular maintenance, including cleaning and inspection, will help maintain accuracy and reliability.

For software updates, firmware upgrades, and additional resources, please consult the technical support section on our website. Comprehensive FAQs and user forums provide further assistance and community support.

Our commitment is to provide prompt and effective solutions to maximize the functionality and longevity of your rotary potentiometer product.

Packing and Shipping:

Product Packaging: Each rotary potentiometer is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge. The product is then placed in a sturdy cardboard box with adequate cushioning materials to protect it from shocks and vibrations during transit. The packaging is clearly labeled with product specifications, handling instructions, and barcode for easy identification.

Shipping: We offer reliable shipping services worldwide with options for standard and expedited delivery. All orders are processed within 1-2 business days. Shipments are tracked and insured to ensure safe and timely arrival. Customers will receive a tracking number once the product has been dispatched. Special packaging requests and bulk order shipments can be accommodated upon request.

FAQ:

Q1: What is the brand and model number of this rotary potentiometer?

A1: The rotary potentiometer is manufactured by SANNI and the model number is RV91.

Q2: Where is the SANNI RV91 rotary potentiometer made?

A2: This rotary potentiometer is made in Dongguan, China.

Q3: What type of applications is the SANNI RV91 rotary potentiometer suitable for?

A3: The SANNI RV91 rotary potentiometer is suitable for various applications including audio equipment, control systems, and electronic devices where adjustable resistance is needed.

Q4: What is the typical resistance range available for the SANNI RV91 potentiometer?

A4: The resistance range for the SANNI RV91 rotary potentiometer varies depending on the specific model variant, commonly available in ranges from 1kΩ to 100kΩ. Please refer to the datasheet for exact specifications.

Q5: How do I install the SANNI RV91 rotary potentiometer?

A5: The SANNI RV91 rotary potentiometer can be installed by mounting it through a panel using its threaded bushing and securing it with the provided nut. Connect the terminals according to your circuit requirements.
