Description

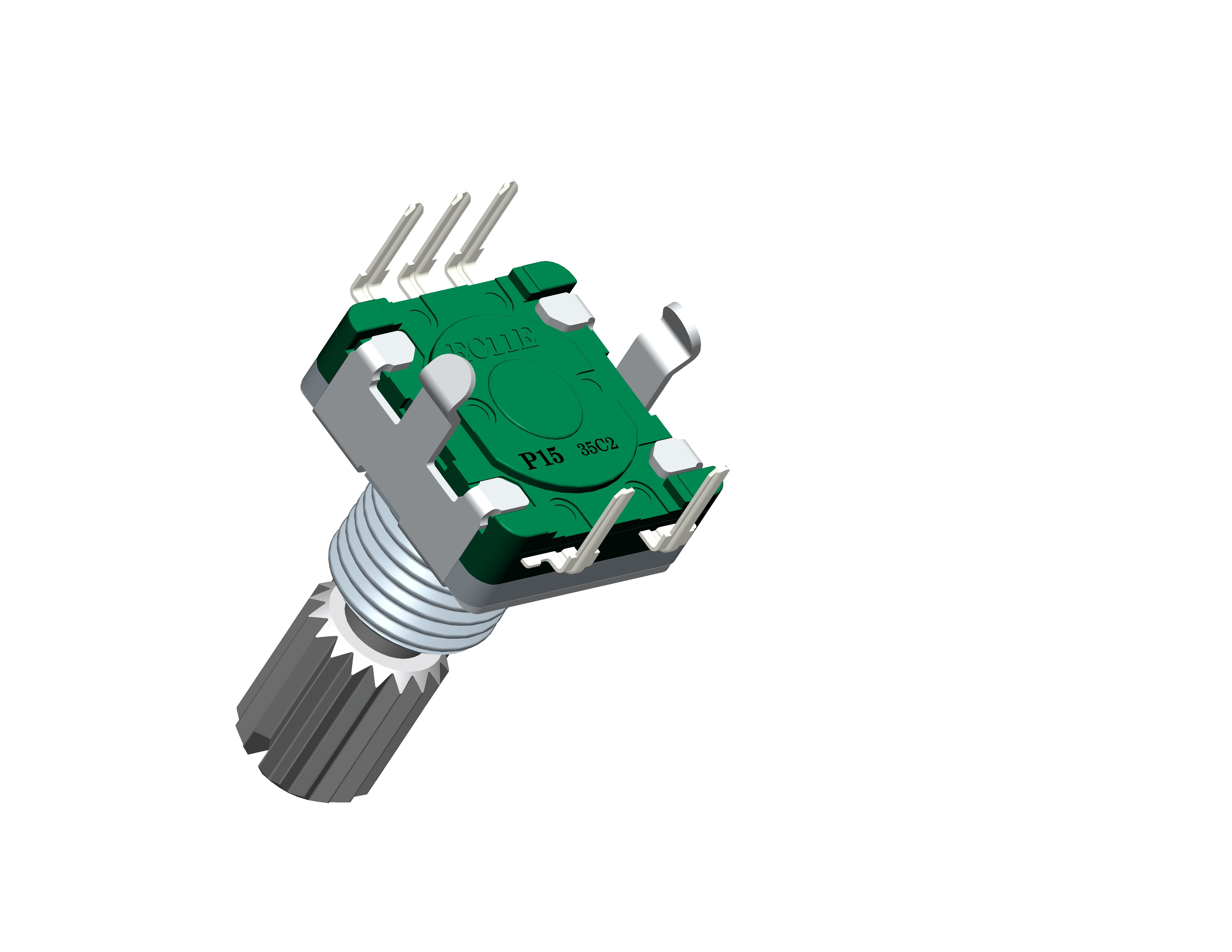

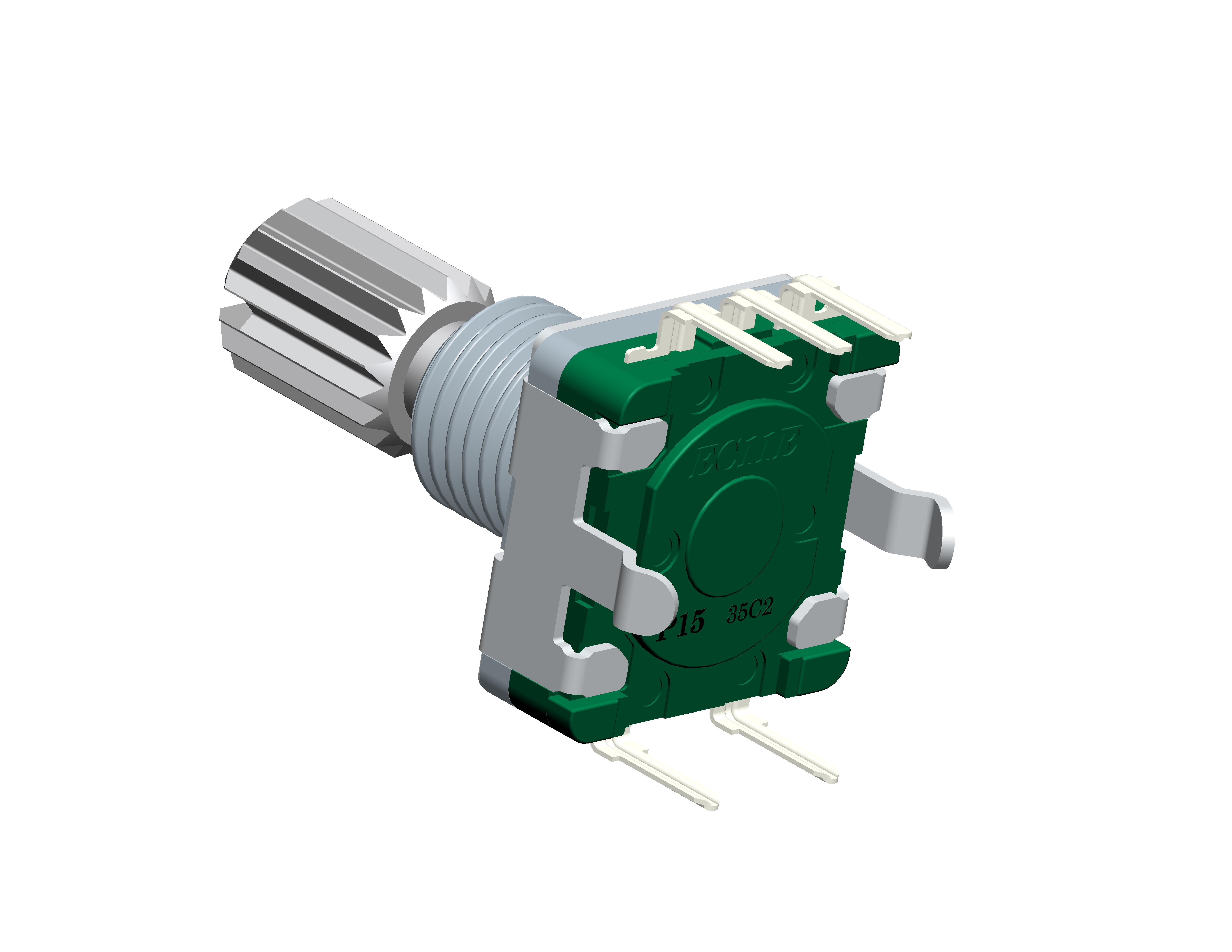

An incremental encoder is a linear or rotating electromechanical device that has two output signals, A and B, which emit pulses as the device moves. Together, the A and B signals indicate the occurrence and direction of motion. Many incremental encoders have an additional output signal, usually specifying an index or Z, which indicates that the encoder is at a specific reference position. In addition, some encoders provide a status output (usually specifying an alarm) indicating internal fault conditions, such as bearing failure or sensor failure.
Specification
| Features: |
| Control part orientation |
Vertical |
| Actuator configuration |
Flat |
| Actuator length |
20mm |
| Number of detent |
30 |
| Number of pulse |
15 |
| Push-on switch |
With |
| Travel of push-on switch |
1.5mm |
| Dimensions |
11mm size |
| Operating temperature range |
-40℃ ～ +85℃ |
| Electrical performance |
| Output signal |
Two phase A and B |
| Ratings |
10mA 5V DC |
| Insulation resistance |
100MΩ min. 250V DC |
| Max./min. operating current (Resistive load) |
10mA/1mA |
| Voltage proof |
300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance |
| Push-pull strength |
100N |
| Detent torque |
10±7mN・m |
| Durability |
| Operating life |
15,000 cycles |
| Push-on switch specifications |
| Contact arrangement |
Single pole single throw (Push-on) |
| Travel |
0.5±0.5mm |
| Operating force |
4±2N |
| Ratings |
0.1A 5V DC (500µA 5V DC min. ratings) |
| Contact resistance (Initial performance/After lifetime) |
100mΩ max./200mΩ max. |
| Operating life |
20,000 times |
Application
Incremental encoder is mainly used to measure rotation direction, Angle,speed, acceleration and so on. Commenly used in machinery, CNC machine tools, servo motor, elevator,textile machinery, flow meter, metallurgical machinery, injection machinery, printing and packaging machinery and other industrial automation measurement and control field.
Our Advantage
1. 9 automation production lines, more than 100 experienced workers for higher precision products.
2. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
3.10+ dedicated and experienced engineers and designers in R&D department.
4. Professional Testing instruments and team to ensure product quality.
FAQ
• Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales staffs for consult.
• Q: Can I get sample from you?
• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
• Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
