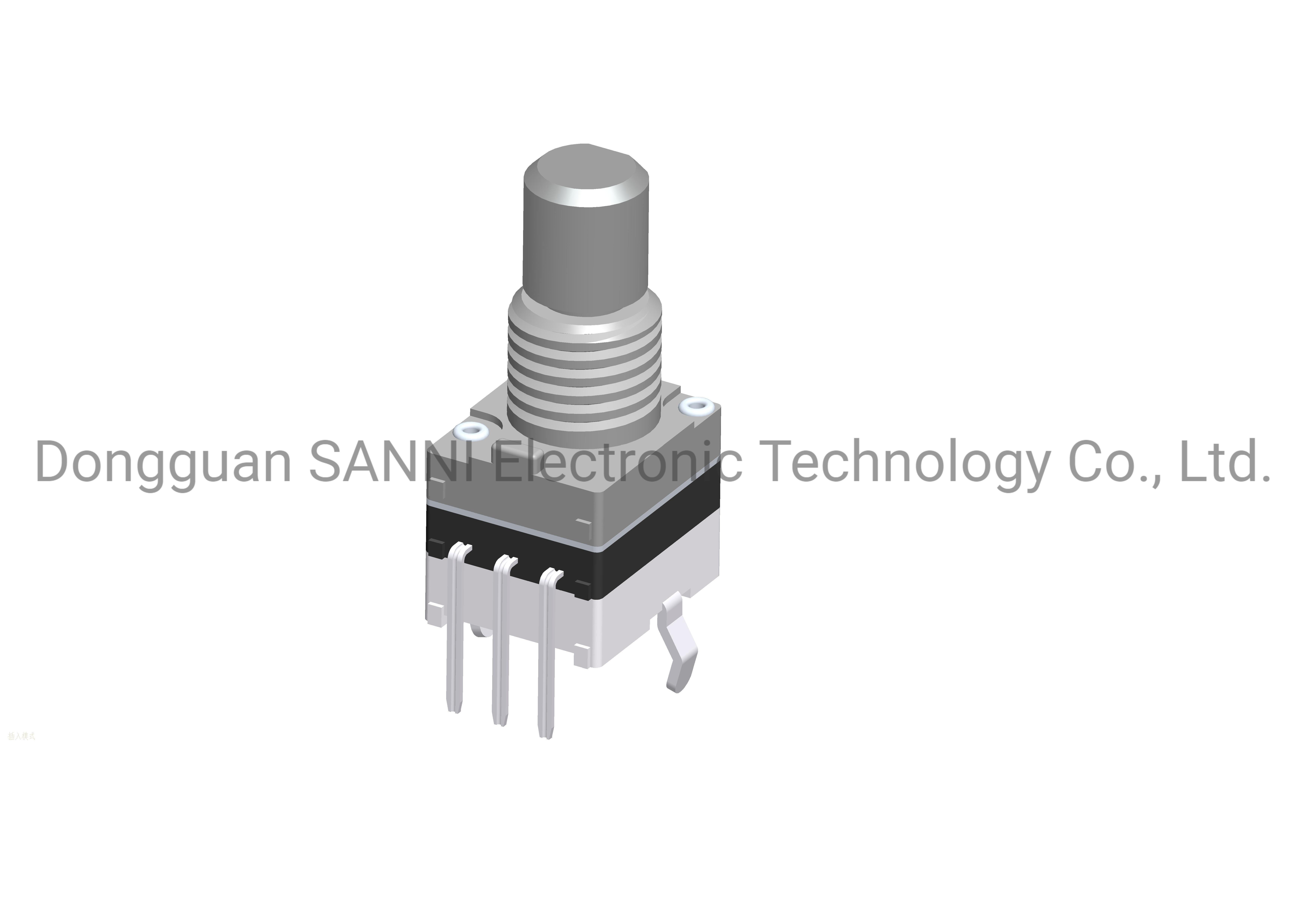

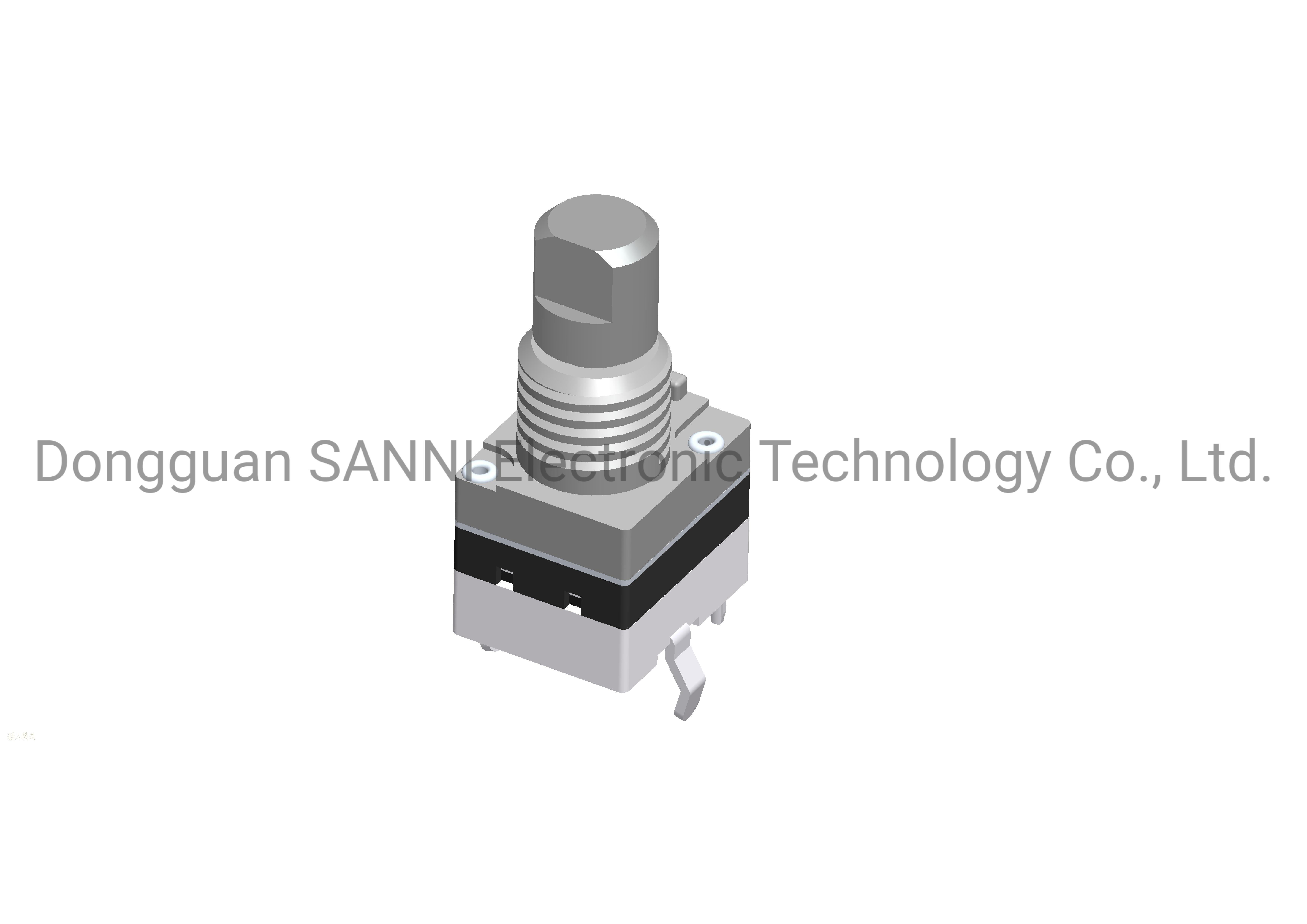

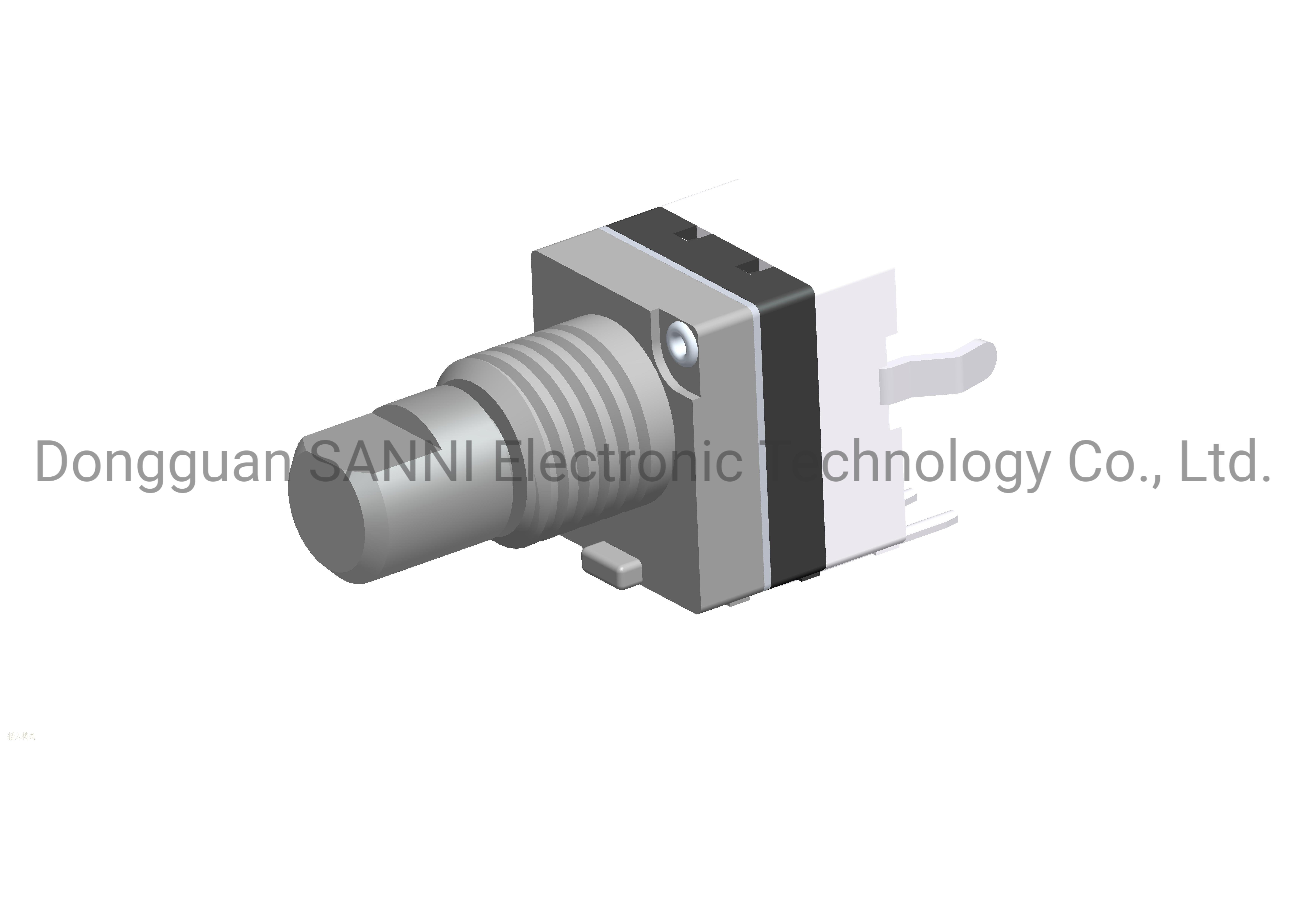

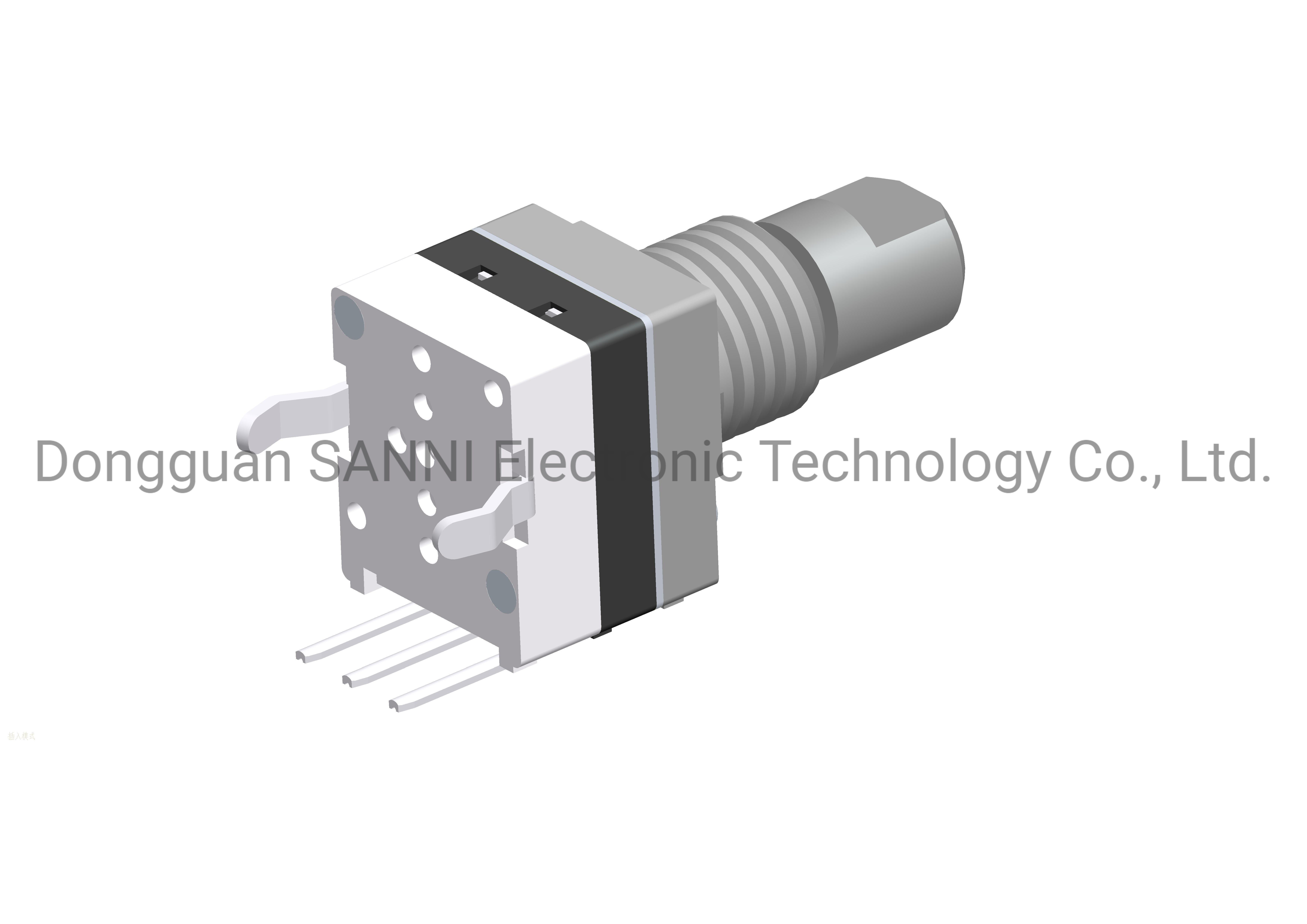

Digital Incremental Rotary Encoder with Push Switch
Description
Incremental encoders convert the displacement into periodic electrical signals, which are then converted into counting pulses. The number of pulses represents the displacement.
The rotating incremental encoder outputs the pulse when rotating, and knows its position through the counting device. When the encoder is not moving or the power is off, it remembers the position by relying on the internal memory of the counting device.
Specification
| Switch Performance |
| Circuit number: |
PUSH |
| Rated power: |
0.1A 5V DC |
| Switch Torque: |
500± 200gf.cm max |
| Switch Angle: |
0.5± 0.3 |
| Operating life without load: |
100,000 cycles 100mΩ max |
| Operating life with load: |
100,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Mechanical characteristics |
| Stopper strength |
3kgf.max |
| Detent: |
20 |
| Rotational torque: |
20~200gf.cm |
| Rotational stopper strength : |
3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| push-pull strength: |
8Kgf.max |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent |
10/20 |
| Features: |
with push switch/rotary switch |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Center-taps: |
with |
| Environmental performance |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
Features
1. Sealed design encoder with highly reliable performance.
2. Available in many different variants.
3. Push switch with 0.5mm travel or 1.5mm travel.
4. Shaft length and shape can be adjusted.
5. A variety of mounting methods for choice
6. ROHS Compliant
7. Small Volume
Application
Incremental encoder is mainly used to measure speed, acceleration, rotation direction, Angle and so on. Widely used in walking machinery, CNC machine tools, elevator, servo motor, flow meter, textile machinery, metallurgical machinery, injection machinery, printing and packaging machinery, automatic instruments and other industrial automation measurement and control field.
Heavy Duty: demanding environment with a high probability of contaminants and moisture, higher temperature, shock, and vibration requirements as seen in pulp, paper, steel, and wood mills.
Industrial Duty: general factory operating environment which requires standard IP ratings, moderate shock, vibration, and temperature specs as seen in food and beverage, textile, generally factory automation plants.
Light Duty/Servo: controlled environment with high accuracy and temperature requirements such as robotics, electronics, and semiconductors.
