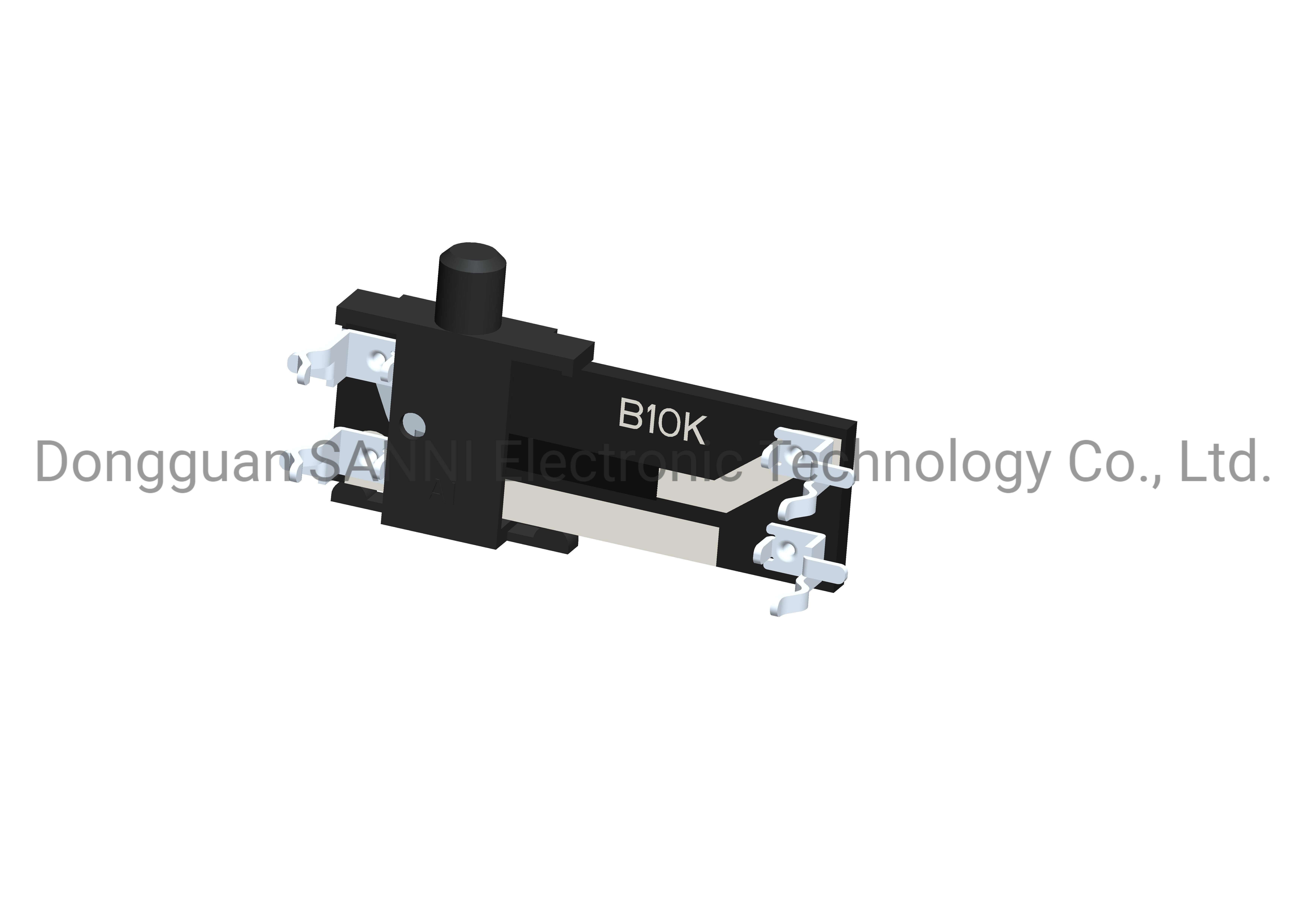

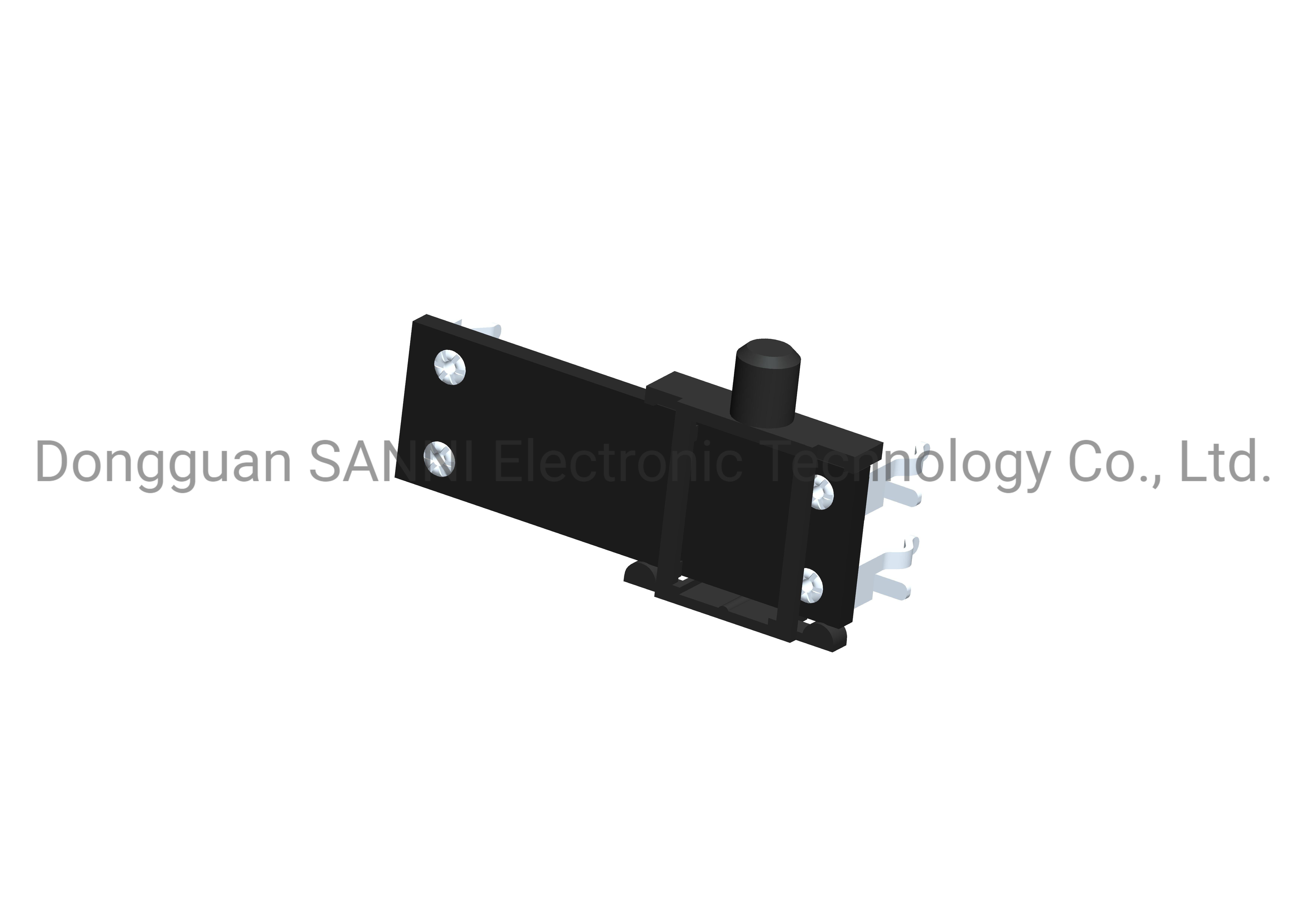

Name: RB1576N0 Linear Slide Potentiometer For Radio Frequency Volume Control
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RB1576N0
Price: 0.30 USD
Availability: InStock

RB1576N0 Linear Slide Potentiometer For Radio Frequency Volume Control

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RB1576N0

Minimum Order Quantity:	2000pcs
Price:	USD0.3~0.5 per pc
Packaging Details:	1000pcs per Carton box,
Delivery Time:	35 working days
Payment Terms:	T/T
Supply Ability:	10000pccs per Month

Contact Now

Model NO.:

RB1576N0

Brand:

SANNI

Material:

Plastic & Metal

Function For Resistance:

Slide Resistor

Installation:

DIP PCB Mount

Customization:

Available | Customized Request

Highlight:

Volume Control Linear Slide Potentiometer

Radio Linear Slide Potentiometer

Linear radio volume potentiometer

RB1576N0 Linear Slide Potentiometer For Radio Frequency Volume Control Or Other Control

Application of linear slide potentiometer

The linear slide potentiometers are commonly used in audio equipment such as graphic equalizers and audio mixers as they are easy to visualize from the position of the slider.

Product features

RoHS compliant
Seal type
Small volume
Structural diversification
High Quality

Product Specification

1.Mechanical Characteristics
Lever stop strength	6Kgf.cm Min
Lever travel	100±1mm
Lever wobble	2(2xL/25)mm P-P Max.
Operating force	5-35gf.cm
Slide trust of the Lever	5Kgf 10s Min
Life Cycle	30,000 cycles
2.Electrical Characteristics
Total resistance	5KΩ-500KΩ
Total resistance tolerance	±10% or ±20%
Max. operating voltage	50V AC, 20V DC
Residual resistance	50Ω Max
Rated Power	0.05W for linear taper, 0.025W for audio taper
Insulation resistance	100MΩ min．(DC 500V)
Dielctrical proof	250V DC for １minute
Noise	47 mV max
3.Environmental Performance
Operating temperature range	-10oC to +70oC
Storage temperature range	-30oC to +70oC
4.Welding Performance
Reference for hand soldering	235℃ 5sec.
