Model NO.: | RA2031 | Brand: | SANNI |
---|---|---|---|
Resistance Change Scale: | Linear Or Audio | Installation: | PCB DIP Mounting |
Unit: | Single Unit | Material: | Plastic & Metal |
High Light: | Linear Slide Potentiometer Fader,Metal Linear Slide Potentiometer,Single Unit potentiometer fader |

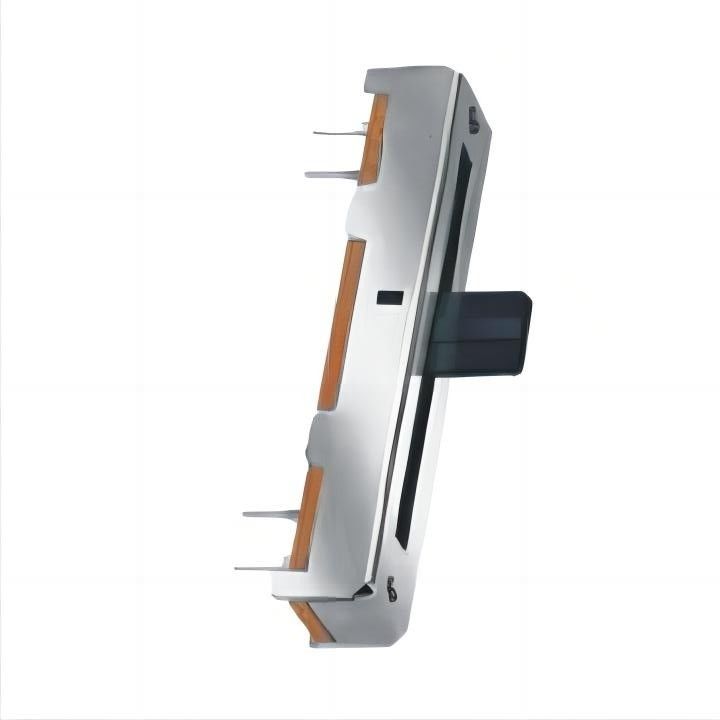

What is a Linear Slide Potentiometer
Linear slide potentiometer also known as the slider or fader, the linear potentiometers are similar to the Rotary Potentiometer but instead of the wiper moving in an angular movement, it moves linearly.
In the linear potentiometer family, there are various types:
Type | How does it work? |
Slide Pot | Single linear slider Potentiometer used for single channel control |
Multi – Turn Slide | Single slider controlling 2 potentiometers in parallel |
Multi – Turn Slide | Made from a spindle which allow for multiple rotations for increased precision. |
Motorised Slide Pot | Automatically adjusted fader using a servo motor |
Product Specification
1.Mechanical Characteristics | |
Lever stop strength | 6Kgf.cm Min |
Lever travel | 100±1mm |
Lever wobble | 2(2xL/25)mm P-P Max. |
Operating force | 5-35gf.cm |
Slide trust of the Lever | 5Kgf 10s Min |
Life Cycle | 30,000 cycles |
2.Electrical Characteristics | |
Total resistance | 5KΩ-500KΩ |
Total resistance tolerance | ±10% or ±20% |
Max. operating voltage | 50V AC, 20V DC |
Residual resistance | 50Ω Max |
Rated Power | 0.05W for linear taper, 0.025W for audio taper |
Insulation resistance | 100MΩ min.(DC 500V) |
Dielctrical proof | 250V DC for 1minute |
Noise | 47 mV max |
3.Environmental Performance | |
Operating temperature range | -10oC to +70oC |
Storage temperature range | -30oC to +70oC |
4.Welding Performance | |
Reference for hand soldering | 235℃ 5sec. |
