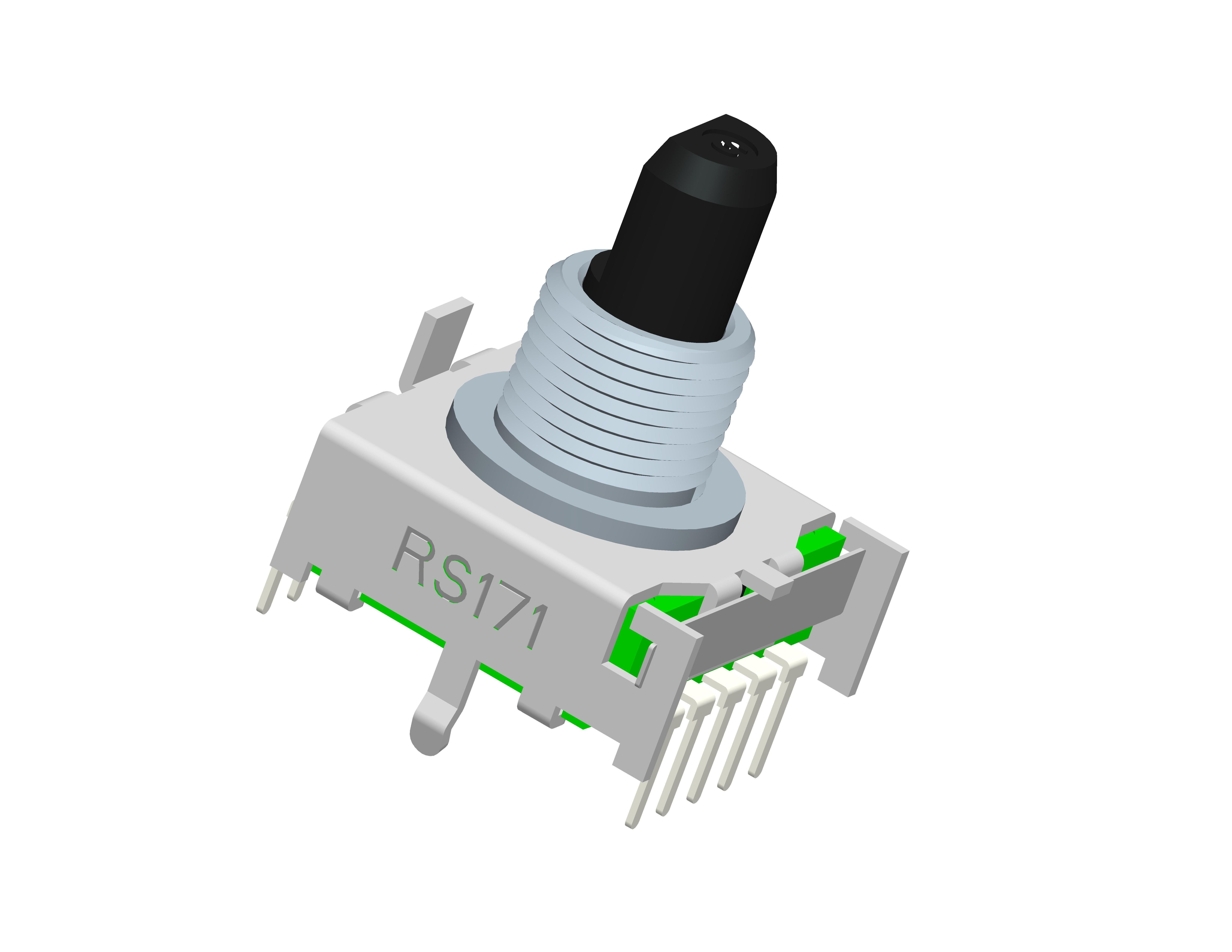

Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171

Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171
Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171
Basic Information
Place of Origin: China
Brand Name: SANNI
Minimum Order Quantity: 2000PCS
Price: USD0.3~0.6/PC
Packaging Details: 1000 Or 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RS171 Condition: New
Switch Type: Rotary Transport Package: Tray+Carton Box
Specification: 12MM Trademark: SANNI
Origin: Dongguan Supply Ability: 10000PCS/Month
Rotary Number: Single Button Usage: Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products
Standard: Standard Structure: Screw Shank
Operation: Knob Certification: ISO
Samples: US$ 0/Piece 1 Piece(Min.Order) | Request Sample Customization: Available | Customized Request
Highlight:

Square Electronic Rotary Switch

,

Multiple Positions Electronic Rotary Switch

,

17mm square rotary switch

Factory RS171 17mm Band Rotary Switch Multiple Positions Square Rotary Switch for Audio



Product Description

Company Info.

Basic Info.

Model NO.
RS171
Condition
New
Switch Type
Rotary
Transport Package
Tray+Carton Box
Specification
12MM
Trademark
SANNI
Origin
Dongguan
Production Capacity
10000PCS/Month

Product Description


Factory RS171 17mm Band Rotary Switch Multiple Positions Square Rotary Switch for Audio
  •
  • Features
  •    RoHS compliant
  •    Seal type
  •    Insulating material
  •    Gear clear
  •    Vertical type
  • Application
  •    Player
  •    Sound
  •    Sound console
  •    Instrumental equipment
  •    Medical equipment
  •    Meter
  •    White goods
  •    Aoto
  • Mechanical characteristics
  • Total rotational angle: N*30° N=2/3/4/5/6/7/8/9 N:Gear                      N*45° N=2/3/4/5/6 N:Gear
    Switching angle: 30°±2°/45°±3°
    Rotational torque: 40±15mN.m
    Rotational stopper strength: 5Kgf.min
    Shaft Push-pull strength: 10Kgf.min
    Shaft wobble: Max:0.6*L/20mmP-P
    Terminal strength: 5N for 1 minute
  • Electrical characteristic
  • Rating(max)/(min)(Resistive load): 0.3A 16V DC/50uA 3V DC
    Insulation resistance: 100MΩ min. 100V DC
     Voltage proof: 100V AC for 1minute
     Contact resistance(Initial/After operating life): 100MΩ max
  • Operating life without load: 10000 cycles 100MΩ max
  • Environmental performance
  • Cold: -40ºC±2ºC for 96h
  • Dry heat: 85ºC±2ºC for 96h
  • Damp heat: 40±2ºC, 90 to 95%RH for 96h
  •
  •
  • Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 0Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 1Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 2Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 3Dongguan Shangli Electronic Technology Co., Ltd. is a professional private technology enterprise engaged in the research and development, manufacturing and sales of potentiometers, encoders, band switches and high-precision electronic components. The company fully implements ISO9001: 2008 quality management system, ISO14001: 2009 environmental management system and ISO/TS16949: 2009 automotive quality system management standards.
  • All from the needs of customers, through scientific system research and development, using fully automatic or semi-automatic manufacturing technology, combined with high-precision testing instruments, and adopting reliable testing methods, the products are of the highest quality and the most beneficial value to ensure the trust and praise of customers.
  • Products are widely used in high-precision adjustments such as automobiles, communications, medical treatment, instruments, audio, lighting, toys, mixers, and equipment.

  • Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 4Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 5Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 6Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 7Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 8Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 9Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 10Multiple Positions Square Electronic Rotary Switch 17mm For Audio RS171 11
