Home ProductsElectronic Rotary SwitchRS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band

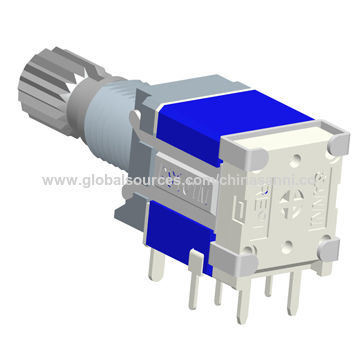

RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band

RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band
RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band
Basic Information
Place of Origin: China
Brand Name: SANNI
Minimum Order Quantity: 2000PCS
Price: USD0.3~0.6/PC
Packaging Details: 1000 Or 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RS1010 Condition: New
Switch Type: Rotary Transport Package: Tray+Carton Box
Specification: 14MM Trademark: SANNI
Origin: Dongguan Supply Ability: 10000PCS/Month
Rotary Number: Single Button Usage: Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products
Standard: Standard Structure: Screw Shank
Operation: Knob Certification: ISO
Samples: US$ 0/Piece 1 Piece(Min.Order) | Request Sample Customization: Available | Customized Request
Highlight:

10mm Sealed Rotary Switch

,

Sealed Rotary Switch Horizontal

,

Potentiometer Sealed Rotary Switch

Wholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for

Product Description

Company Info.

Basic Info.

Model NO.
RS1010
Condition
New
Switch Type
Rotary
Transport Package
Tray+Carton Box
Specification
14MM
Trademark
SANNI
Origin
Dongguan
Production Capacity
10000PCS/Month

Product Description

  • 10mm Sealed band switch
  • Width: 10mm
  • Use:Used for player, sound, sound console, medical equipment, instrument equipment, meter,white goods and Aoto.
  • Product features
  •      RoHS compliant
  •      Seal type
  •      A variety of switch function selection
  •      Gear clear
  •      Horizontal type
  • Mechanical characteristics
  •      Total rotational angle:RS121:30°±3°
  •       Rotational torque: 30±15mN.m
  •      Rotational stopper strength: 5Kgf.min
  •      Shaft Push-pull strength: 8Kgf.min
  •      Shaft wobble: Max:0.6*L/20mmP-P
  •      Terminal strength:5N for 1 minute
  • Electrical characteristics
  •      Rating(max)/(min)(Resistive load):0.1A 16V DC/50uA 3V DC
  •      Insulation resistance: 100MΩ min.100V DC
  •      Voltage proof: 100V AC for 1minute
  •      Contact resistance(Initial/After operating life):100MΩ max
  • Operating life without load: 10000 cycles 100MΩ max
  •
  • Wholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio Products
    Dongguan Shangli Electronic Technology Co., Ltd. is a professional private technology enterprise engaged in the research and development, manufacturing and sales of potentiometers, encoders, band switches and high-precision electronic components. The company fully implements ISO9001: 2008 quality management system, ISO14001: 2009 environmental management system and ISO/TS16949: 2009 automotive quality system management standards.
  • All from the needs of customers, through scientific system research and development, using fully automatic or semi-automatic manufacturing technology, combined with high-precision testing instruments, and adopting reliable testing methods, the products are of the highest quality and the most beneficial value to ensure the trust and praise of customers.
  • Products are widely used in high-precision adjustments such as automobiles, communications, medical treatment, instruments, audio, lighting, toys, mixers, and equipment.

  • Wholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio ProductsWholesale RS1010 10mm Sealed Rotary Switch Horizontal Type Potentiometer Band Switch Rotary Switch for Audio Products
