Name: Channel Control Multi Position Rotary Switch 26mm Size RS266
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RS266
Price: 0.30 USD
Availability: InStock

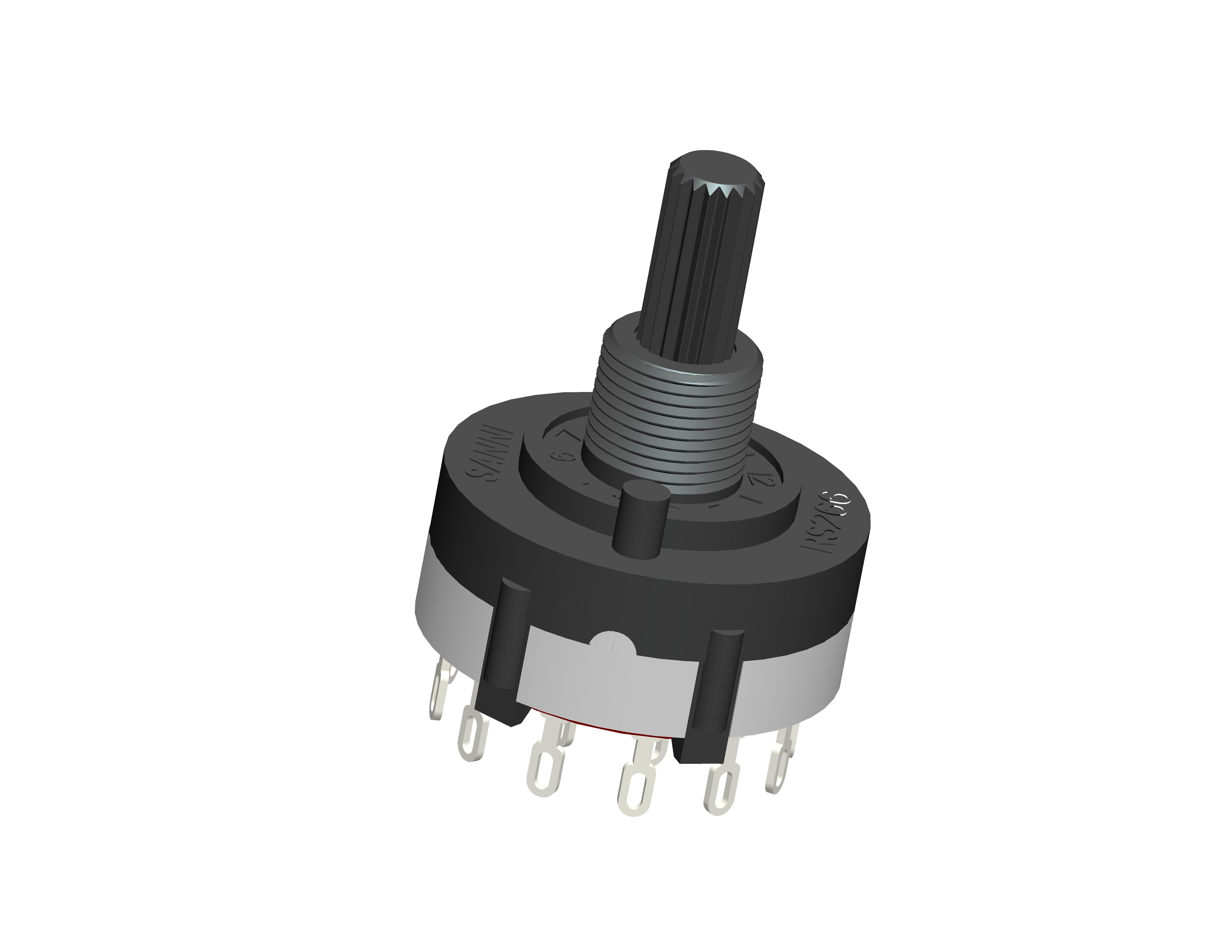

Channel Control Multi Position Rotary Switch 26mm Size RS266

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RS266

Minimum Order Quantity:	2000PCS
Price:	USD0.3~0.5 per pc
Packaging Details:	500pcs per Carton box,
Delivery Time:	25 Working days
Payment Terms:	T/T
Supply Ability:	10000pcs per Month

Contact Now

Model NO.:

RS266

Material:

Metal & Plastic

Specification:

26MM

Trademark:

SANNI

Structure:

Screw Shank

Operation:

Knob

Highlight:

Multi Position Rotary Switch 26mm

Channel Control Multi Position Rotary Switch

RS266 26mm Rotary Switch Multiple Positions Band Switch for Channel Control

Product features

RoHS compliant

Seal type

A variety of switch function selection

Can have 1 or 2 circuits(poles) control

Gear clear

Vertical type

Application of Rotary Switch

Rotary switches are used for channel selectors on signal receivers, as well as range selectors on electric meter and band selectors on multi-band radios, band selectors for household appliances etc....

Product Specification

1.Mechanical Characteristics
Total rotation angle	N=2/3/4/5/6/7/8/9/10/11/12 N: Gear
Switching Angle	30^o±2^o
Totational torque	50±20mN.m
Rotation Stopper strengh	Min:4Kgf
Shaft push-pull strength	Min:6Kgf
Terminal Strength	5N for 1 minute
Shaft Wobble	Max: 0.6*L/20mm P-P
2.Electrical Characteristics
Rating(max.)/(min.)(Resistive load)	0.3A 16V DC/50uA 3V DC
Contact Resistance(Initial/After Operating life)	200mΩmax.
Insulation resistance	100MΩ min. 100V DC
Voltage proof	500V AC for 1 minute
3.Durability
Operating life without load	10,000 cycles 100mΩ max
Operating life with load Load:as rating	10,000 cycles 150mΩ max
4.Environmental Performance
Operating temperature range	-10^oC to +85^oC
Storage temperature range	-40^oC to +85^oC
5.Welding heat reference
Manual Soldering	350^oC±10^oC/3+1S
Wave Soldering	260^oC±5^oC/10±1S
Reflow Soldering	See temperature distribution on data sheet

Our Advantage

More than 10 years of experience in research and development production design.
10 automation production lines, more than 100 experienced workers for higher precision products.
10+ dedicated and experienced engineers and designers in R&D department.
Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
Professional Testing instruments and team to ensure product quality.

Operating life without load: 10000 cycles 100MΩ max
