Name: 16mm Digital Rotary Switch Channel Selecting Band RS16211 OEM ODM
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RS16211
Price: 0.30 USD
Availability: InStock

16mm Digital Rotary Switch Channel Selecting Band RS16211 OEM ODM

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RS16211

Minimum Order Quantity:	2000PCS
Price:	USD0.3~0.5 per pc
Packaging Details:	1000pcs per Carton box,
Delivery Time:	25 Working days
Payment Terms:	T/T
Supply Ability:	10000pcs per Month

Contact Now

Model NO.:

RS16211

Material:

Metal & Plastic

Specification:

12MM

Structure:

Screw Shank

Trademark:

SANNI

Operation:

Knob

Highlight:

16mm Digital Rotary Switch

Digital Rotary Switch OEM

ODM Digital Rotary Switch

RS16211 16mm Rotary Switch Channel Selecting Band Switch

Description of Rotary Switch

A rotary switch is a switch operated by rotation. These are often chosen when more than 2 locations are needed, such as a three-speed fan or CB radio with multiple receiving frequencies or "channels". The rotary switch will always have clear click sound when you rotate it to change the band.

Application:

Used as channel selectors on signal receivers, as well as range selectors on electric meter equipment and band selectors on multi-band radios, etc....

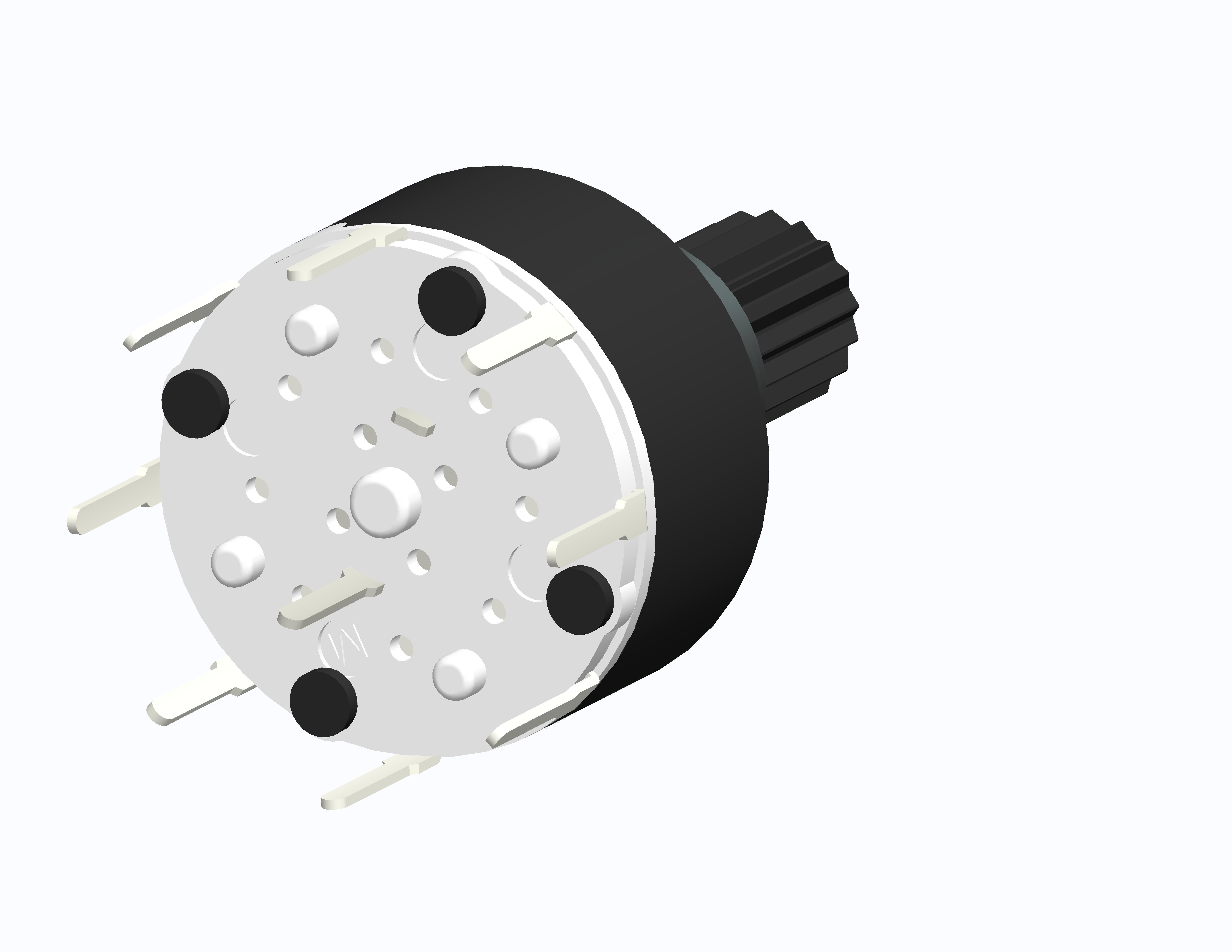

16mm Digital Rotary Switch Channel Selecting Band RS16211 OEM ODM 0

Product Specifications

1.Electrical Characteristics
Rating(max.)/(min.)(Resistive load)	0.1A 16V DC/50uA 3V DC
Contact Resistance(Initial/After Operating life)	100mΩmax.
Insulation resistance	100MΩ min. 100V DC
Voltage proof	100V AC for 1 minute
2.Mechanical Characteristics
Switching Angle	RS121:30^o±3^o
Totational torque	30±15mN.m
Rotation Stopper strengh	Min:5Kgf
Shaft push-pull strength	Min:8Kgf
Terminal Strength	5N for 1 minute
Shaft Wobble	Max: 0.6*L/20mm P-P
3.Durability
Operating life without load	10,000 cycles 100mΩ max
Operating life with load Load:as rating	10,000 cycles 150mΩ max
4.Environmental Performance
Operating temperature range	-10oC to +85oC
Storage temperature range	-40oC to +85oC
5.Welding heat reference
Manual Soldering	350oC±10oC/3+1S
Wave Soldering	260oC±5oC/10±1S
Reflow Soldering	See temperature distribution on data sheet

Our Advantage

More than 10 years of experience in research and development production design.
10 automation production lines, more than 100 experienced workers for higher precision products.
10+ dedicated and experienced engineers and designers in R&D department.
Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
Professional Testing instruments and team to ensure product quality.
