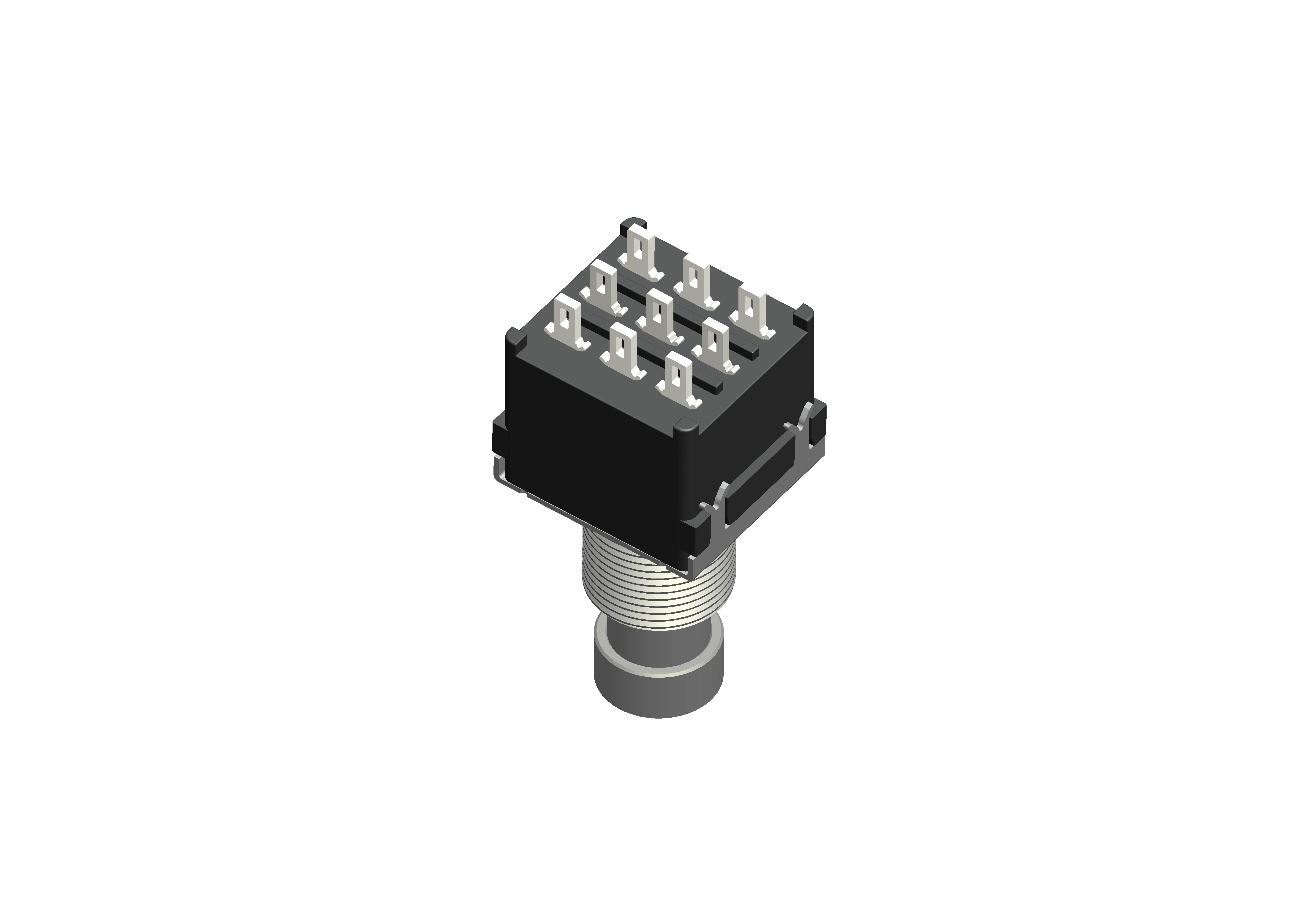

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting
SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: SF17011M
Minimum Order Quantity: 500pcs
Price: USD1.3~USD1.5 per pc
Packaging Details: 500pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pcs per Month
Contact Now
Model NO.: SF17011M Trademark: SANNI
Specification: 17mm Usage: Guitar Pedal,Mixer Pedal Etc....
Structure: Screw Shank Fixting Style Operation: Push Lever
Samples: Free Sample With Freight Collect Shipping Customization: Available
Highlight:

ON ON Guitar Pedal Footswitch

,

Guitar Pedal Footswitch 9 Terminal

,

SF17011M Footswitch

SF17011M 9 Terminal ON-ON Guitar Pedal Footswitch



What Is Foot Switch



Foot switch is a switching device operated by the user's feet. They are widely used in many industries to operate machines or equipment that allow users to make the most of their hands. The foot switch can be instantaneous or lockable. And can use a variety of operating principles.



Feature



Compliant with RoHS Directive

Spring Actuator

Vertical Mounting

PCB DIP Soldering

Durable Structure

SPDT and DPDT are all available



Product Specification



Electrical Specification
Rating 125V AC 6A, 250V AC 3A, 30V DC 4A
Withstand Voltage 1000V AC-1 minute
Contact Resistance 50mΩ Max
Insulation Resistance 500V DC- 100MΩ Min
Operating Life Cycle Latching Type: 10,000 cycles
Momentary Type: 20,000 cycles





Michanical Charactors
Terminal Type Pole Position Operating Force Timing
PCB/Soldering 1 or 2 2 -L = 1.3 ± 0.5 kgf.cm Latching
-M = 1.6 ± 0.5 kgf.cm Momentary



SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 0

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 1SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 2

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 3SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 4

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 5SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 6SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 7

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 8

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 9SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting 10
