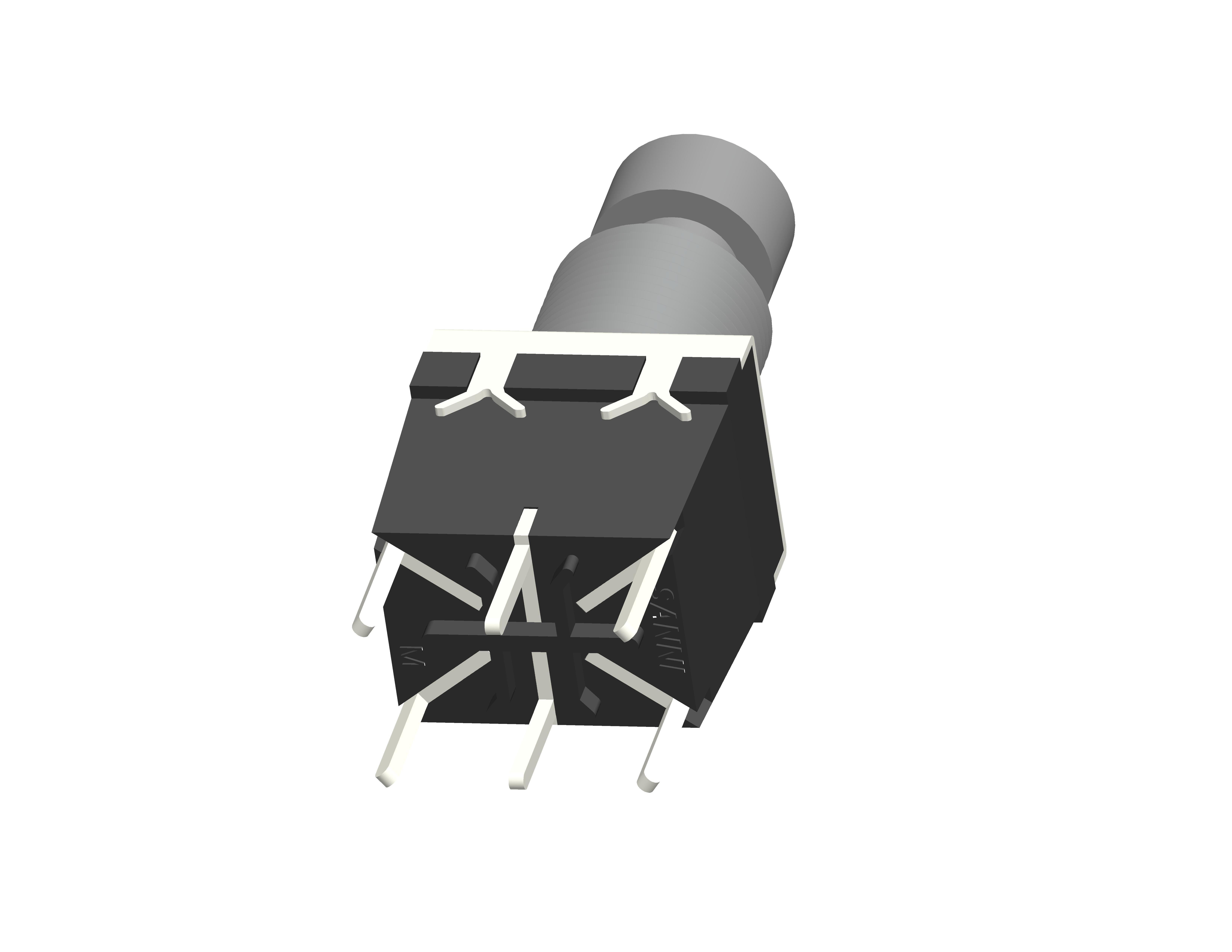

1SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: SF14011L
Minimum Order Quantity: 500pcs
Price: USD1.3~USD1.5 per pc
Packaging Details: 500pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pcs per Month
Model NO.: SF14011L Specification: 14mm
Usage: Guitar Pedal,Mixer Pedal Etc.... Trademark: SANNI
Structure: Screw Shank Fixting Style Operation: Push By Foot
Lever Material: Copper Or Steel With Nickel Plating Body Material: Plastic
Highlight:

Guitar Pedal Footswitch 6 Terminal

,

Guitar Pedal Footswitch 14mm

,

FREE ON guitar foot switch

1SF14011L FREE-ON 6 Terminal Guitar Pedal Footswitch



What Is Footswitch



A foot switch is a switching device operated by the user's feet. They are normally used  to operate equipment or machines that allow users to do most of the jobs by their hands. The foot switch can be lockable or instantaneous . And can use a variety of operating principles.





Product Specification



Electrical Spec.
Insulation Resistance 500V DC- 100MΩ Min
Withstand Voltage 1000V AC-1 minute
Power Rating 125V AC 6A, 250V AC 3A, 30V DC 4A
Operating Life Cycle Latching Type: 10,000 cycles
Momentary Type: 20,000 cycles
Contact Resistance 50mΩ Max





Michanical Spec.
Terminal Type Pole Position Operating Force Timing
PCB/Soldering 1 or 2 2 -L = 1.3 ± 0.5 kgf.cm Latching
-M = 1.6 ± 0.5 kgf.cm Momentary



Our Services



1. Can customize to meet all your requirement

2. Strong R&D support for technical issue

3. Offer 24 hours to reply your inquiries

4. Experienced quality team to make strong quality control

5. Can accept lower MOQ and flexible lead time



Our Advantage



1.Design and prototype & automation basis in Dongguan which is the manufacture center of South China.

2.10+ dedicated and experienced engineers in R&D department.

3.Manufacture Center in Sichuan Province which is close to Yangzi River wharf and Chongqing Airport.

4.10+ production lines, 100+ experienced workers.

5.Help customers quickly transfer their ideas into mass production, and complete prototype design, development and verification.





FAQ



1.Q: Are you a factory or a trading company?

   A: We are the manufacturer of foot switch......



2.Q: Can you do OEM/ODM?

   A: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your packaging according to your requirements.



3.Q: How is your product quality?

A: We always put emphasis on the quality of our product. Our product are 100% tested and inspected before shipment.



4.Q: How do you ship the goods?

A: The products will be sent to you by optional shipping service, such express, air cargo, sea transportation.







1SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 0

1SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 11SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 2

1SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 31SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 4

1SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 51SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 61SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 7

1SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 8

1SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 91SF14011L FREE ON Guitar Pedal Footswitch 6 Terminal 14mm Size 10
