Model NO.: | RCA02-001 | Surface Treatment: | Gold/Nickel Plating |
---|---|---|---|
Trademark: | SANNI | Interface Type: | Plug Insterting |
Gender: | Female Jack | Application: | Amplifiers,Video And Stereo |
High Light: | Dual Unit RCA Female Connector,Phono RCA Female Connector,Amplifiers Female Phono Jack |

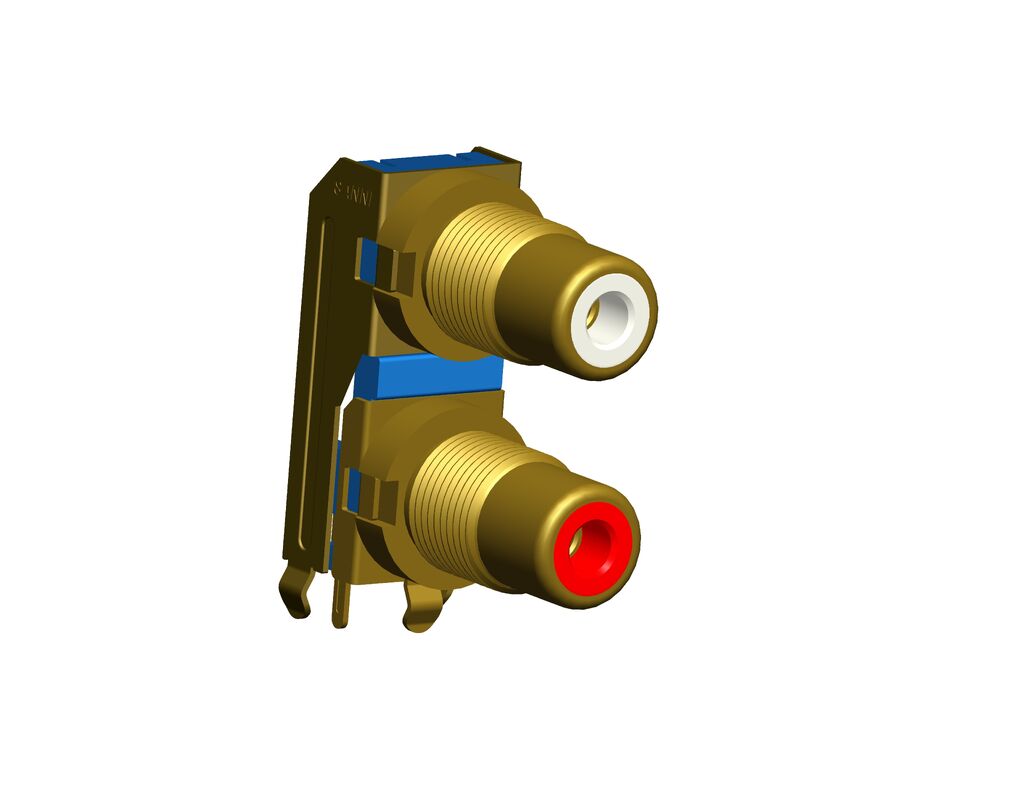

RCA02-001 Dual Unit RCA Female Connector Phono Connector Female Jack
Product Features:
Compliant with RoHS
Low Noize
Good Contact Performance
Insulating Material
Dual Unit
Application
The RCA connector was originally used for audio signals. It has been used for purposes including RF connectors,DC power connectors, and speaker and video cable connectors.RCA connectors and cables are also commonly used for transmision of digital audio in S/PDIF format, with plugs colored to distinguish them from other typical connections.
Color Code Options:
The Female RCA Jack are often color-coded, yellow for composite video,red for the right audio channel, and Black or white for the left channel of stereo audio.
Composite analog video | Composite | Yellow |
Analog audio | Left/Mono (record if 4 connector tape cable) | White |
Right (record if 4 connector tape cable) | Red | |
Right tape (play if 4 connector tape cable) | Yellow | |
Left tape (play if 4 connector tape cable) | Black | |
Digital audio | S/PDIF | Orange |
Component analog video (YPBPR) | Y | Green |
PB/CB | Blue | |
PR/CR | Red | |
Component analog video/VGA (RGB/HV) | G | Green |
R | Red | |
B | Blue | |
V (Vertical sync) | White | |
H (Horizontal sync)/S(Composite Sync) | Yellow |
Product Specification:
1.Mechanical Specification | |
Insertion force | 30N Max |
Withdraw force | 8N Min. |
Withdraw force for center contact | 5N Min(Use a OD=3.2±0.05mm,Length=14士0.20mm gauge plug) |
Withstanding force for the terminal | 30N Max applied in pulled direction for 5 seconds |
2.Electrical Specification | |
Power Rating | 30V/DC.1.0A. |
Contact resistance | 30mΩ Max. |
Insulation resistance | 100MΩ Min. |
Dielectric withtanding voltage | 500V AC RMS After 1 Minute |
3.Durability Performance | |
Life Cycles | Pull in and out 1,500 Cycles Min. |
4.Environmental Performance | |
Temperatrue range | -40℃ to +70℃ |
Salt spray | 24 Hours |
