Name: RI3362W Trimming Single Turn Potentiometer Adjustment With Cermet Material
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RI3362W
Price: 0.08 USD
Availability: InStock

RI3362W Trimming Single Turn Potentiometer Adjustment With Cermet Material

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RI3362W

Minimum Order Quantity:	2000PCS
Price:	USD0.08~0.12per pc
Packaging Details:	2000PCS/BOX
Delivery Time:	25 Working days
Payment Terms:	T/T
Supply Ability:	30000pcs/Month

Contact Now

Model NO.:

RV9110N0KQ

Shape:

Square

Resistance Taper:

Linear

Turns:

Single

Resistor Material:

Cermet

Adjustment:

Side Adjust

Highlight:

Single Turn Potentiometer Adjustment

Cermet Single Turn Potentiometer

Trimming cermet potentiometer

RI3362W Trimmer Potentiometer Single Turn Adjustment Trimming Potentiometer

Product features

Single-Turn / Cermet / Industrial / Sealed

Miniature package

Tape and reel packaging available

RoHS Compliant

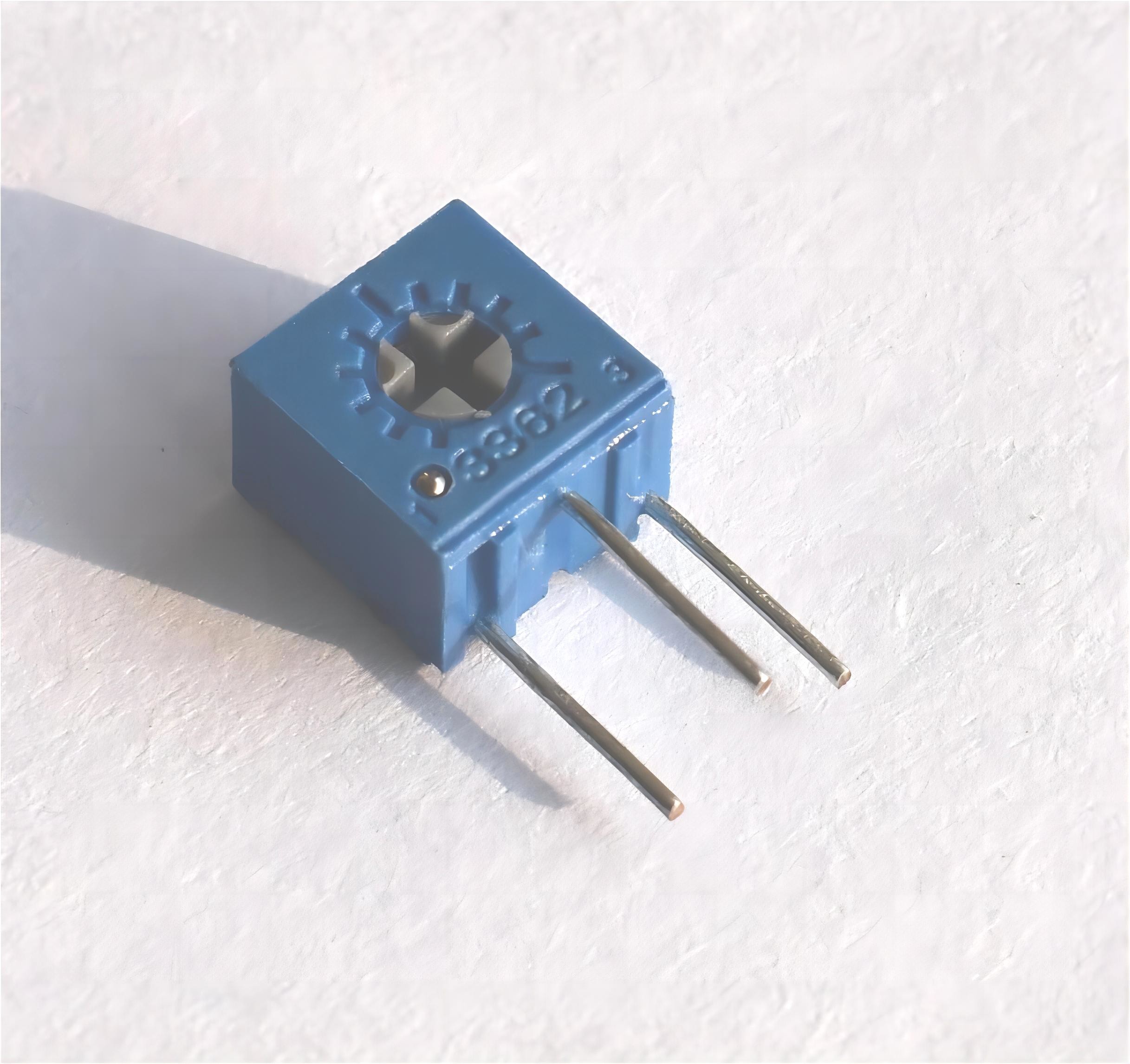

RI3362W Trimming Single Turn Potentiometer Adjustment With Cermet Material 0

Product Characters

1.Electrical Characteristics
Total resistance (standard resistance range)	100Ω-3MΩ
Total resistance tolerance	±10% std.
Residual resistance(Absolute minimum resistance)	1% or 2ohms
Adjustability Voltage divider	±0.05%
Rheostat	±0.15%
Resolution	Infinite
Insulation resistance	500vdc. 1000mΩmin.
Dielectric Strength	Sea Level:900vac, 80,000 feet:350vac
2.EnvironmentalCharacteristics
Adjustment Angle	240o
Power Rating (300 volts max.)	70oC:0.5watt,125oC:0watt
Temperature range	-55oC to +125oC
Temperature Coefficient	±100 ppm/°C
Seal Test	85 °C Fluorinert†
Humidity	MIL-STD-202 Method 103,96 hours (2 % ΔTR; 10 Megohms IR)
Vibration	30 G (1 % ΔTR; 1 % ΔVR)
Shock	100 G (1 % ΔTR; 1 % ΔVR)
Load Life	1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV)
Rotational Life	200 cycles (4 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV)
3.Physical Characteristics
Mechanical Angle	270 ° nom.
Torque	3.0 oz-in. max.
Stop Strength	7.0 oz -in. min.
Terminals	Solderable pins
Weight	0.02 oz.
Marking	Resistance code,
Wiper	50 % (Actual TR) ±10 %
Flammability	U.L. 94V-0
Standard Packaging	50 pcs. per tube
Adjustment Tool	H-90

FAQ

• Q: Can I get sample from you?

• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

• Q: Do you accept customization?

• A: Yes, customization is acceptable, please contact our sales staffs for consult.

• Q: Can you provide help for technical issues?

• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
