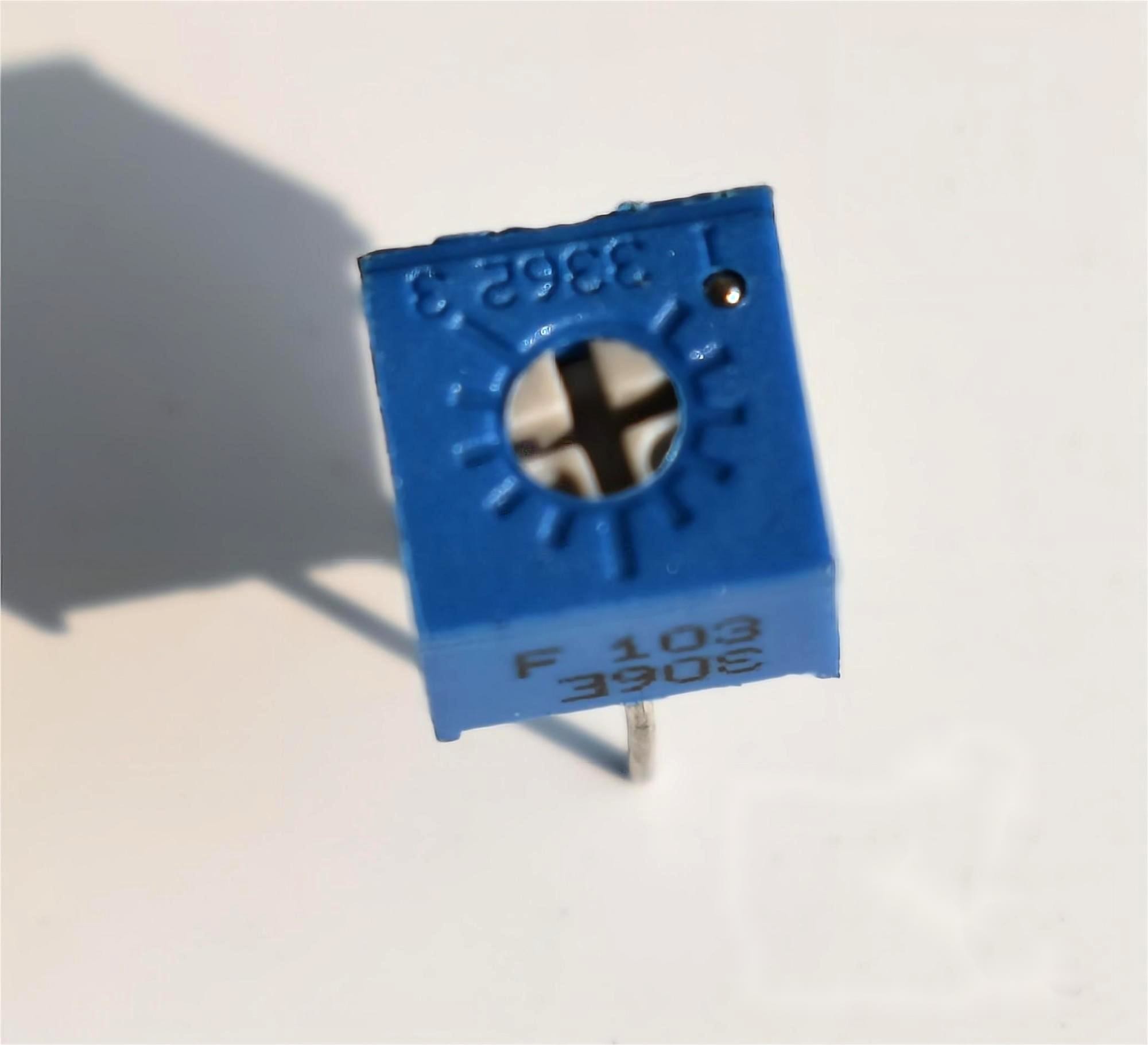

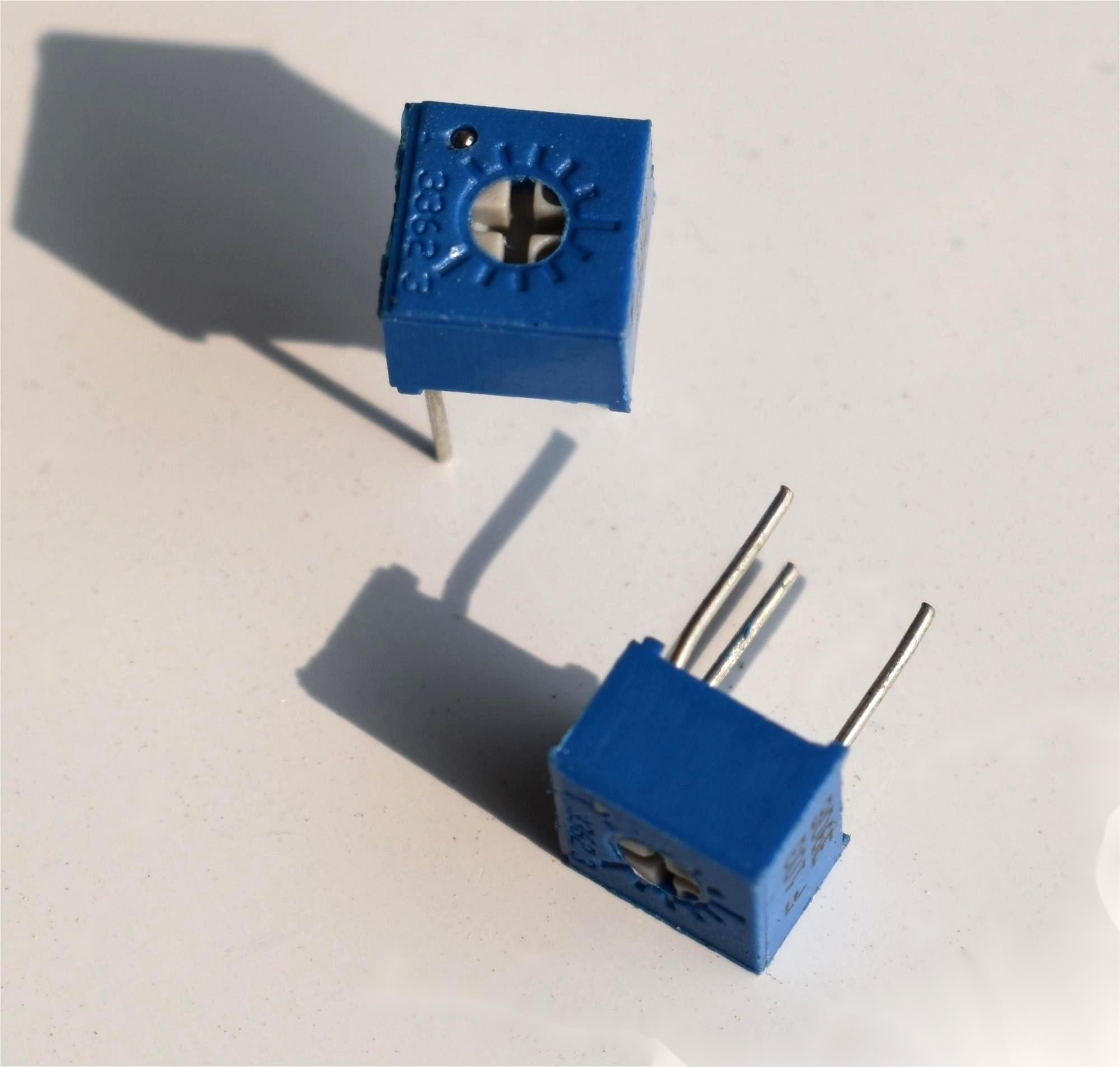

Single-Turn
Top Adjust
Cermet
Sealed
Industrial
Miniature package
Tape and reel packaging available
Complaint to RoHS
Application of Timmer Potentiometer
Trimmer potentiometer is also called trimmer resistor or variable resistor that allows you to manually fine-tune the resistance in a circuit. It is usually used for calibration in applications for amplifiers and radios to assure that the circuit output is as close to the ideal level as possible.
Product Characteristics
| 1.Electrical Characteristics |
| Total resistance (standard resistance range) |
100Ω-3MΩ |
| Total resistance tolerance |
±10% std. |
| Residual resistance(Absolute minimum resistance) |
1% or 2ohms |
| Adjustability Voltage divider |
±0.05% |
| Rheostat |
±0.15% |
| Resolution |
Infinite |
| Insulation resistance |
500vdc. 1000mΩmin. |
| Dielectric Strength |
Sea Level:900vac, 80,000 feet:350vac |
| 2.Physical Characteristics |
|
| Mechanical Angle |
270 ° nom. |
| Stop Strength |
(7.88g.cm) 7.0 oz -in.min. |
| Torque |
(3.3g.cm) 3.0 oz-in . max. |
| Terminals |
Solderable pins |
| Weight |
0.02 oz. |
| Marking |
Resistance code, |
| Wiper |
50 % (Actual TR) ±10 % |
| Flammability |
U.L. 94V-0 |
| Adjustment Tool |
H-90 |
| 3.EnvironmentalCharacteristics |
| Adjustment Angle |
240o |
| Power Rating (300 volts max.) |
70oC:0.5W |
| Temperature range |
-55oC to +125oC |
| Temperature Coefficient |
±100 ppm/°C |
| Seal Test |
85 °C Fluorinert |
| Load Life |
1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV) |
| Rotational Life |
200 cycles (4 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV) |
