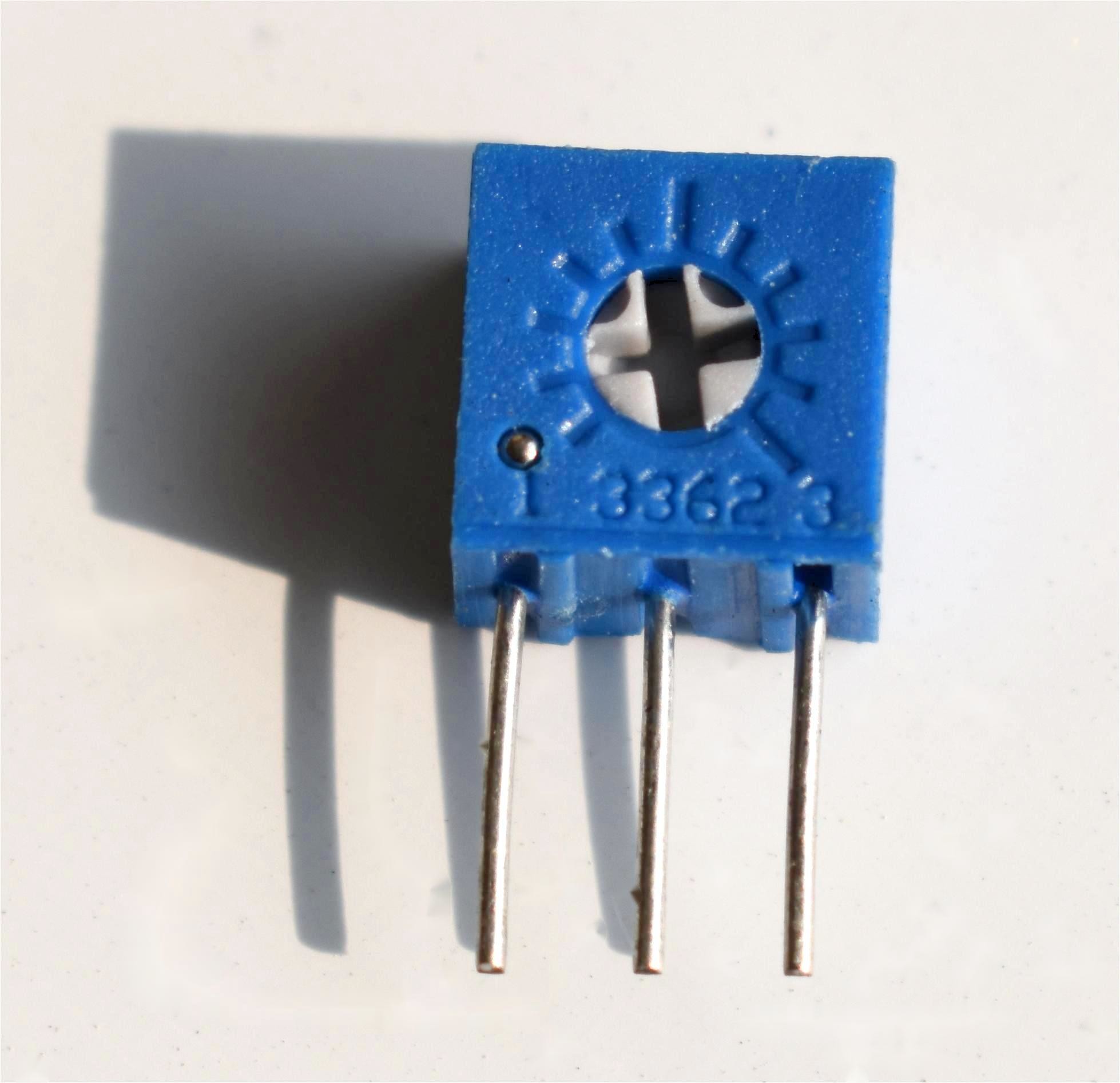

RI3362M Square Trimmer Potentiometer Adjustable Trimming Resistor Pin In Row

RI3362M Square Trimmer Potentiometer Adjustable Trimming Resistor Pin In Row
RI3362M Square Trimmer Potentiometer Adjustable Trimming Resistor Pin In Row
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RI3362M
Minimum Order Quantity: 2000PCS
Price: USD0.08~0.12per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RI3362M Shape: Square
Resistor Material: Cermet Turns: Single-turn
Resistance Taper: Linear Adjustment: Side Adjust
Highlight:

Square Trimmer Potentiometer

,

Trimmer Potentiometer Resistor

,

Adjustable Trimming Resistor

RI3362M Trimmer Potentiometer Single Turn Adjustable Trimming Resistor Pin In Row

Product features

Single-Turn

Cermet

Sealed

Industrial

Miniature package

Tape and reel packaging available

RoHS Compliant



What is Trimmer Potentiometer



Trimmer potentiometer is a resistor that can be adjusted or "trimmed" to a precise resistance by turning a screw. This type of resistor is often used in circuits because it allows adjustment of circuit performance. Use a tool (such as a screwdriver) to turn the dial or knob on the device to adjust. Trimmer resistor symbols are shown below.



RI3362M Square Trimmer Potentiometer Adjustable Trimming Resistor Pin In Row 0



Product Characters

1.Physical Characteristics
Mechanical Angle 270 ° nom.
Torque  3.0 oz-in (3.3 g.cm) max.
Stop Strength 7.0 oz-in (7.88 g.cm ) min.
Terminals Solderable pins
Weight 0.06g
Marking Resistance code (for example 10KΩ marked 103)
Wiper 50 % (Actual TR) ±10 %
Flammability UL 94V-0
Standard Packaging 50 pcs. per tube
Adjustment Tool H-90
2.Electrical Characteristics
Adjustability Voltage divider ±0.05%
Total resistance (standard resistance range) 100Ω-3MΩ
Total resistance tolerance ±10%
Residual resistance(Absolute minimum resistance) 1% or 2ohms
Insulation resistance 500vdc. 1000mΩ min.
Rheostat ±0.15%
Dielectric Strength 80,000 feet:350 vac;Sea Level:900 vac,
3.EnvironmentalCharacteristics
Adjustment Angle 240o
Power Rating (300 volts max.) 70oC:0.5W,125oC:0W
Temperature range -55oC to +125oC
Temperature Coefficient ±100 ppm/°C
Seal Test 85 °C Fluorinert
Humidity 96 hours (2 % ΔTR; 10 mΩ IR)
Vibration 30 G (1 % ΔTR; 1 % ΔVR)
Shock 100 G (1 % ΔTR; 1 % ΔVR)
Load Life 1,000 hours 0.5W@ 70 °C (3 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV)
Rotational Life 200 cycles (4 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV)



Our Advantage



1.Design and prototype automation basis in Dongguan which is the manufacturing center of South China.

2.10+ dedicated and experienced engineers and designers in R&D department.

3.Manufacture Center in Sichuan Province which is close to Yangzi River wharf and Chongqing Airport .

4.10+ production lines, 100+ experienced managers and workers.

5.Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
