Home ProductsTrimmer PotentiometerSide Adjust Square Trimming Potentiometer Single Turn RI3362M OEM

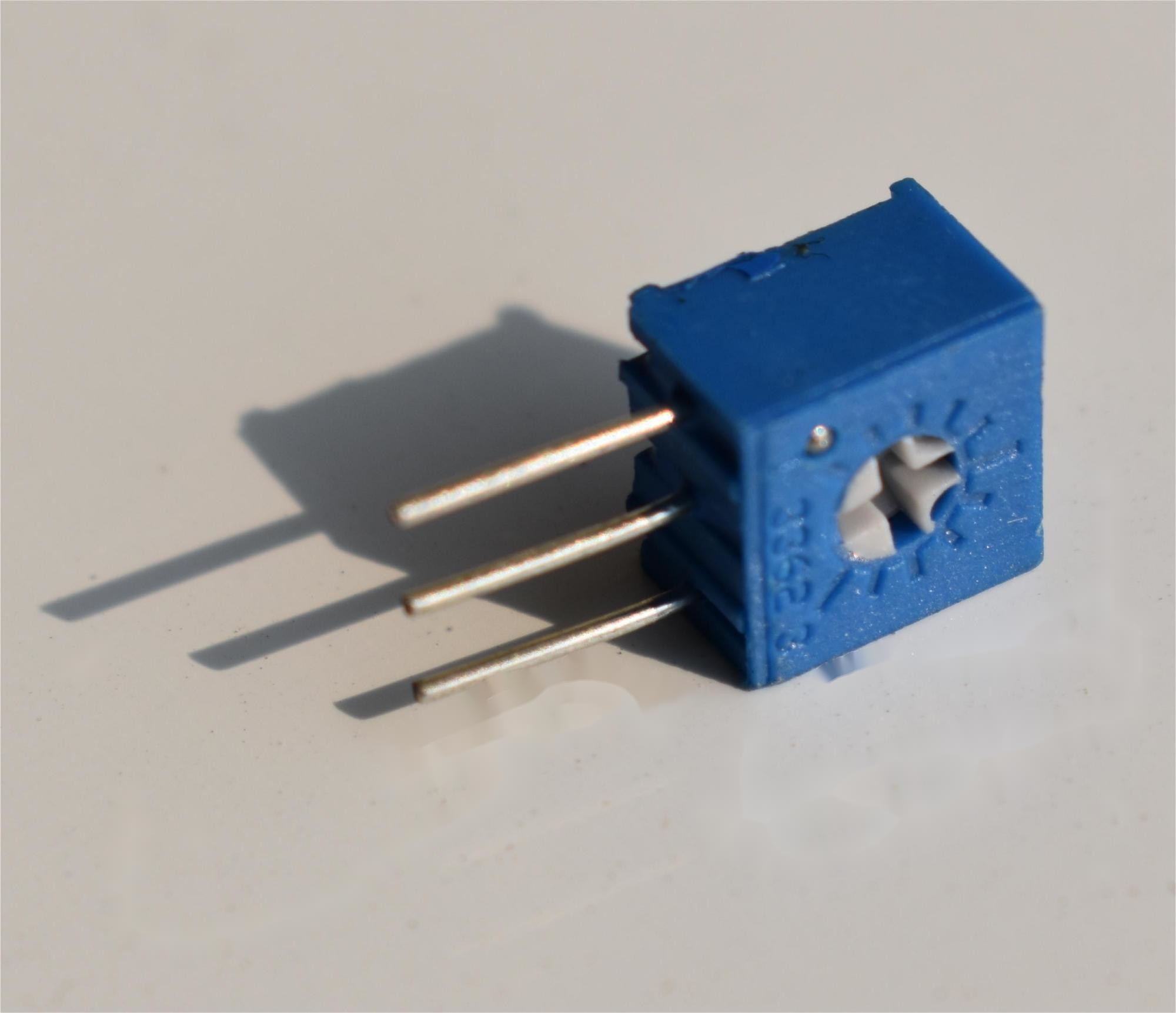

Side Adjust Square Trimming Potentiometer Single Turn RI3362M OEM

Side Adjust Square Trimming Potentiometer Single Turn RI3362M OEM
Side Adjust Square Trimming Potentiometer Single Turn RI3362M OEM
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RI3362M
Minimum Order Quantity: 2000PCS
Price: USD0.08~0.12per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RI3362M Shape: Square
Resistor Material: Cermet Turns: Single-turn
Resistance Taper: Linear Adjustment: Side Adjust
Highlight:

Square Trimming Potentiometer Single Turn

,

Side Adjust Square Trimming Potentiometer

,

OEM potentiometer single turn

RI3362M Trimmer Potentiometer Single-Turn Adjustment Trimming Resistor Pin In Row

Product features

Single-Turn

Cermet

Sealed

Industrial

Miniature package

Tape and reel packaging available

RoHS Compliant



What is Trimmer Potentiometer



Trimmer potentiometer is a resistance that can be adjusted or "trimmed" to a precise resistance through screw adjust. This type of resistor is often used in circuits because it allows adjustment of circuit performance. Use a tool (for example a screwdriver) to turn the dial or knob on the device to adjust. Trimmer potentiometers symbols are shown below.



Side Adjust Square Trimming Potentiometer Single Turn RI3362M OEM 0



Product Characters

1.Physical Characteristics
Mechanical Angle 270 ° nom.
Terminals  Solderable pins
Torque 3.0 oz-in (3.3 g.cm) max.
Stop Strength 7.0 oz-in (7.88 g.cm ) min.
2.Electrical Characteristics
Adjustability Voltage divider ±0.05%
Total resistance (standard resistance range) 100Ω-3MΩ
Total resistance tolerance ±10%
Residual resistance(Absolute minimum resistance) 1% or 2ohms
Insulation resistance 500vdc. 1000mΩ min.
Rheostat ±0.15%
Dielectric Strength 80,000 feet:350 vac;Sea Level:900 vac,
3.EnvironmentalCharacteristics
Adjustment Angle 240o
Power Rating (300 volts max.) 70oC:0.5W,125oC:0W
Temperature range -55oC to +125oC
Temperature Coefficient ±100 ppm/°C
Load Life 1,000 hours 0.5W@ 70 °C (3 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV)
Rotational Life 200 cycles (4 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV)



Our Advantage



1.Design and prototype and automation basis in Dongguan which is the manufacturing center of South China.

2.10+ dedicated and experienced engineers in R&D department.

3.Manufacture Center in Sichuan Province which is located Yangzi River wharf and Chongqing Airport .

4.10+ production lines, 100+ experienced  workers.

5.Help customers quickly transfer their ideas into mass production solutions, and complete prototype design, development and verification.





RV9110N0KQ 9mm Metal Shaft Sealed Potentiometer

RV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed Potentiometer

Tag:

Single Turn Potentiometer Adjustment

Trimmer adjustable potentiometer

Trimmer Potentiometer Adjustable
