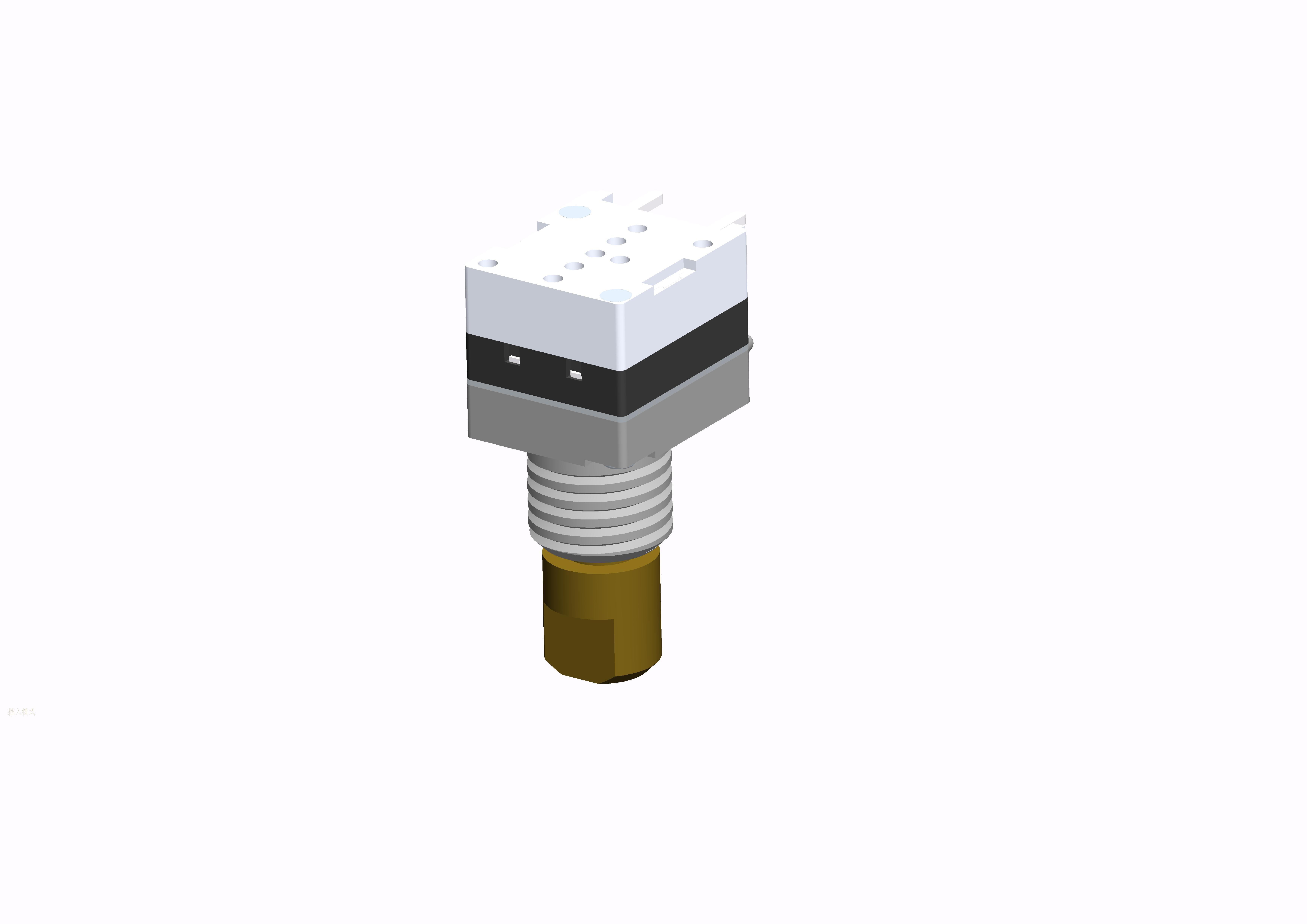

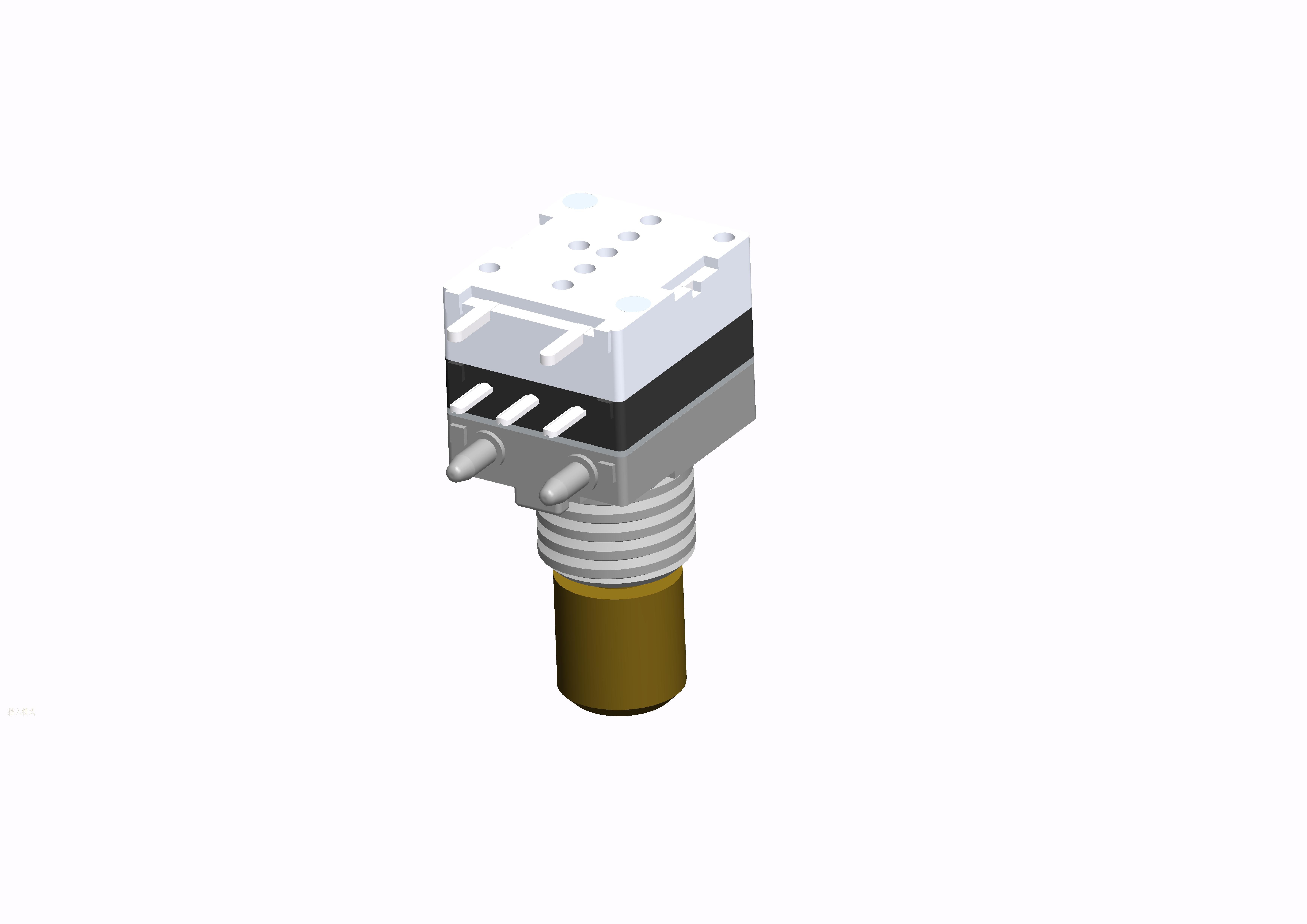

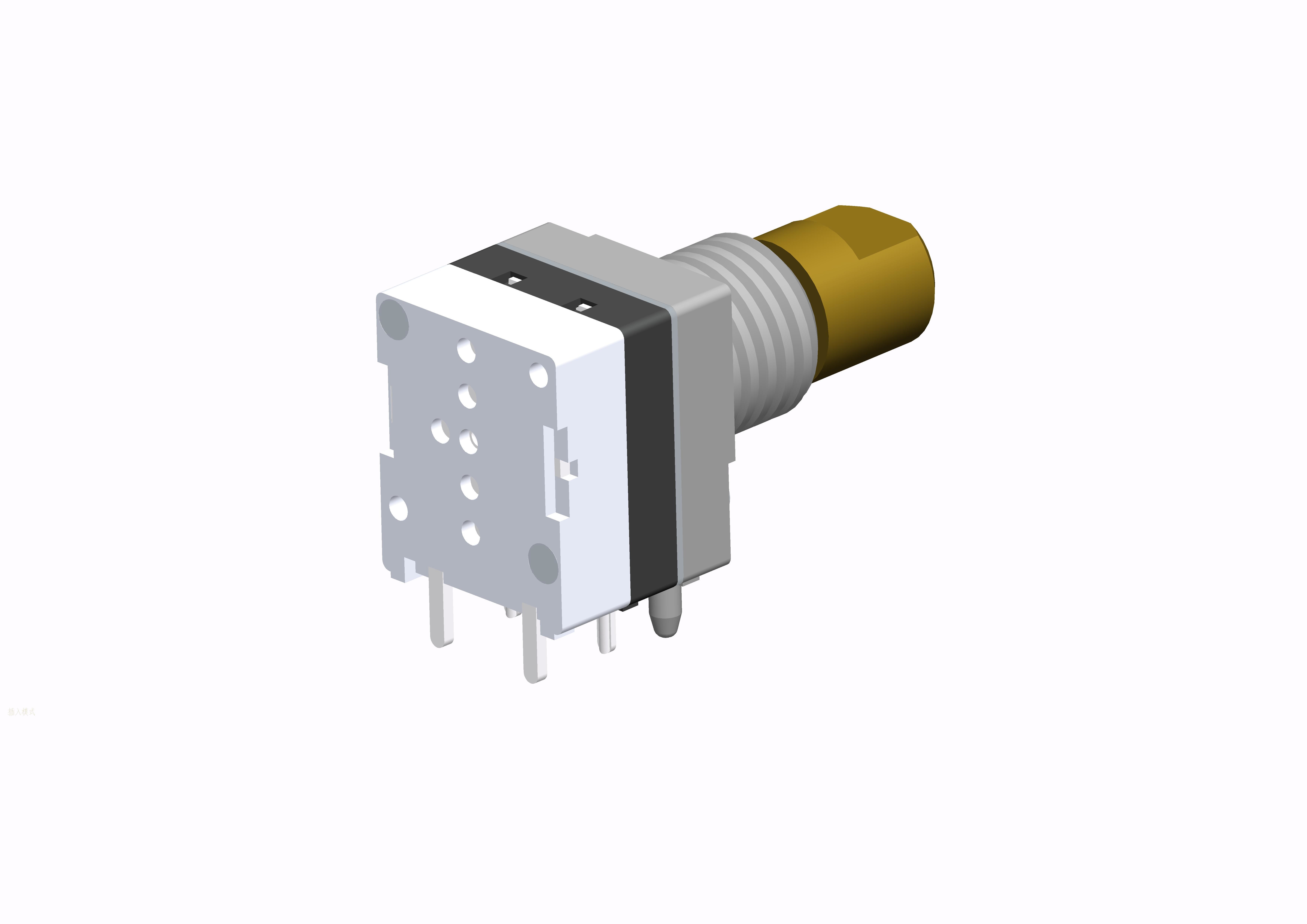

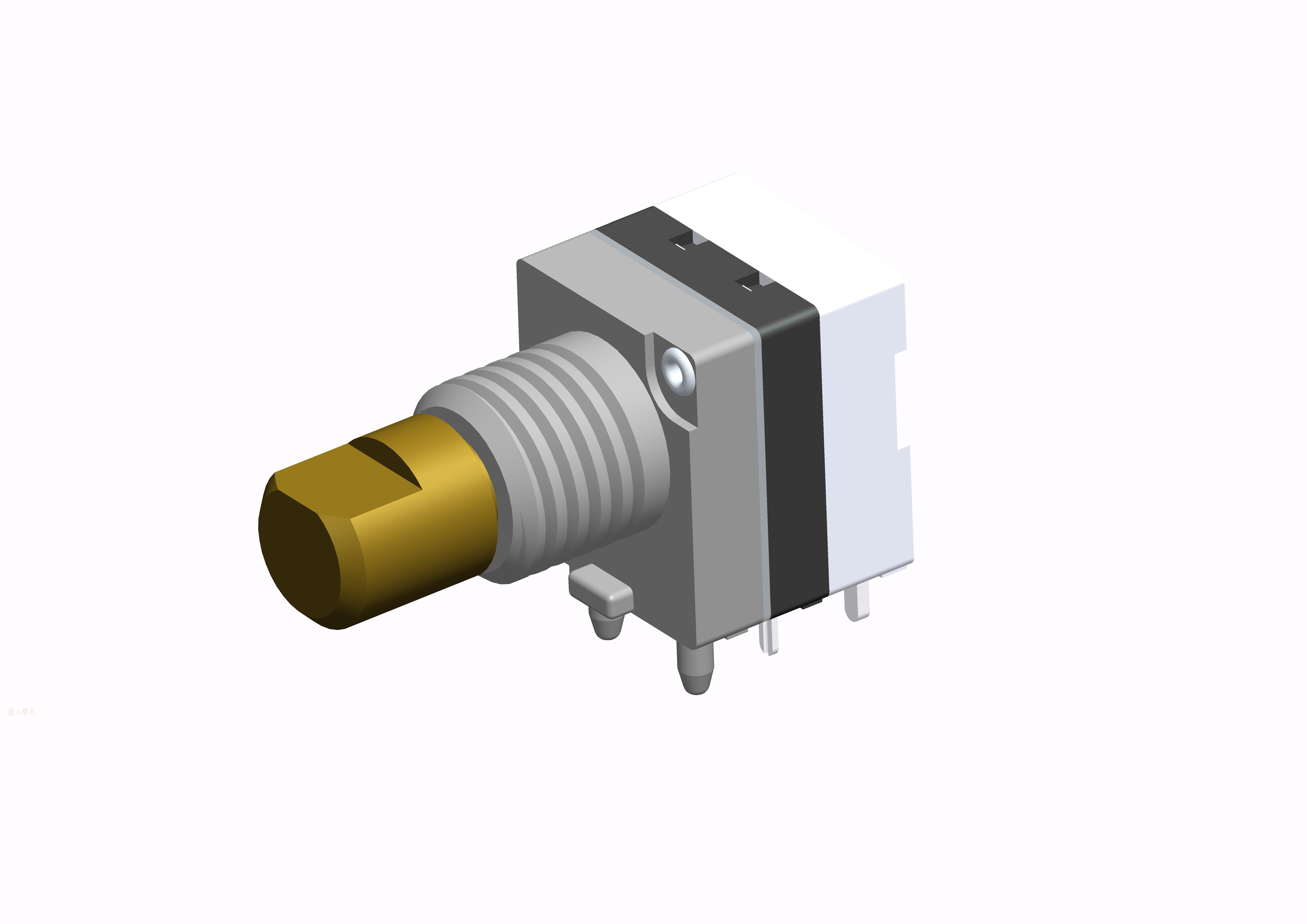

8mm Single Unit Vertical Mounting Vehicle Appliances Incremental Digital Encoder
Description
An incremental encoder is a type of encoder device that converts angular motion or position of a shaft into an analog or digital code to identify position or motion. Incremental encoders are one of the most commonly used rotary encoders.
An Incremental encoder can be used in positioning and motor speed feedback applications which includes servo/light, industrial or heavy-duty applications. An incremental encoder provides excellent speed and distance feedback and, since there are few sensors involved, the systems are both simple and inexpensive. An incremental encoder is limited by only providing change information, so the encoder requires a reference device to calculate motion.
Features
1. Sealed design encoder with highly reliable performance.
2. Available in many different variants.
3. Push switch with 0.5mm travel or 1.5mm travel.
4. Shaft length and shape can be adjusted.
5. A variety of mounting methods for choice
6. ROHS Compliant
7. Small Volume
Specification
| Switch Performance |
| Circuit number: |
PUSH |
| Rated power: |
0.1A 5V DC |
| Switch Torque: |
500± 200gf.cm max |
| Switch Angle: |
0.5± 0.3 |
| Operating life without load: |
100,000 cycles 100mΩ max |
| Operating life with load: |
100,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Mechanical characteristics |
| Stopper strength |
3kgf.max |
| Detent: |
20 |
| Rotational torque: |
20~200gf.cm |
| Rotational stopper strength : |
3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| push-pull strength: |
8Kgf.max |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent |
10/20 |
| Features: |
with push switch/rotary switch |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Center-taps: |
with |
| Environmental performance |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
Application
Incremental encoder is mainly used to measure speed, acceleration, rotation direction, Angle and so on. Widely used in walking machinery, CNC machine tools, elevator, servo motor, flow meter, textile machinery, metallurgical machinery, injection machinery, printing and packaging machinery, automatic instruments and other industrial automation measurement and control field.
Heavy Duty: demanding environment with a high probability of contaminants and moisture, higher temperature, shock, and vibration requirements as seen in pulp, paper, steel, and wood mills.
Industrial Duty: general factory operating environment which requires standard IP ratings, moderate shock, vibration, and temperature specs as seen in food and beverage, textile, generally factory automation plants.
Light Duty/Servo: controlled environment with high accuracy and temperature requirements such as robotics, electronics, and semiconductors.
Our Factory
Dongguan SANNI Electronics Technology Co., Ltd. have more than 10year of experiences in design and manufacture of potentiometer, encoder, switches and other electronics components. Factory covers 1,2000 square meters facility areas with 180+ employees. We have professinal and good technical and sales teams to serve your needs.
Our Advantage
1. 4 automation production lines, more than 100 experienced workers for higher precision products.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
4. Professional Testing instruments and team to ensure product quality.
Our Services
1. Offer 1 year warranty
2. OEM/ODM service to meet all your needs
3. within 24 hours to reply your inquiries
4. Strong R&D team for technical support
5. Offer free sample for test
