Motor Driven Linear Slide Potentiometer For Professional Audio RAM1001W

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RAM1001W

Minimum Order Quantity:	500pcs
Price:	USD15~18 per pc
Packaging Details:	100pcs per Carton box,
Delivery Time:	45 working days
Payment Terms:	T/T
Supply Ability:	5000pccs per Month

Contact Now

Model NO.:

RAM1001W

Resistance Change Scale:

Linear

Application:

Sound Console Or Professional Audio

Brand:

SANNI

Slide Travel:

100mm

Installation:

PCB Insertion

Highlight:

Motor Driven Linear Slide Potentiometer

Audio Linear Slide Potentiometer

Linear motor driven potentiometer

RAM1001W Linear Slide Potentiometer Motor Driven Slider

Product Description

Linear slide potentiometer
Length:144mm
Controlled by WiFi
Use:Used for Player.Sound.Sound console.walkie-talkie.Medical equipment.Instrument equipment .Meter and Auto AV

Product Features

RoHS compliant
Open type
Small volume
Structural diversification
High Quality

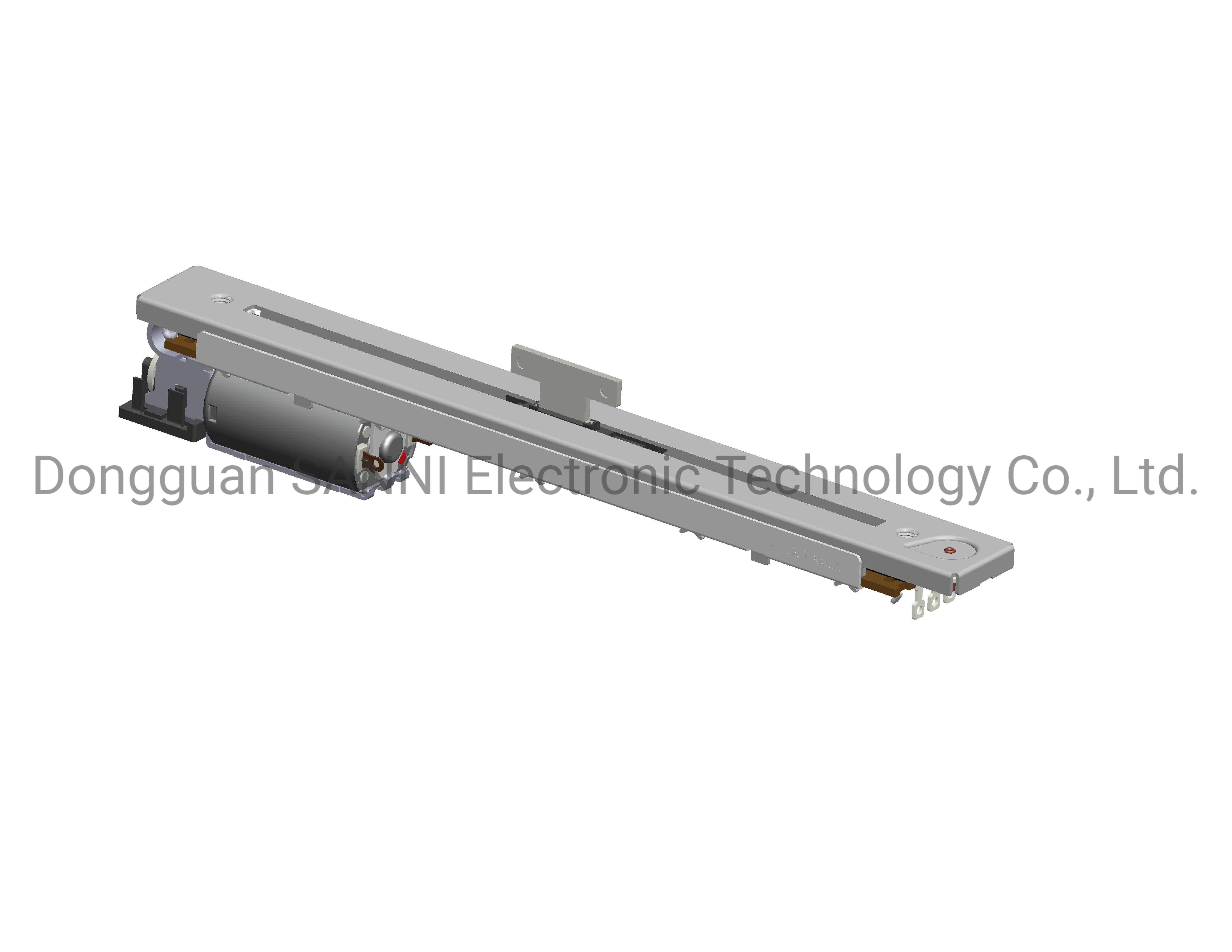

Motor Driven Linear Slide Potentiometer For Professional Audio RAM1001W 0
Product Characteristics

1.Electrical Characteristics
Total resistance	5KΩ-500KΩ
Total resistance tolerance	±10% or ±20%
Residual resistance	50Ω Max
Max. operating voltage	50V AC, 20V DC
Rated Power	0.05W for linear taper, 0.025W for audio taper
Insulation resistance	100MΩ min．(DC 500V)
Dielctrical proof	250V DC for １minute
Noise	47 mV max
2.Mechanical Characteristics
Lever travel	100±1mm
Lever stop strength	6Kgf.cm Min
Lever wobble	2(2xL/25)mm P-P Max.
Operating force	5-35gf.cm
Slide trust of the Lever	5Kgf 10s Min
Life Cycle	30,000 cycles
3.Environmental Performance
Operating temperature range	-10oC to +70oC
Storage temperature range	-30oC to +70oC
4.Welding Performance
Reference for hand soldering	235℃ 5sec.
Motor Drive Characteristics
Rated voltage	5V DC
Operating voltage	4~6V DC
Actuator move speed	20mm/0.1 sec. Min.
Max current	300-600mA
