Name: RAM0103NR Motorized Linear Potentiometer Linear Slide 100mm Travel
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RAM0103NR
Price: 16.00 USD
Availability: InStock

RAM0103NR Motorized Linear Potentiometer Linear Slide 100mm Travel

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RAM0103NR

Minimum Order Quantity:	500pcs
Price:	USD15~18 per pc
Packaging Details:	100pcs per Carton box,
Delivery Time:	45 working days
Payment Terms:	T/T
Supply Ability:	5000pccs per Month

Contact Now

Model NO.:

RAM0103NR

Resistance Change Scale:

Linear Or Audio

Application:

Sound Console Or Professional Audio

Brand:

SANNI

Slide Travel:

100mm

Resistance:

Standard Or Customize

Highlight:

Motorized Linear Potentiometer Linear

Motorized Linear Potentiometer 100mm

RAM0103NR Linear Slide Potentiometer Motorized Slide Potentiometer

Product Description

Linear slide potentiometer
Length:144mm
Controlled by WiFi
Use: Used for Player.Sound.Sound console.walkie-talkie.Medical equipment.Instrument equipment .Meter and Auto AV

Product Features

RoHS compliant
Vertical PCB insert type
Small volume
Structural diversification
Inner double slide rail
High Quality

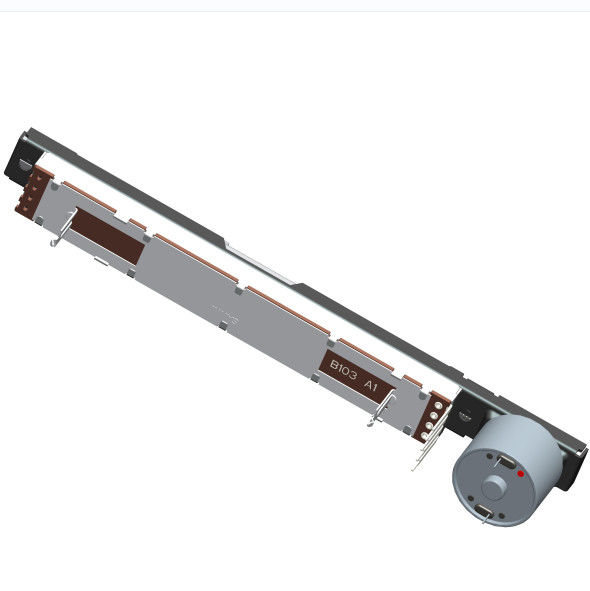

RAM0103NR Motorized Linear Potentiometer Linear Slide 100mm Travel 0
Product Characteristics

1.Electrical Characteristics
Total resistance	5KΩ-500KΩ
Total resistance tolerance	±10% or ±20%
Residual resistance	50Ω Max
Max. operating voltage	50V AC, 20V DC
Rated Power	0.05W for linear taper, 0.025W for audio taper
Insulation resistance	100MΩ min．(DC 500V)
Dielctrical proof	250V DC for １minute
Noise	47 mV max
2.Mechanical Characteristics
Lever travel	100±1mm
Lever stop strength	6Kgf.cm Min
Lever wobble	2(2xL/25)mm P-P Max.
Operating force	5-35gf.cm
Slide trust of the Lever	5Kgf 10s Min
Life Cycle	30,000 cycles
3.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-30^oC to +70^oC
4.Welding Performance
Reference for hand soldering	235℃ 5sec.
Motor Drive Characteristics
Rated voltage	5V DC
Operating voltage	4~6V DC
Actuator move speed	20mm/0.1 sec. Min.
Max current	300-600mA
