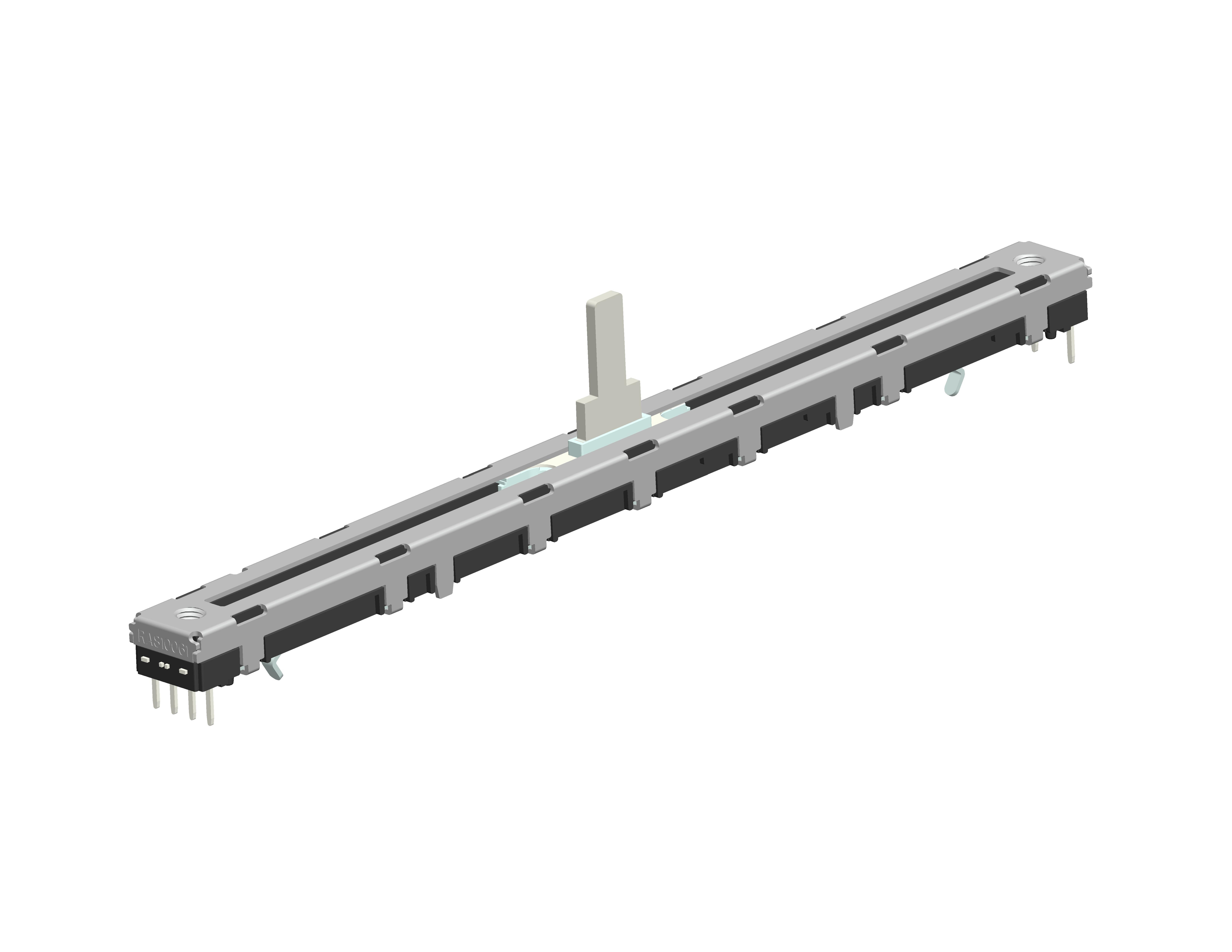

Dual Unit Linear Slide Potentiometer For Sound Console Volume Control RAS10061G0

Dual Unit Linear Slide Potentiometer For Sound Console Volume Control RAS10061G0
Dual Unit Linear Slide Potentiometer For Sound Console Volume Control RAS10061G0
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RAS10061G0
Minimum Order Quantity: 500pcs
Price: USD1.3 per pc
Packaging Details: 100pcs per Carton box,
Delivery Time: 35 working days
Payment Terms: T/T
Supply Ability: 10000pccs per Month
Contact Now
Model NO.: RB1576N0 Resistance Change Scale: Log Or Linear
Unit: Dual Unit Brand: SANNI
Installation: PCB DIP Mounting Material: Plastic & Metal
Highlight:

Dual Unit Linear Slide Potentiometer

,

Volume Linear Slide Potentiometer

RAS10061G0 Linnear Slide Potentiometer For Sound Console Volume Control

Product Description

Sliding potentiometer (pot) uses a resistance element and sliding contacts to form an adjustable voltage divider. If only two terminals, one end of the element and adjustable contacts are used, it acts as a variable resistor or rheostat.



Product features

  •       RoHS compliant
  •       Seal type
  •       Small volume
  •       Structural diversification
  •       High Quality

Product Specification



1.Mechanical Characteristics
Lever stop strength 6Kgf.cm Min
Lever travel 100±1mm
Lever wobble 2(2xL/25)mm P-P Max.
Operating force 5-35gf.cm
Slide trust of the Lever 5Kgf 10s Min
Life Cycle 30,000 cycles
2.Electrical Characteristics
Total resistance 5KΩ-500KΩ
Total resistance tolerance ±10% or ±20%
Max. operating voltage 50V AC, 20V DC
Residual resistance 50Ω Max
Rated Power 0.05W for linear taper, 0.025W for audio taper
Insulation resistance 100MΩ min．(DC 500V)
Dielctrical proof 250V DC for １minute
Noise 47 mV max
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -30oC to +70oC
4.Welding Performance
Reference for hand soldering 235℃ 5sec.





Our Services



1. Offer 1 year warranty

2. OEM/ODM service to meet all your needs

3. within 24 hours to reply your inquiries

4. Strong R&D team for technical support

5. Offer free sample for test

RB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide Potentiometer
