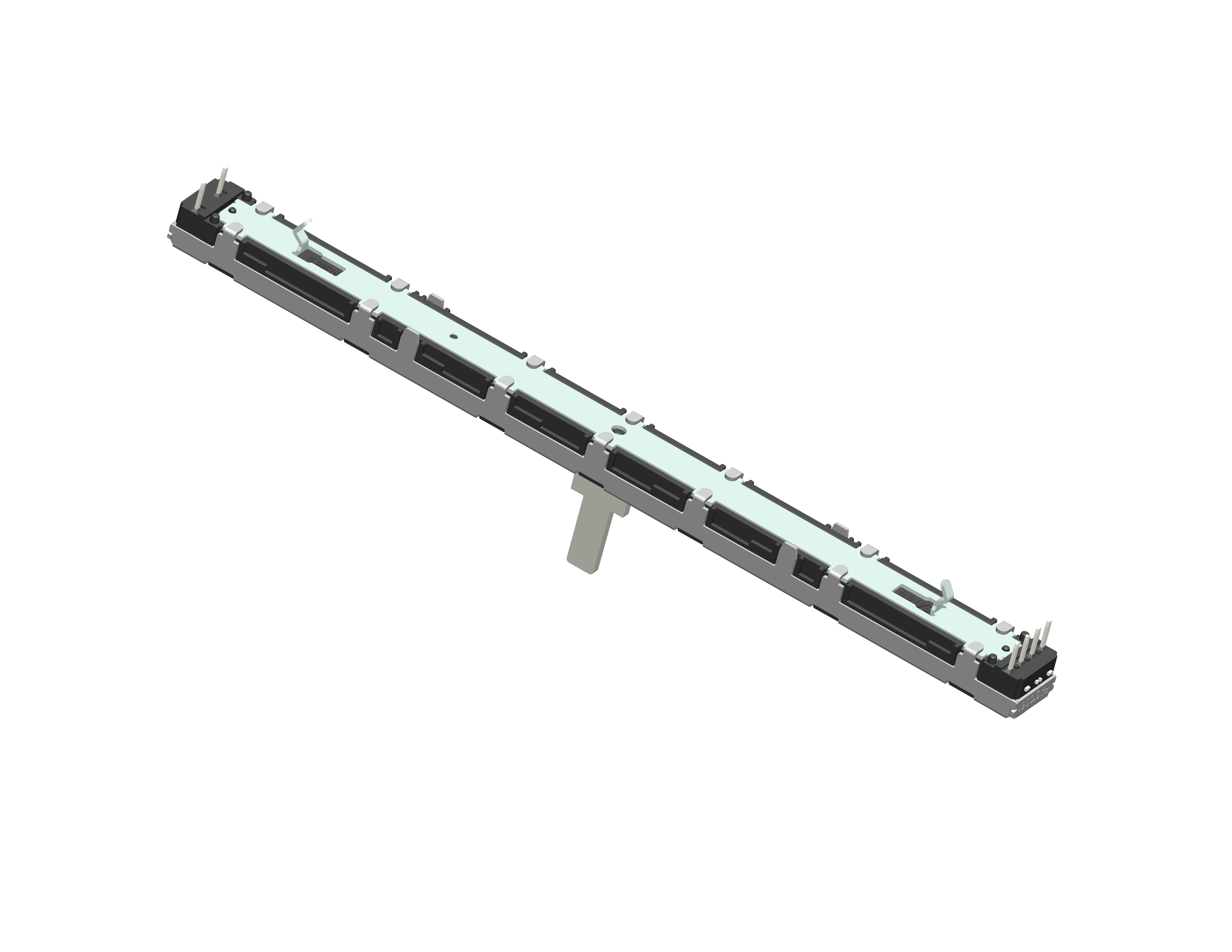

PCB DIP Mounting Dual Slide Potentiometer For Sound Console RAS10061G0

PCB DIP Mounting Dual Slide Potentiometer For Sound Console RAS10061G0
PCB DIP Mounting Dual Slide Potentiometer For Sound Console RAS10061G0
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RAS10061G0
Minimum Order Quantity: 500pcs
Price: USD1.3 per pc
Packaging Details: 100pcs per Carton box,
Delivery Time: 35 working days
Payment Terms: T/T
Supply Ability: 10000pccs per Month
Contact Now
Model NO.: RB1576N0 Unit: Dual Unit
Terminal Material: Brass With Silver Plating Installation: PCB DIP Mounting
Brand: SANNI Material: Plastic & Metal
Highlight:

PCB Mounting Dual Slide Potentiometer

,

Sound Dual Slide Potentiometer

RAS10061G0 Dual Unit Linear Slide Potentiometer Mainly Used For Sound Console System

Product Description

Slide potentiometers (pot) uses a resistance element and slide contacts to form an adjustable voltage divider. If only two terminals, one end of the element and adjustable contacts are used, it acts as a variable resistor or rheostat.

Product features

  • Seal type
  • RoHS compliant
  • Small volume
  • Structural diversification
  • High Quality

Product Specification


1.Mechanical Characteristics
Lever stop strength6Kgf.cm Min
Operating force5-35gf.cm
Lever wobble2(2xL/25)mm P-P Max.
Lever travel100±1mm
Slide trust of the Lever5Kgf 10s Min
Life Cycle30,000 cycles
2.Electrical Characteristics
Total resistance5KΩ-500KΩ
Total resistance tolerance±10% or ±20%
Residual resistance50Ω Max
Max. operating voltage50V AC, 20V DC
Dielctrical Strength250V DC for １minute
Rated Power0.05W for linear taper, 0.025W for audio taper
Insulation resistance100MΩ min．(DC 500V)
Noise47 mV max
3.Environmental Performance
Operating temperature range-10oC to +70oC
Storage temperature range-30oC to +70oC
4.Welding Performance
Reference for hand soldering235℃ 5sec.



Our Advantage


1. More than 10 years of experience in research and development production design.

2. 9 automation production lines, more than 100 experienced workers for higher precision products.

3. 10+ dedicated and experienced engineers and designers in R&D department.

4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

5. Professional Testing instruments and team to ensure product quality.

RB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide Potentiometer
