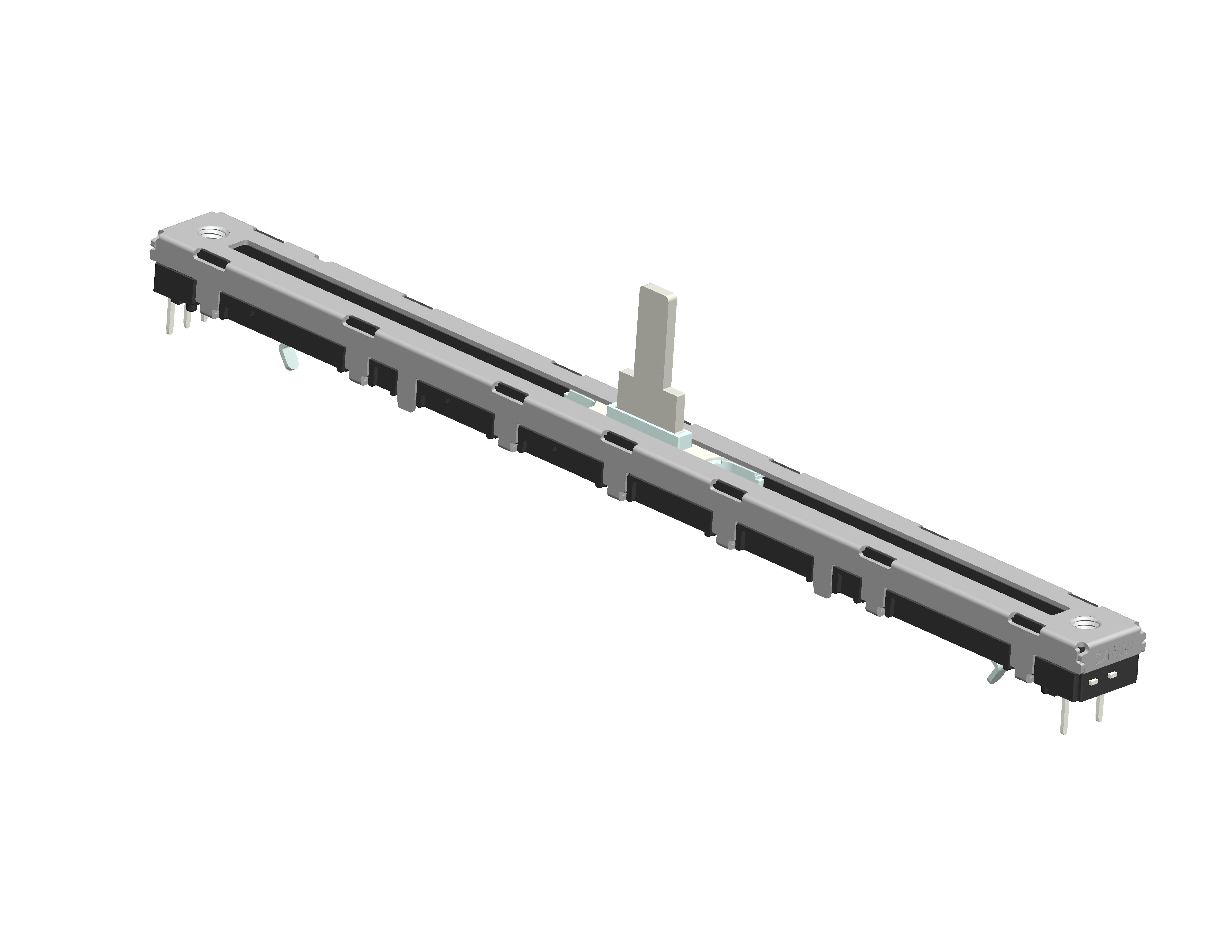

Name: Linnear Slide Radio Volume Potentiometer Dual Unit RAS10061G0
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RAS10061G0
Price: 1.3 USD
Availability: InStock

Linnear Slide Radio Volume Potentiometer Dual Unit RAS10061G0

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RAS10061G0

Minimum Order Quantity:	500pcs
Price:	USD1.3 per pc
Packaging Details:	100pcs per Carton box,
Delivery Time:	35 working days
Payment Terms:	T/T
Supply Ability:	10000pccs per Month

Contact Now

Model NO.:

RB1576N0

Resistance Change Scale:

Log Or Linear

Unit:

Dual Unit

Brand:

SANNI

Installation:

PCB DIP Mounting

Material:

Plastic & Metal

Highlight:

Linnear Radio Volume Potentiometer

Radio Volume Potentiometer Dual Unit

Radio dual slide potentiometer

RAS10061G0 Linnear Slide Potentiometer For Sound Console Volume Control

Product Description

Sliding potentiometer (pot) uses a resistance element and sliding contacts to form an adjustable voltage divider. If only two terminals, one end of the element and adjustable contacts are used, it acts as a variable resistor or rheostat.

Product features

RoHS compliant
Seal type
Small volume
Structural diversification
High Quality

Product Specification

1.Mechanical Characteristics
Lever stop strength	6Kgf.cm Min
Lever travel	100±1mm
Lever wobble	2(2xL/25)mm P-P Max.
Operating force	5-35gf.cm
Slide trust of the Lever	5Kgf 10s Min
Life Cycle	30,000 cycles
2.Electrical Characteristics
Total resistance	5KΩ-500KΩ
Total resistance tolerance	±10% or ±20%
Max. operating voltage	50V AC, 20V DC
Residual resistance	50Ω Max
Rated Power	0.05W for linear taper, 0.025W for audio taper
Insulation resistance	100MΩ min．(DC 500V)
Dielctrical proof	250V DC for １minute
Noise	47 mV max
3.Environmental Performance
Operating temperature range	-10oC to +70oC
Storage temperature range	-30oC to +70oC
4.Welding Performance
Reference for hand soldering	235℃ 5sec.

Our Advantage

More than 10 years of experience in research and development production design.
10 automation production lines, more than 100 experienced workers for higher precision products.
10+ dedicated and experienced engineers and designers in R&D department.
Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
Professional Testing instruments and team to ensure product quality.
