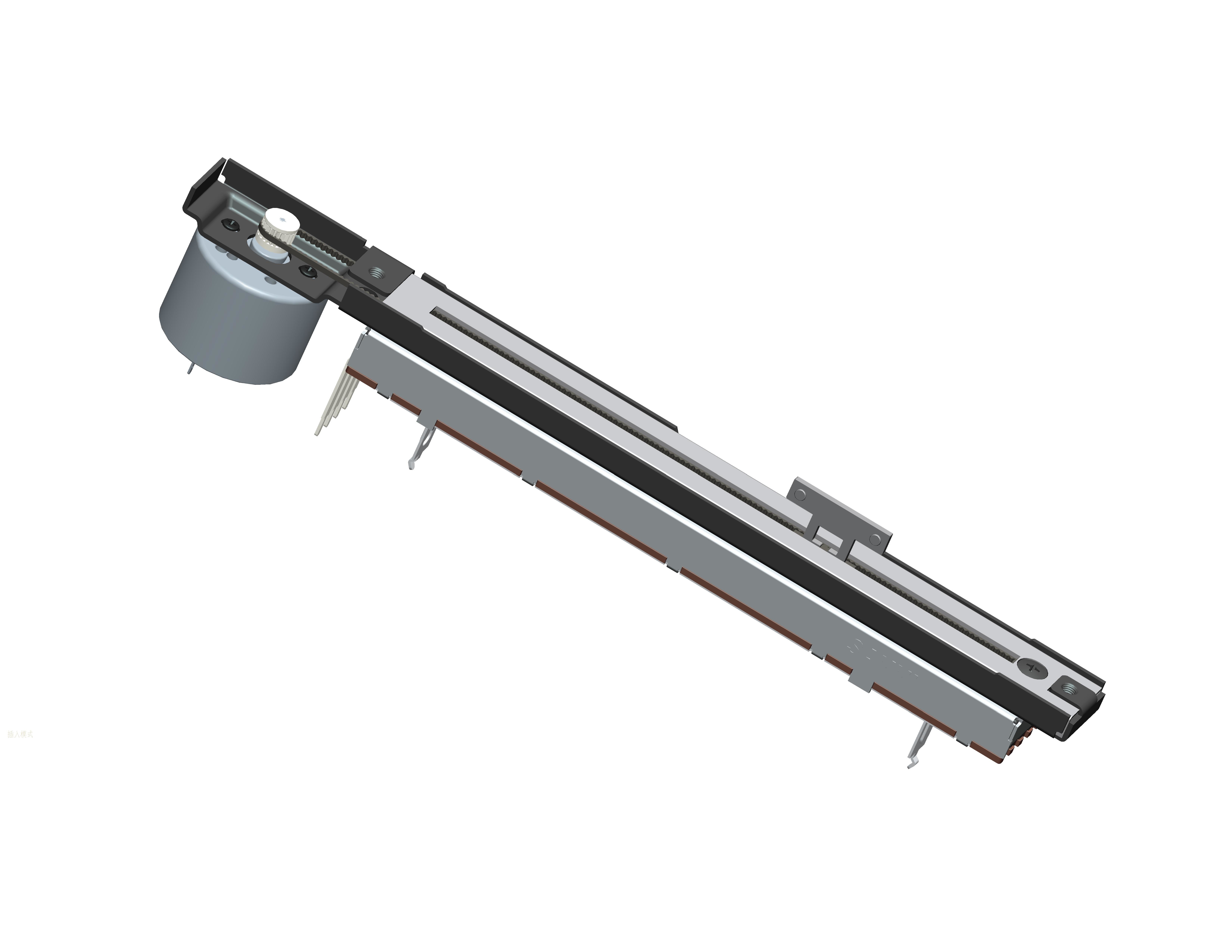

Single Unit 100mm Slide Potentiometer , Motorized Linear Potentiometer RoHS Compliant

Single Unit 100mm Slide Potentiometer , Motorized Linear Potentiometer RoHS Compliant
Single Unit 100mm Slide Potentiometer , Motorized Linear Potentiometer RoHS Compliant
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RAM0103NR
Minimum Order Quantity: 500pcs
Price: USD15~18 per pc
Packaging Details: 100pcs per Carton box,
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 5000pccs per Month
Contact Now
Model NO.: RAM0103NR Resistance Change Scale: Linear Or Audio
Application: Sound Console System Brand: SANNI
Slide Travel: 100mm Resistance: Standard Or Customize
High Light:

Single Unit 100mm Slide Potentiometer

,

Motorized 100mm Slide Potentiometer

,

Motorized Linear Potentiometer RoHS

RAM0103NR Motorized Linear Slide Potentiometer Single Unit for Sound Console System

Description of Slide Potentiometer



Sliding potentiometer (pot) uses a resistance element and sliding contacts to form an adjustable voltage divider. If only two terminals, one end of the element and adjustable contacts are used, it acts as a variable resistor or rheostat.



Features of Slide Potentiometer

  • RoHS compliant
  • Vertical PCB insert type
  • Small volume
  • Structural diversification
  • Inner double slide rail
  • Width: 16mm
  • High Quality

Single Unit 100mm Slide Potentiometer , Motorized Linear Potentiometer RoHS Compliant 0
Product Characteristics


1.Electrical Characteristics
Total resistance 5KΩ-500KΩ
Total resistance tolerance ±10% or ±20%
Residual resistance 50Ω Max
Max. operating voltage 50V AC, 20V DC
Rated Power 0.05W for linear taper, 0.025W for audio taper
Insulation resistance 100MΩ min．(DC 500V)
Dielctrical proof 250V DC for １minute
Noise 47 mV max
2.Mechanical Characteristics
Lever travel 100±1mm
Lever stop strength 6Kgf.cm Min
Lever wobble 2(2xL/25)mm P-P Max.
Operating force 5-35gf.cm
Slide trust of the Lever 5Kgf 10s Min
Life Cycle 30,000 cycles
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -30oC to +70oC
4.Welding Performance
Reference for hand soldering 235℃ 5sec.
Motor Drive Characteristics
Rated voltage 5V DC
Operating voltage 4~6V DC
Actuator move speed 20mm/0.1 sec. Min.
Max current 300-600mA



Our Services



1. Offer 1 year warranty

2. OEM/ODM service to meet customer's requirements.

3. Strong R&D team for professional technical support

4. Offer free sample for test


RAM1001 Slide Potentiometer
RAM1001 Slide PotentiometerRAM1001 Slide PotentiometerRAM1001 Slide PotentiometerRAM1001 Slide PotentiometerRAM1001 Slide PotentiometerRAM1001 Slide PotentiometerRAM1001 Slide PotentiometerRAM1001 Slide Potentiometer
