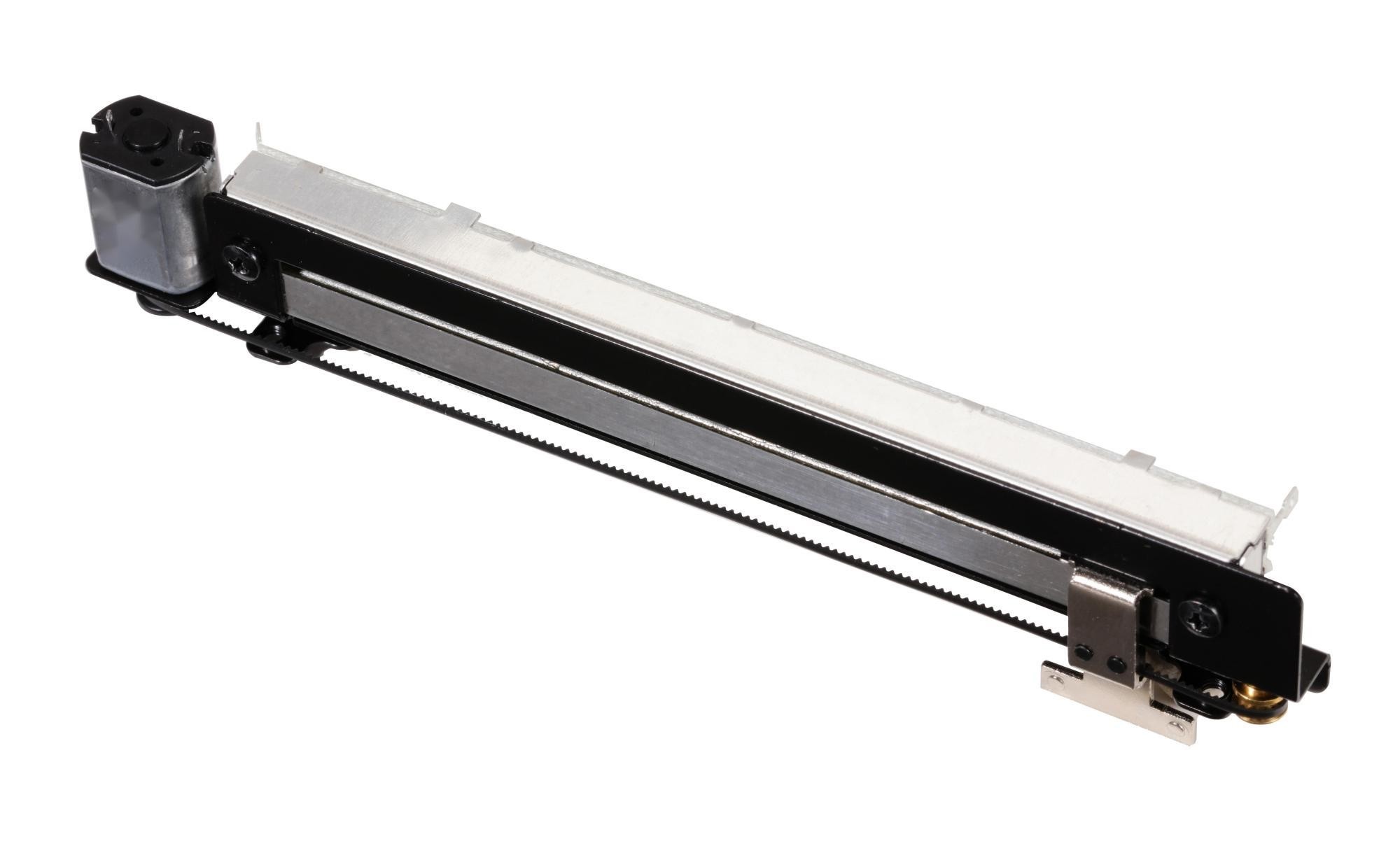

Double Rail Motorised Linear Slide Potentiometer For Sound Console System RAM0104NM

Double Rail Motorised Linear Slide Potentiometer For Sound Console System RAM0104NM
Double Rail Motorised Linear Slide Potentiometer For Sound Console System RAM0104NM
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RAM0104NM
Minimum Order Quantity: 500pcs
Price: USD15~18 per pc
Packaging Details: 100pcs per Carton box,
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 5000pcs per Month
Contact Now
Model NO.: RAM0104NM Resistance Change Scale: Linear Or Audio
Application: Sound Console System Brand: SANNI
Slide Travel: 100mm Resistance: Standard Or Customize
High Light:

Double Rail Linear Slide Potentiometer

,

Sound Console Linear Slide Potentiometer

,

motorised linear potentiometer

RAM0104NM Double Rail Motorised Linear Slide Potentiometer for Sound Console System

Description of Slide Potentiometer



Slide potentiometer (pot) uses a resistance element and slide contacts to form an adjustable voltage divider. If only two terminals, one end of the element and adjustable contacts are used, it acts as a variable resistor or rheostat.



Features of Slide Potentiometer

  • RoHS compliant
  • Vertical PCB mount type
  • Double rails guide the smooth slide without wobble
  • Motor dirve for electrical control
  • Small volume
  • Width: 16mm
  • Inner double slide rail

Double Rail Motorised Linear Slide Potentiometer For Sound Console System RAM0104NM 0
Product Characteristics


1.Electrical Characteristics
Total resistance 5KΩ-500KΩ
Total resistance tolerance ±10% or ±20%
Rated Power 0.05W for linear taper, 0.025W for audio taper
Dielctrical strength 250V DC for １minute
Max. operation voltage 50V AC, 20V DC
Residual resistance 50Ω Max
Insulation resistance 100MΩ min．(DC 500V)
Noise 47 mV max
2.Mechanical Characteristics
Lever travel 100±1mm
6Kgf.cm Min 2(2xL/25)mm P-P Max.
Lever stop strength 6Kgf.cm Min
Slide trust of the Lever 5Kgf 10s Min
Operating force 5-35gf.cm
Life Cycle 30,000 cycles
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -30oC to +70oC
4.Welding Performance
Reference for hand soldering 235℃ 5sec.
Motor Drive Characteristics
Rated voltage 5V DC
Actuator move speed 20mm/0.1 sec. Min.
Operating voltage 4~6V DC
Max current 300-600mA



Our Advantage

  1. More than 10 years of experience in research and development production design.
  2. 10 automation production lines, more than 100 experienced workers for higher precision products.
  3. 10+ dedicated and experienced engineers and designers in R&D department.
  4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
  5. Professional Testing instruments and team to ensure product quality.
