Home ProductsGuitar Pedal FootswitchFREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L

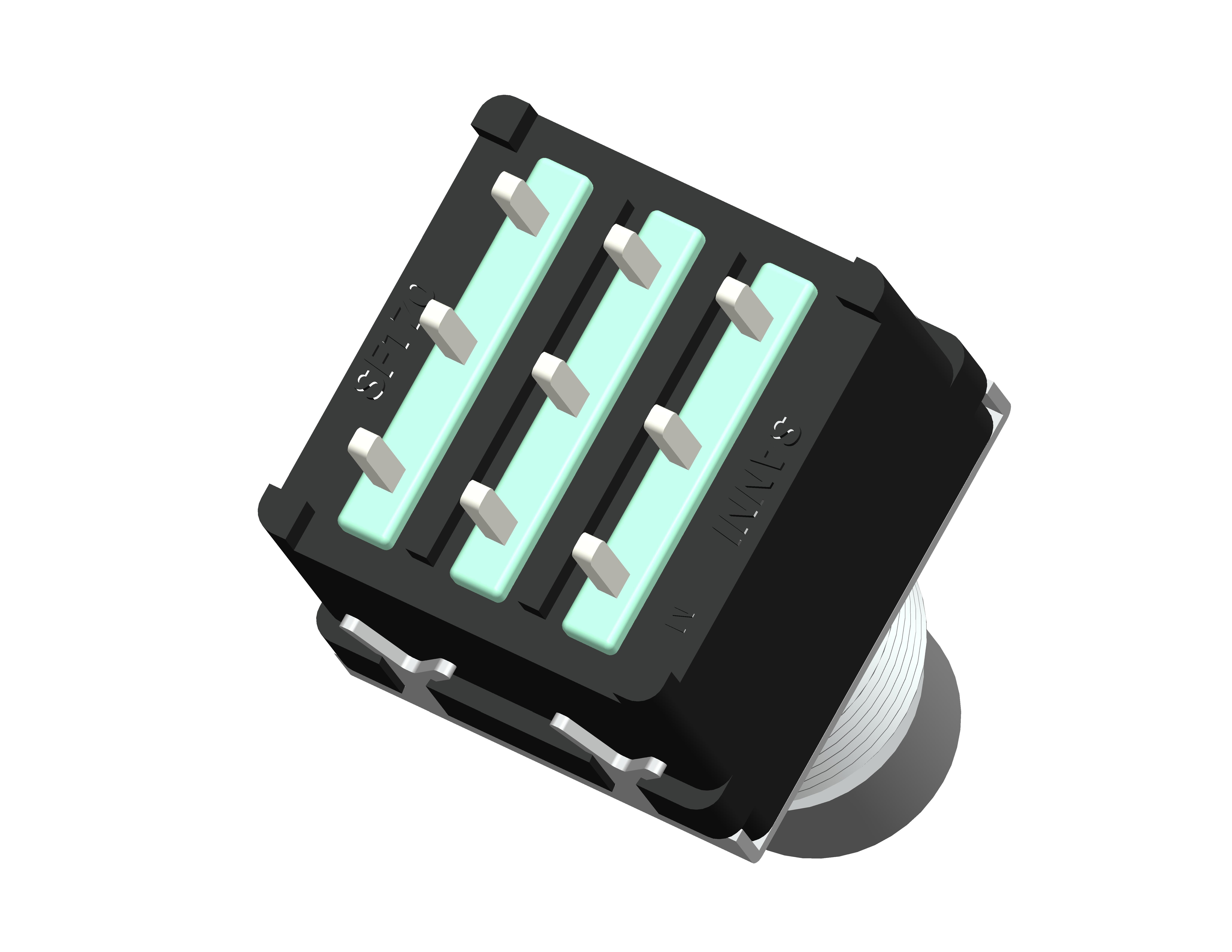

FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L

FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L
FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: SF17021L
Minimum Order Quantity: 500pcs
Price: USD1.3~USD1.5 per pc
Packaging Details: 500pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pcs per Month
Contact Now
Model NO.: SF17021L Trademark: SANNI
Specification: 17mm Usage: Guitar Pedal,Mixer Pedal Etc....
Operation: Push By Foot Structure: Screw Shank Fixting Style
High Light:

Durable Guitar Pedal Footswitch

,

FREE ON Guitar Pedal Footswitch

,

9Terminal guitar pedal foot switch

SF17021L FREE-ON 9 Terminal Guitar Pedal Footswitch



What Is Footswitch



Footswitch is a switching device operated by the user's feet. They are commonly used in many industries to operate equipment or machines that allow users to do most of the jobs by their hands. The foot switch can be instantaneous or lockable. And can use a variety of operating principles.



Feature



Compliant with RoHS Directive

Push Lever

Vertical Mounting

Durable Structure

Wire Soldering

DPDT  and SPDT are all available



Product Specification



Electrical Spec.
Insulation Resistance 500V DC- 100MΩ Min
Withstand Voltage 1000V AC-1 minute
Power Rating 125V AC 6A, 250V AC 3A, 30V DC 4A
Operating Life Cycle Latching Type: 10,000 cycles
Momentary Type: 20,000 cycles
Contact Resistance 50mΩ Max





Michanical Spec.
Terminal Type Pole Position Operating Force Timing
PCB/Soldering 1 or 2 2 -L = 1.3 ± 0.5 kgf.cm Latching
-M = 1.6 ± 0.5 kgf.cm Momentary



Our Services



1. Can customize to meet all your requirement

2. Strong R&D support for technical issue

3. Offer 24 hours to reply your inquiries

4. Experienced quality team to make strong quality control

5. Can accept lower MOQ and flexible lead time





FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 0

FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 1FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 2

FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 3FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 4

FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 5FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 6FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 7

FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 8

FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 9FREE ON 9 Terminal Guitar Pedal Footswitch With Durable Structure SF17021L 10
