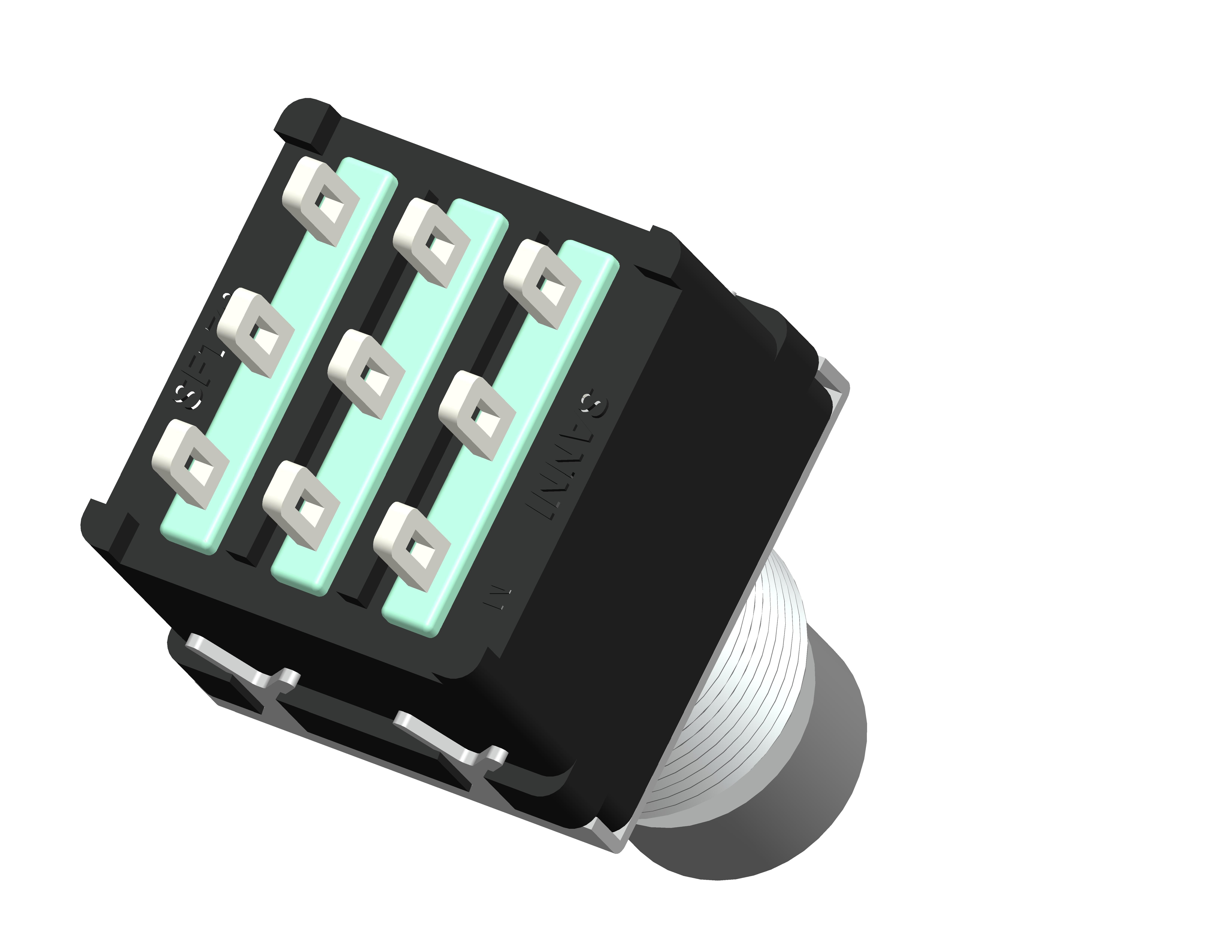

ON ON 9 Terminal Guitar Pedal Foot Switch With Durable Structure SF17021M

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: SF17021M
Minimum Order Quantity: 500pcs
Price: USD1.3~USD1.5 per pc
Packaging Details: 500pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pcs per Month
Model NO.: SF17021M Trademark: SANNI
Usage: Guitar Pedal,Mixer Pedal Etc.... Specification: 17mm
Structure: Screw Shank Fixting Style Operation: Push By Foot
Highlight:

9Terminal Guitar Pedal Foot Switch

,

ON ON Guitar Pedal Foot Switch

SF17021M ON-ON 9 Terminal Guitar Pedal Footswitch



What Is Footswitch



Footswitch is a switching device operated by the user's feet. They are commonly used in many industries to operate equipment or machines that allow users to do most of the jobs by their hands. The foot switch can be instantaneous or lockable. And can use a variety of operating principles.



Feature



Durable Structure

Push Lever

Vertical Mounting

Wire Soldering

DPDT  and SPDT are all available

Compliant with RoHS Directive



Product Specification



Electrical Spec.
Insulation Resistance 500V DC- 100MΩ Min
Withstand Voltage 1000V AC-1 minute
Power Rating 125V AC 6A, 250V AC 3A, 30V DC 4A
Operating Life Cycle Latching Type: 10,000 cycles
Momentary Type: 20,000 cycles
Contact Resistance 50mΩ Max





Michanical Spec.
Terminal Type Pole Position Operating Force Timing
PCB/Soldering 1 or 2 2 -L = 1.3 ± 0.5 kgf.cm Latching
-M = 1.6 ± 0.5 kgf.cm Momentary



Our Services



1. Can customize to meet all your requirement

2. Strong R&D support for technical issue

3. Offer 24 hours to reply your inquiries

4. Experienced quality team to make strong quality control

5. Can accept lower MOQ and flexible lead time



FAQ

1.Q: Are you a factory or a trading company?

   A: We are the manufacturer of foot switch......



2.Q: Can you do OEM/ODM?

   A: Yes, both ODM and OEM services are available, we can also print your logo and make your packaging according to your requirements.



3.Q: How do you ship the goods?

   A: The products will be sent to you by optional shipping service, such as express, air ship, sea transportation.



4.Q: How is your product quality?

   A: We make strict control on the quality of our product. Our product are 100% tested and inspected before shipment.
