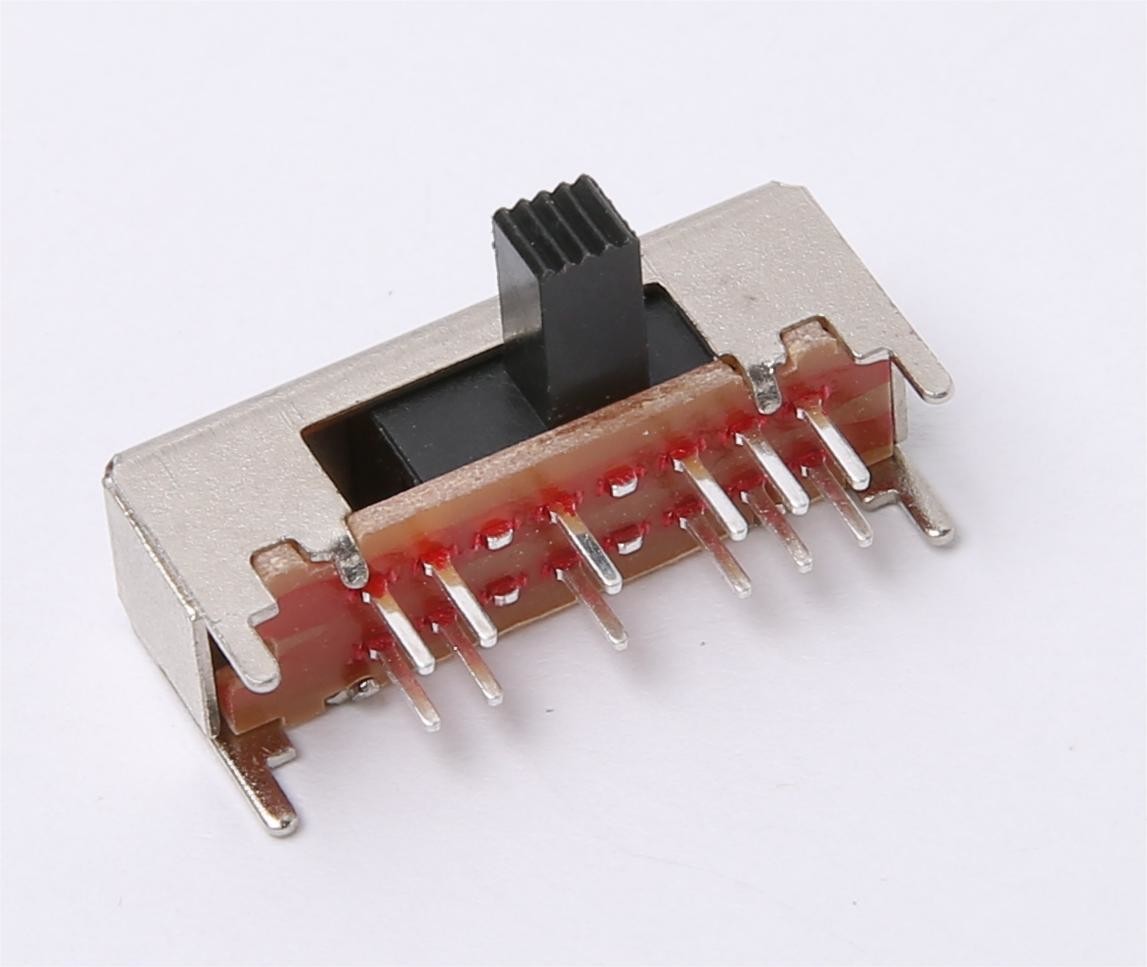

SK12F01 SPDT Slide Switch 1Pole 2 Position Side Slider PCB DIP Soldering Type
Product Description
SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T,1P3T,1P4T, 2P4T ,2P5T functions.
Product Features:
Complaint with RoHS Directive
Mini Type
PCB Thourhg Hole Insert
Smooth Sliding
Clear Click Sound
How to Order:
What is Slide Switch
Slide switches are electromechanical devices used to control the flow of current in a circuit path. The slide switch uses a slider that moves from the open (off) position to the closed (on) position.The series of devices are driven by sliding mechanical switches. These characteristics include contact timing,circuit, voltage rating (AC or DC), switching function, current rating, and actuator type.
Application of Slide Switches
Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including quick-connect, feeders, leads, screw terminals,welded terminals or surface mount technology, blade terminals,and panel mount switches.
Product Characteristics
| 1.Electrical Characteristics |
| Power Rate |
15 VDC,0.3A |
| Insulation Resistance |
100MΩ @ 500V DC |
| Contact Resistance |
100mΩ Max |
| Withstanding Voltage |
500V AC for 1 Minute |
| 2.Mechanical Characteristics |
| Operation Force |
200±100gf |
| Switch Slide Cycle |
Unloading 15-18 cycles per minute,10,000 cycles Min. |
Our Services
1. Accept customization to meet all your needs
2.Strong R&D support for technical issues
3.Accept lower MOQ and Flexible lead time
4. Offer 24 hours online service to reply your inquiries
FAQ
1.Q: Are you a factory or a trading company?
A: We are the factory manufacturer of slide switches......
2.Q: How is your product quality?
A: We take the first priority for the quality control.Our product are 100% tested and inspected before shipment.
3.Q: Can you do OEM/ODM?
A: Yes, both OEM and ODM services are available,we can also mark your logo and make your packagge according to your design.
4.Q: How do you ship the goods?
A: The products will be sent to you by optional shipping service, such as express, air cargo, sea transportation.
