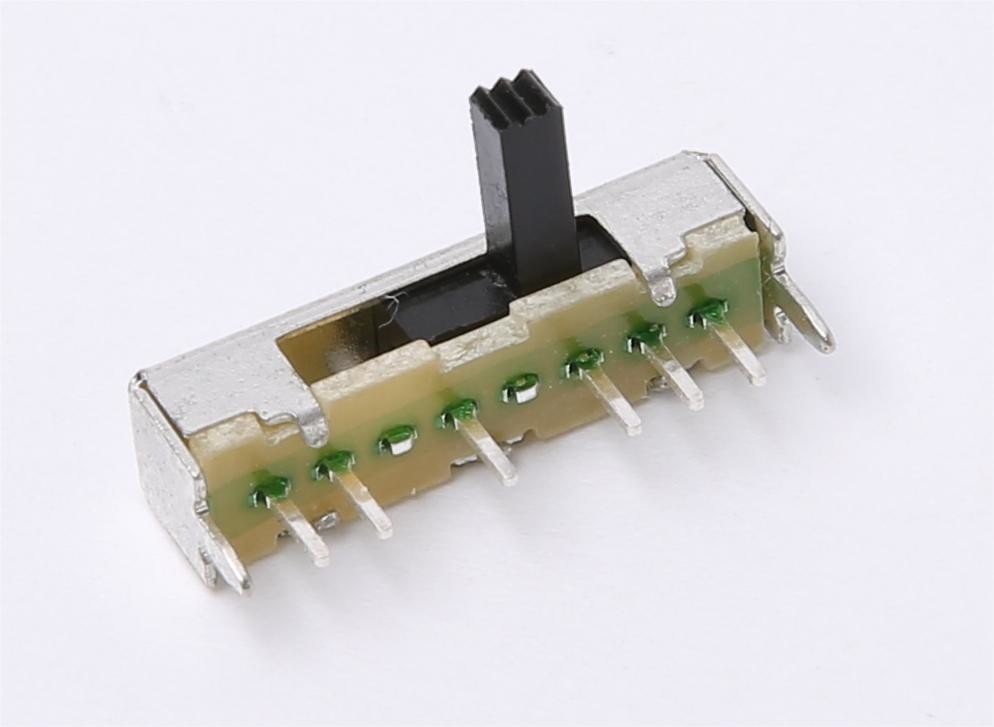

SK15D01 SPDT Slide Switch 1Pole 5 Position Side Slider PCB DIP Soldering Type
Product Description
SS Series Mini slide switch for DC application,through hole or SMD terminals1P2T,1P3T,1P4T, 1P5T,2P4T ,2P5T functions.
Product Features:
Complaint with RoHS Directive
Mini Type
Slide location: Side
Thourhg Hole Insert
Clear Click Sound
Smooth Slide performance
Material and Finish:
Frame: SPCC, Zinc Plated
Terminal:Brass ,Silver Plate
Terminal Base: Phenol Resin Yellow Color
Spring Plate: Copper Natural Color
Contact Clip: Copper , Silver Plated
Knob: PA
How to Order:
Material and Finish Spec.
Frame: SPCC, Zinc Plated
Knob: PA
Terminal:Brass ,Silver Plating
Terminal Base: Phenol Resin Yellow Color
Spring Plate: Copper Natural Color
Contact Clip: Copper , Silver Plating
Application of Slide Switches
Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including quick-connect, feeders, leads, screw terminals,welded terminals or surface mount technology, blade terminals,and panel mount switches.
Product Specification
| 1.Electrical Characteristics |
| Power Rate |
15 VDC,0.3A |
| Contact Resistance |
100mΩ Max |
| Insulation Resistance |
100MΩ @ 500V DC |
| Withstanding Voltage |
500V AC for 1 Minute |
| 2.Mechanical Characteristics |
| Operation Force |
250±100gf |
| Switch Slide Cycle |
Unloading 15-18 cycles per minute,10,000 cycles Min. |
Our Services
1. Can customize to meet all your needs
2. Offer 24 hours service to reply your inquiries
3.Strong R&D team for technical support
4. Flexible lead time and can accept lower MOQ
