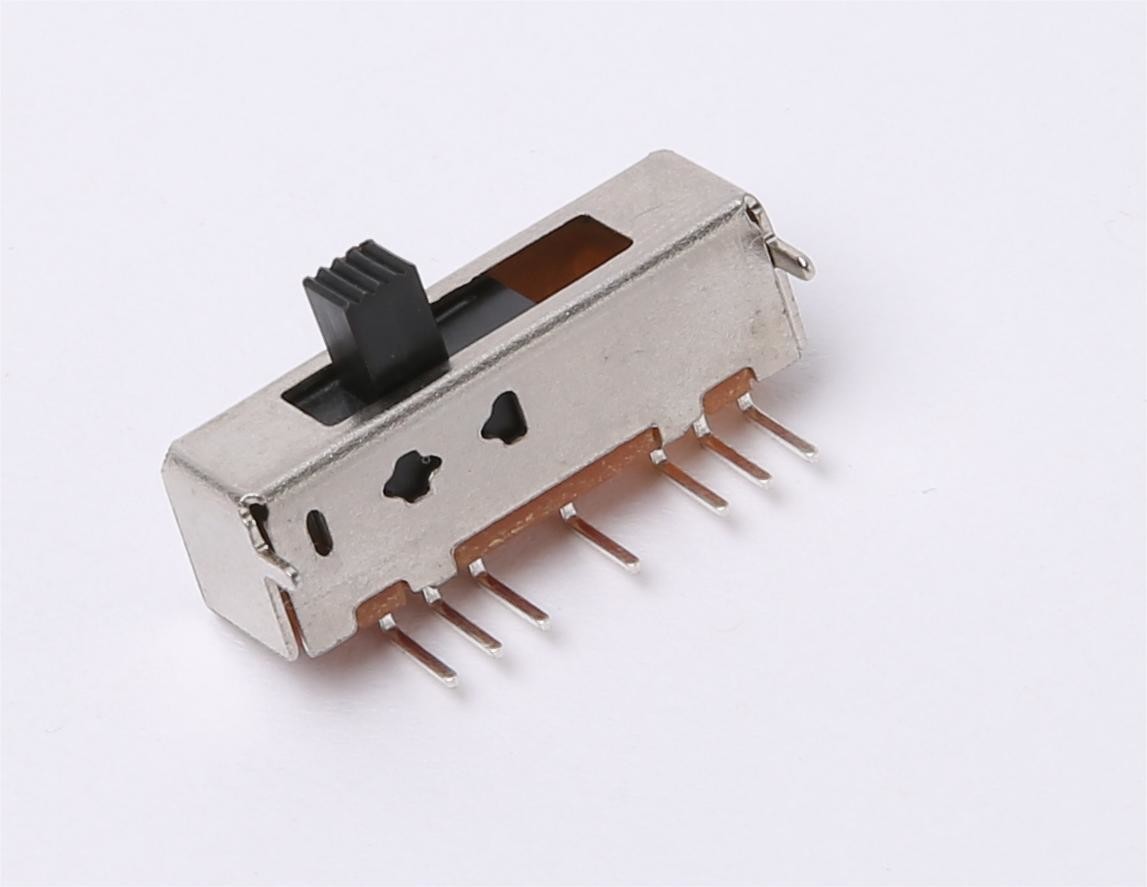

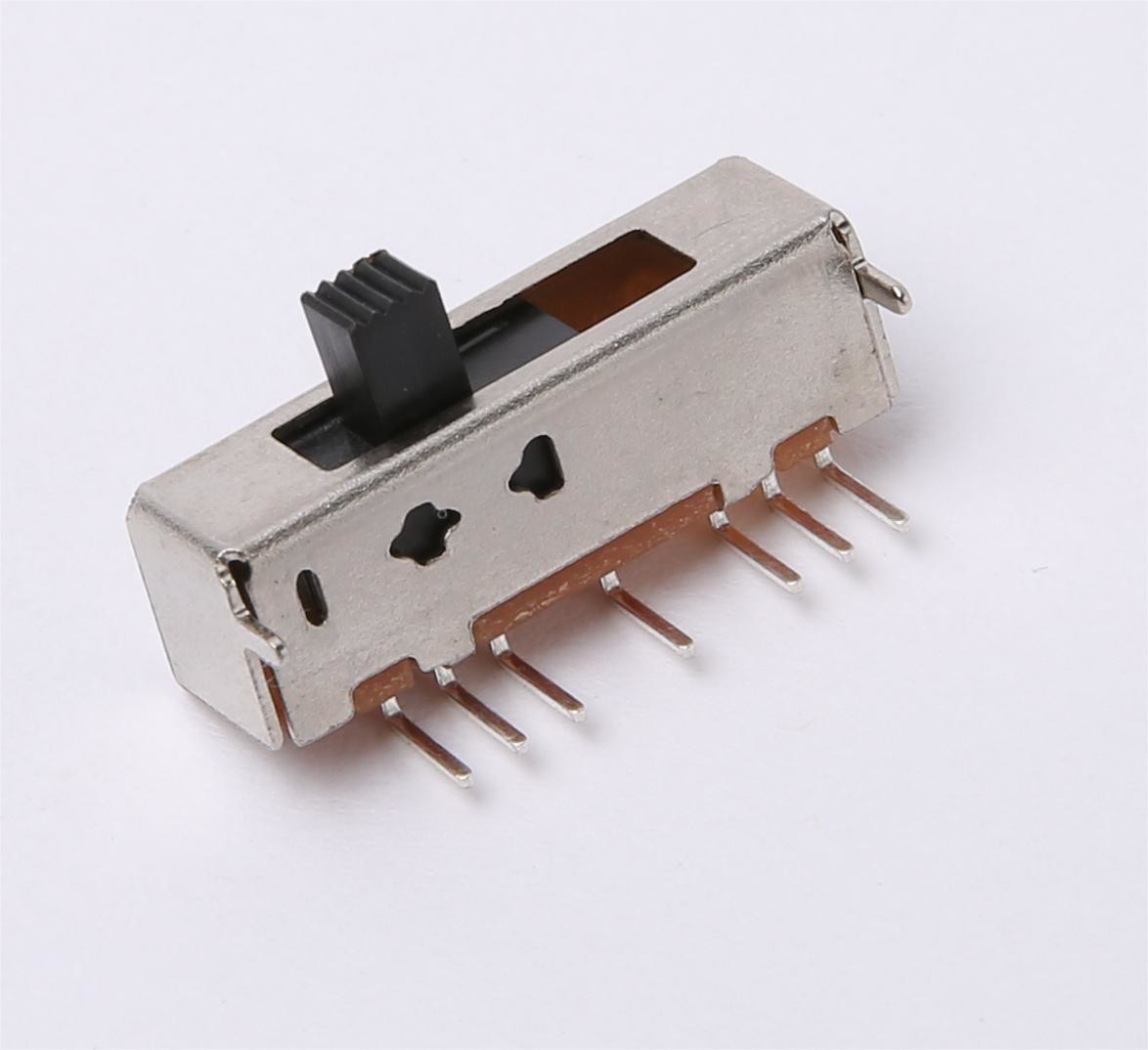

SS16D03 SPDT Slide Switch 1Pole 6 Position Side Slider PCB DIP Soldering Type
Product Description
SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T,1P3T,1P4T, 1P6T,2P4T ,2P5T functions.
Material and Finish Specifications:
Frame: CRS, Zinc Plated
Terminal:Brass ,Silver Plate
Terminal Base: Phenol Resin Yellow Color
Spring Plate: Copper Natural Color
Contact Clip: Copper , Silver Plated
Knob: PA
Product Features:
Complaint with RoHS Directive
Mini Type
Slide location: Side
Thourhg Hole Insert
Clear Click Sound
Smooth Slide performance
How to Order:
Material and Finish Spec.
Frame: SPCC, Zinc Plated
Knob: PA
Terminal:Brass ,Silver Plating
Terminal Base: Phenol Resin Yellow Color
Spring Plate: Copper Natural Color
Contact Clip: Copper , Silver Plating
Application of Slide Switches
Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including quick-connect, feeders, leads, screw terminals,welded terminals or surface mount technology, blade terminals,and panel mount switches.
Product Characteristics
| 1.Electrical Characteristics |
| Power Rate |
15 VDC,0.3A |
| Insulation Resistance |
100MΩ @ 500V DC |
| Contact Resistance |
100mΩ Max |
| Withstanding Voltage |
500V AC for 1 Minute |
| 2.Mechanical Characteristics |
| Operation Force |
200±100gf |
| Switch Slide Cycle |
Unloading 15-18 cycles per minute,10,000 cycles Min. |
Our Advantages
1.Design and prototype& automation basis in China’s manufacture center--Dongguan .
2.10+ dedicated and experienced engineers in R&D department.
3.Manufacture Center in Sichuan Province which is close to Yangzi River wharf and Chongqing Airport .
4.10+ production lines, 100+ experienced managers and workers.
5.Help customers quickly design their ideas into mass production solutions,and complete prototype design,development and verification.
