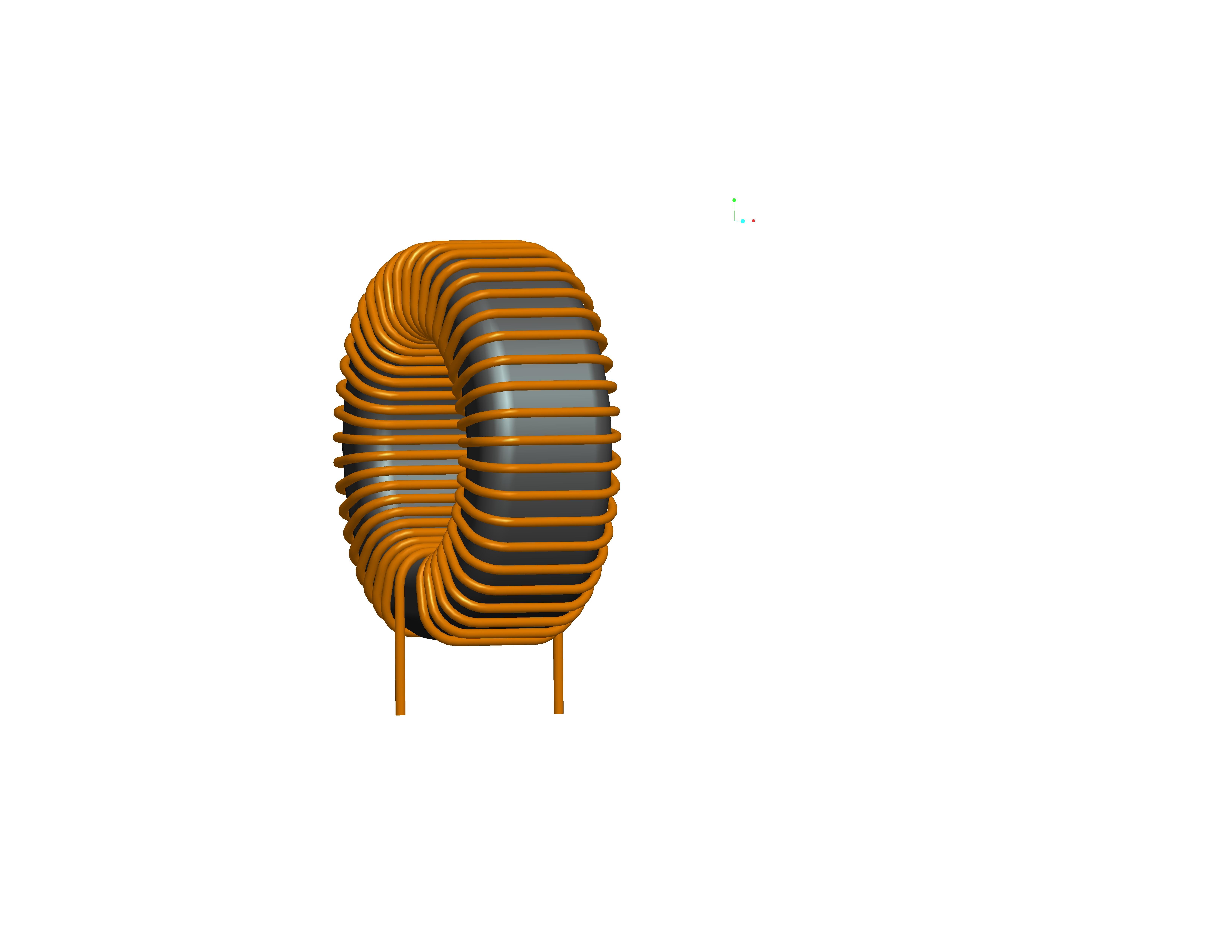

TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: TI-OR06
Minimum Order Quantity: 2000pcs
Price: USD1~USD1.50 per pc
Packaging Details: 2000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pcs per Month
Brand: SANNI Inductance: Customization
Toriodal Size: 25mm Toridal Material: Iron Core
Wire Material: Copper Mounting: Thourgh Hole Instert,Verital Mounting
High Light:

Toroidal Power Inductor Common Mode

,

Toroidal Power Inductor 25mm

,

Magnetic Toroidal Power Inductor

TI-OR07 Common Mode Choke Inductors Customizated 12mm Toroidal Magnetic Inductor



What is an inductor



The inductor consists of a coil of conducting material- insulated copper  wrapped around a core of a ferrimagnetic  material which is called an "iron core" inductor.

An inductor is characterized by its inductance, which is the ratio of voltage to the rate of change of current.





Product Features:



1.The inductance and wire spec will be customermized due to your requirement.

2.Magnetic Coil:12mm

3.Good thermal stability.

4.High operation frequency.

5.Low magnetic leakage.

6.Low DC resistance & Low loss.

7.High saturation materal & high efficiency.

8.Excellent current choking performance.

9.RoHS Complaint



Application of inductors



Inductors are widely used in analog circuits and signal processing. Applications range from the use of large inductors in power supplies, which along with filter capacitors remove multiples of the mains frequency of the DC output (or the switching frequency of a switch-mode power supply), to small inductors of ferrite beads or toris installed around the cable to prevent radio frequency interference in transmission along the wire.In many switching power supplies, the inductor acts as an energy storage device to produce DC current. The inductor powers the circuit, keeps the current flowing during the "off" switch, and makes possible a topology in which the output voltage is higher than the input voltage.

TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 0










TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 1











TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 2TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 3TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 4TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 5TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 6TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 7

TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 8

TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 9TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 10TI-OR07 Toroidal Power Inductor Common Mode With 25mm Magnetic Coil 11
