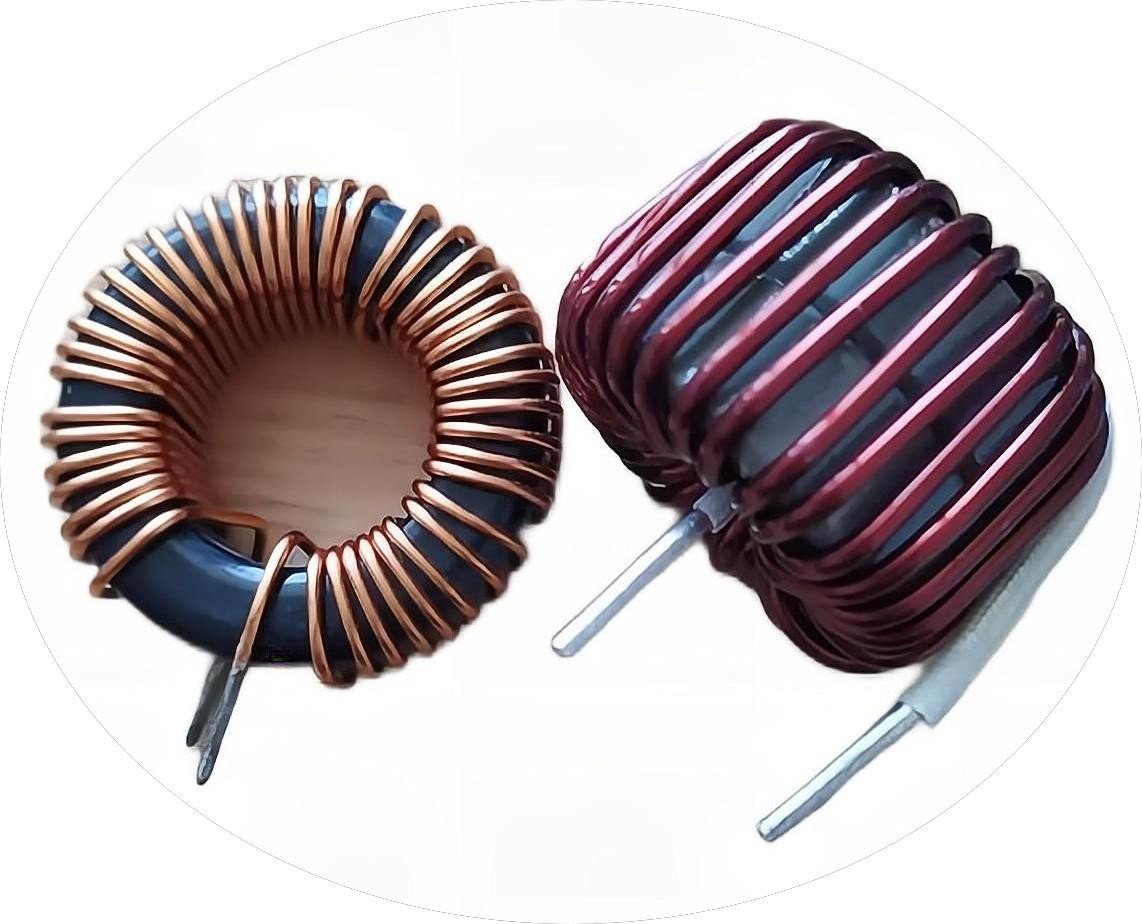

Magnetic Toroidal Core Inductor Common Mode Iron Core Material

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: TI-OR06
Minimum Order Quantity: 2000pcs
Price: USD0.4~USD1.50 per pc
Packaging Details: 2000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pcs per Month
Brand: SANNI Inductance: Customization
Toridal Material: Iron Core Toriodal Size: 5mm,10mm,15mm,20mm,25mm And Others
Wire Material: Copper Mounting: PCB DIP Through Hole Mount
High Light:

Magnetic Toroidal Core Inductor

,

Toroidal Core Inductor Common Mode

,

Iron Toroidal Core Inductor

Common Mode Choke Inductor Customizated Toroidal Magnetic Coil



What is an inductor



An inductor is characterized by its inductance, which is the ratio of voltage to the rate of change of current.

The inductor consists of a coil of conducting material- insulated copper  wrapped around a core of a ferrimagnetic  material which is called an "iron core" inductor.





Product Features:



1.The inductance and wire spec will be customermized due to your requirement.

2.Magnetic Coil:12mm

3.High quanlity choke and inductor.

4.Good thermal stability.

5.High operation frequency.

6.Low magnetic leakage.

7.Low DC resistance & Low loss.

8.High saturation materal & high efficiency.

9.Excellent current choking performance.

10.Shape type : horizontal ,vertical, with/without coil base and shielded/unshielded.

11.RoHS Complaint



Application of inductors



Inductors are widely used in analog circuits and signal processing. Applications range from the use of large inductors in power supplies to small inductors of ferrite beads or toris installed around the cable to prevent radio frequency interference in transmission along the wire.

Inductors are usually used in tuning circuits, induction motors,or used as sensors, filters,chokes,ferrite beads,or used as relays.








Magnetic Toroidal Core Inductor Common Mode Iron Core Material 0











Magnetic Toroidal Core Inductor Common Mode Iron Core Material 1Magnetic Toroidal Core Inductor Common Mode Iron Core Material 2Magnetic Toroidal Core Inductor Common Mode Iron Core Material 3Magnetic Toroidal Core Inductor Common Mode Iron Core Material 4Magnetic Toroidal Core Inductor Common Mode Iron Core Material 5Magnetic Toroidal Core Inductor Common Mode Iron Core Material 6

Magnetic Toroidal Core Inductor Common Mode Iron Core Material 7

Magnetic Toroidal Core Inductor Common Mode Iron Core Material 8Magnetic Toroidal Core Inductor Common Mode Iron Core Material 9Magnetic Toroidal Core Inductor Common Mode Iron Core Material 10
