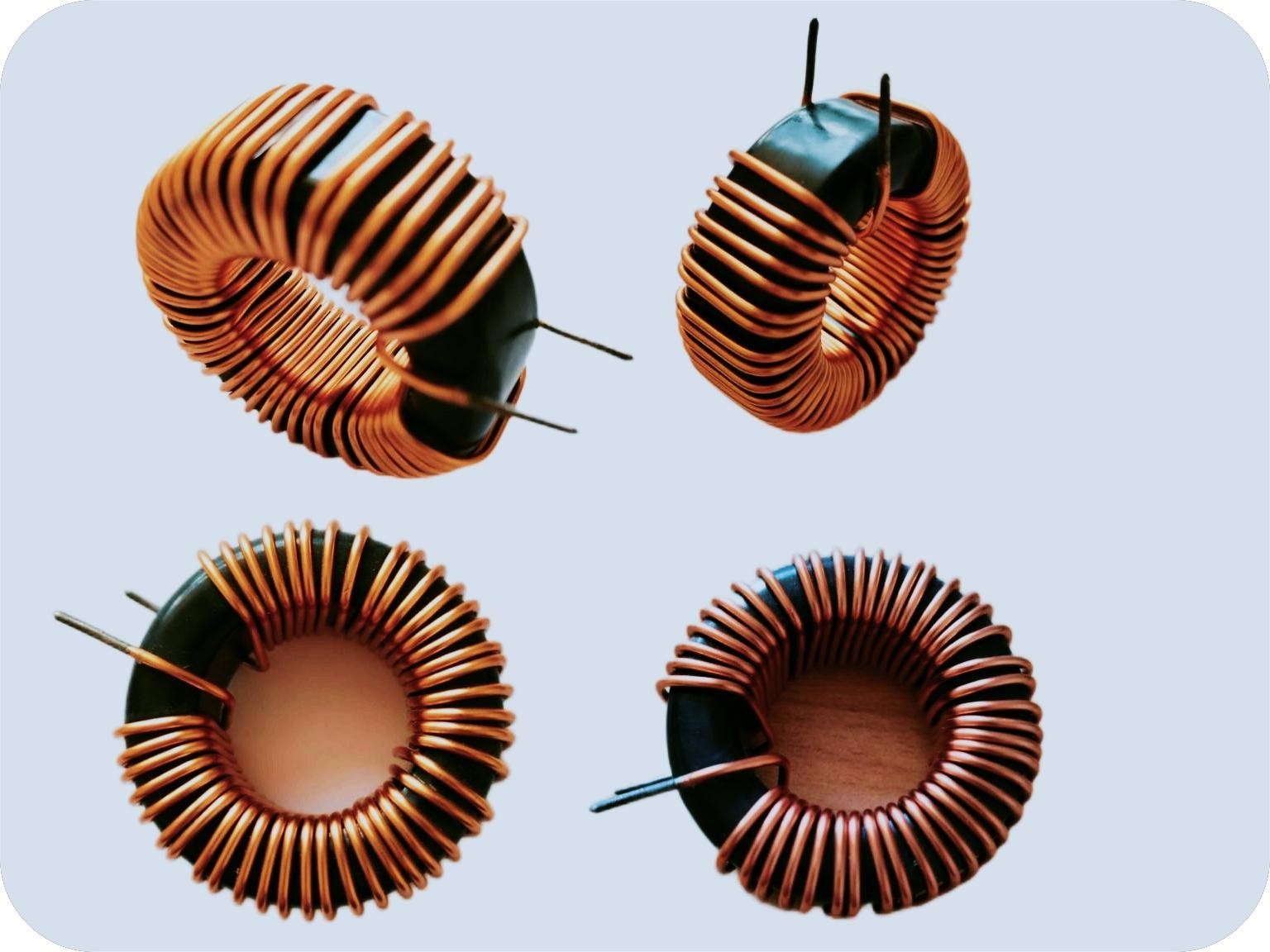

Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: TI-OR
Minimum Order Quantity: 2000pcs
Price: USD0.4~USD1.50 per pc
Packaging Details: 2000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pcs per Month
Inductance: Customization Brand: SANNI
Toridal Material: Megnatic Core Toriodal Size: 10mm,15mm,20mm,25mm Etc...
Mounting: PCB DIP Insert Wire Material: Copper
High Light:

Common Mode Choke Inductor Toroidal

,

PCB Common Mode Choke Inductor

,

Customization toroidal choke

Common Mode Choke Inductors Customization Toroidal Inductor



What is an inductor



An inductor is characterized by its inductance, which is the ratio of voltage to the rate of change of current.

The inductor consists of a coil of conducting material- insulated copper  wrapped around a core of a ferrimagnetic  material which is called an "iron core" inductor.





What is inductance?



Inductance is the tendency of an electrical conductor to oppose changes in the current flowing through it. L stands for inductance, and Henry is the SI unit of inductance.





Product Features:



1. Complaint to RoHS

2. Wire Spec: Customization

3. Inductance: Customization

4. Magnetic Coil:Customize

5. High operation frequency.

6. High quanlity choke and inductor.

7. Low magnetic leakage.

8. Good thermal stability.

9. Low DC resistance & Low loss.

10. Excellent current choking performance.

11. High saturation materal & high efficiency.



Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 0

Application of inductors



Inductors are widely used in analog circuits and signal processing. Applications range from the use of large inductors in power supplies to small inductors of ferrite beads or toris installed around the cable to prevent radio frequency interference in transmission along the wire.

Inductors are usually used in tuning circuits, induction motors,or used as sensors, filters,chokes,ferrite beads,or used as relays.



Inductors charactor



The flow of current produces a magnetic field, and the change in the magnetic field produces the opposite current.

Convert electrical energy into magnetic energy and store it.

Direct current can pass through, but alternating current does not pass easily at higher frequencies.








Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 1

Our Advantage



1.Design and prototype automation basis in Dongguan which is the manufacturing center of South China.

2.10+ dedicated and experienced engineers and designers in R&D department.

3.Manufacture Center in Sichuan Province which is close to Yangzi River wharf and Chongqing Airport .

4.10+ production lines, 100+ experienced managers and workers.

5.Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.









Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 2Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 3Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 4Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 5Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 6Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 7

Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 8

Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 9Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 10Customization Toroidal Common Mode Choke Inductor With PCB DIP Insert 11
