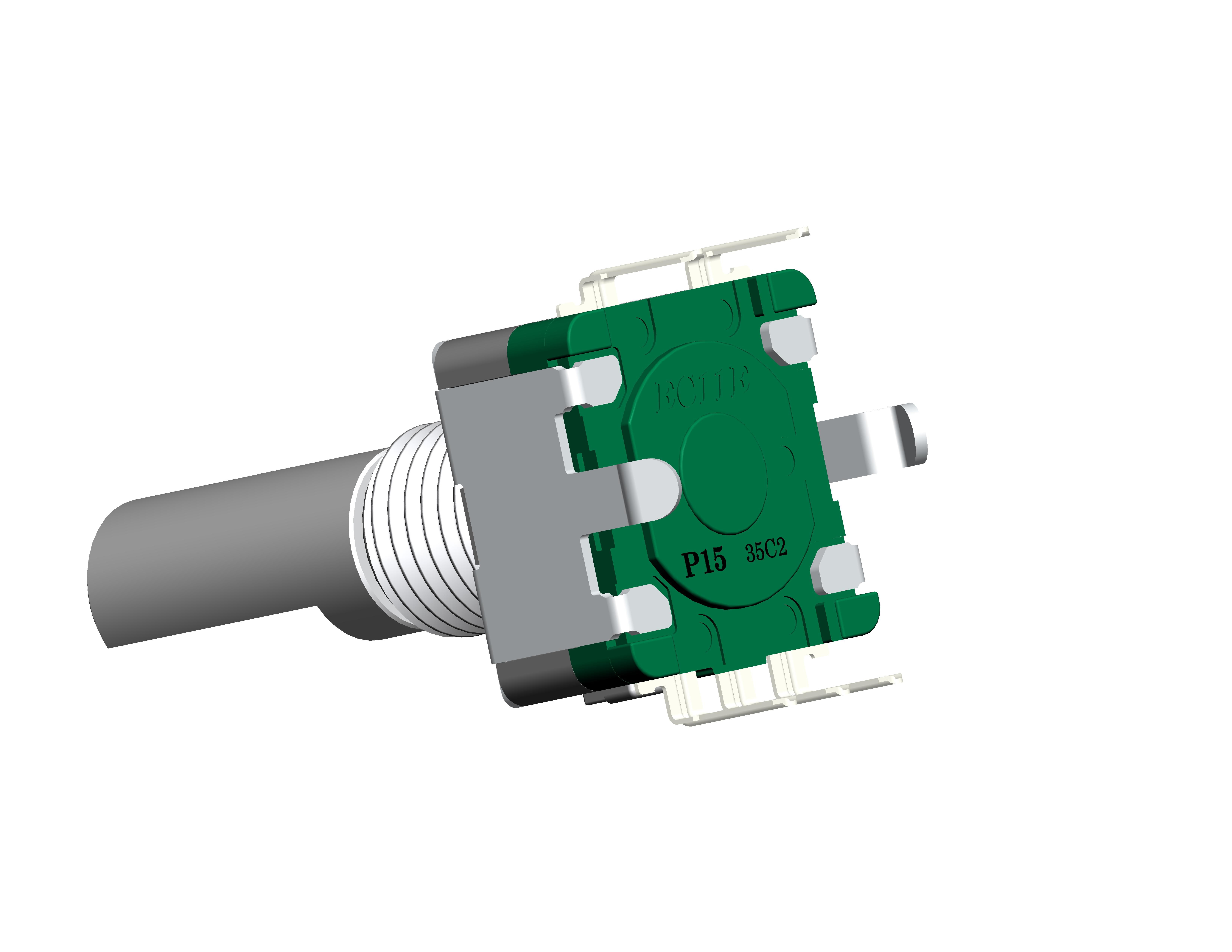

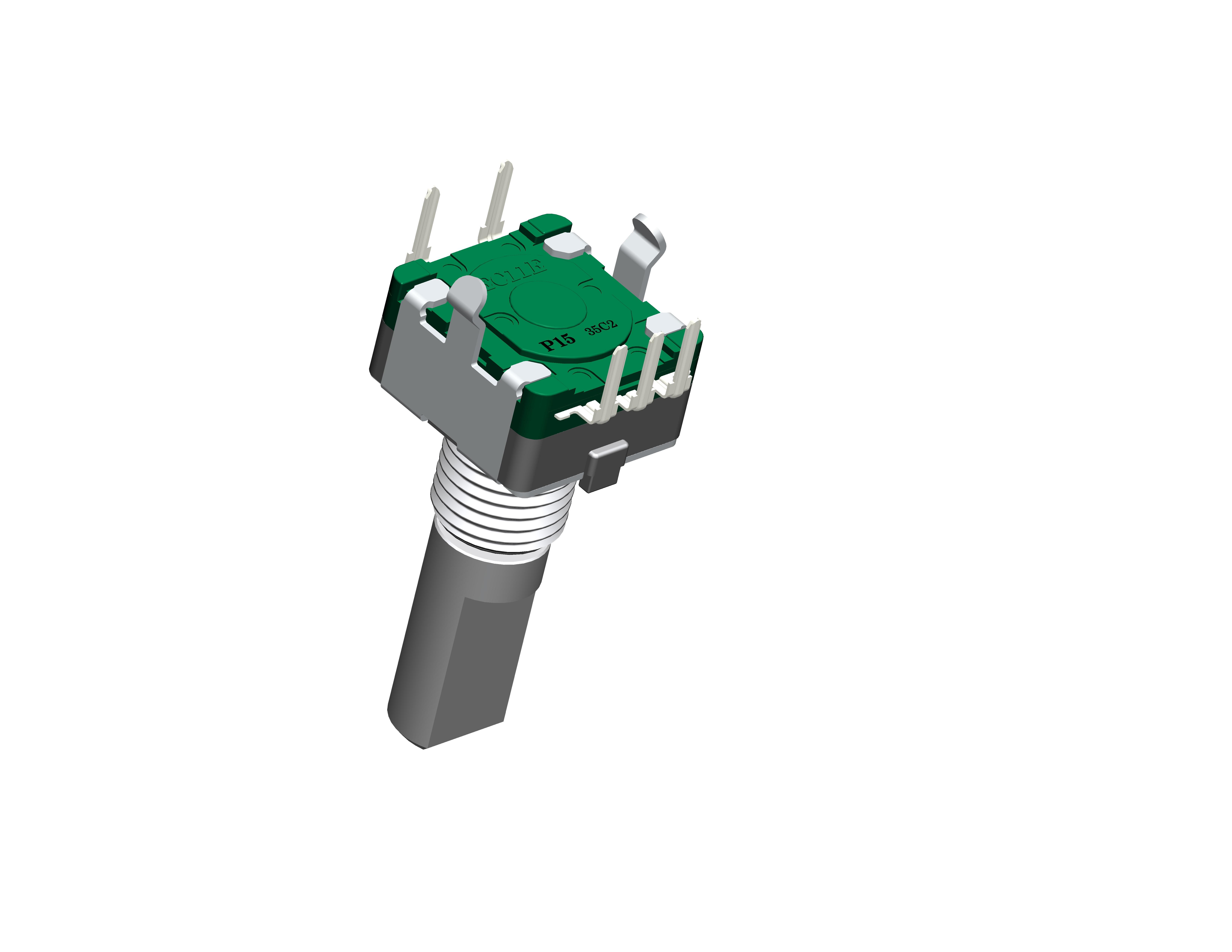

Description
Incremental encoders convert the displacement into periodic electrical signals, which are then converted into counting pulses. The number of pulses represents the displacement.
The rotating incremental encoder outputs the pulse when rotating, and knows its position through the counting device. When the encoder is not moving or the power is off, it remembers the position by relying on the internal memory of the counting device.
Specification
| Mechanical characteristics |
| Stopper strength |
3kgf.max |
| Rotational torque: |
20~200gf.cm |
| push-pull strength: |
8Kgf.max |
| Rotational stopper strength : |
3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| Detent: |
30 |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent |
15 |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Environmental performance |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
| Switch Performance |
| Rated power: |
0.1A 5V DC |
| Switch Torque: |
500± 200gf.cm max |
| Switch Angle: |
0.5± 0.3 |
| Circuit number: |
PUSH |
| Voltage proof: |
300V AC for 1 minute |
| Operating life without load: |
100,000 cycles 100mΩ max |
| Operating life with load: |
100,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
Features
1.Highly reliable performance sealed design encoder .
2. Push switch with 0.5mm travel ,1.5mm travel available.
3. Shaft length and shape can be adjusted.
4. Vertical mount
5. Compliant with RoHS
6. Small Volume
Application
Incremental encoder is normally used to measure rotation direction,acceleration, angle,speed and so on. Widely used in waching machine, CNC machine tools, elevator, flow meter, servo motor, textile machine, metallurgical machine, printing and packaging machine, injection machine, automatic instruments and other industrial automation measurement and control field.
Our Factory
Dongguan SANNI Electronics Technology Co., Ltd. factory covers 1,2000 square meters facility with 180+ employees, have more than 10 years of experiences in manufacture and design of potentiometer, encoder, switch .... We have professinal and good technical and sales teams to serve your needs.
Our Advantage
1. 10+ automation production lines, more than 100 experienced workers for higher precision products.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. Professional testing equipment and team to ensure product quality.
4.Support ODM/OEM customization service. Help customers quickly tranfer their design ideas into mass production solutions, and complete prototype design, development and verification.
Our Services
1. Offer free samples
2. Offer 1 year warranty
3. OEM/ODM service available to meet all your needs
4. 24 hours online service to reply your inquiries
5. Strong R&D team for technical support
FAQ
1 Q: Can I get samples from you?
A: Yes, we can provide free samples, please contact us freely and tell us your needs.
2 Q: Do you accept customize service?
A: Yes, customization is acceptable, please contact our sales staffs for details.
3 Q: Can you provide technical support?
A: Yes, we have more than 10 years of research and development in the electronic industry. If you need technical support in the purchase process, please feel free to contact us.
